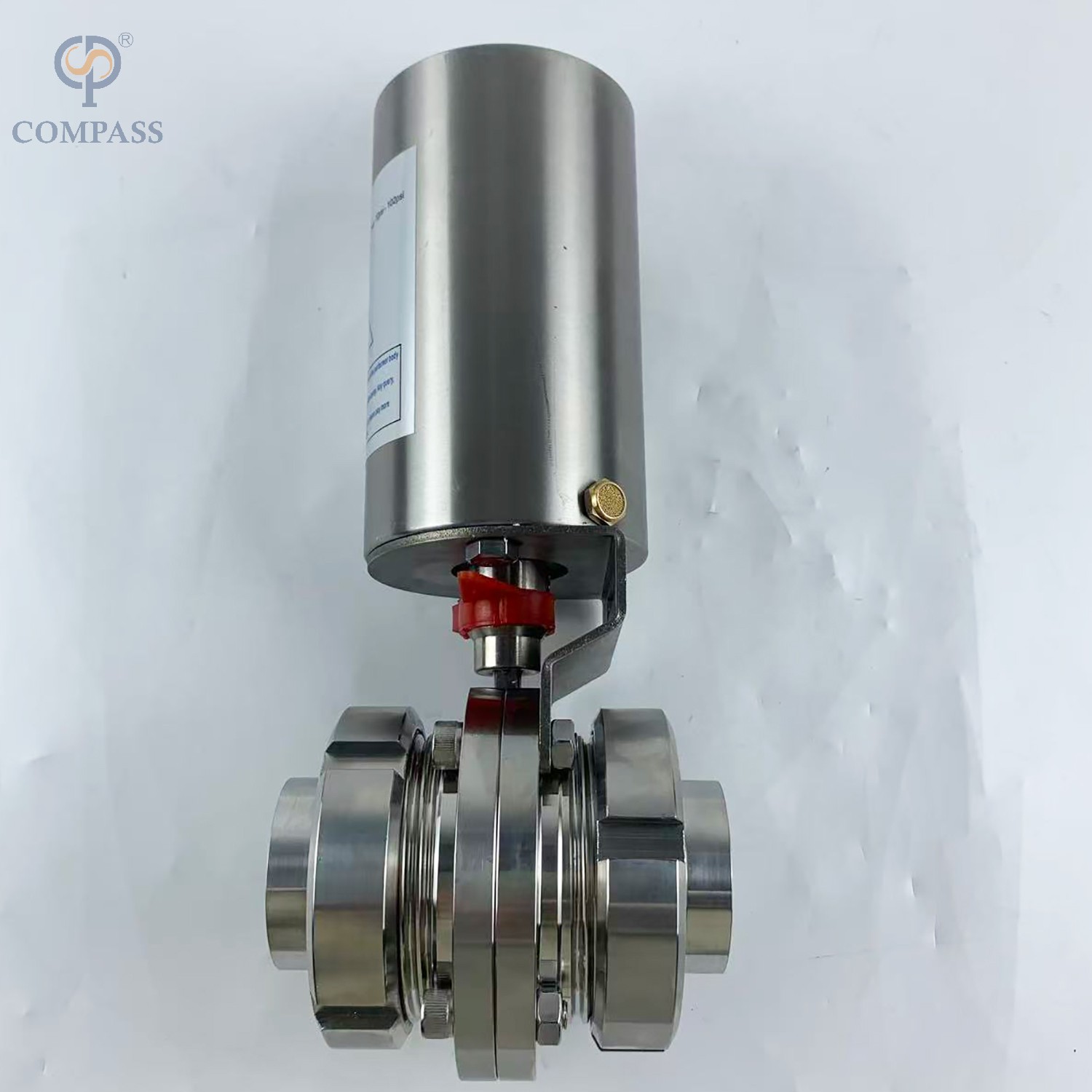

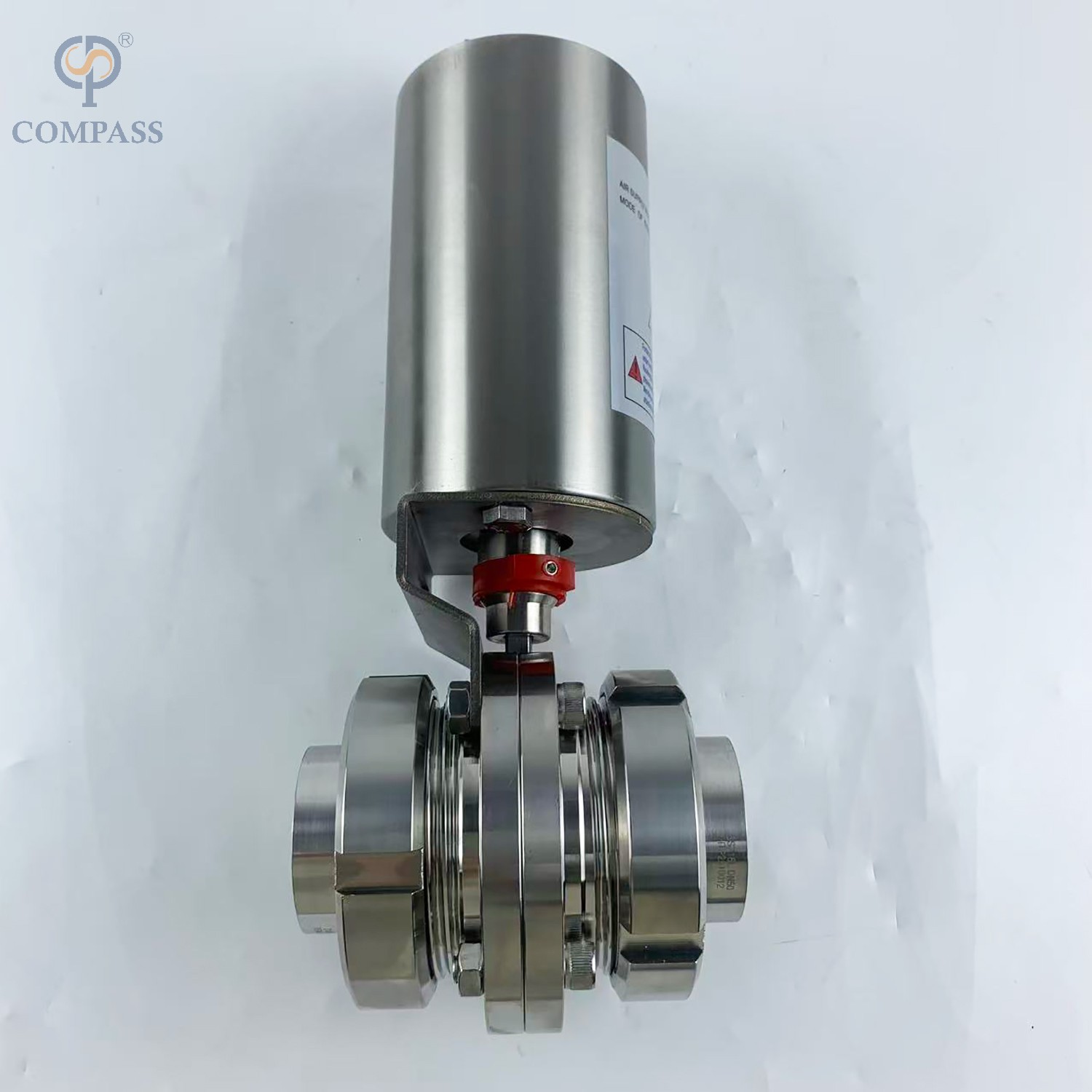

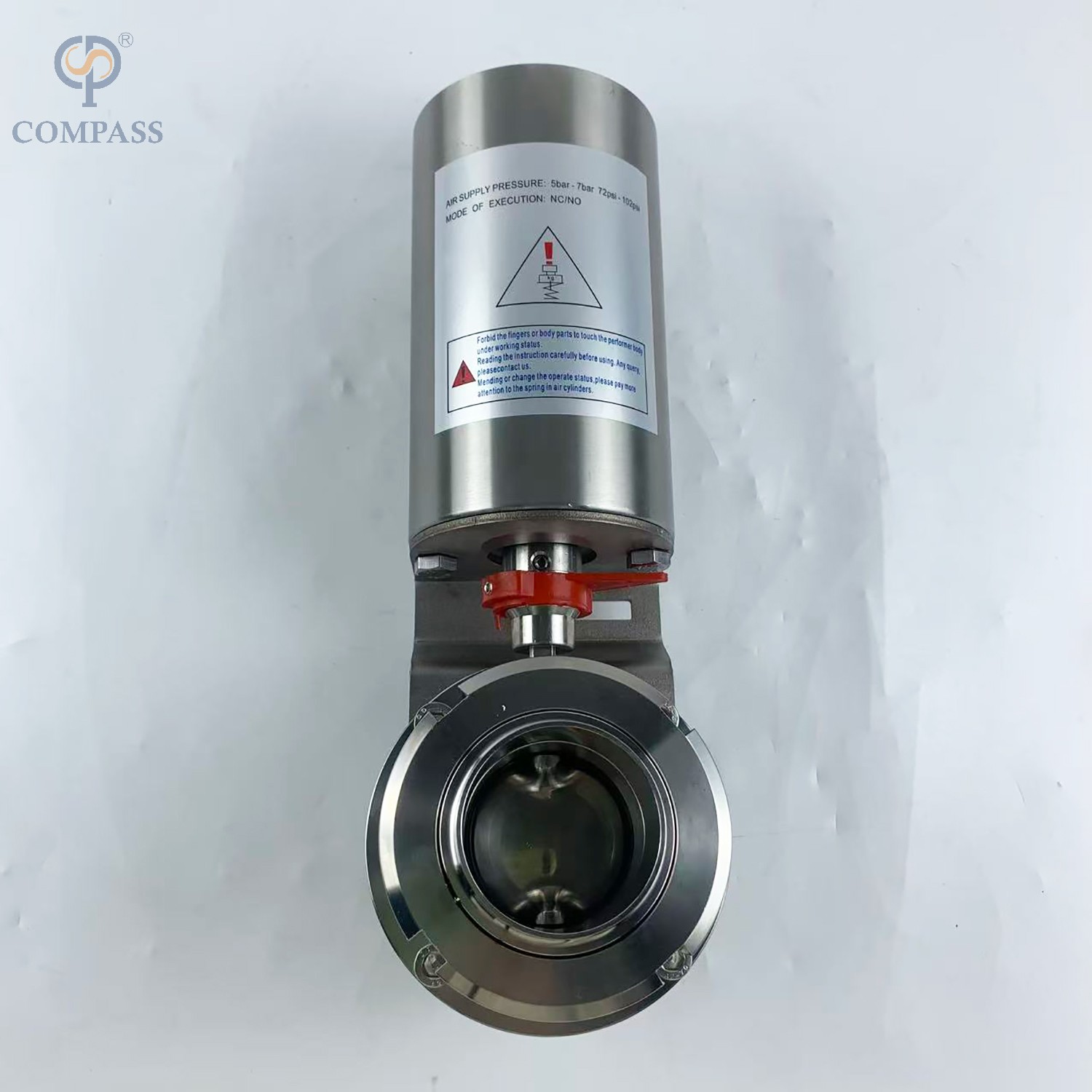

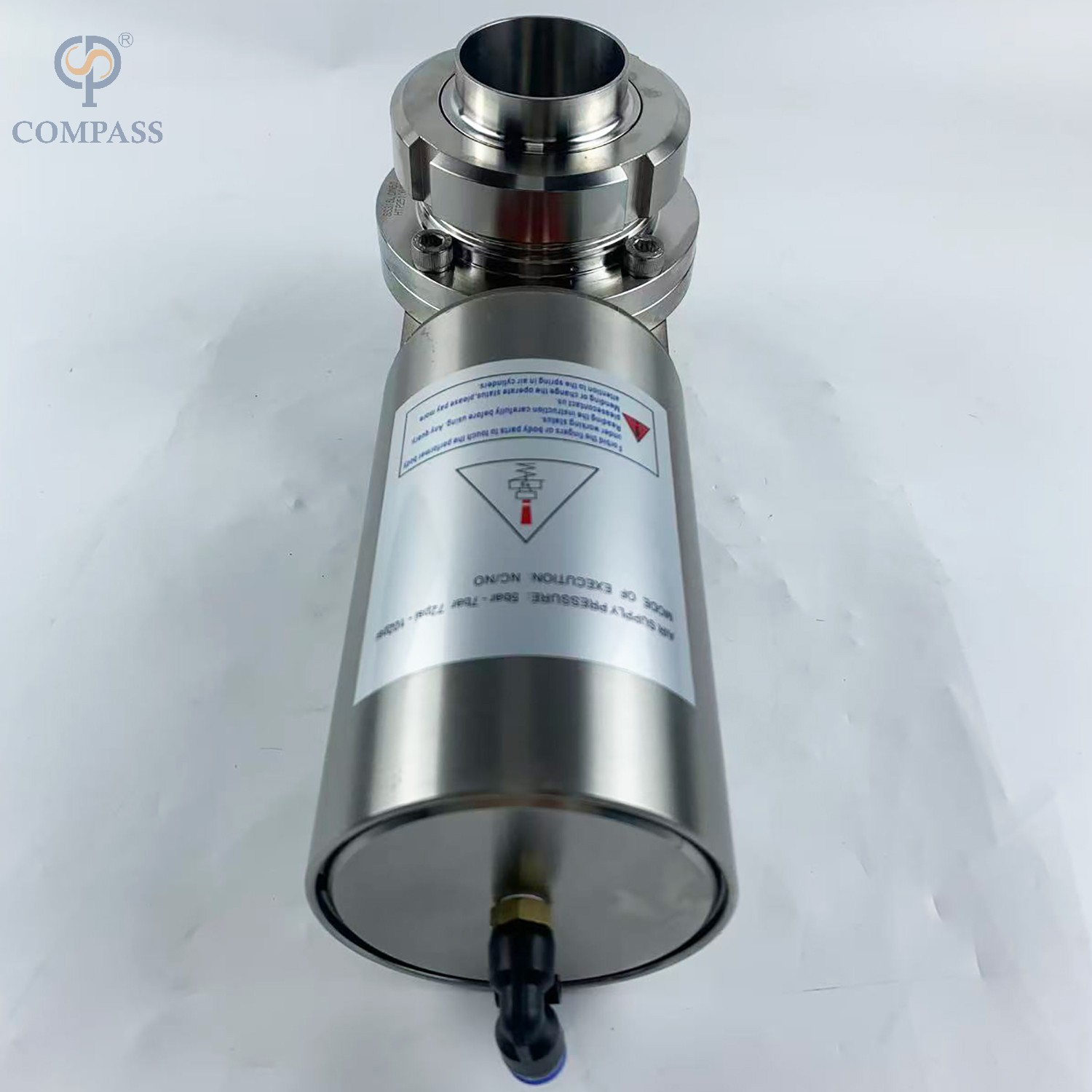

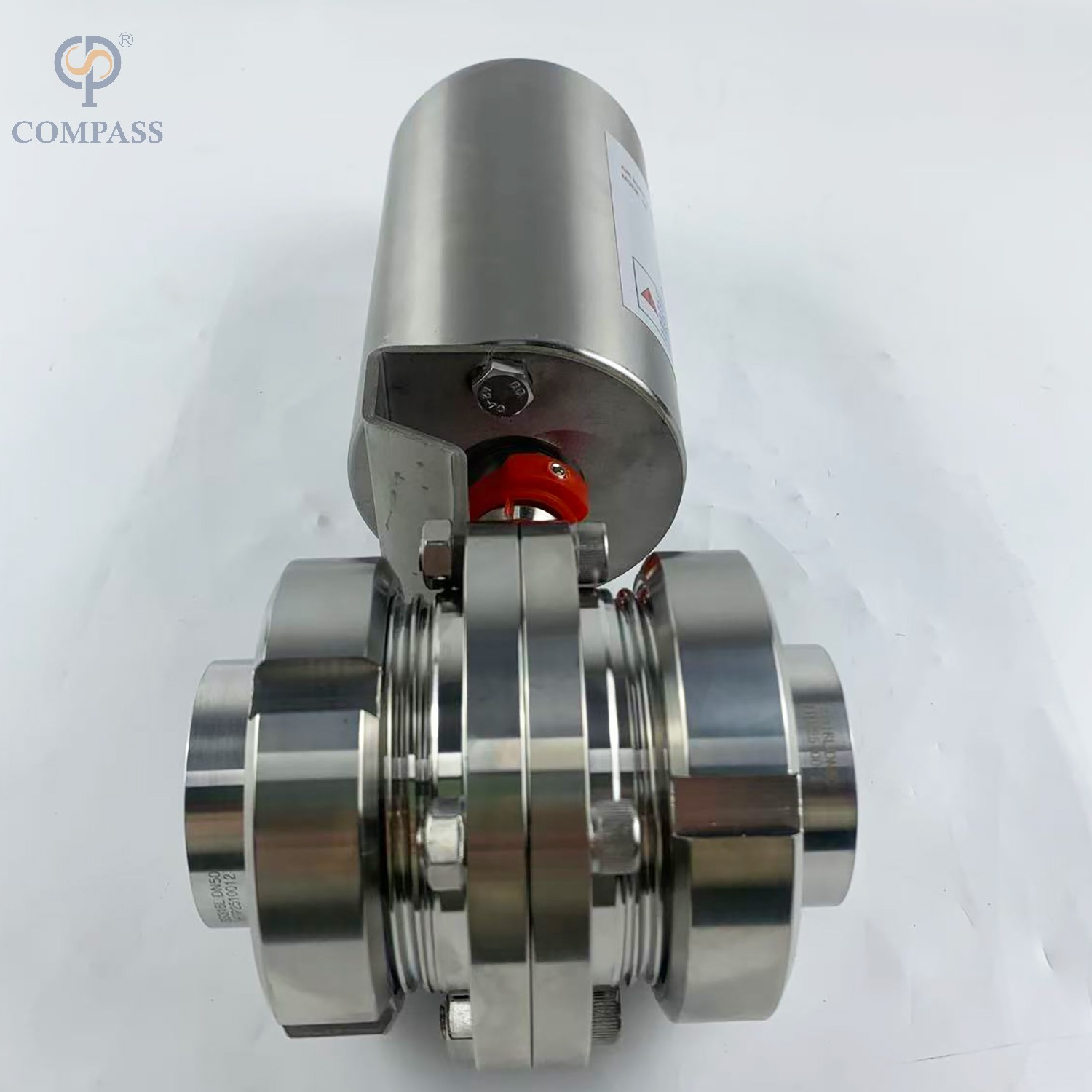

Main Parameter
Standard | SMS,DIN |
Material Contact Parts | SS304(1.4301)/SS316L (1.4404) | Provided with material inspection report |
Material Non-contact Parts | SS304(1.4301) |
Application | Powder, Particle, Capsule |
Size | 4 to 12", DN1100 to DN300 |

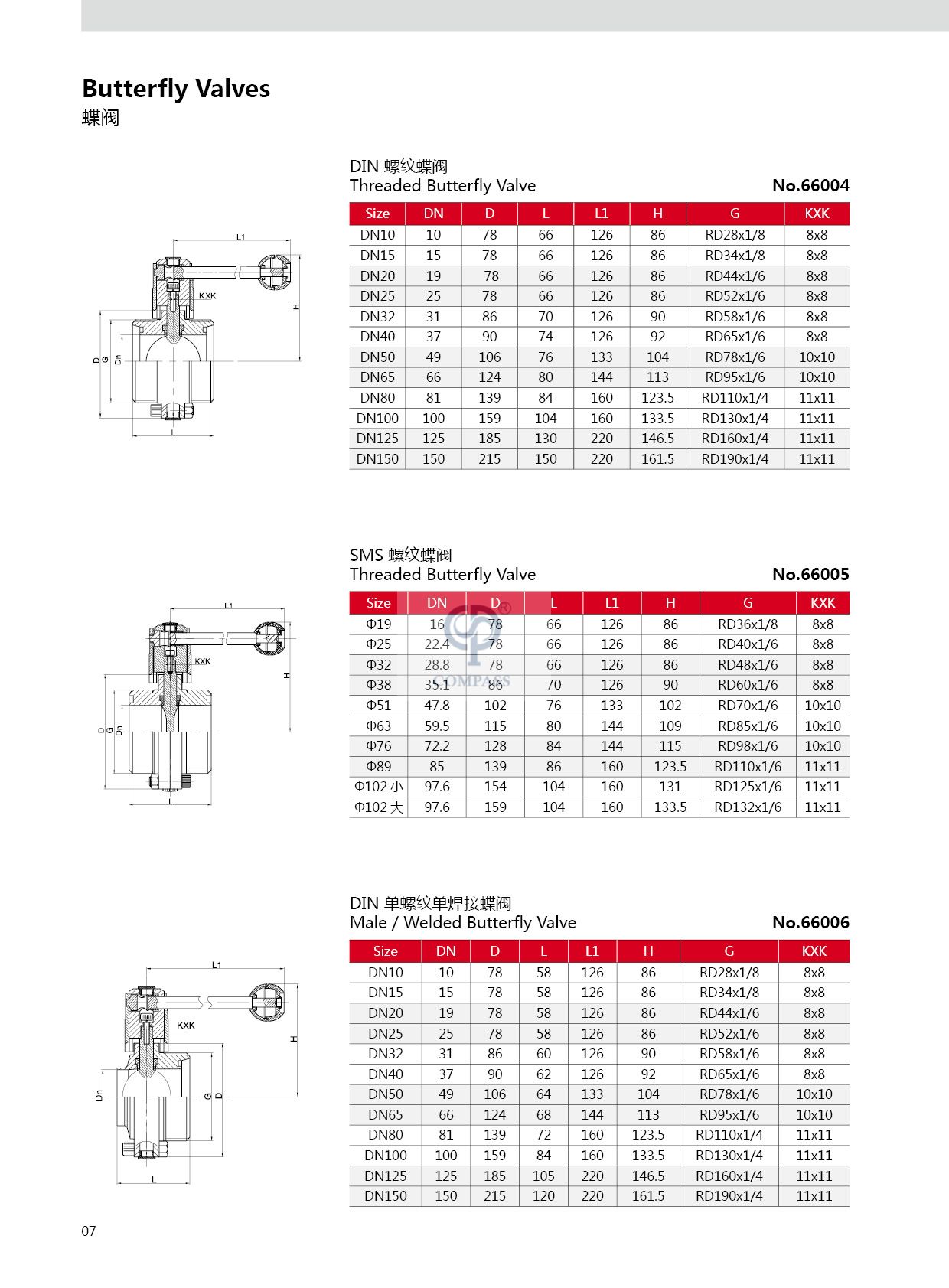

Connection | Butt-weld,Tri-clamp,Male Thread,Female-Male Threaded,Union,Weld-Thread,Flange |
Seal Material | Silicone,EPDM,FKM,Buna,All seals material comply with FDA21CFR117.2600 |
Drive Option | Manual Stainless Steel Handle |
SS Pneumatic Actuator (air/spring, air/air) |
Aluminum Pneumatic Actuator (air/spring, air/air) |
Electric Actuator (on-off, adjustable) |
Drive Option | C-top Controller, C-top Controller (AS-I) |
Max. Working Pressure | ≤16bar (232psi) |
Min. Working Pressure | 0.2bar (2.9psi) |
Supply Pressure for Air Actuator | 5~8 (72.52psi~116psi) |
External Surface Treatment | Ra32~64uin(0.8~1.6um) |
Internal Surface Treatment | Ra16~32uin(0.4~0.8um) |
Temperature range | -20~130 ºC (up to Seat Seal) |

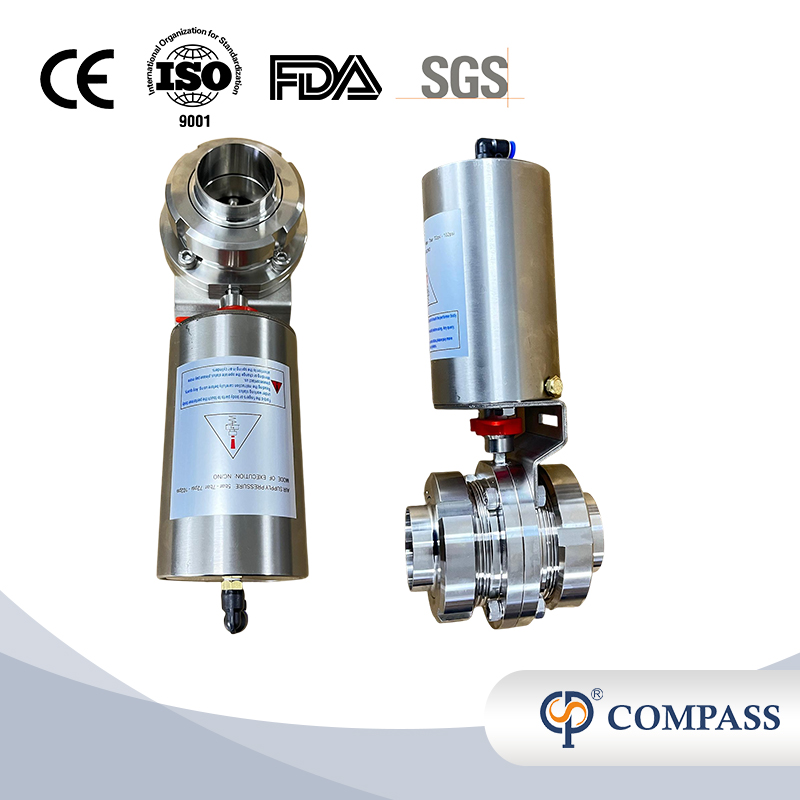

Certificate | ISO 9001, FDA, SGS, CE |
Technical Specifications
Max. pressure: 10bar
Min. pressure: 0.2bar
Temperature range:
EPDM: -5 ~ 212°F(-20 ~ 100ºC)
Silicone: -31 ~ 248°F(-35~ 120ºC)
FKM:10~ 392°F(-12.2 ~ 200ºC)
Other materials are Available upon request
Options
1.The gasket can be Silicone,EPDM,FKM,Buna,PTFE. All seals material comply with FDA21CFR117.2600
2.Connection can be Butt-weld,Tri-clamp,Male Thread,Female-Male Threaded,Union,Weld-Thread,Flange or others upon request.
3.Manual handle includes of 2-position SS Pull Handle, 3-position SS Pull Handle, 4-position SS Pull Handle, Multi-position Plastic Gripper Handle, Multi-position SS Gripper Handle.

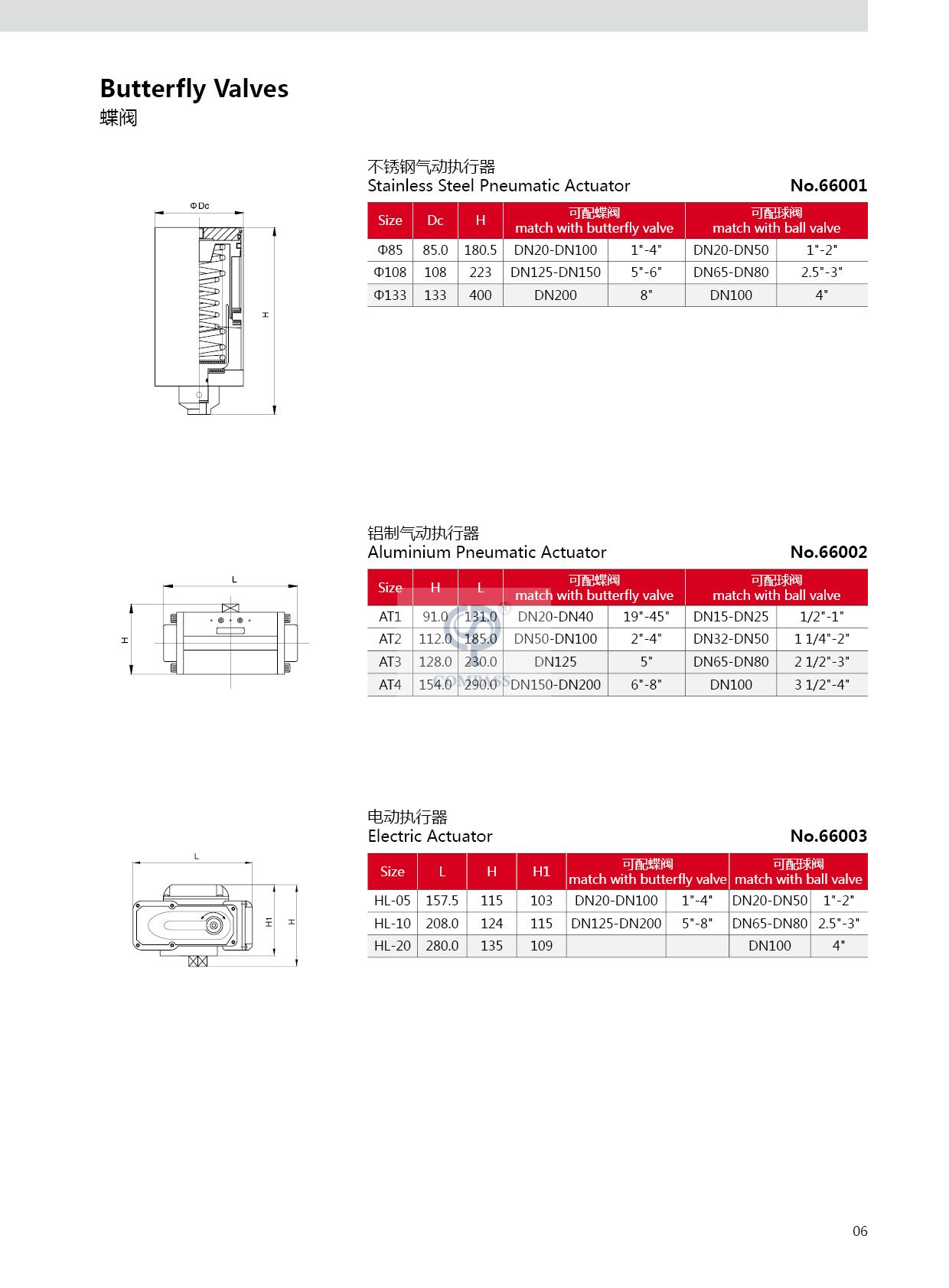

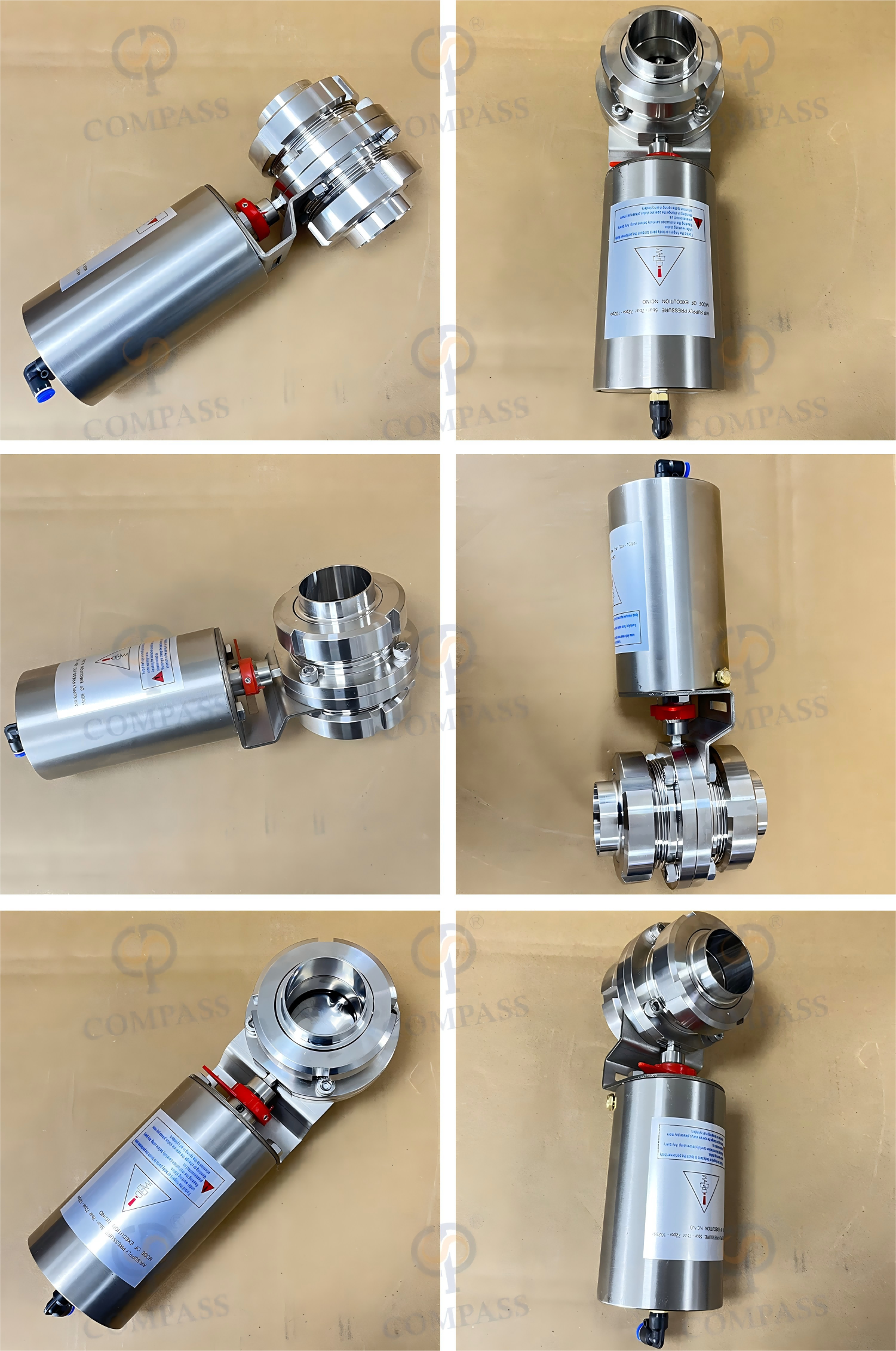

4. Actuator: SS Pneumatic Actuator, Aluminum Pneumatic Actuator, Electric Actuator Control: Position Sensor, C-top Controller,C-top Controller (AS-I)
5. Pneumatic head: Normally Closed(NC)-Air to Open,Spring to Close, Normally Open(NO)-Air to Close,Spring to Open, Air to Air(AA)-Air to Open, Air to Close
Design Features
1.Various standards can be provided: SMS,DIN,3A
2.Available in sizes from 1/2"to 12",DN10 to DN300
3.Multi position handles can be used for valves up to DN150 / 6"
4.Pull handles can be used for valves from DN25 / 1" to DN300 / 12"
5.Pneumatic actuator and electric actuator are interchangeable.
6.Pneumatic actuator can be double acting or single acting
7.Seals comply with FDA 21CFR 177. 2600.
8.The valve body can be customized with a wide selection of different connections.
How to Order ?
1. What's products used for powder butterfly valves?
2.What's standard for butterfly valve? Such as DIN, SMS
3.What's material quality? Such as SS304 and SS316L for optional
4.What's size? The available size is from 4inch to 12inch, DN100 to DN300
5.What's connection end? Such as Butt Weld, Tri Clamp, Flanged
6.What's working principle, such as manual, pneumatic, control head ?
7.What's material of seal, such as silicone, EPDM ?
