Specification
Standard | SMS,DIN |
|
Material Contact Parts | SS304(1.4301)/SS316L (1.4404) |
Provided with material inspection report |
|
Material Non-contact Parts | SS304(1.4301) |
|

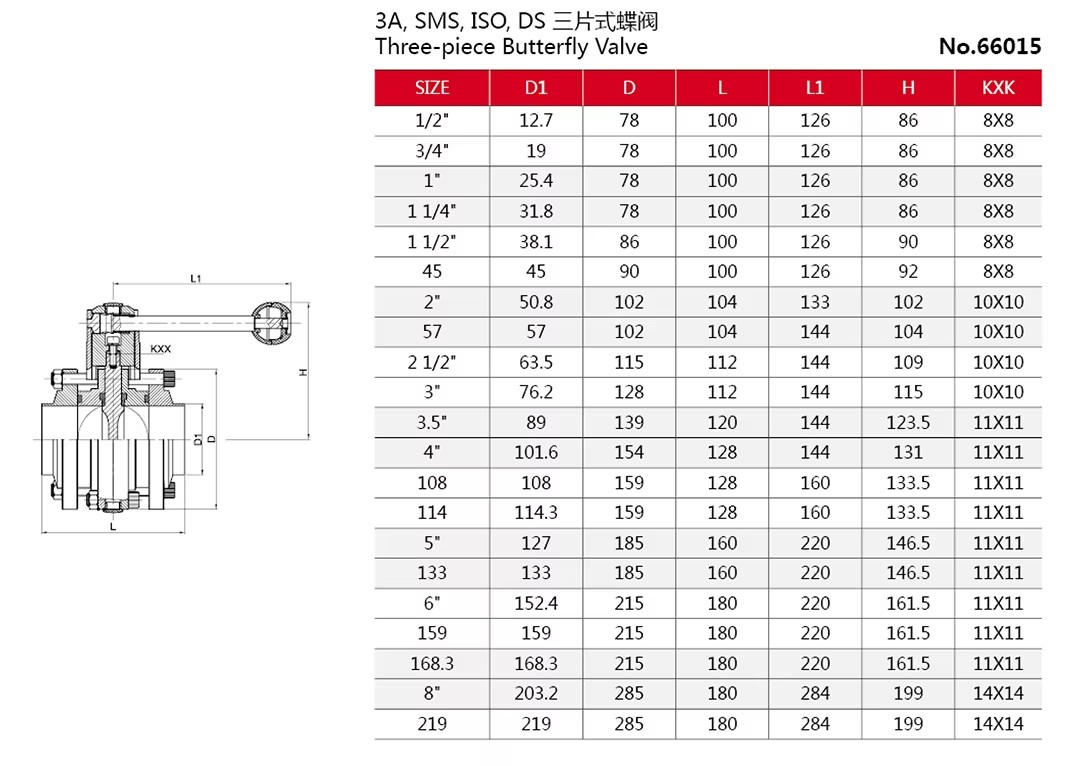

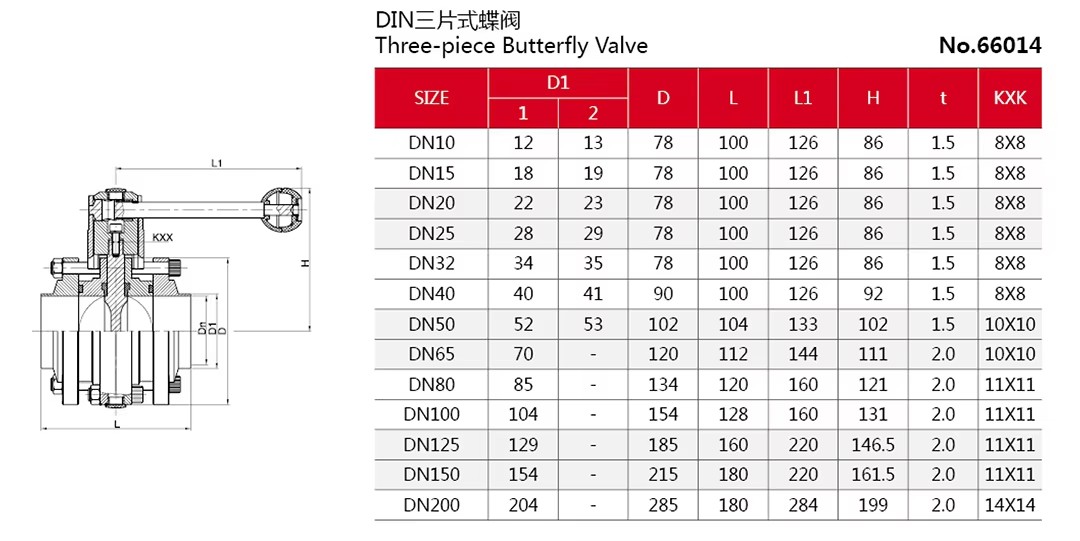

Size | 1/2 to 12inch, DN10 to DN300 |
|
Connection | Butt-weld,Tri-clamp,Male Thread,Female-Male Threaded,Union,Weld-Thread,Flange |
|
Seal Material | Silicone,EPDM. All seals material comply with FDA21CFR117.2600 |
|

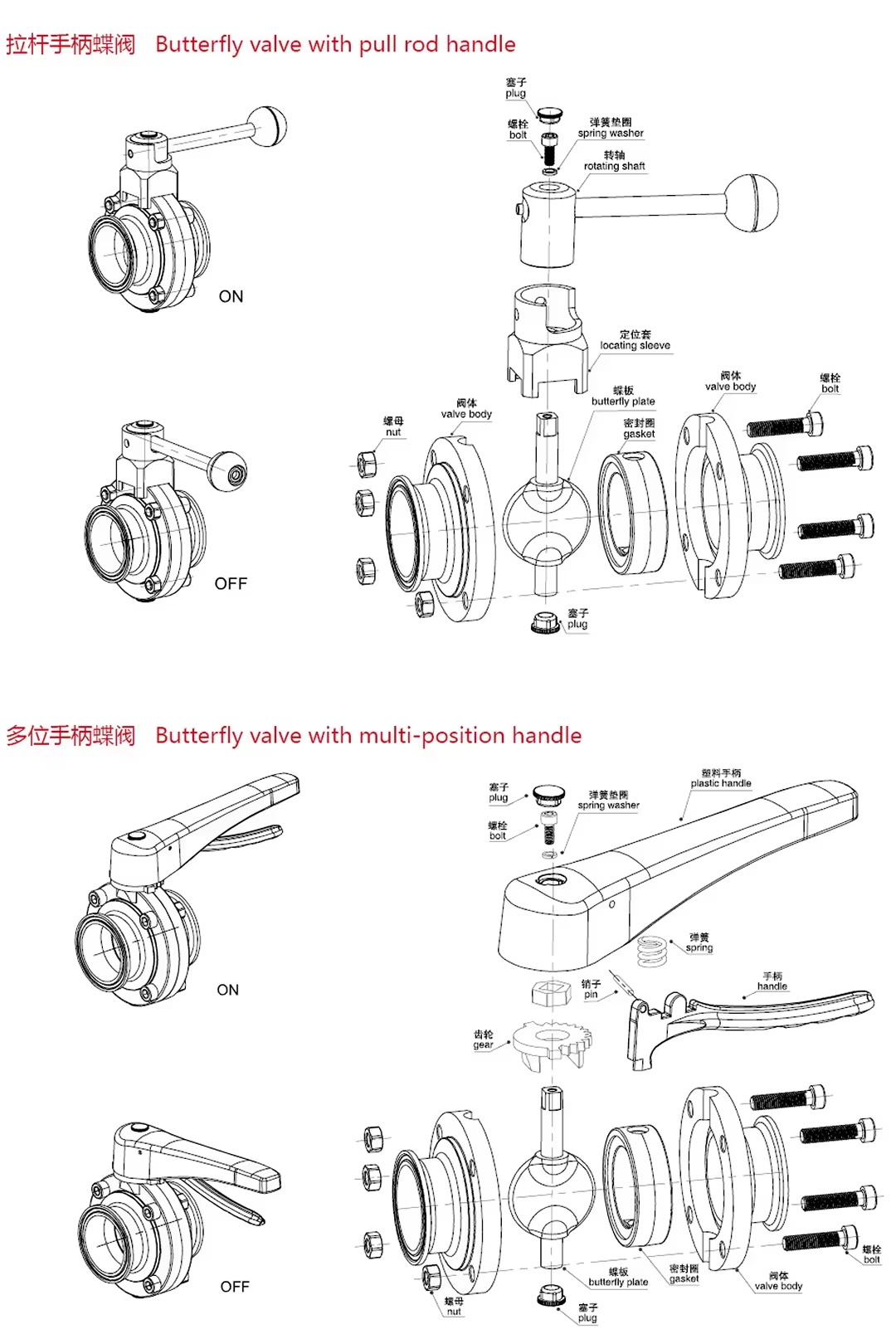

Drive Option | 2-position SS Pull Handle, 3-position SS Pull Handle, 4-position SS Pull Handle, Multi-position Plastic Gripper Handle, Multi-position SS Gripper Handle |
|
SS Pneumatic Actuator, Aluminum Pneumatic Actuator, Electric Actuator |
|
Position Sensor, C-top Controller, C-top Controller (AS-I) |
|
Working Pressure | ≤10bar(145psi) |
|
Supply Pressure for Air Actuator | 5~8(72.52psi~116psi) |
|
Internal Surface Treatment | Ra16~32uin(0.4~0.8um) |
|
External Surface Treatment | Ra32~64uin(o.8~1.6um) |
|

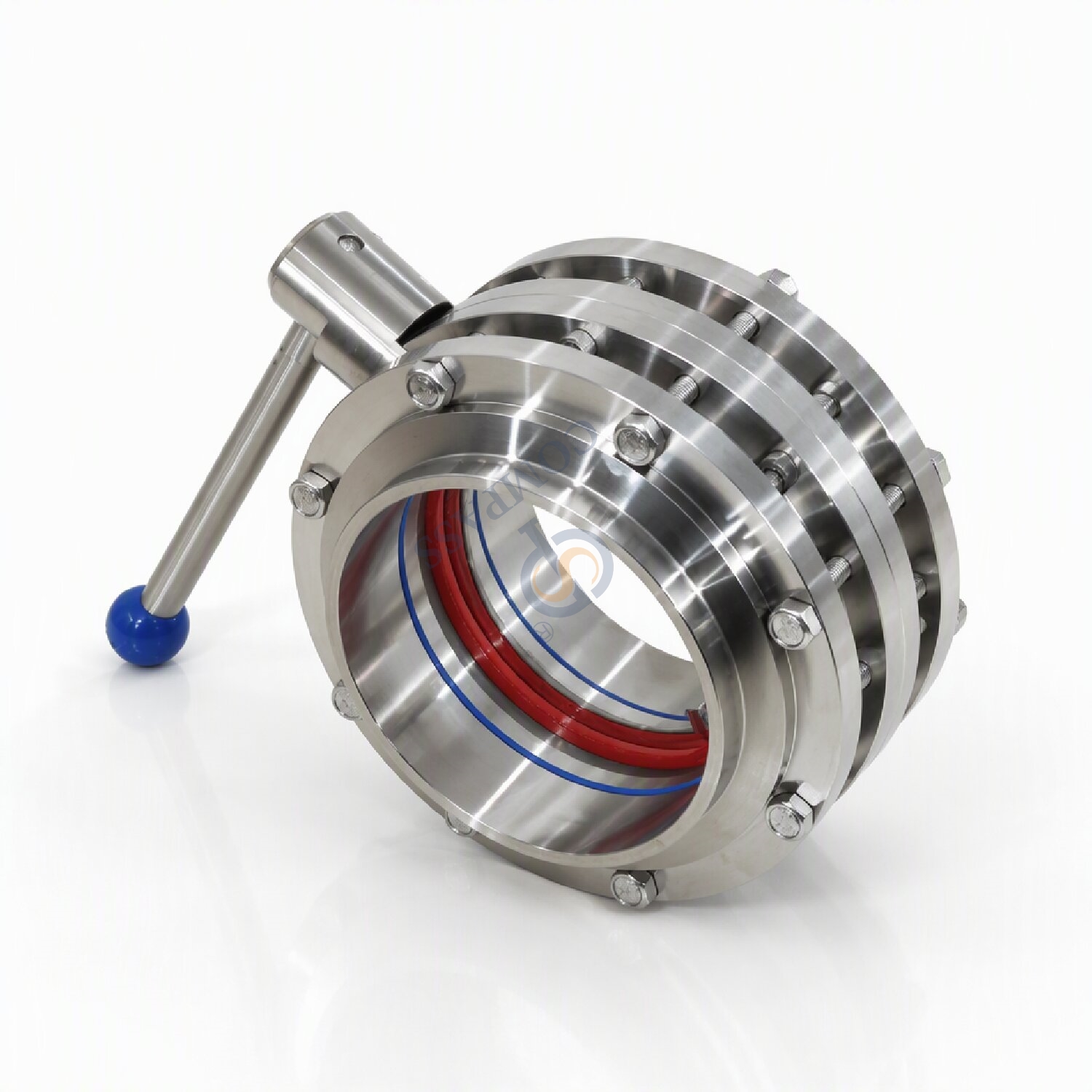

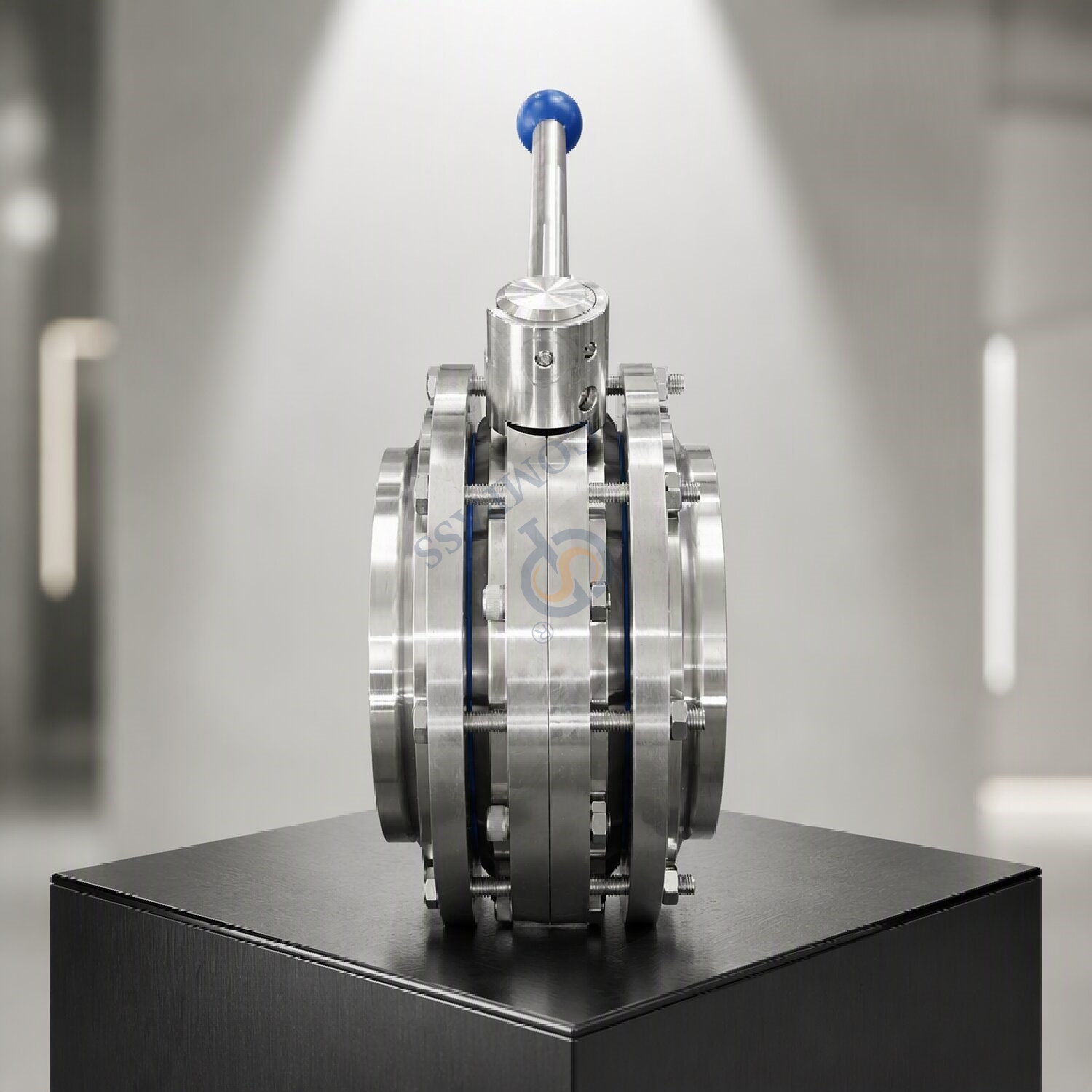

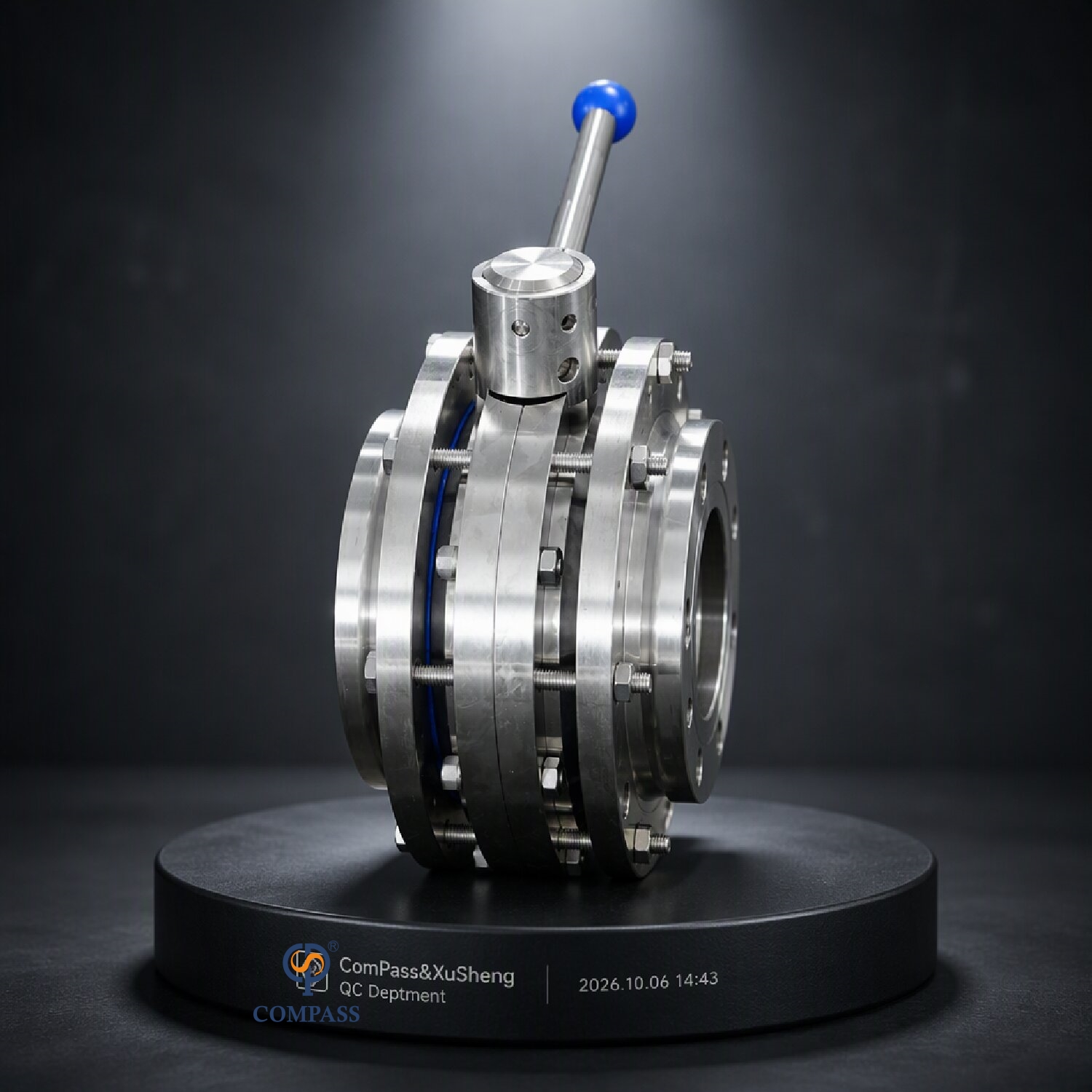

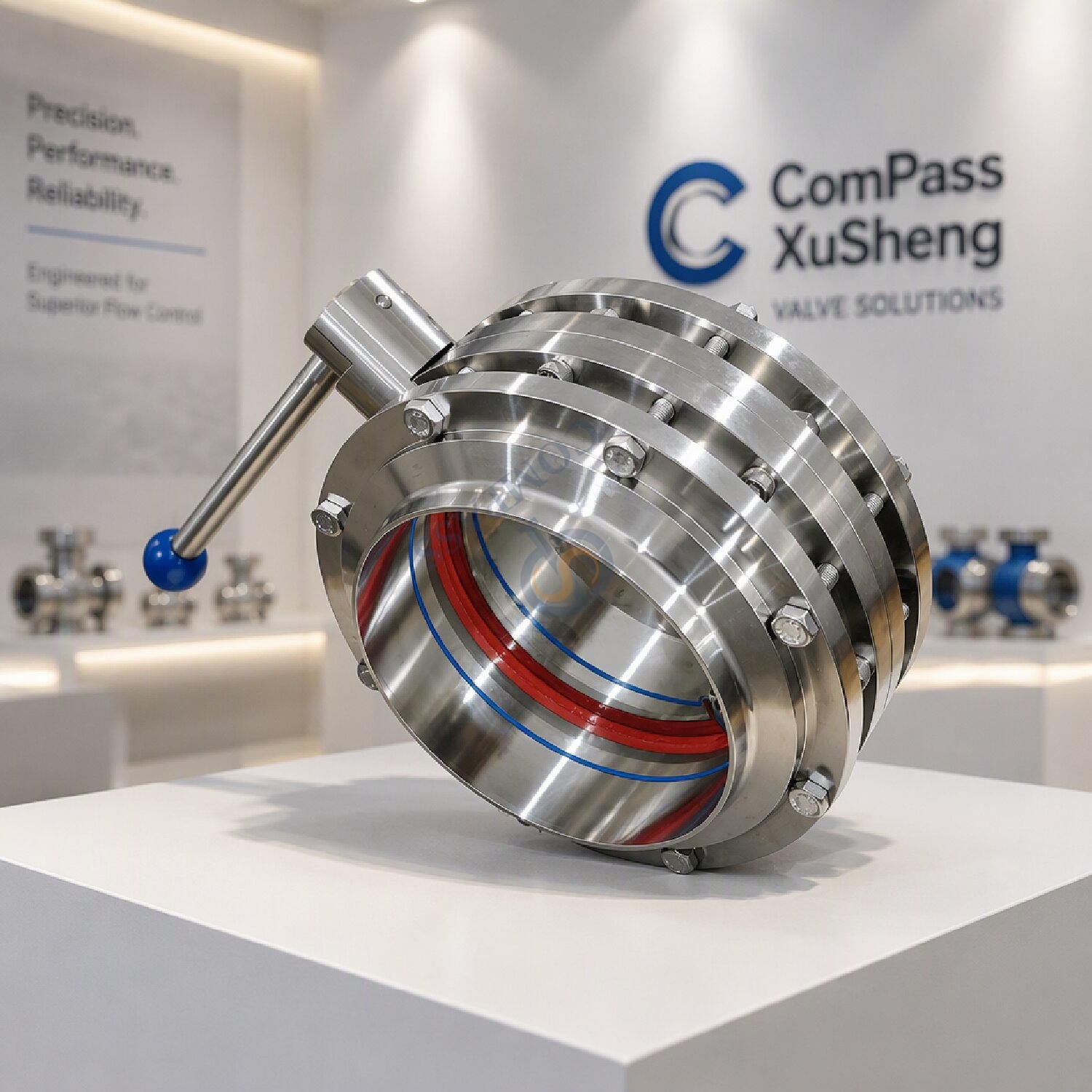

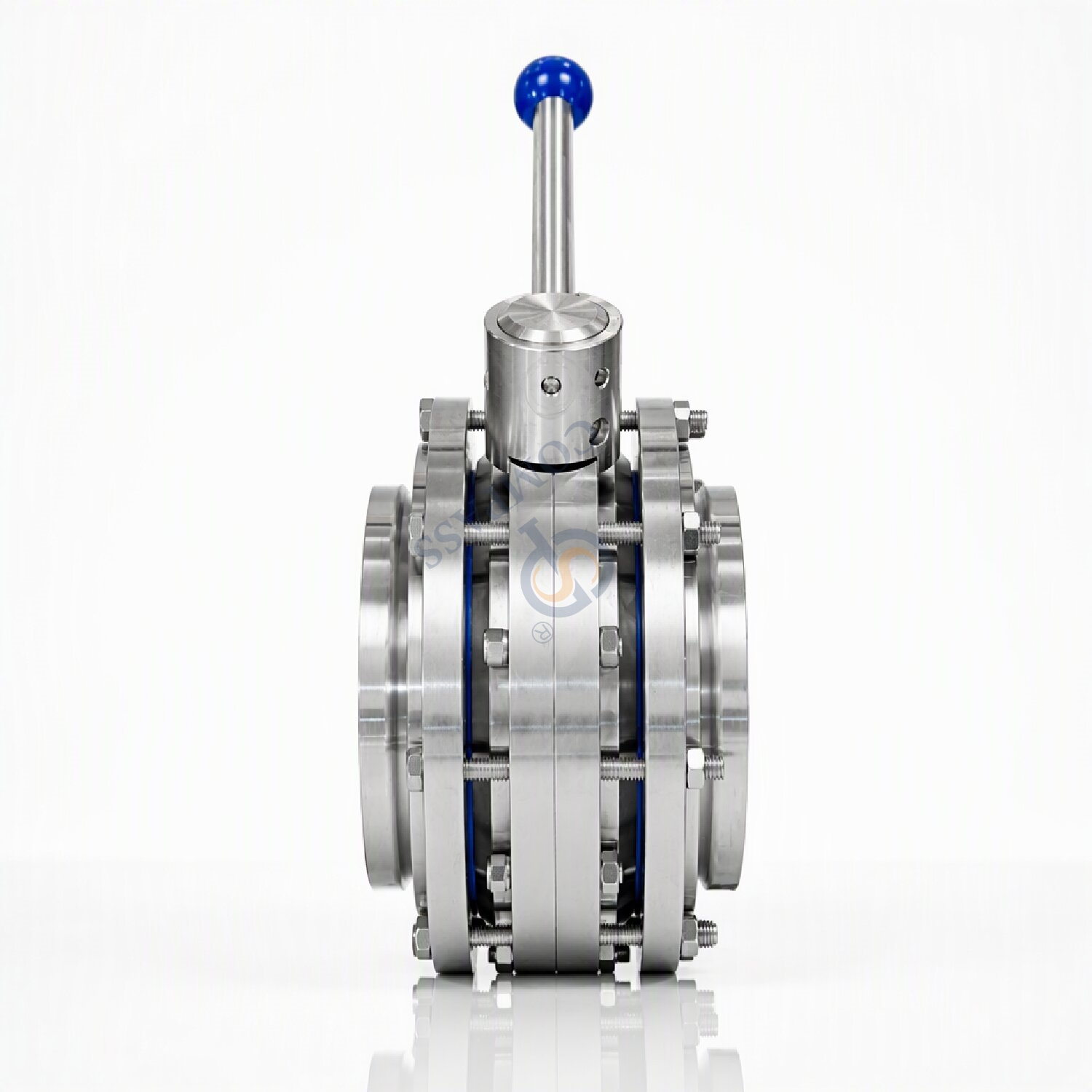

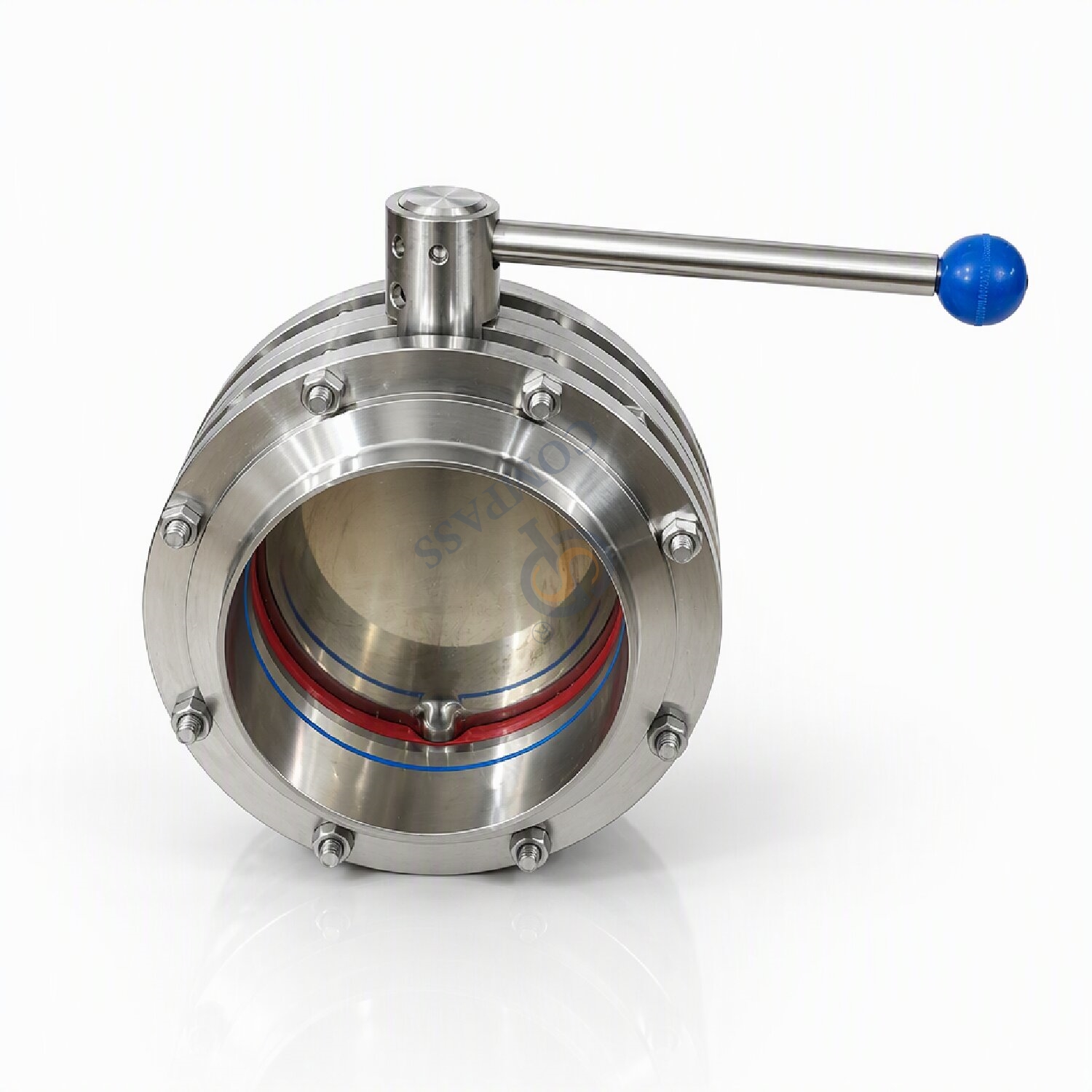

Highlights at a glance
* Mirror Polished Finish: Enhances aesthetics and durability.
* SS316L Stainless Steel: Ensures high corrosion resistance and longevity.
* Three Position Pull Handle: Offers versatile control options.
* Silicone Gasket: Provides leak-proof sealing for optimal performance.
* 8-Inch Size: Ideal for medium-scale water applications.
Design Features
1.Various standards can be provided: SMS,DIN.
2.Available in sizes from 1/2”to 12”，DN10 to DN300.
3.Multi position handles can be used for valves up to DN150 / 6".
4.Pull handles can be used for valves from DN25 / 1" to DN300 / 12".
5.Pneumatic actuator and electric actuator are interchangeable.
6.Pneumatic actuator can be double acting or single acting.
7.Seals comply with FDA 21CFR 177. 2600.
8.The valve body can be customized with a wide selection of different connections.
How to Order?
1.What's standard for butterfly valve? Such as DIN, SMS.
2.What’s material quality? Such as SS304 and SS316L for optional.
3.What’s size? The available size is from 1/2inch to 12inch, DN25 to DN300.
4.What’s connection end? Such as butt-weld, tri-clamp, male threaded, female threaded, union, ect.
5.What's working principle? Such as manual, pneumatic, control head.
6.What's material of seal? Such as silicone, EPDM.
7. What's type of handle? Such as plastic gripper handle, stainless steel gripper handle, stainless steel pull handle.
