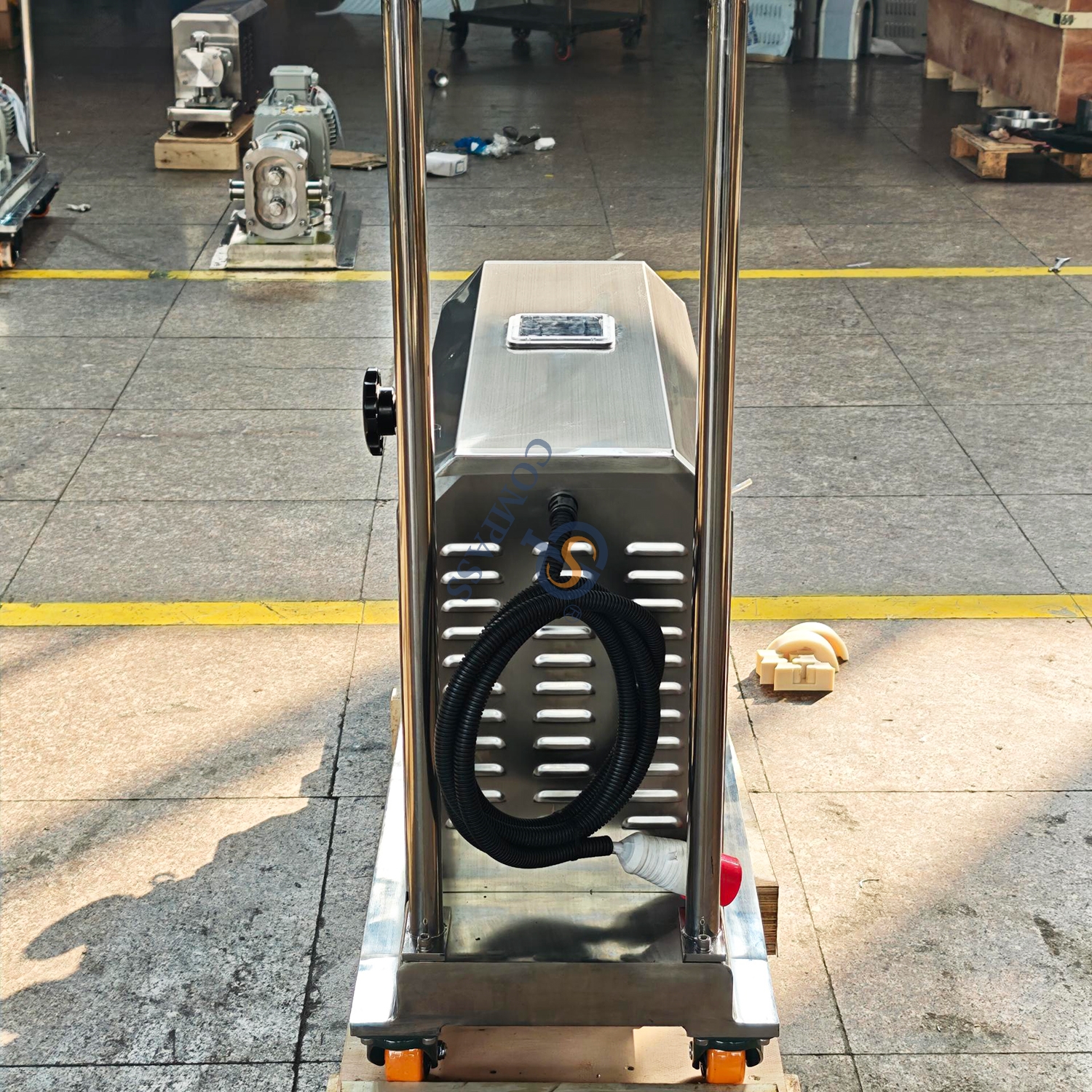

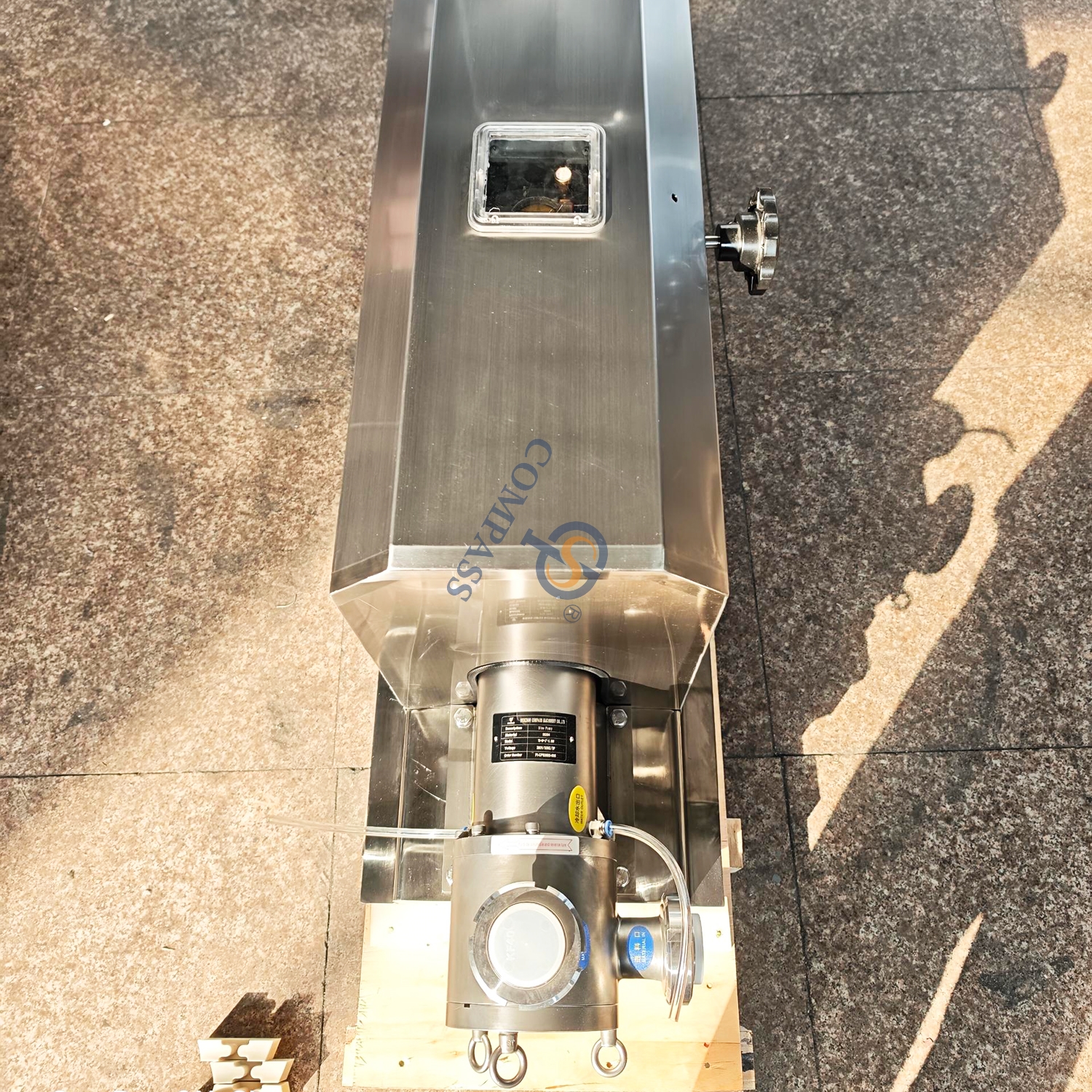

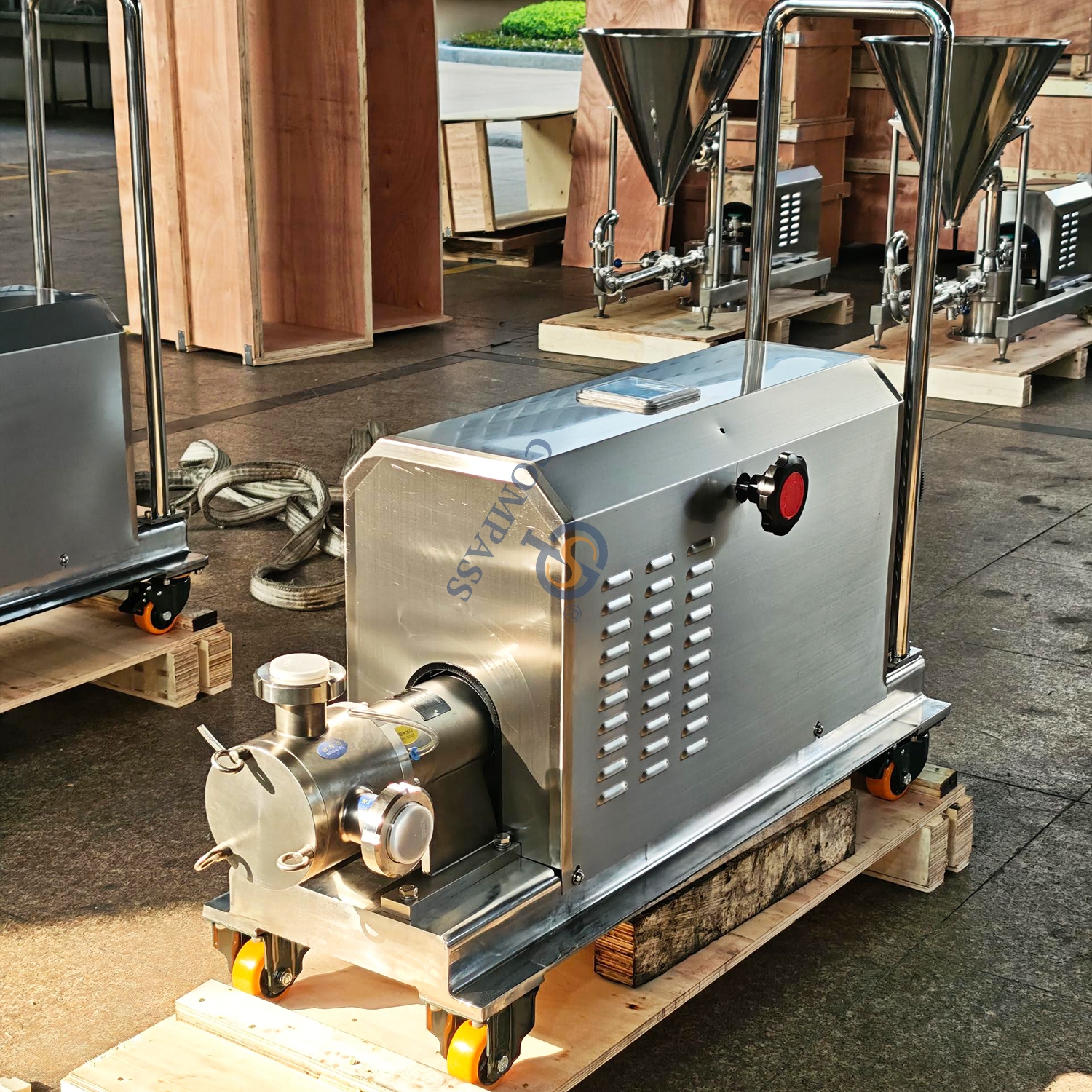

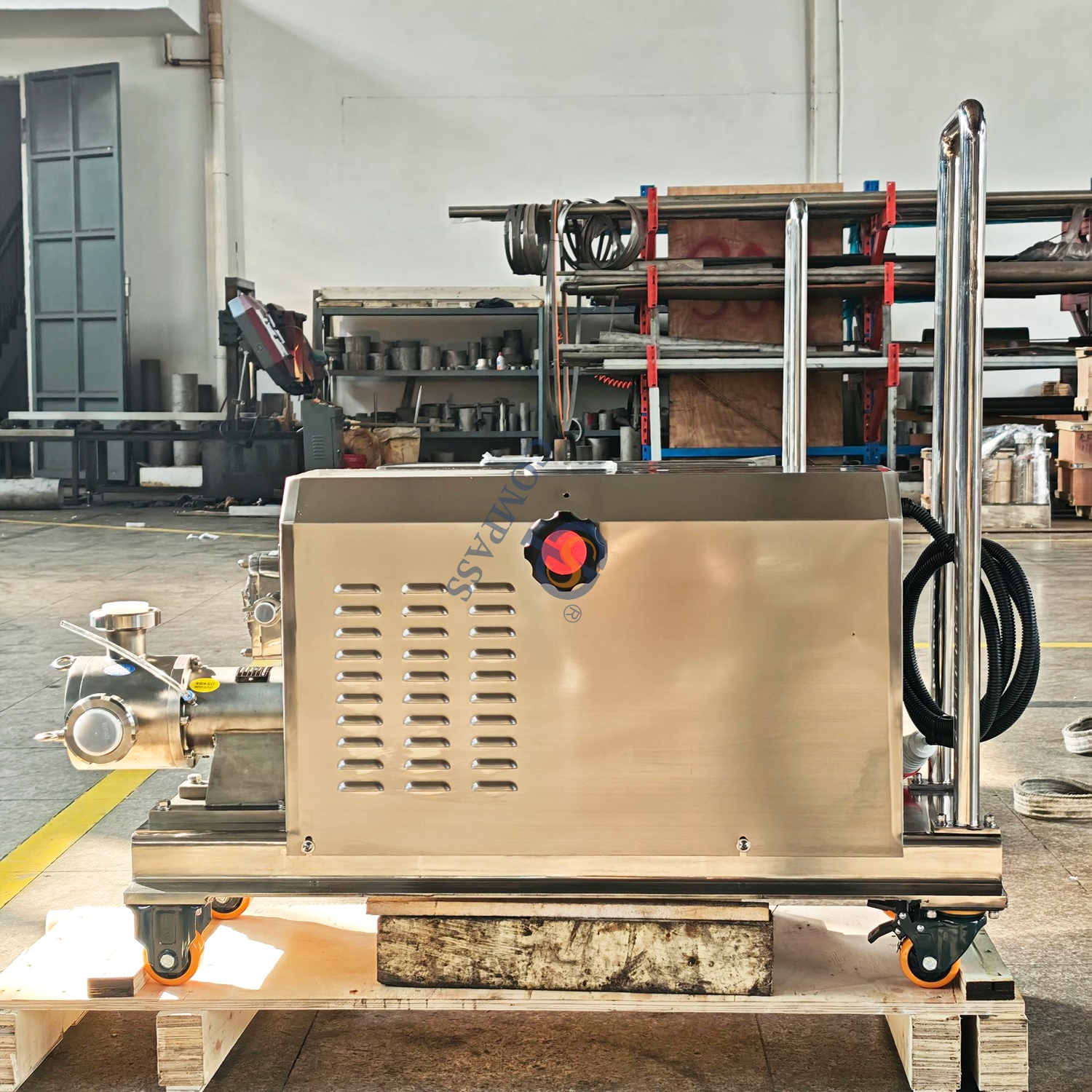

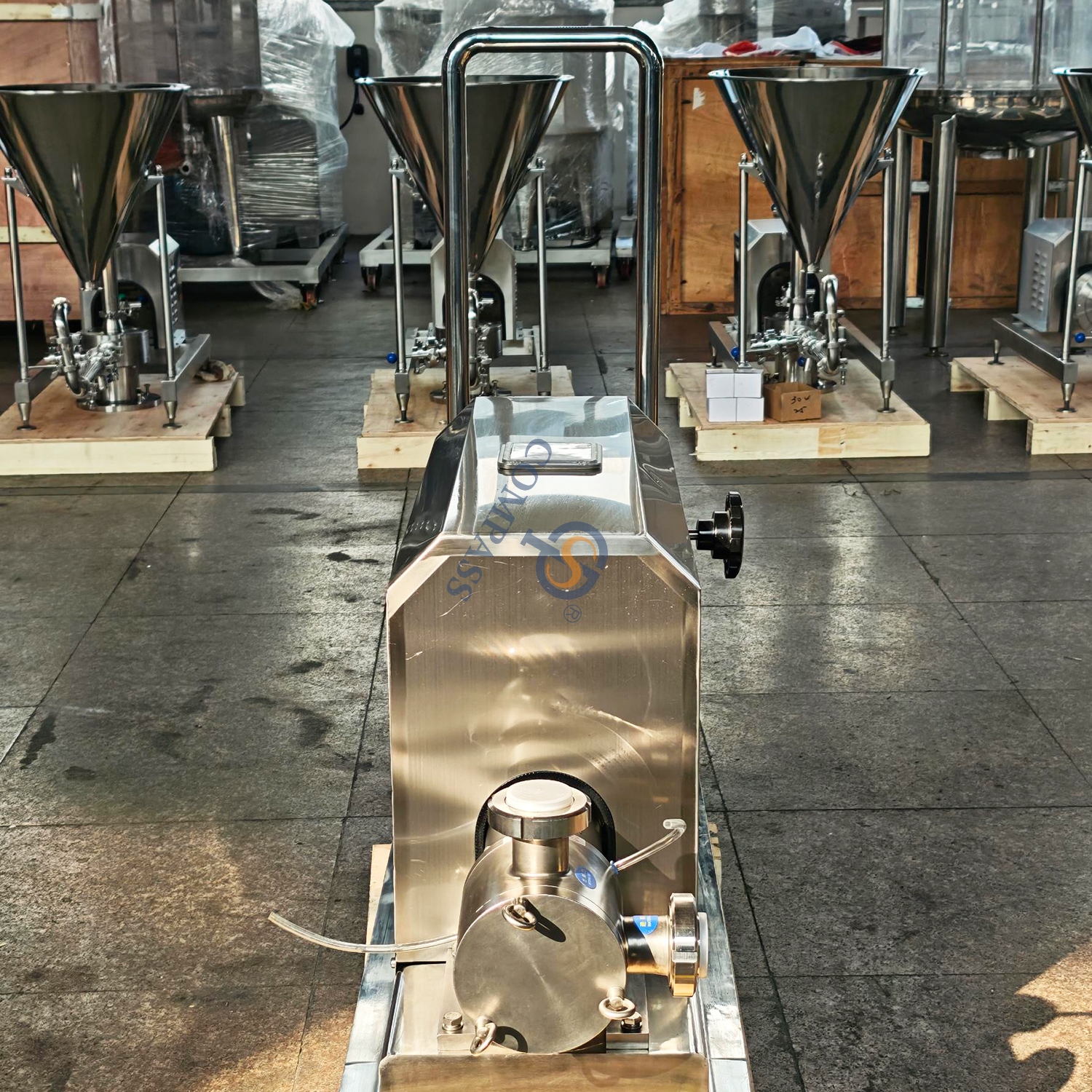

330RPM 2.2KW SS316L Union End Sine Pump with Mobile Cart and Control Cabinet

Any exquisite product or good functional product has a simple structure---including few components...sine pump is not an aexception.

The sine wave shape of impeller means a cavity can be formed at every rotation(4 cavities can be formed every passing the lining space).This operation can"push" or "release" flowing products.The pump cavity is divided into suction chamber and extraction chamber by control panel to ensure presuure tolerances at exit and entrance.Meanwhile,control panel pllays another important role to lubricate the pump bearing by product in compulsion.

Sine pump---excellent efficiency,high viscosity best selection of super low shear feeding. Super low shear feeding although with a great deal of solid particle and fragile product a safe and no damage feeding can be provided. High viscosity performance reaches the limit of flowing capability can reach 4000,000cps. No pulse,stable feeding.

Flow cubage adjustment precisely,without interference and shock.Filling machine can supply a stable product dose evenlysine pump:Special two sine-curve-like vane is taken,instead of rotor,epicyclic gear or piston,and it runs with a movable panel and a fixed line,forming a special volume pump and realizing liquid super low shear,without pulse feeding ,although in condition of 10bar back pressure(water feeding),there won't be any movement on pressure gauge.

Model:
TS-SP-2"-2.2KW
Brand:
Compass
Code:
0215103ABTB02211TS-SP-2-2.2

Availability:

Quantity:



Inquire Add to Basket

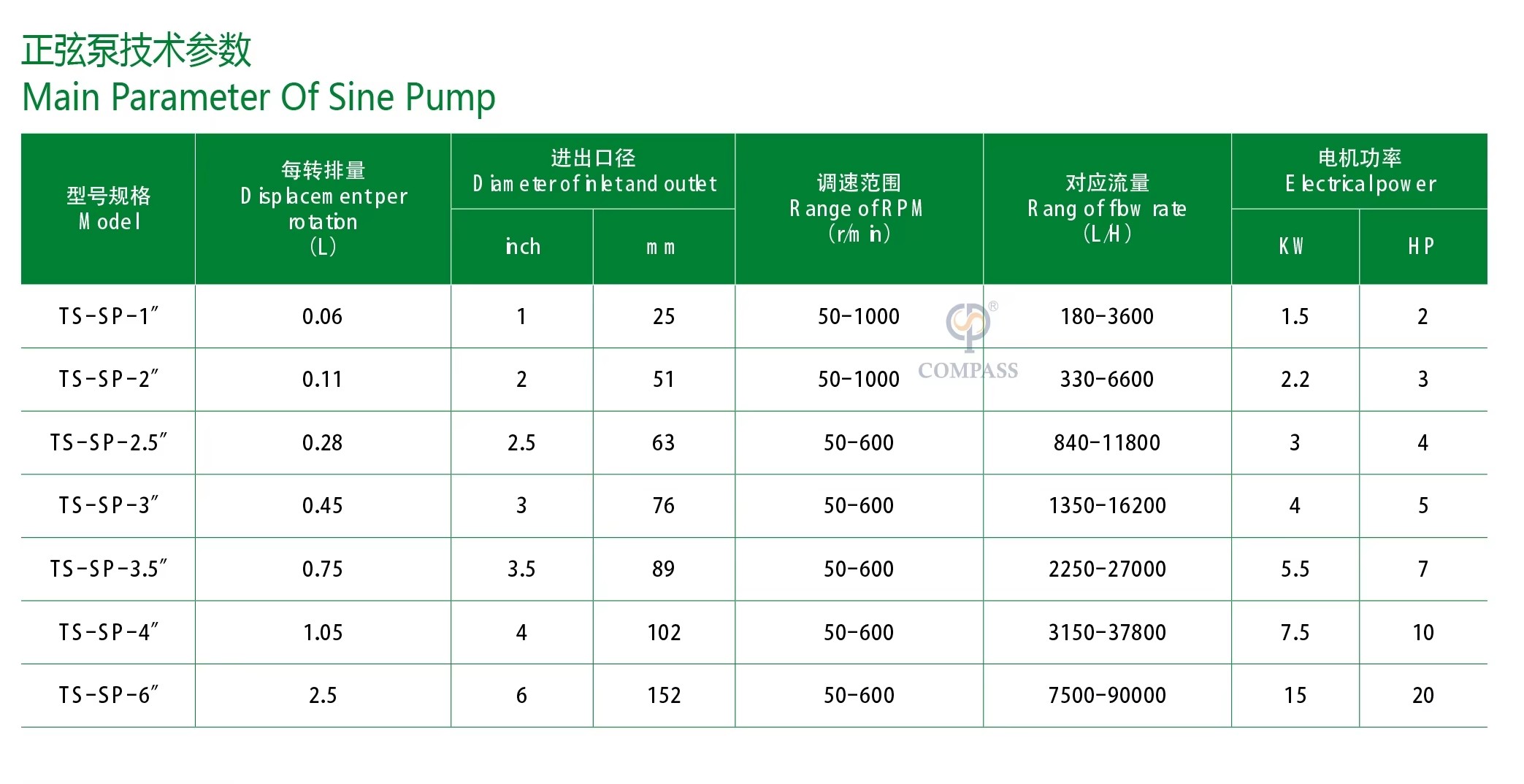

The Details of Product

Material Contact Parts	SS304, SS316L (1.4301,1.4404)	Provided with material inspection report
Material Non-contact Parts	SS304 (1.4301)
Material of Impeller	SS304 or SS316L for Sine Wave
Material of O Ring Seal	SILICONE, EPDM
Max Flow	330-6600Liter/ Hr
Max Rotaing Speed	330-6600RPM
Motor Power	1.5KW to 15KW
Voltage	110V, 220V, 380V, 440V
Motor Frequency	50HZ, 60HZ
Brand of Motor	CHINA MOTOR
Available Connection	Clamp, Flange, Threaded, Union
Mechanical Seal	SIC/C/EPDM (Standard), Alloy Material
Type of Mechanical Seal	Single Mechanical Seal, Double Mechanical Seal, Single Level Inner Set Mechanical Seal
Type of Impeller	Open Impeller, Close Impeller, Semi-open Impeller

Single End Surface Or Double End Surface Mechanical Seals

The mechanical seal of sine pump conforms to food sanitary standard,ensures the cooling and sterilization are meeting the requirements of CIP(cleaning in place) and SIP(sterilization in plce).Meanwhile,all seal systems can be replaced conveniently.

Support Plate

With coupling protective device,made of stainless steel.Both methods are equipped round feet,the height of it can be adjusted or can be brought outdoor.We also can provide a special solution.

Other Cleaning Function Can Be Added On Shaft Seal

For standard pump,single level inner set mechanical seal is taken to ensure cleaning,cooling and CIP cleaning and sterilization.

Cover: Applicable For Extreme

Driving motor can be protected specially by a stable cover.An open ventilation hole can ensure the safety of cooling driving system.

How to order?

1. What's product used for Sine Pumps?

2. What's viscosity of product？

3. What's material? Such as SS304 and SS316L for optional.

4. What's flow rate for screw pump? Such as 10000 liters per hour.

5. What's motor power? Such as 3kw.

6. What's voltage and hertz? Such as 380v, 50hz, three-phase.

7. What's motor brand? Such as China motor or other motor brand.
