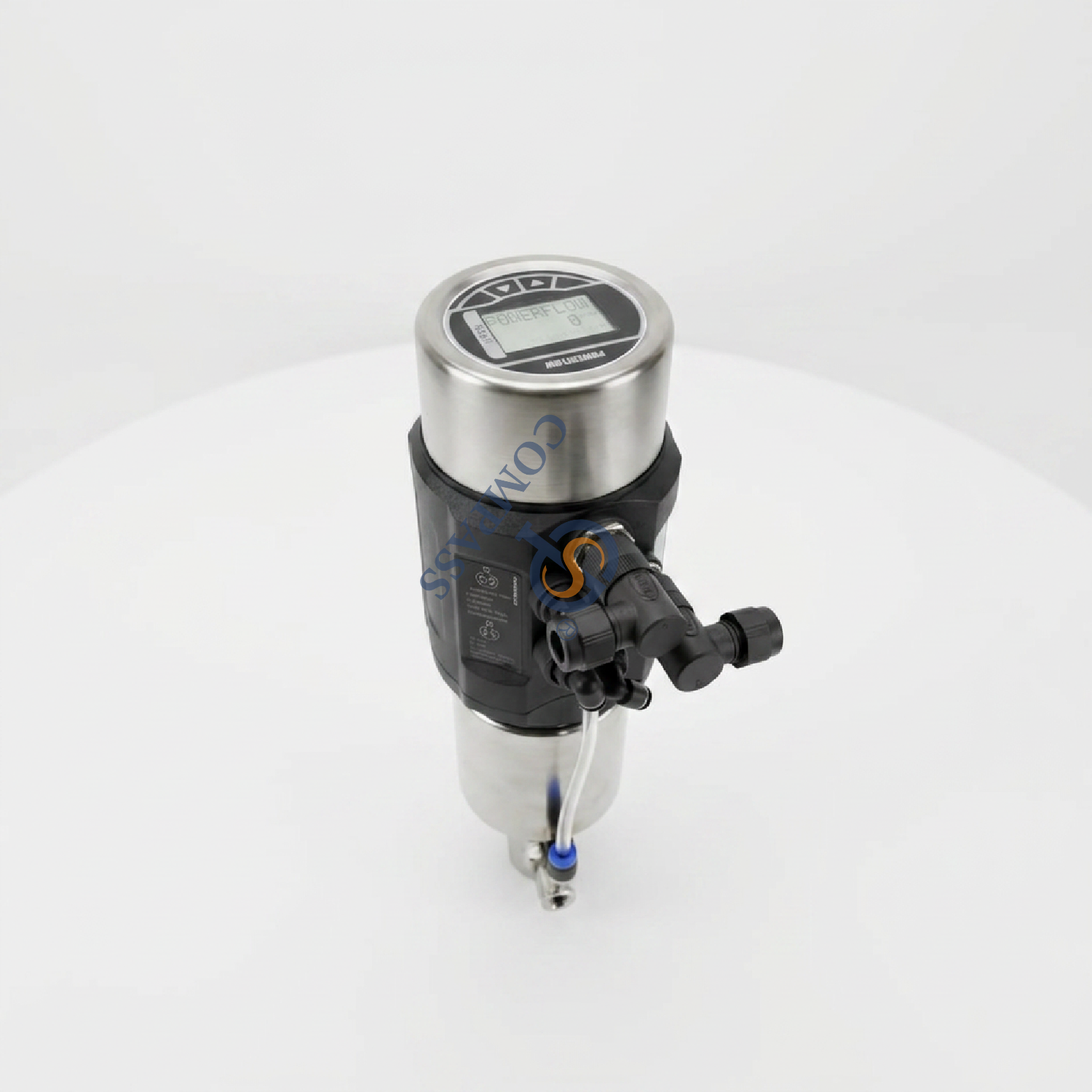

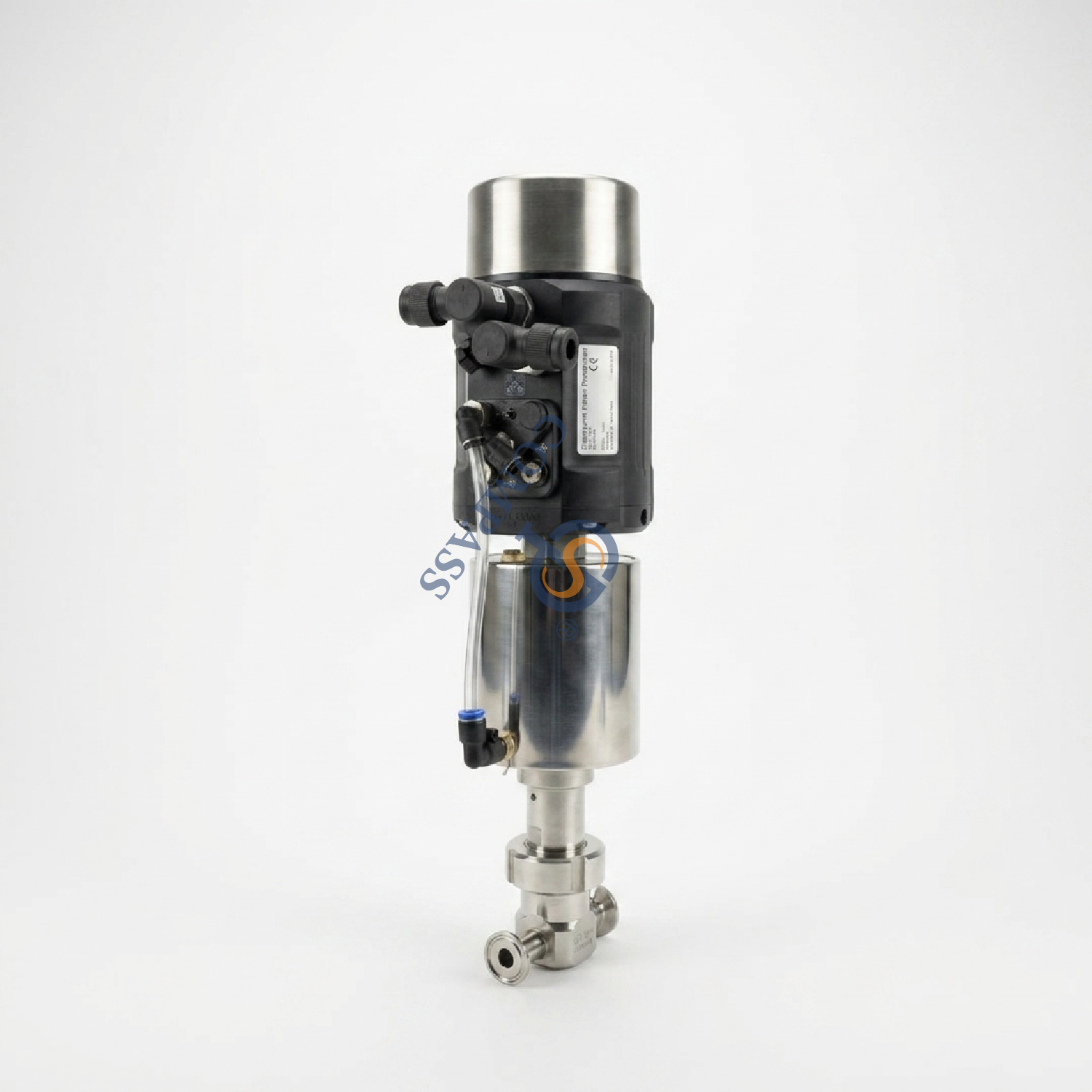

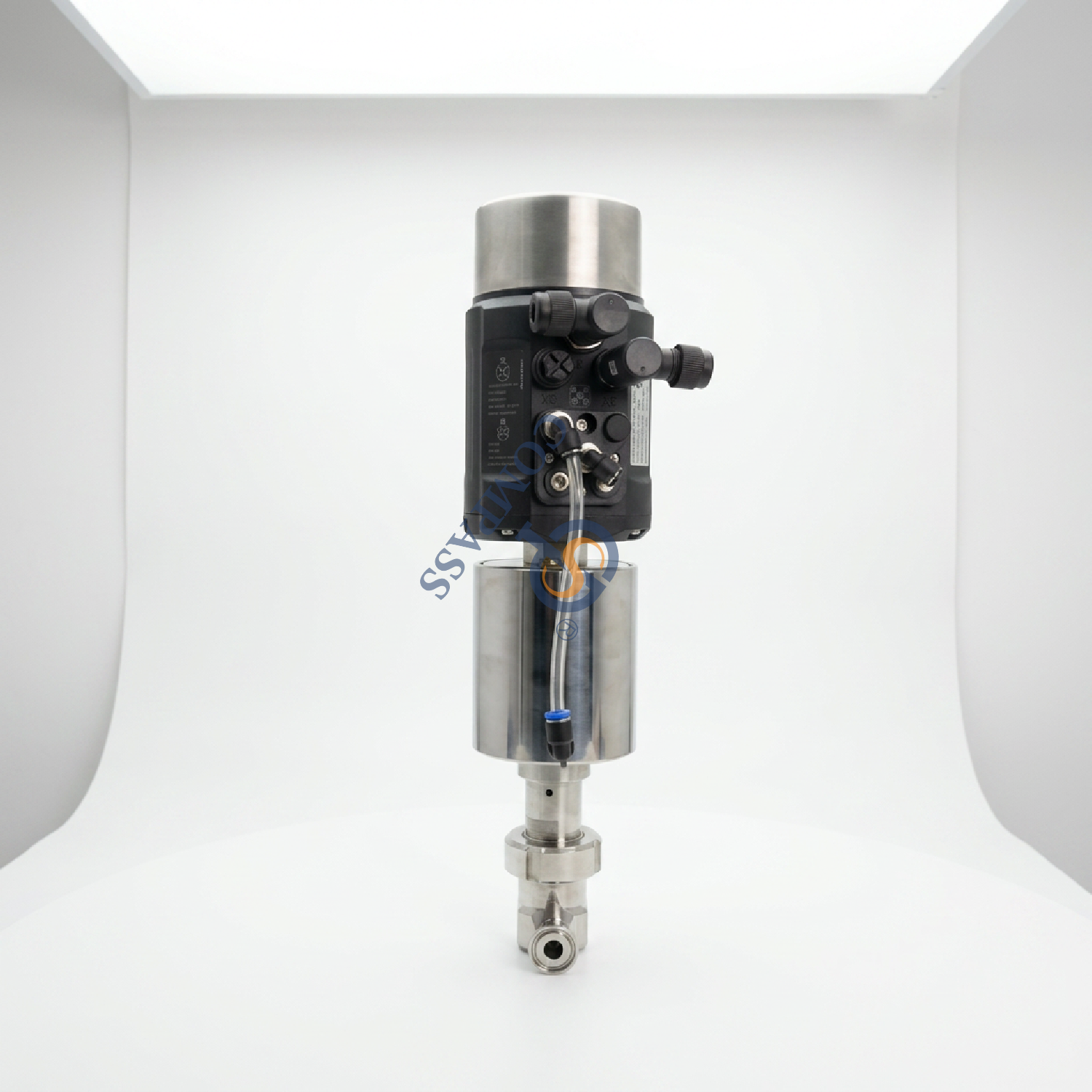

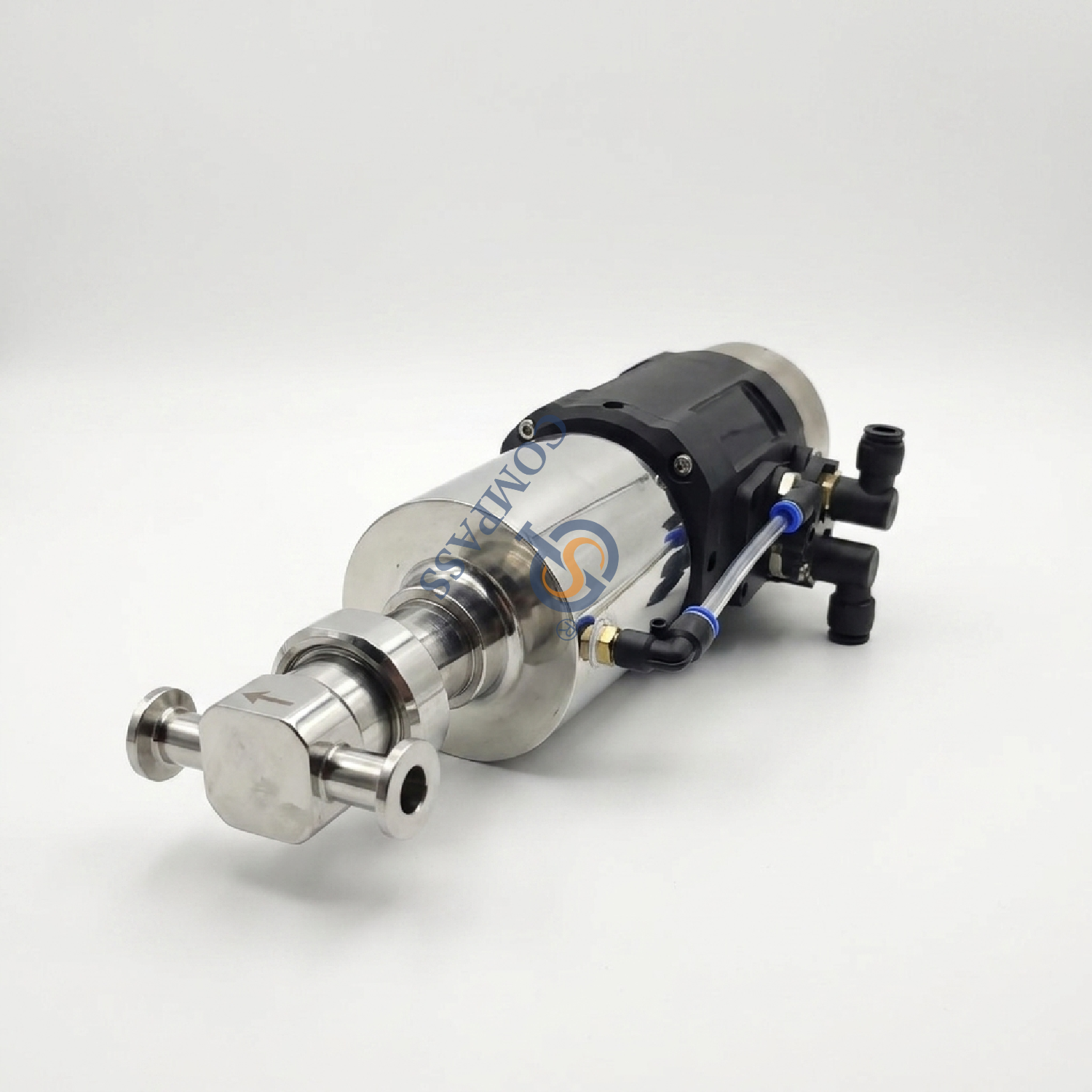

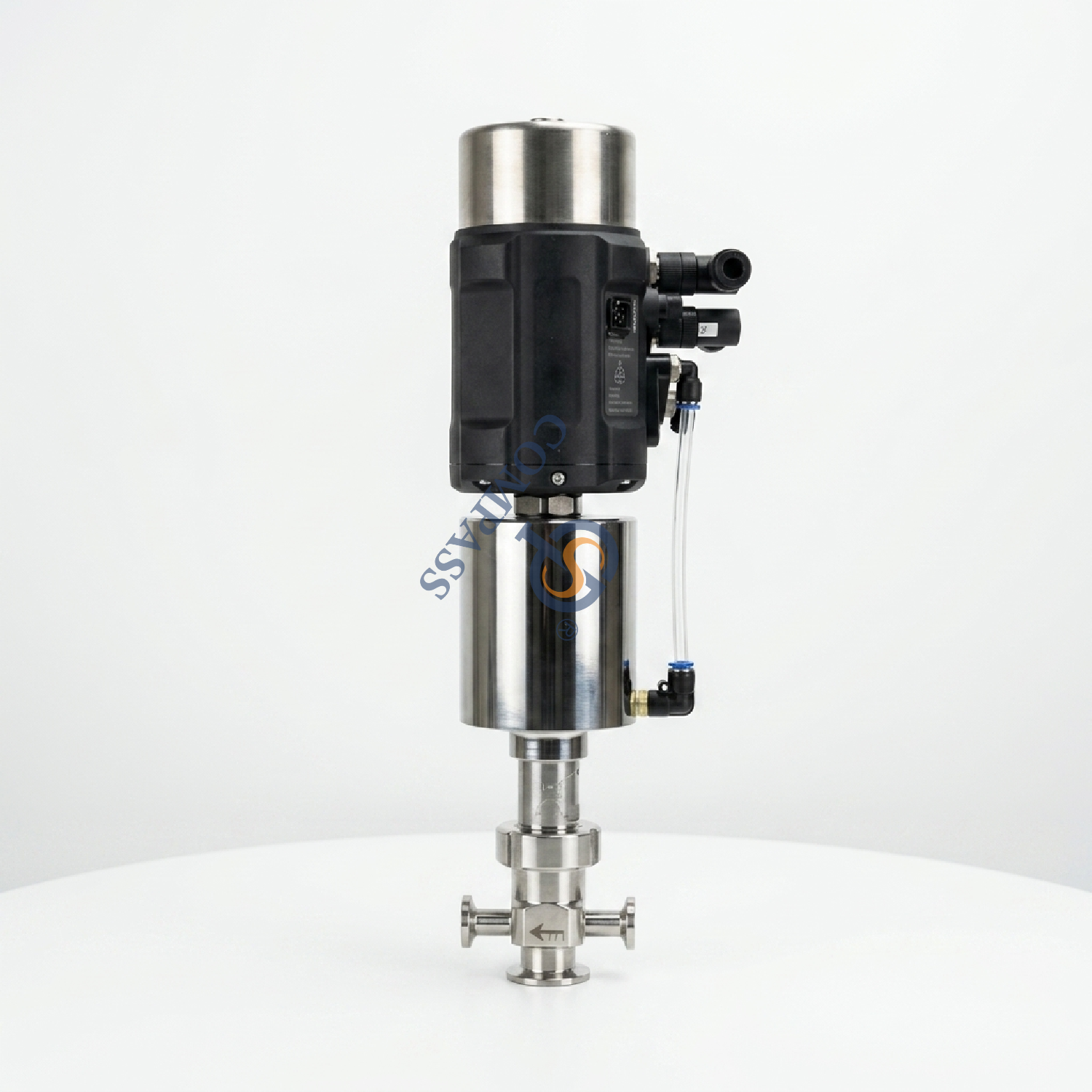

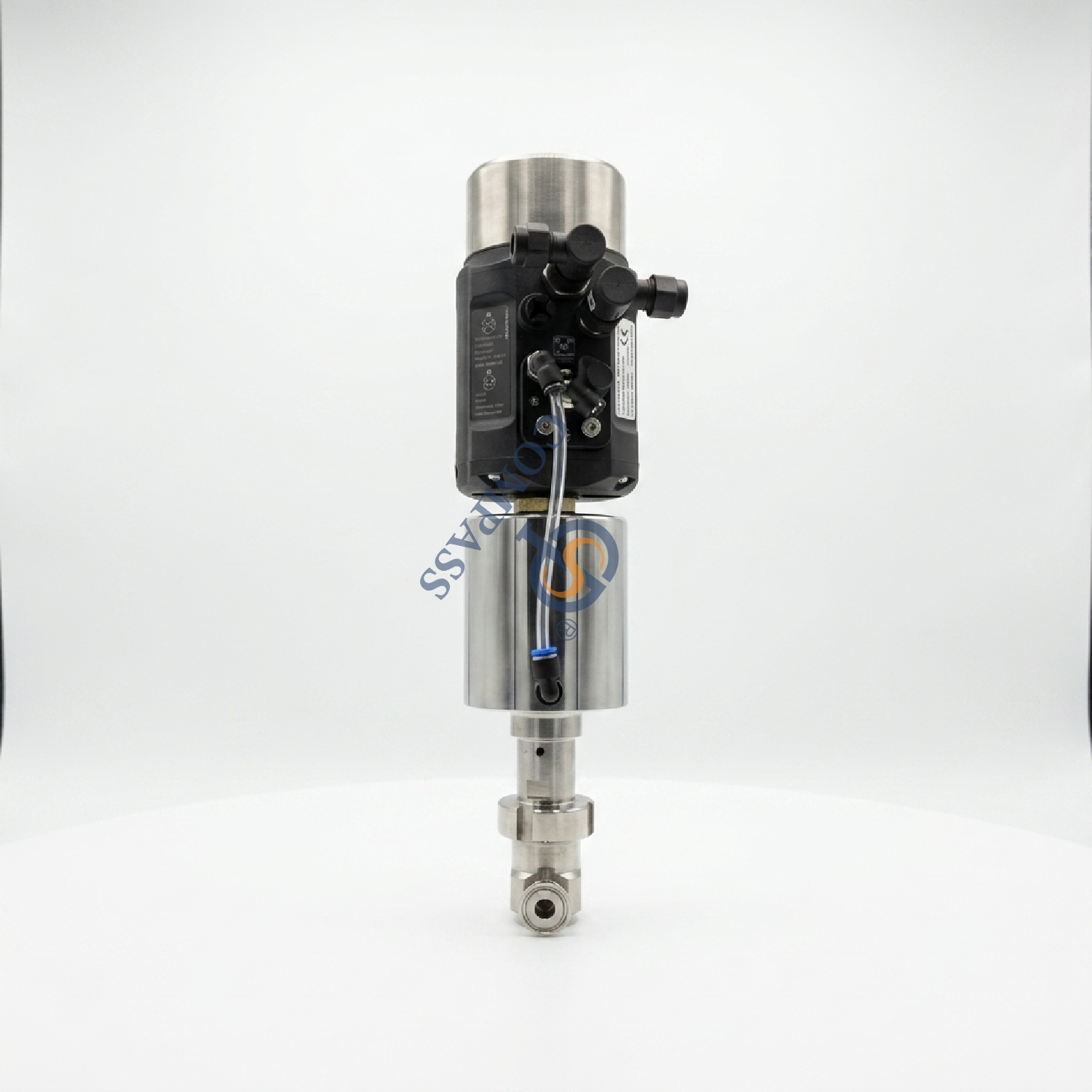

Specification
Standard | SMS,DIN |
Material Contact Parts | SS304/SS316L(1.4301/1.4404) | Provided with material inspection report |
Material Non-contact Parts | SS304(1.4301) |
Size | DN10 |
Connection | Butt Weld, Tri Clamp, Male Threaded, Female Threaded, Union, Flange |
Seal Material | PTFE. All seals material comply with FDA21CFR117.2600 |
Drive Option | Manual Stainless Steel Handle |
SS Pneumatic Actuator (air/spring, air/air) |
Aluminum Pneumatic Actuator (air/spring, air/air) |
Electric Actuator (on-off, adjustable) |
24V Remote Control Head |
4-20mA Electricity and Pneumatic Integration |
Max. Working Pressure | ≤10bar (145psi) |
Min. Working Pressure | 0.2bar (2.9psi) |
Supply Pressure for Air Actuator | 5~8bar (72.52psi~116psi) |
External Surface Treatment | Ra32~64ui n (0.8~1.6um) |
Internal Surface Treatment | Ra16~32uin (0.4~0.8um) |
Temperature range | -20~130 ℃(-4 ~266 °F) (up to Seat Seal) |
Certificate | ISO 9001, FDA, SGS, CE |
Support | OEM & ODM are welcome |
Application | Widely used for alcohol, pharmaceuticals, food, and water treatment and so on |
Highlights at a glance
* SS316L Construction: High corrosion resistance for long-term use.
* Sanitary Grade Design: Ensures aseptic and sterile conditions.
* Compact Flow Control: Precise flow regulation with 4-20MA control head.
* PTFE Gasket: Provides excellent sealing performance.
* Durable Connection: Supports multiple types including tri-clamp, male/female threads.

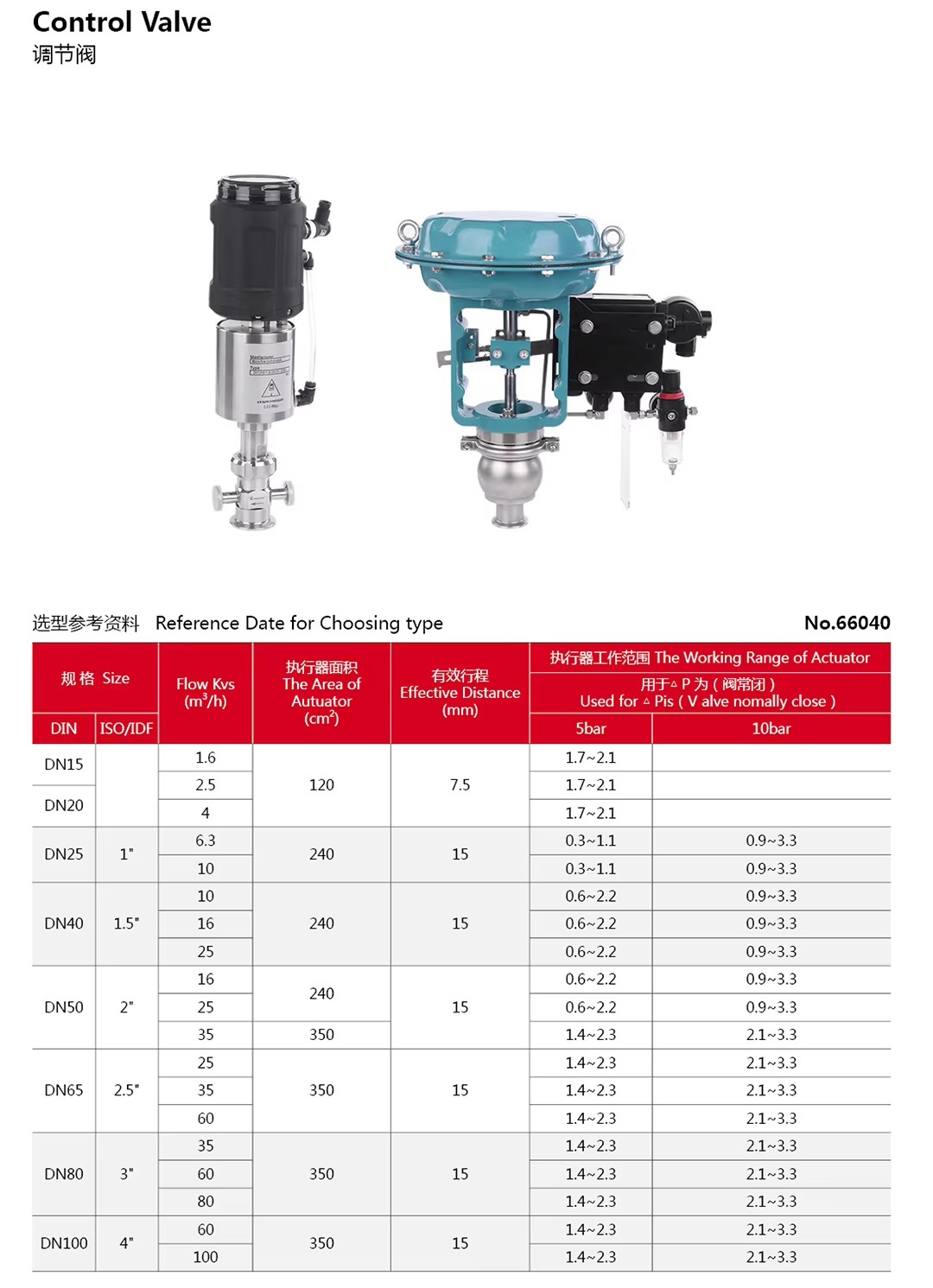

Technical Specifications
Max. pressure: ≤10bar (145psi)
Min. pressure: 0.2bar (2.9psi)
Temperature range：
EPDM: -5 ~ 212°F(-20 ~ 100℃)
FKM:10~ 392°F(-12.2 ~ 200℃)
Other materials are Available upon request.
Options
1. The gasket can be PTFE. All seals material comply with FDA21CFR117.2600
2. Connection can be Butt Weld, Tri Clamp, Male Threaded, Female Threaded, Union, Flange or others upon request.
3. Drive option can be manual, SS pneumatic actuator, aluminum pneumatic actuator, electric actuator and 4-20mA Electricity and Pneumatic Integration.
Advantages
1. Sanitary flow regulating valves have more safety,cleanliness, durability, and aesthetics.
2. With open bracket, the actuator body was dissociated, you can check the shaft seal directly. The design makes the transmission and product are partially seperation to prevent heat transfer from the body ro the actuator.
3. The condition " NO" and " NC" can be change instantly.
4. The spherical body has the ideal flow-ability and cleaning properities. Meanwhile, the treatment of material is more moderate.
5. The standard valve design makes the coupling combination has a high degree of spirit activity and diversity.
6. Metal stop ensures longer seal life.
7. Fast and convenient assembly and maintenance operations.
Design Features
1.Various standards can be provided: SMS,DIN
2.Available in sizes DN10
3.Pneumatic actuator and electric actuator are
interchangeable.
4.Pneumatic actuator can be double acting or single acting
5.Seals comply with FDA 21CFR 177. 2600.
6.The valve body can be customized with a wide selection
of different connections.
How to Order ?
1.What’s standard? Such as DIN, SMS.
2.What’s material? Such as SS304 or SS316L.
3.Which size? Such as DN10.
4.What’s type of drive? Such as manual, pneumatic actuator, aluminum actuator, electric actuator, 24v control head, ect.
5.What's connection? Such as butt-weld, tri-clamp, male-threaded, female-threaded, union or flange.
