Main Parameter
Standard | SMS,DIN |
Material Contact Parts | SS304/SS316L(1.4301/1.4404) |
|
Material Non-contact Parts | SS304(1.4301) |
|
Size | 1"-5" ,DN25 to DN125 |
Connection | Butt Weld, Tri Clamp, Male Threaded, Female Threaded, Union, Flange |
Seal Material | EPDM, FKM, FPM, Buna, Silicone. All seals material comply with FDA21CFR117.2600 |
Drive Option | Manual Stainless Steel Handle |
SS Pneumatic Actuator (air/spring, air/air) |
Aluminum Pneumatic Actuator (air/spring, air/air) |
Electric Actuator (on-off, adjustable) |
24V Remote Control Head |
4-20mA Electricity and Pneumatic Integration |
Max. Working Pressure | ≤10bar (145psi) |
Min. Working Pressure | 0.2bar (2.9psi) |
Supply Pressure for Air Actuator | 5~8bar (72.52psi~116psi) |
External Surface Treatment | Ra32~64ui n (0.8~1.6um) |
Internal Surface Treatment | Ra16~32uin (0.4~0.8um) |
Temperature range | -20~130 ºC(-4 ~266 °F) (up to Seat Seal) |

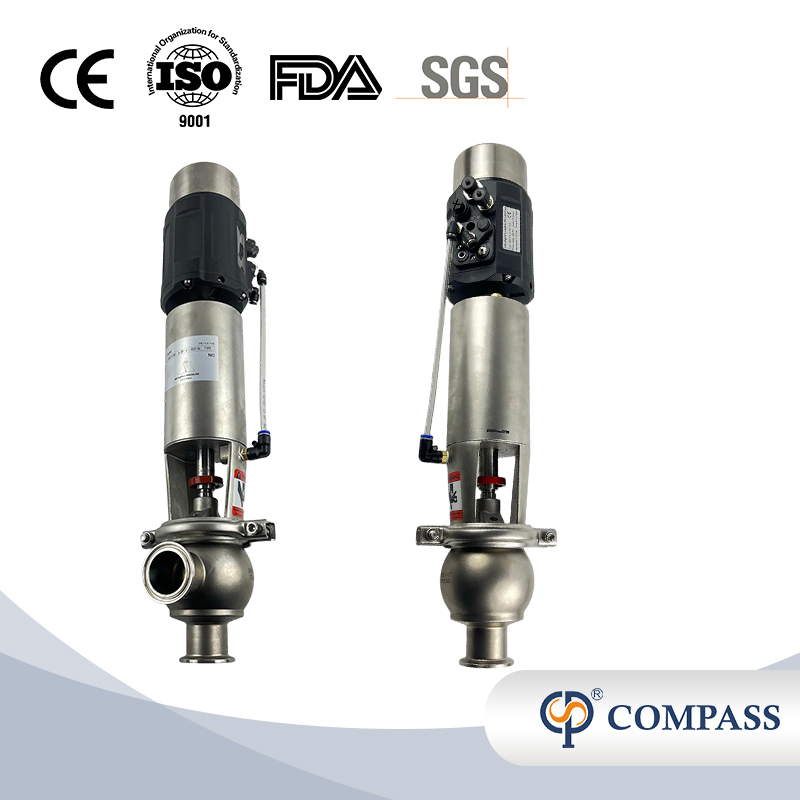

Certificate | ISO 9001, FDA, SGS, CE |
Support | OEM & ODM are welcome |
Application | Widely used for alcohol, food, and water treatment and so on |
Design & Features
1. Various standards can be provided: SMS,DIN
2. Available in sizes from 1"-5",DN25 to DN125 3.Pneumatic actuator and electric actuator are interchangeable.
4.Pneumatic actuator can be double acting or single acting
5. Seals comply with FDA 21CFR 177. 2600.
6.The valve body can be customized with a wide selection of different connections.
Options
1.The gasket can be EPDM, FKM, FPM, Buna, SI. All seals material comply with FDA21CFR117.2600
2. Connection can be Butt Weld, Tri Clamp, Male Threaded, Female Threaded, Union, Flange or others upon request.
3. Drive option can be manual, SS pneumatic actuator, aluminum pneumatic actuator, electric actuator and 4-20mA Electricity and Pneumatic Integration.
Advantages
1.Sanitary flow regulating valves have more safety,cleanliness, durability, and aesthetics.
2.With open bracket, the actuator body was dissociated, you can check the shaft seal directly. The design makes the transmission and product are partially seperation to prevent heat transfer from the body ro the actuator.
3.The condition " NO" and " NC" can be change instantly.
4.The spherical body has the ideal flow-ability and cleaning properities. Meanwhile, the treatment of material is more moderate.
How to Order ?
1.What's standard , such as DIN, SMS ?
2.What's material, such as SS304 or SS316L ?
3.Which size, the size is from 1"to 5"and from DN25to DN125 ?
4.What's type of drive, such as manual, actuator, aluminum actuator, electric actuator, 24v control head, ect ?
5.What's connection, such as butt-weld, tri-clamp, male-threaded, female-threaded, union or flange ?
