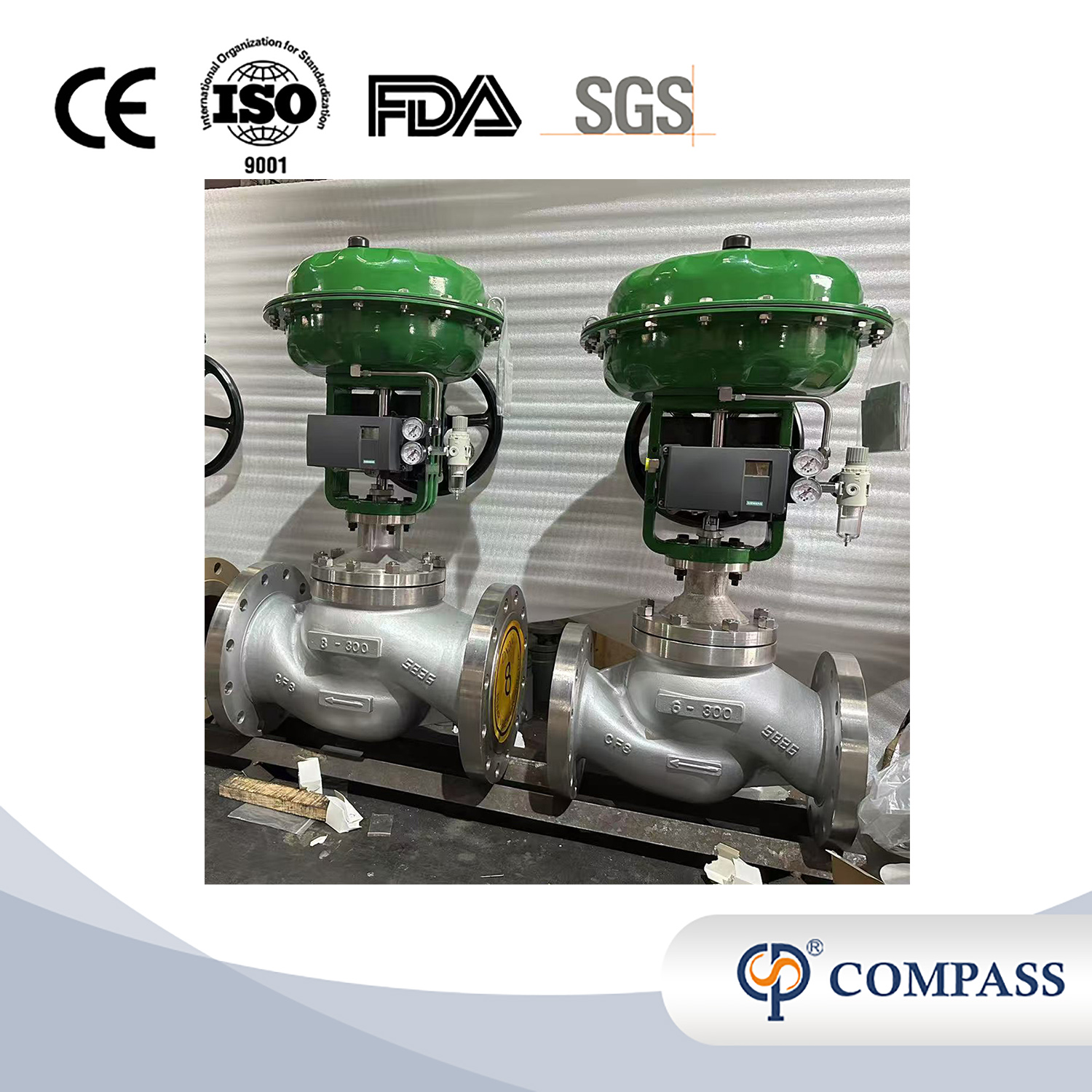

Main Parameter
Standard | SMS,DIN |
Material Contact Parts | SS304/SS316L(1.4301/1.4404) |
Provided with material inspection report |
Material Non-contact Parts | SS304(1.4301) |
Size | 1"-5" ,DN25 to DN125 |
Connection | Butt Weld, Tri Clamp, Male Threaded, Female Threaded, Union, Flange |
Seal Material | EPDM, FKM, FPM, Buna, Silicone. All seals material comply with FDA21CFR117.2600 |
Drive Option | Manual Stainless Steel Handle |
SS Pneumatic Actuator (air/spring, air/air) |
Aluminum Pneumatic Actuator (air/spring, air/air) |
Electric Actuator (on-off, adjustable) |
24V Remote Control Head |
4-20mA Electricity and Pneumatic Integration |
Max. Working Pressure | ≤10bar (145psi) |
Min. Working Pressure | 0.2bar (2.9psi) |
Supply Pressure for Air Actuator | 5~8bar (72.52psi~116psi) |
External Surface Treatment | Ra32~64ui n (0.8~1.6um) |
Internal Surface Treatment | Ra16~32uin (0.4~0.8um) |
Temperature range | -20~130 ºC(-4 ~266 °F) (up to Seat Seal) |
Certificate | ISO 9001, FDA, SGS, CE |
Support | OEM & ODM are welcome |
Application | Widely used for alcohol, pharmaceuticals, food, and water treatment and so on |

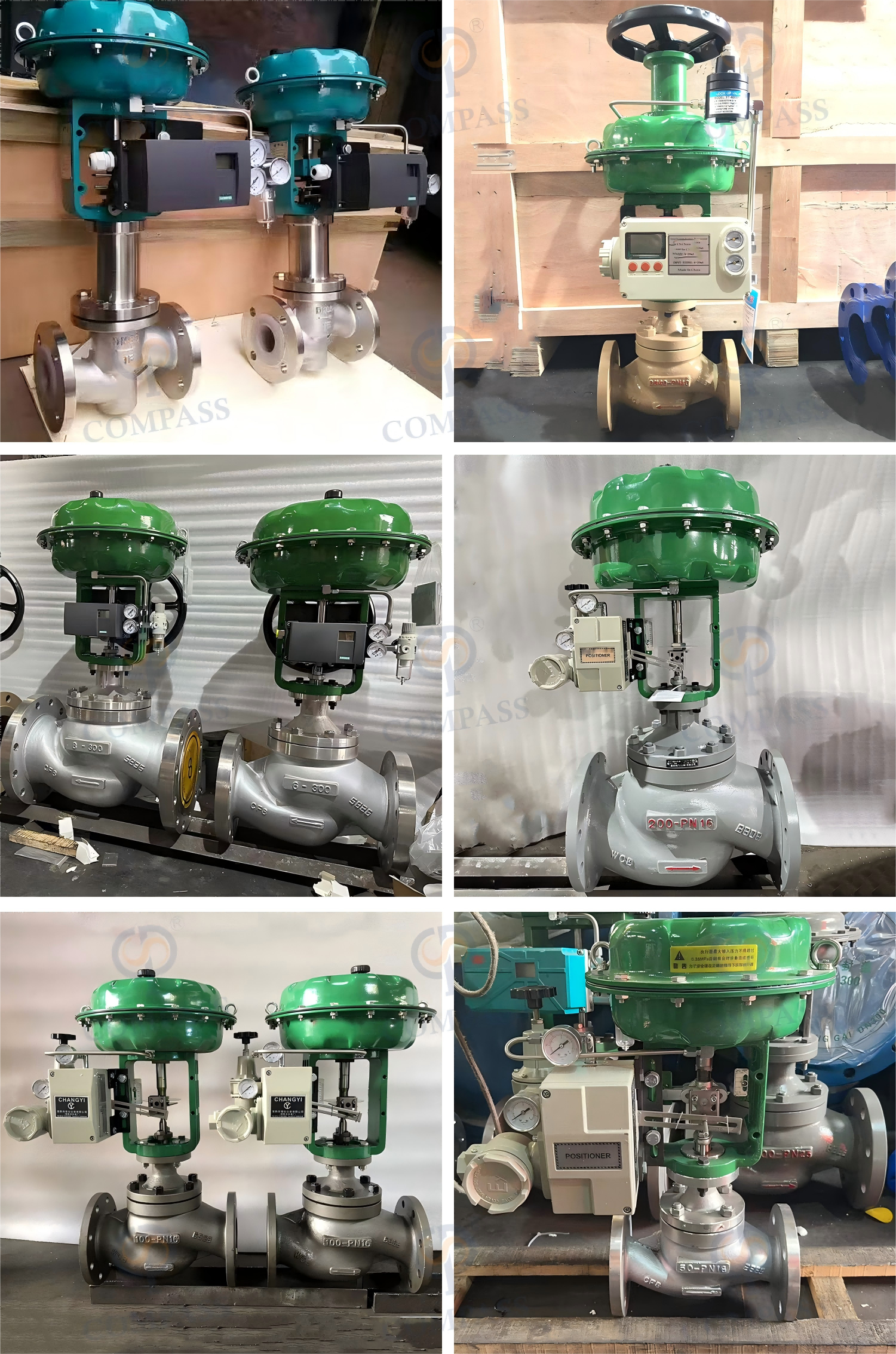

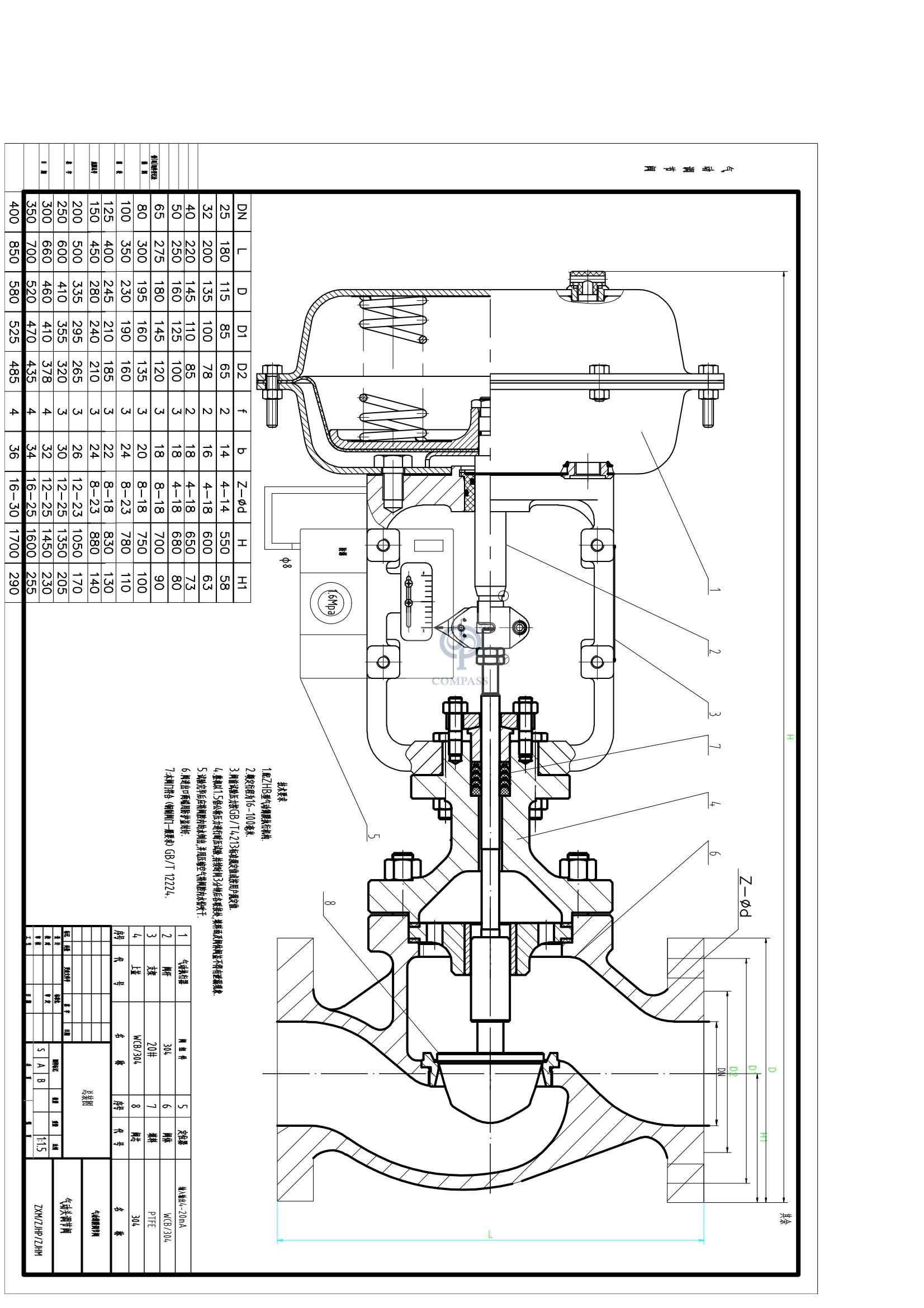

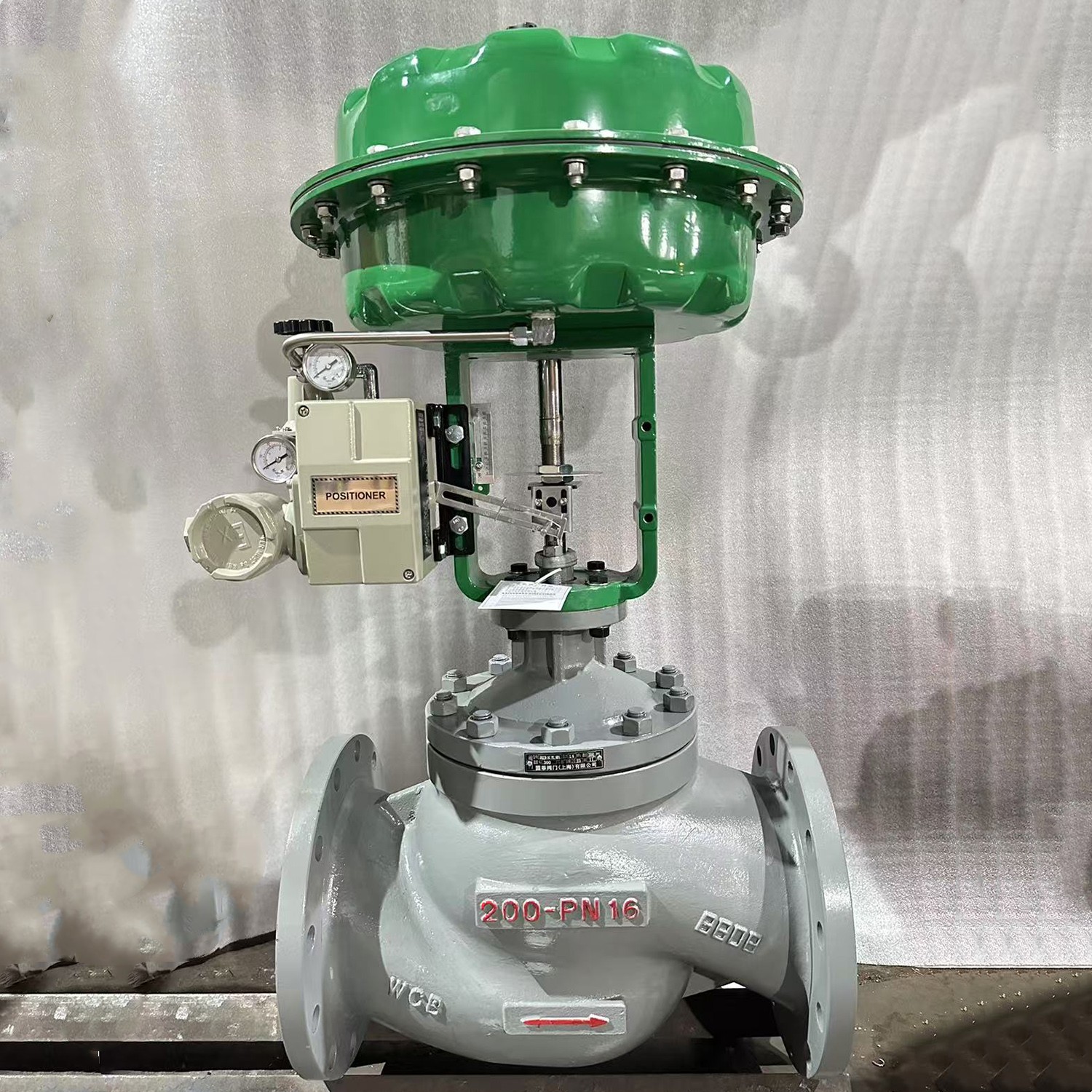

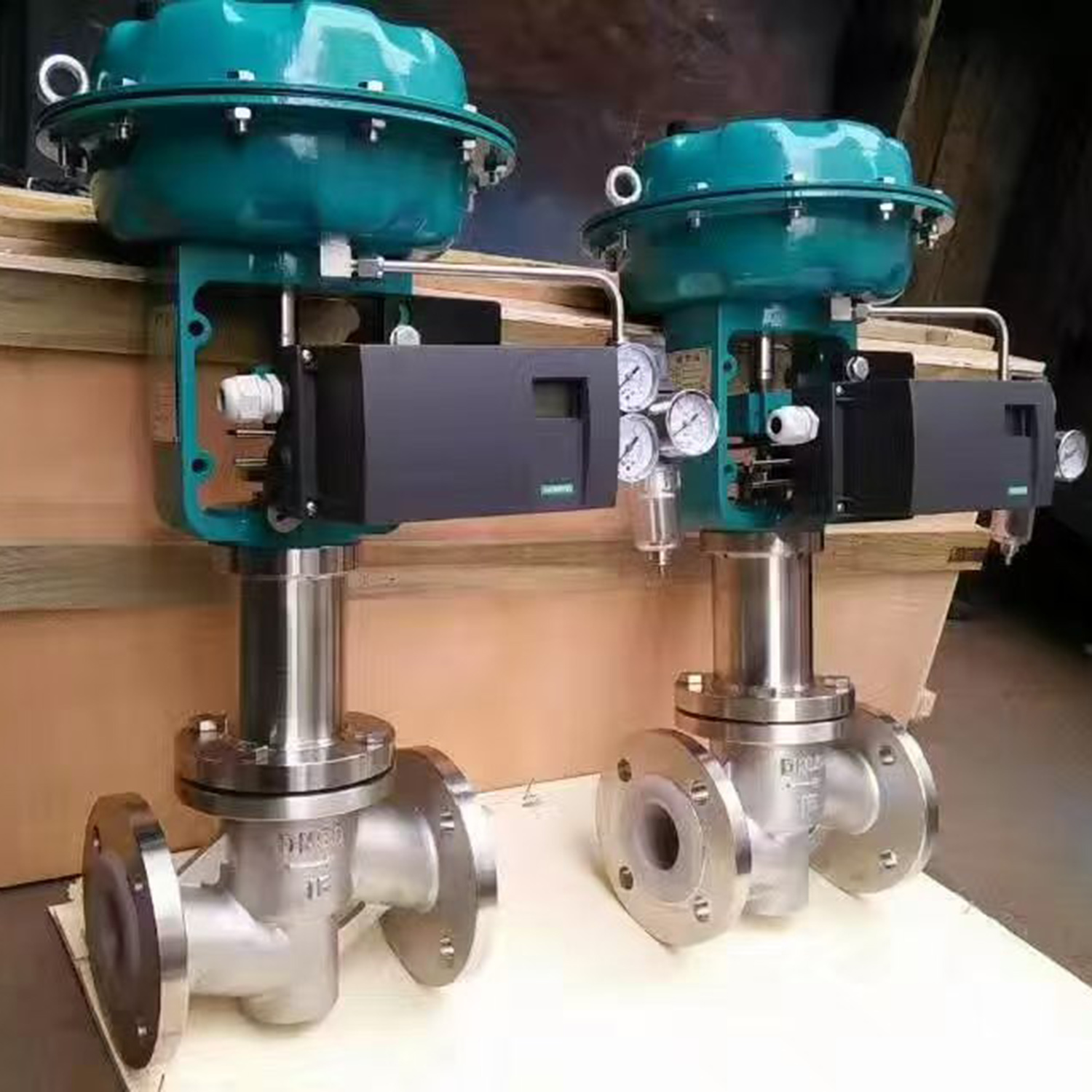

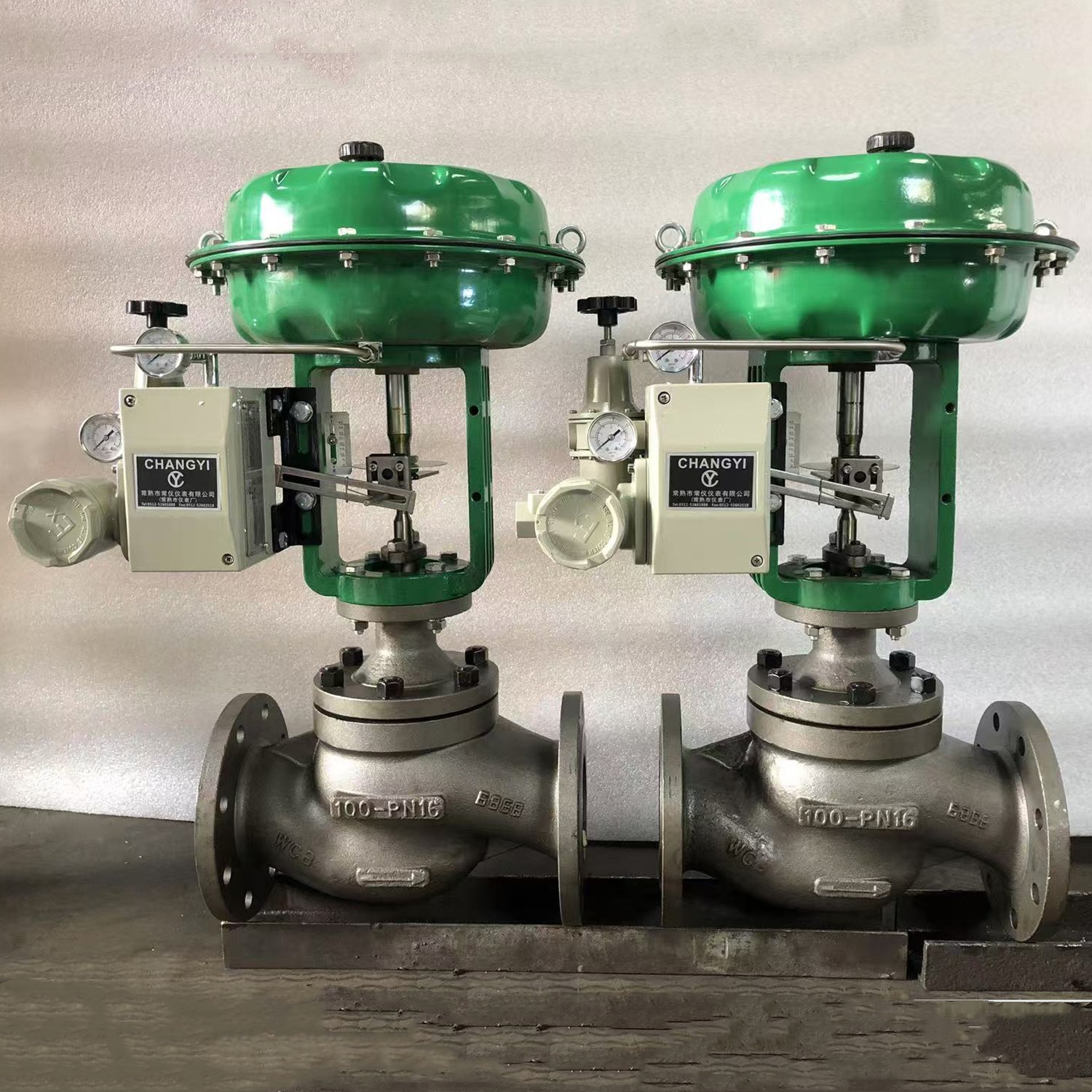

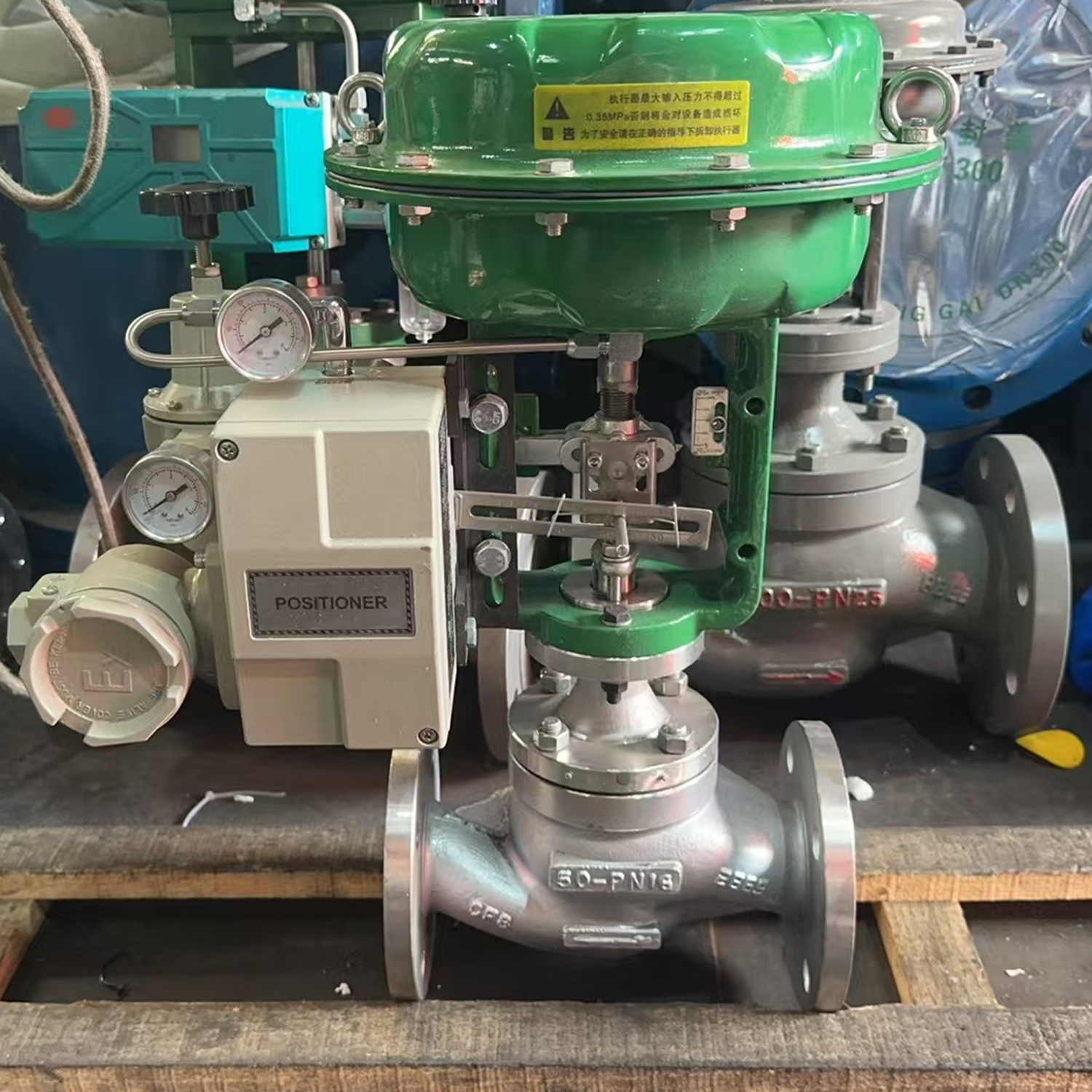

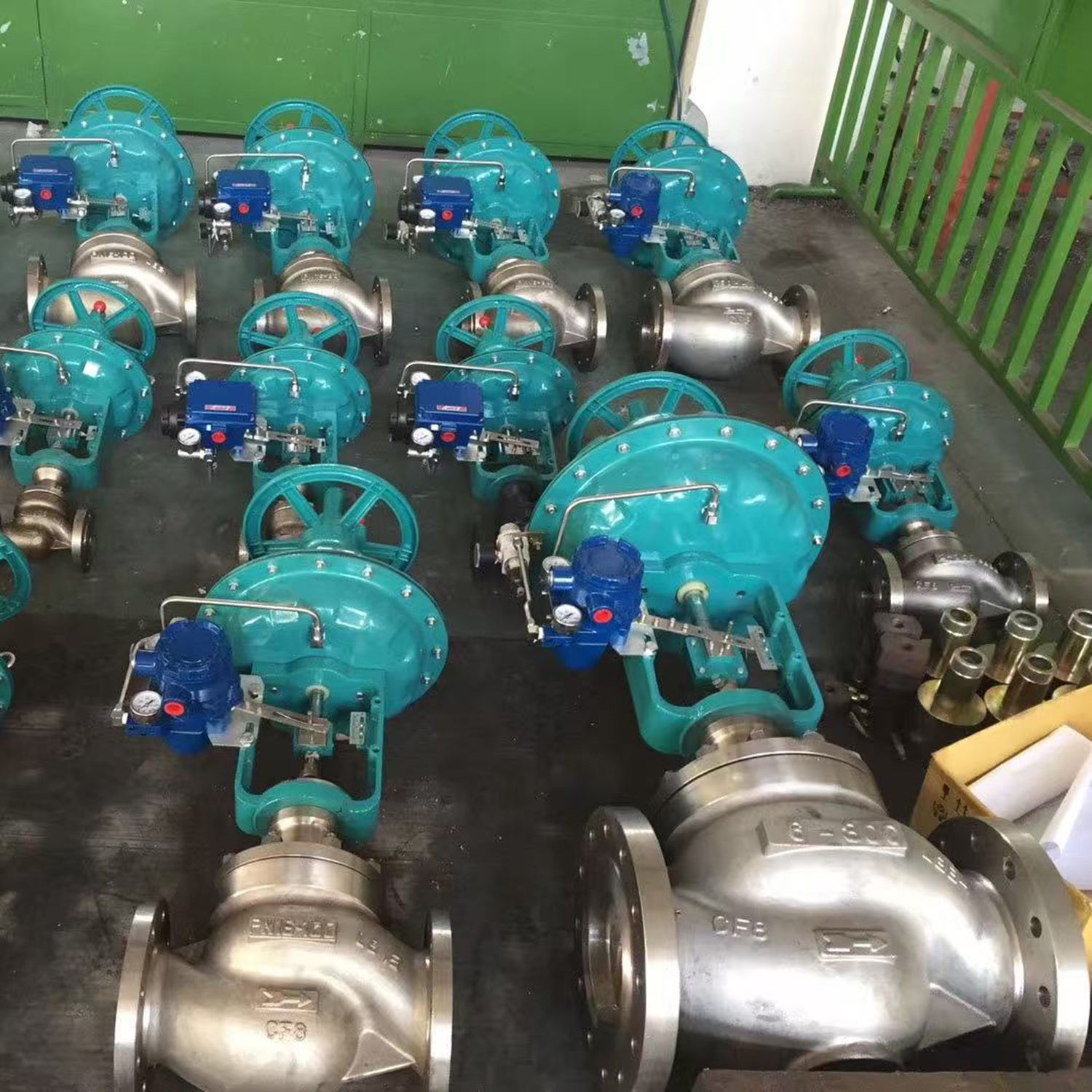

Working principle
Signal input: The control system sends a 4-20mA signal to the locator.
Position comparison: The locator receives feedback signals and calculates deviations by comparing them with the set values.
Pneumatic output: The locator adjusts the output air pressure to drive the thin film actuator.
Valve position adjustment: The valve stem moves to the target position, and the feedback signal is updated in real-time to form a closed-loop control.
Core advantages
High precision: Positioner+feedback can achieve a repeatability accuracy of ± 0.5%.
Stability: Eliminate the influence of friction and pressure fluctuations on valve position.
Remote monitoring: The intelligent locator supports parameter configuration, diagnosis, and fault alarm.
Safety redundancy: When there is a gas/power outage, a fault safety position can be pre-set.
Core advantages
High precision: Positioner+feedback can achieve a repeatability accuracy of ± 0.5%.
Stability: Eliminate the influence of friction and pressure fluctuations on valve position.
Remote monitoring: The intelligent locator supports parameter configuration, diagnosis, and fault alarm.
Safety redundancy: When there is a gas/power outage, a fault safety position can be pre-set.
How to order ？
1.What's standard , such as DIN, SMS ?
2.What's material, such as SS304 or SS316L ?
3.Which size, the size is from 1"to 5"and from DN25to DN125 ?
4.What's type of drive, such as manual, pneumatic actuator, aluminum actuator, electric actuator, 24v control head, ect ?
5.What's connection, such as butt-weld, tri-clamp, male-threaded, female-threaded, union or flange ?
