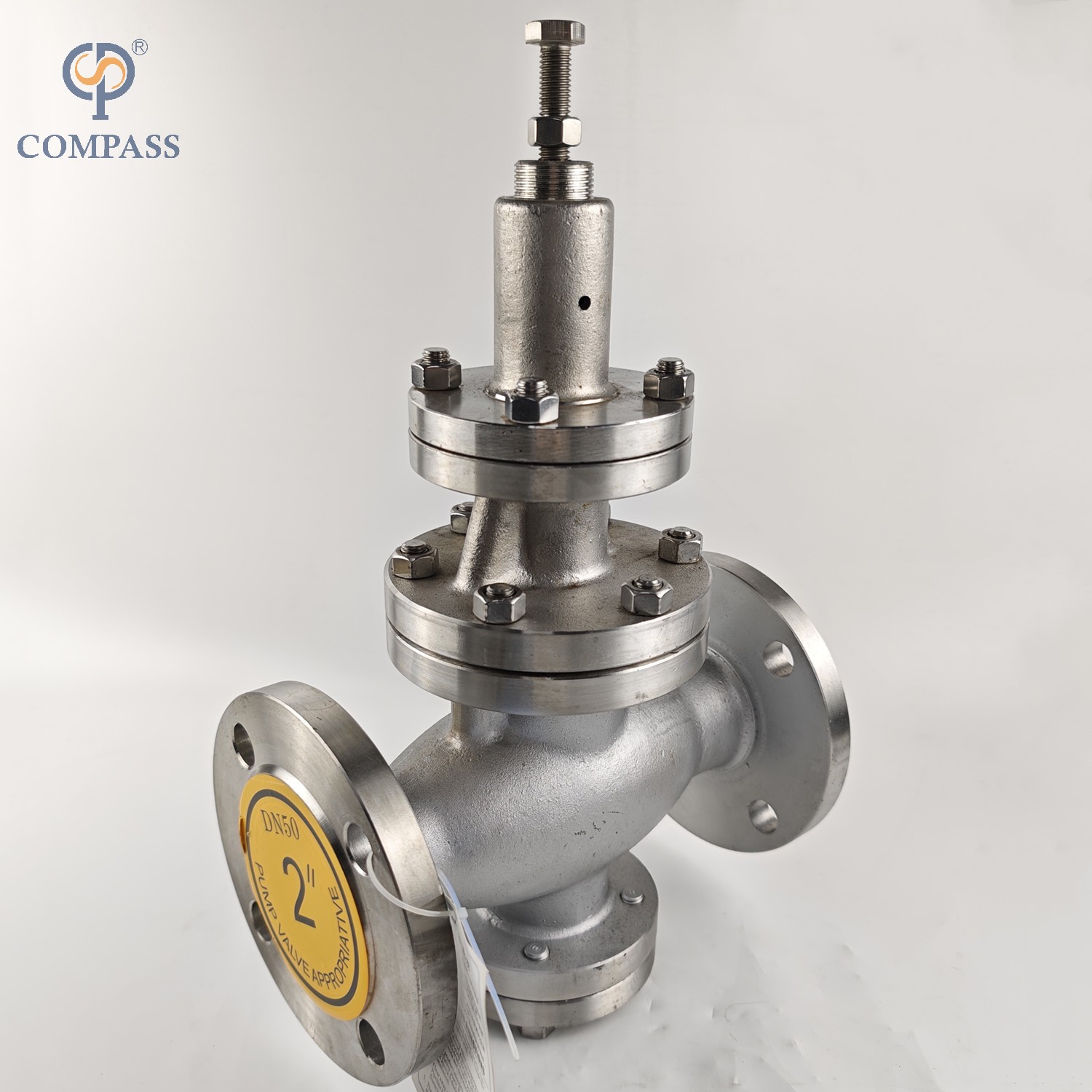

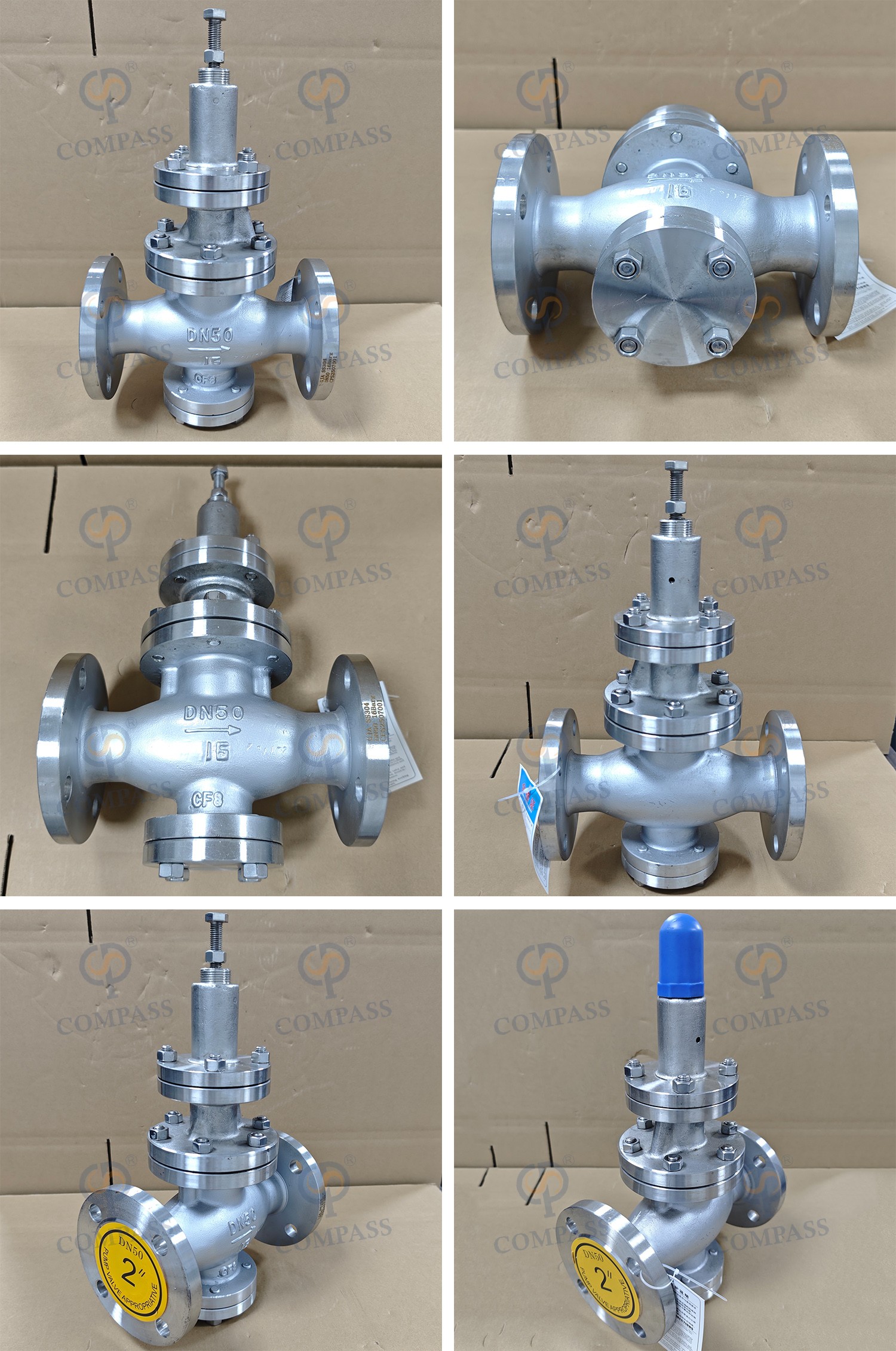

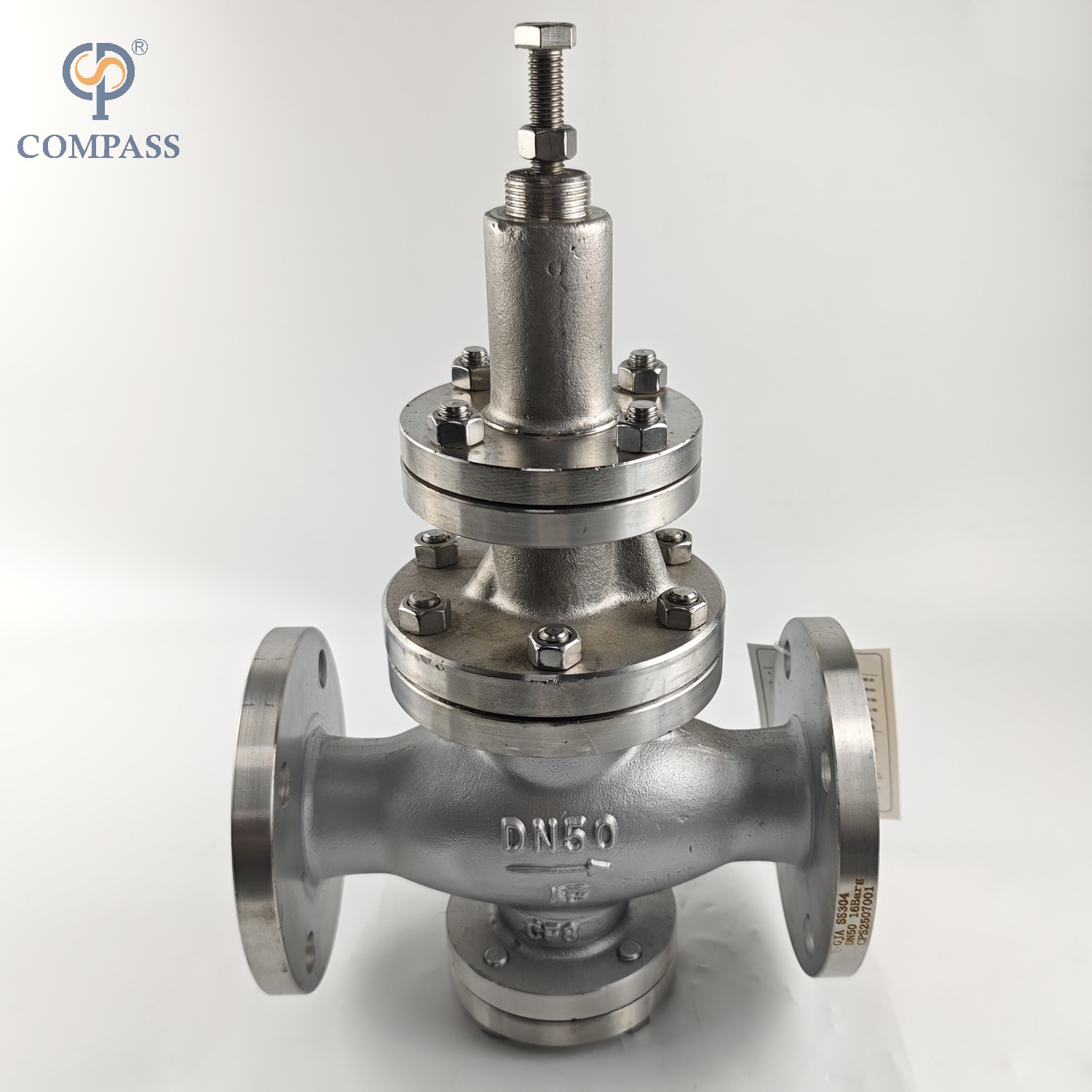

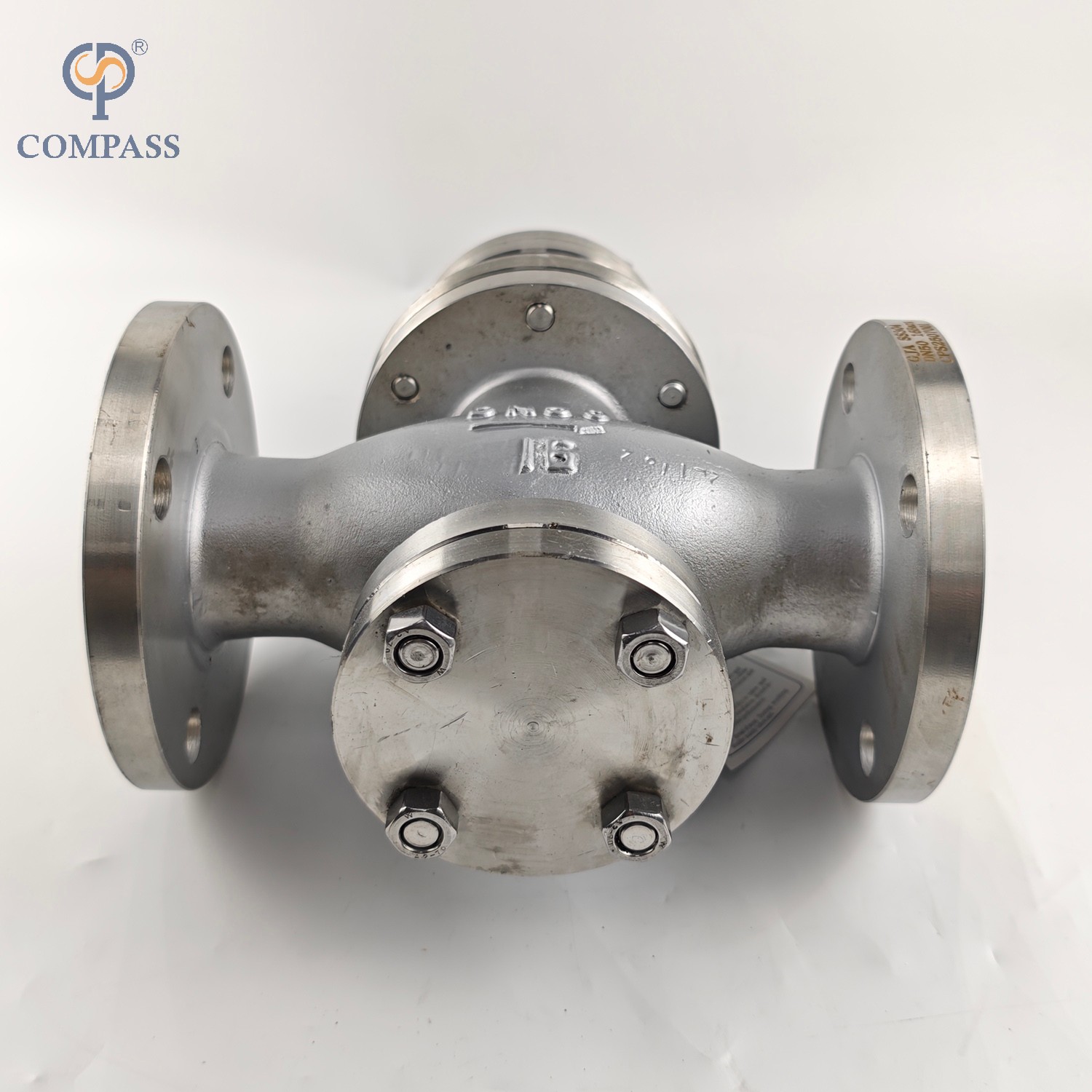

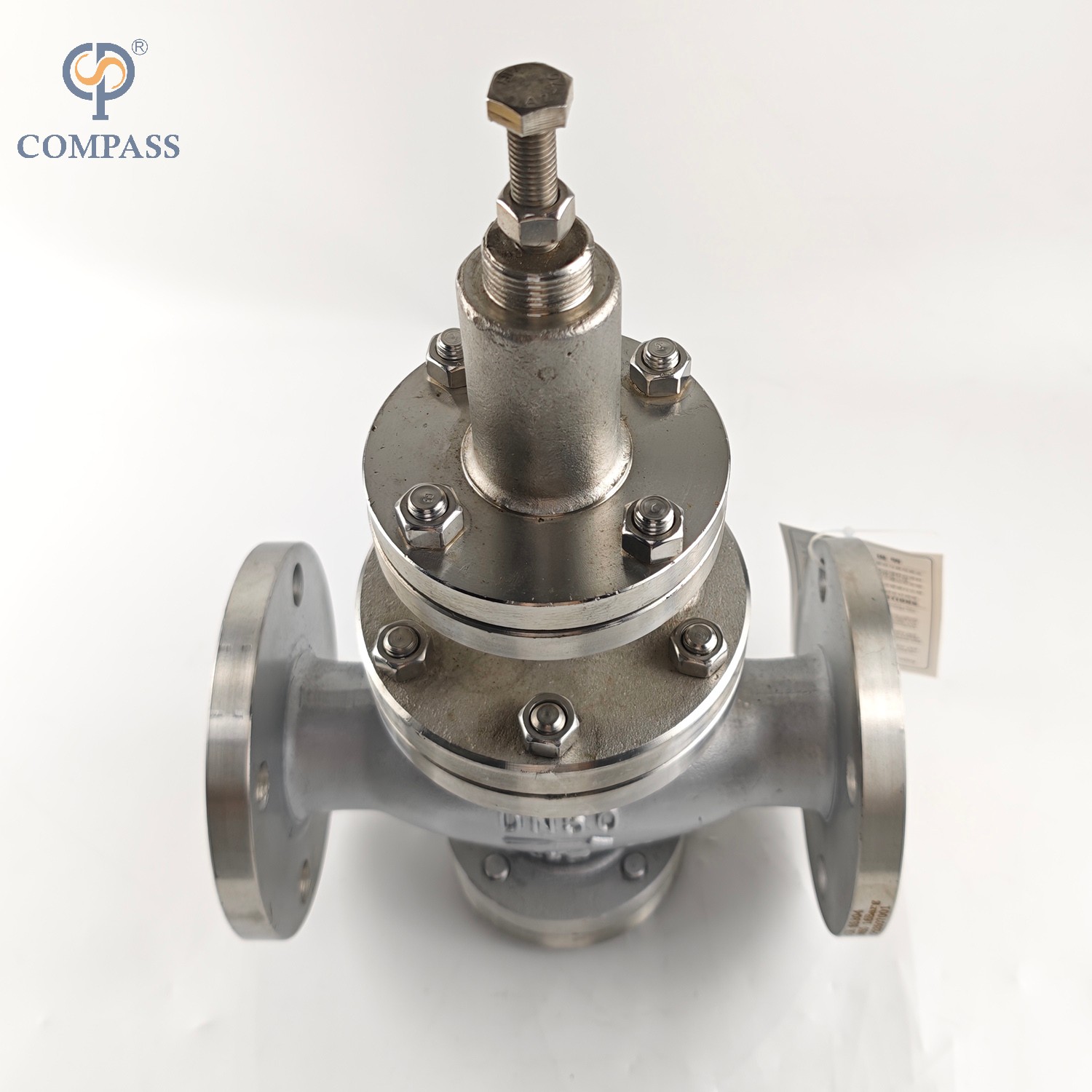

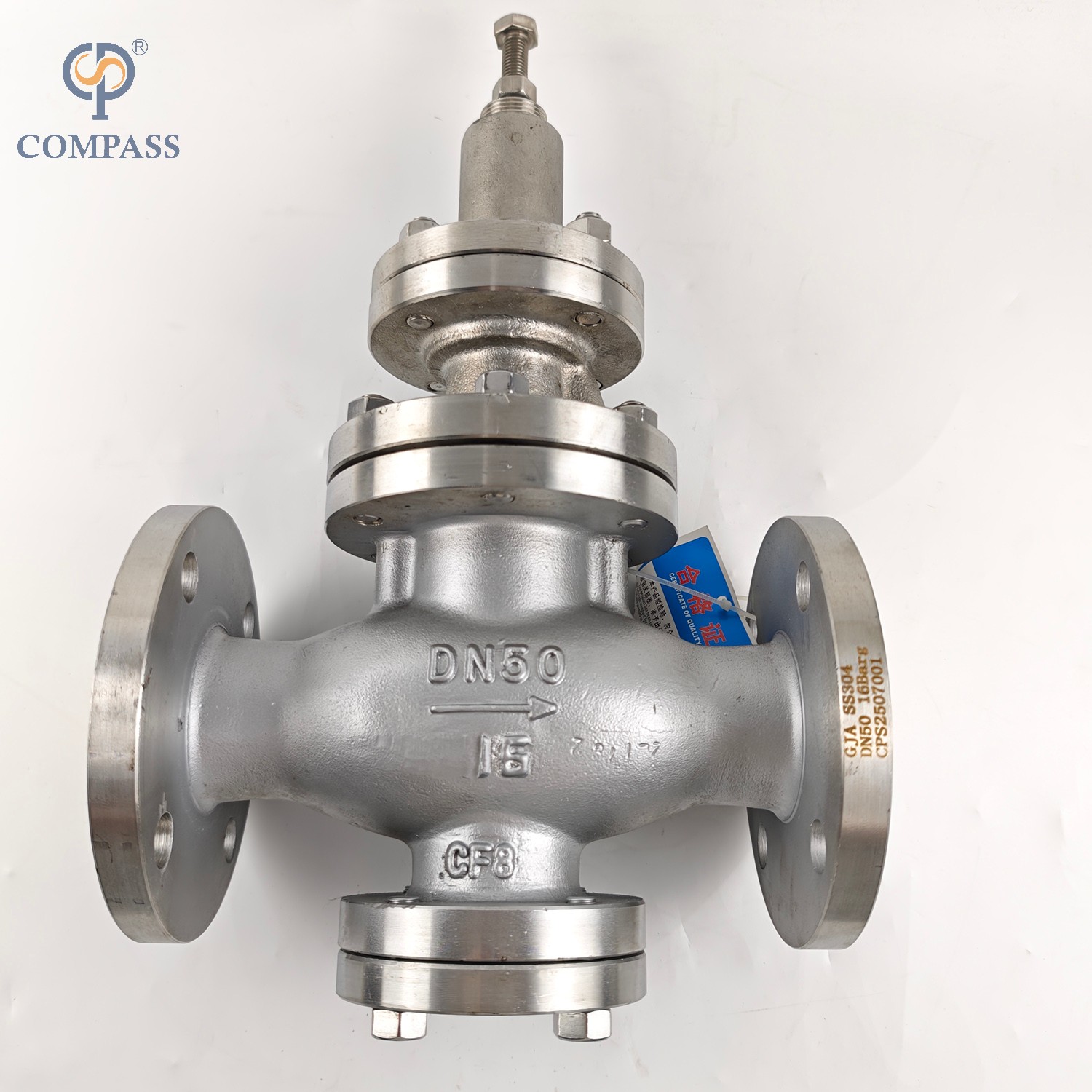

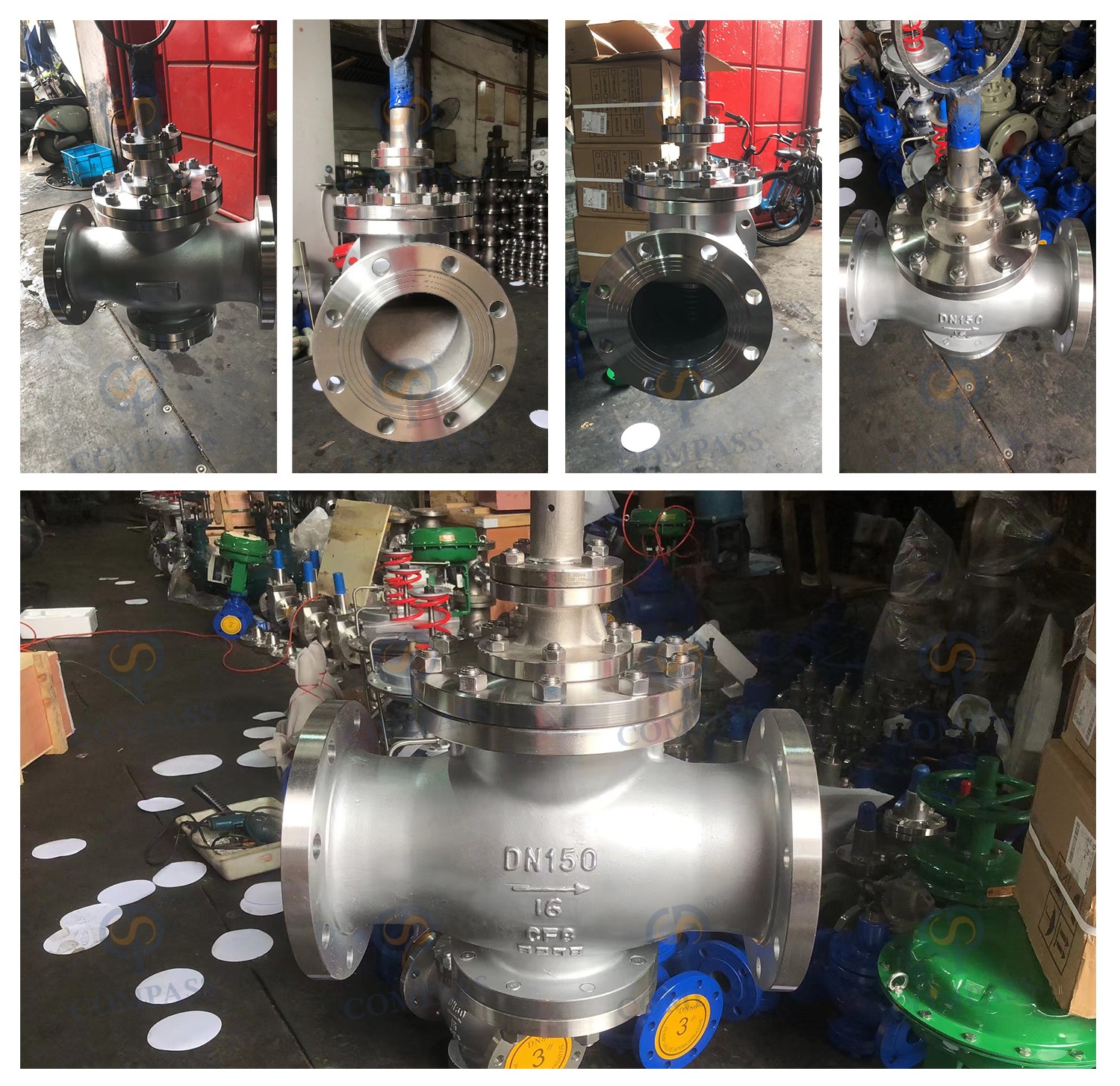

DN50 Stainless Steel Stainless Steel Pn16 Indurtail Flange Pressure Relief Valve

A flange pressure reducing valve is a type of pressure reducing valve that uses a flange connection method, mainly used to regulate the flow and pressure of media. It is widely used in fields such as chemical engineering, petroleum, natural gas, and water treatment.

The flange pressure reducing valve is different from the general threaded pressure reducing valve. Its connection method is flange, which uses the opening of the opening and closing parts inside the valve body to regulate the flow of the medium, reduce the pressure of the medium, and adjust the opening of the opening and closing parts with the help of the pressure behind the valve, so as to maintain the pressure behind the valve within a certain range. In the case of continuous changes in inlet pressure, the outlet pressure is kept within the set range, protecting the subsequent living and production equipment.

Model:
DN50
Brand:
COMPASS
Code:
102804P1601A02150

Availability:

Quantity:



Inquire Add to Basket

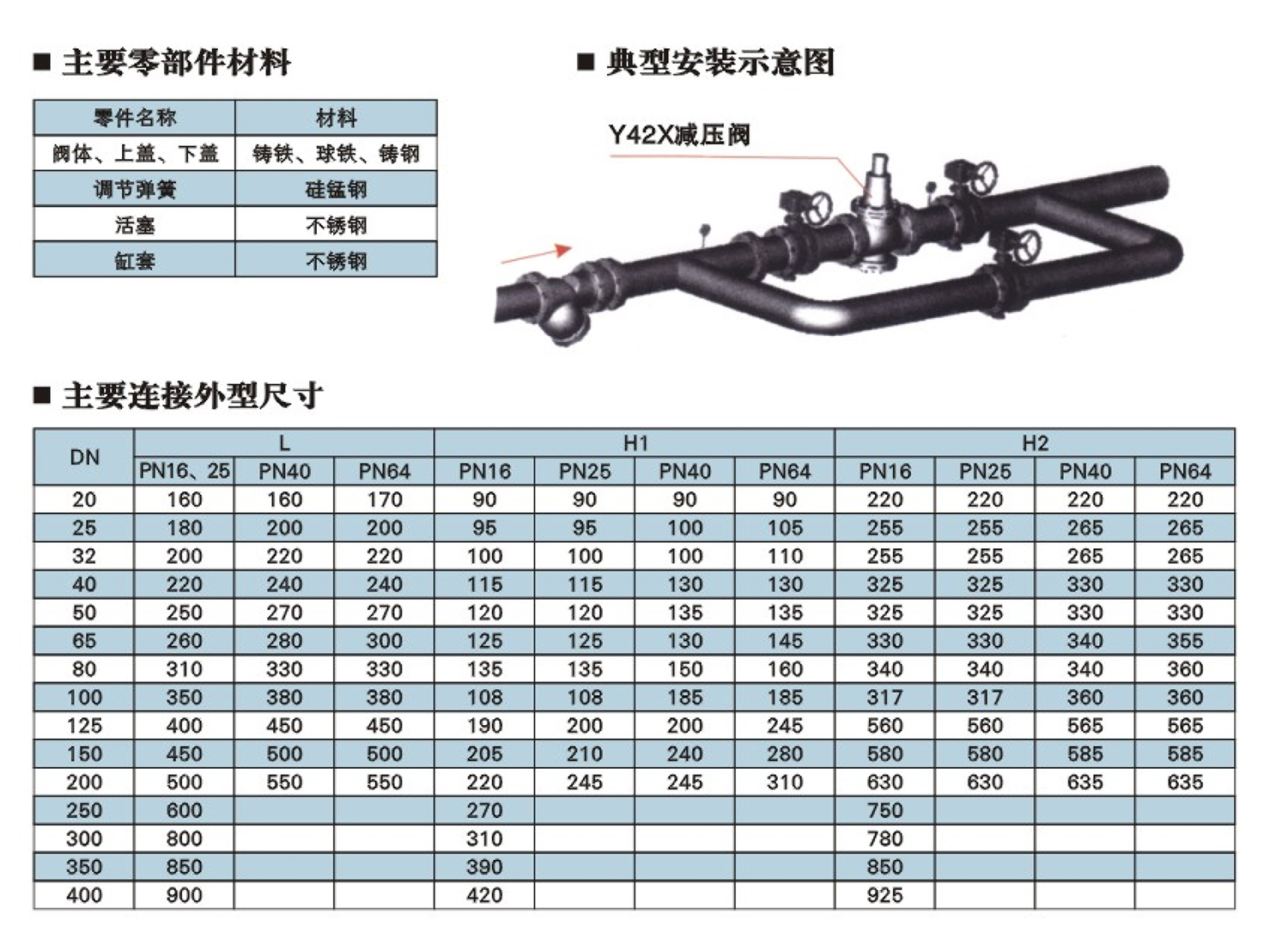

Main Parameter

Standard	SMS, DIN
Material Contact Parts	SS304/SS316L (1.4301/1.4404)	Provided with material inspection report
Material Non-contact Parts	SS304 (1.4301)
Material Filter Element	Polypropylene, PTFE
Connection Size	DN15-DN400
Length of Breather Valve	5", 10"
Connection End	Butt Weld, Tri Clamp, Male Threaded, Female Threaded, Union, Flange
Connection for Filter Element	#220, #222, #226
Seal Material	EPDM, FKM, FPM, Buna, SI. All seals material comply with FDA21CFR117.2600
Max. Working Pressure	≤10bar (145psi)
Min. Working Pressure	0.2bar (2.9psi)
Supply Pressure for Air Actuator	5~8bar (72.52psi~116psi)
External Surface Treatment	Ra32~64ui n (o.8~1.6um)
Internal Surface Treatment	Ra16~32uin (0.4~0.8um)
Temperature range	-20~130 ºC (up to Seat Seal)
Certificate	ISO 9001, FDA, SGS, CE

Application scenarios

Petrochemical industry: The pressure of the reactor feed pipeline is stable.

Power industry: Boiler feedwater system depressurization.

Natural gas transportation: secondary pressure reduction in station pressure regulating pry.

Working Principle

When the fluid passes through the valve core, the pressure decreases due to the throttling effect, and the pressure on the outlet side is transmitted to below the diaphragm through the feedback pipeline. When the outlet pressure fluctuates, the diaphragm drives the valve core to move and automatically adjusts the opening to maintain the set pressure.

Options
1. The gasket can be Silicone,EPDM,FKM,Buna,PTFE. All seals material comply with FDA21CFR117.2600
2. Connection can be Butt Weld, Tri Clamp, Male Threaded, Female Threaded, Union, or others upon request.
3.Connection sizes are from 1"-3" and length of inside element filter can be 5" or 10"
4.Material can be selected in SS304 and SS316L

How To Order PRESSURE RELIEF VALVES?

1.What's standard , such as DIN, SMS ?
2.What's material, such as SS304 or SS316L ?
3.Which size, the size is from 1"to 3"and from DN25 to DN80 ?
4.What's connection, such as butt-weld, tri-clamp, male-threaded, female-threaded, union or flange ?
5.What's kinds of material filter element, such as Polypropylene, PTFE ?
