The details of product
Standard | SMS, DIN |
Material Contact Parts | SS304/SS316L(1.4301/1.4404) Provided with material inspection report |
Material Non-contact Parts | SS304(1.4301)Provided with material inspection report |
Size | 1"-5" ,DN25 to DN125 |
Connection | Butt Weld, Tri Clamp, Male Threaded, Female Threaded, Union, Flange |
Seal Material | EPDM, FKM, FPM, Buna, Silicone. All seals material comply with FDA21CFR117.2600 |
Certificate | ISO 9001, FDA, SGS, CE |
Drive Option | Manual Stainless Steel Handle |
SS Pneumatic Actuator (air/spring, air/air) Aluminum Pneumatic Actuator (air/spring, air/air) |
Electric Actuator (on-off, adjustable) |
24V Remote Control Head 4-20mA Electricity and Pneumatic Integration |
Max. Working Pressure | ≤10bar (145psi) |
Min. Working Pressure | 0.2bar (2.9psi) |

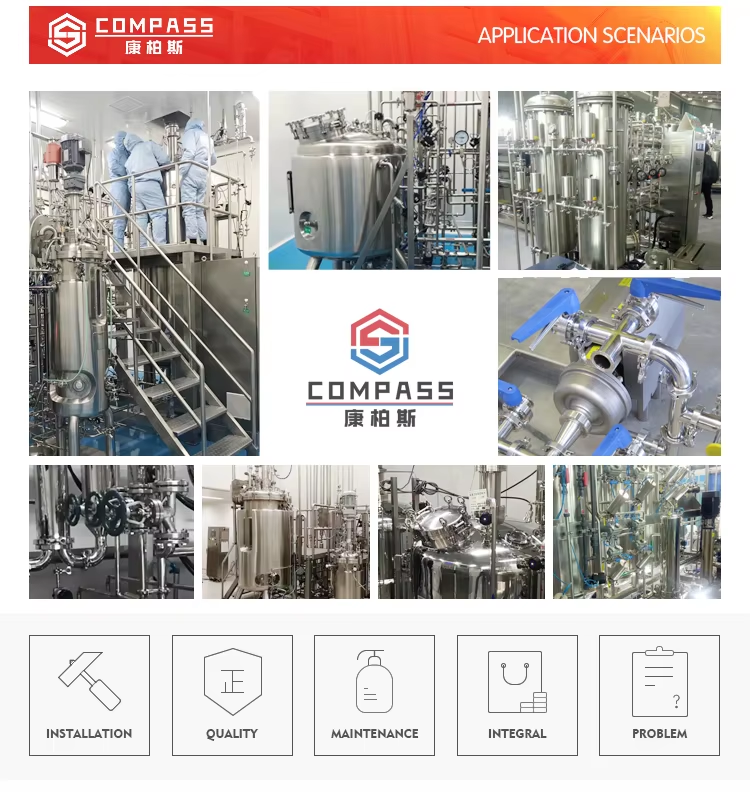

Application | Widely used for alcohol, pharmaceuticals, food, and water treatment and so on |

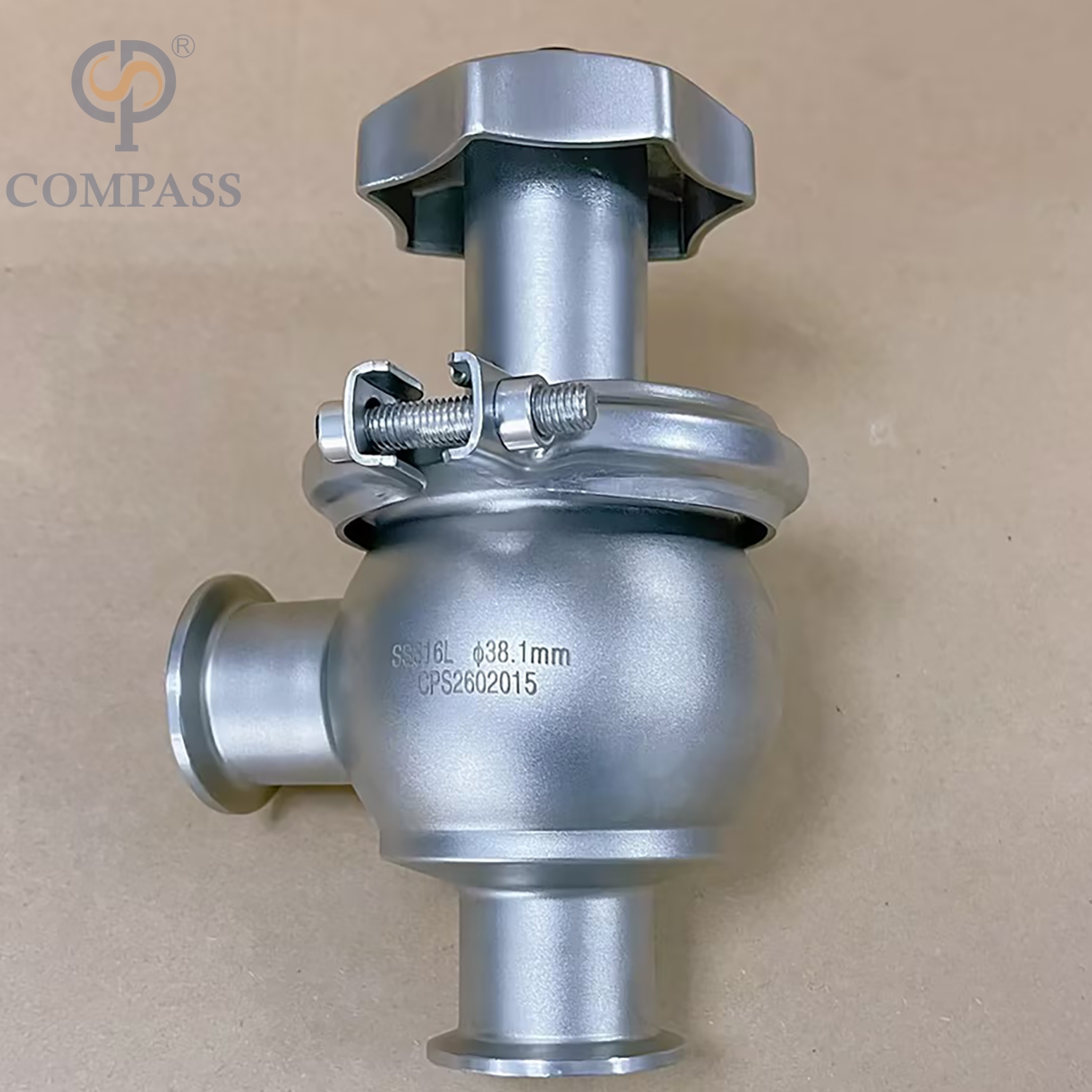

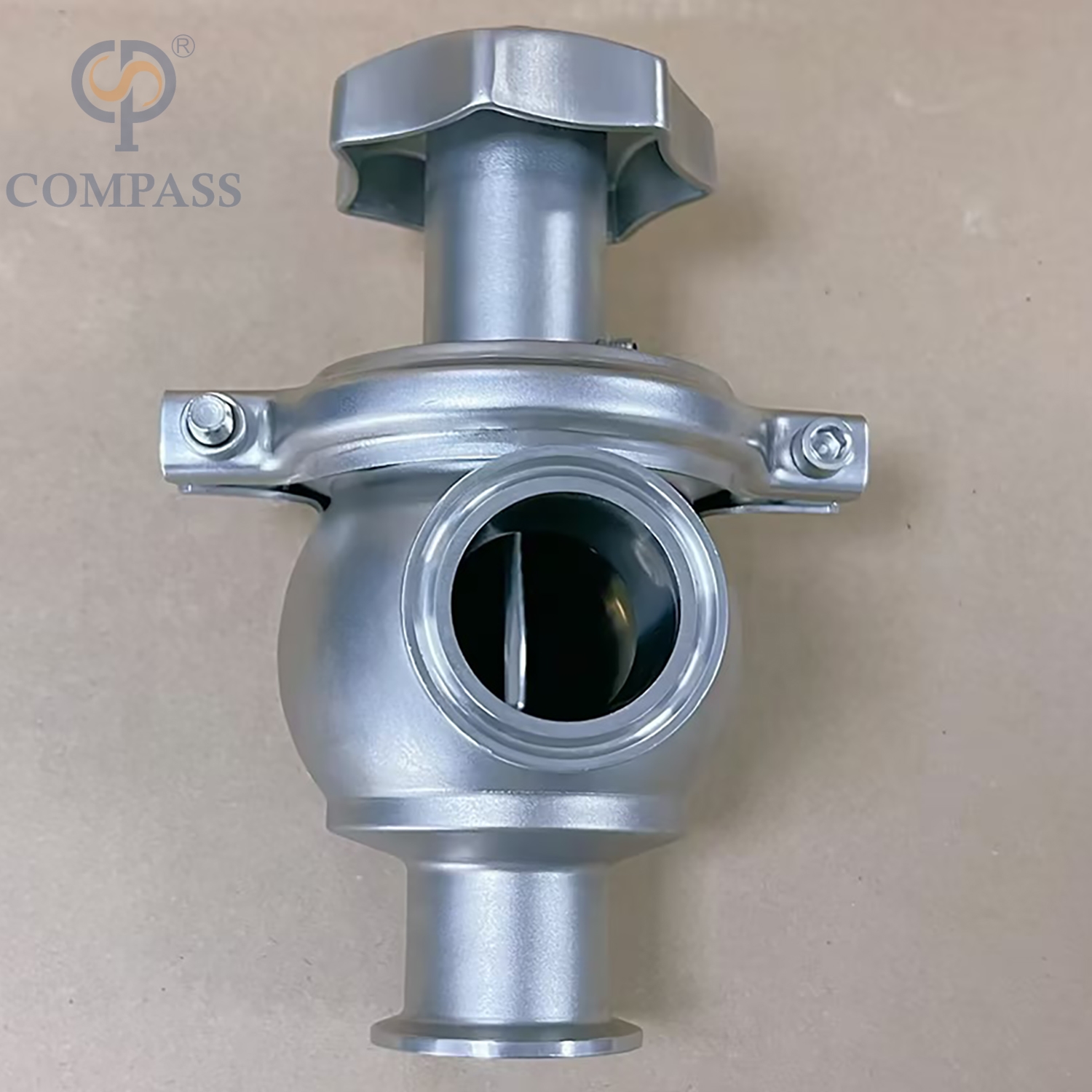

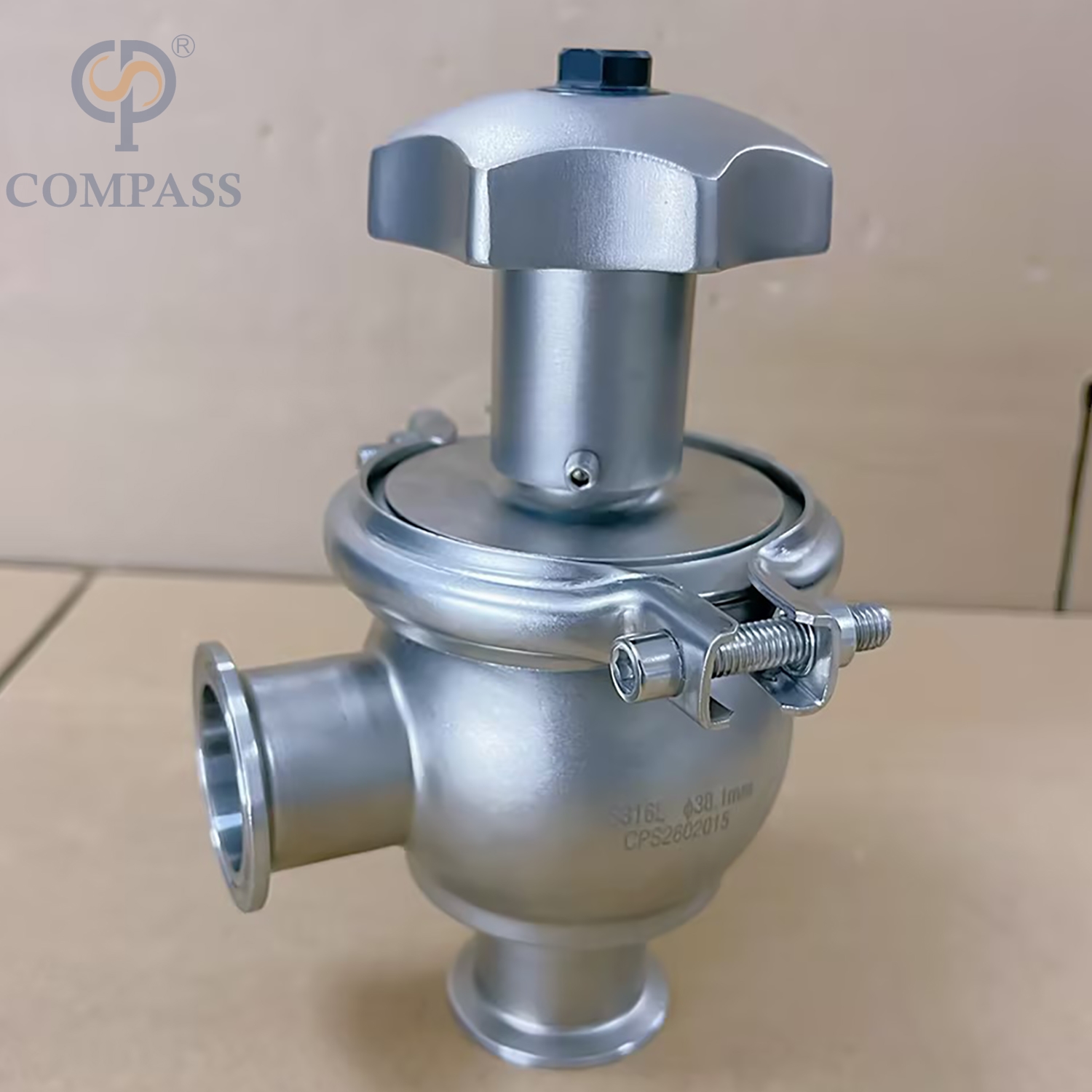

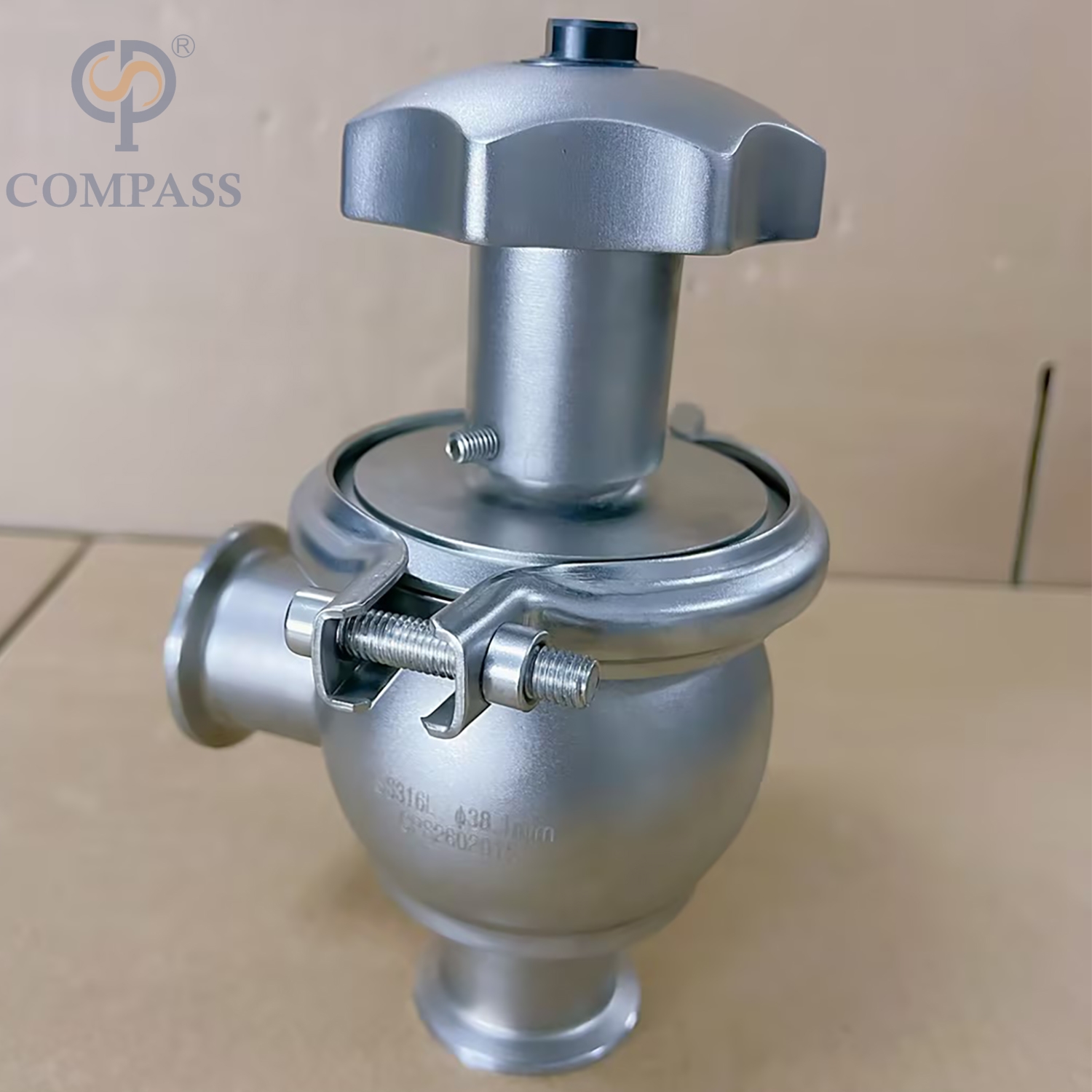

Description of Commodity: Hot Selling 1.5Inch TC 50.5MM SS316L Sanitary Stainless Steel Hygiene Food Grade SMS Manual Clamp Ends Flow Regulator Valves
Product Overview
This valve is in the form of an electric pneumatic regulating valve, used in automation control systems. The three-way regulating valve is designed to meet the needs of two different working conditions. It is used in a widely range of fields such as alcohol, pharmaceuticals, food, and water treatment.
Options
1. The gasket can be EPDM, FKM, FPM, Buna, SI. All seals material comply with FDA21CFR117.2600
2. Connection can be Butt Weld, Tri Clamp, Male Threaded, Female Threaded, Union, Flange or others upon request.
3. Drive option can be manual, SS pneumatic actuator, aluminum pneumatic actuator, electric actuator and 4-20mA Electricity and Pneumatic Integration.
Technical Specifications
Max. pressure: ≤10bar (145psi)
Min. pressure: 0.2bar (2.9psi)
Temperature range: EPDM: -5 ~ 212°F(-20 ~ 100℃) ; FKM:10~ 392°F(-12.2 ~ 200℃)
Other materials are Available upon request
Advantages
1. Sanitary flow regulating valves have more safety,cleanliness, durability, and aesthetics.
2. With open bracket, the actuator body was dissociated, you can check the shaft seal directly. The design makes the transmission and product are partially separation to prevent heat transfer from the body to the actuator.
3. The condition “NO” and “NC” can be change instantly.
4. The spherical body has the ideal flow-ability and cleaning properties. Meanwhile, the treatment of material is more moderate.
5. The standard valve design makes the coupling combination has a high degree of spirit activity and diversity.
6. Metal stop ensures longer seal life.
7. Fast and convenient assembly and maintenance operations.
How to Order about Flow Regulator Valves?
1. What's standard , such as DIN, SMS?
2. What's material, such as SS304 or SS316L ?
3. Which size, the size is from 1'' to 5'' and from DN25 to DN125 ?
4. What's type of drive, such as manual, pneumatic actuator, aluminum actuator, electric actuator, 24v control head, ect ?
5. What's connection, such as butt-weld, tri-clamp, male-threaded, female-threaded, union or flange ?
