Did you know contamination risks threaten milk and juice quality daily? Sanitary process lines are vital to prevent this.
Milk and juice processing faces unique challenges requiring strict hygiene and compliance with sanitary standards.
In this post, you’ll learn why sanitary process lines matter and how to build one that ensures safety and efficiency.
Step-by-Step Guide to Building a Sanitary Process Line for Milk and Juice
Building a sanitary process line requires careful planning and precise execution to ensure product safety and process efficiency. Here’s a detailed guide on how to build a sanitary process line tailored for milk and juice applications.
Planning and Designing the Process Line Layout
Start by mapping out the entire milk juice processing line setup. Consider the flow of raw materials, processing stages, and final packaging. The layout should minimize bends and dead zones where product residue can accumulate. Use a sanitary process line design guide to ensure smooth flow and easy access for cleaning and maintenance.
Selecting Appropriate Sanitary Piping and Fittings
Choose sanitary piping for milk juice that meets food grade process line setup standards. Stainless steel tubing—preferably SS316L—is widely recommended due to its corrosion resistance and hygienic surface finish. Use hygienic process line components like clamps, welds, and gaskets designed specifically for dairy and juice processing to ensure leak-free connections.
Choosing the Right Hygienic Tube Reducers for Flow Control
Incorporate hygienic tube reducers to connect pipes of different diameters while maintaining smooth flow. Concentric reducers suit vertical pipelines, while eccentric reducers help avoid air pockets in horizontal runs. Proper selection prevents stagnation and supports cleaning protocols for sanitary lines.
Incorporating Clean-in-Place (CIP) and Sterilize-in-Place (SIP) Systems
Integrate CIP and SIP systems early in the design to enable automated cleaning without disassembly. These systems use specially designed spray balls and piping layouts to ensure all surfaces are thoroughly cleaned and sterilized, reducing contamination risks and downtime.
Ensuring Proper Drainage and Avoiding Dead Zones
Design the process line with appropriate slopes and drainage points. Avoid flat sections where liquids can pool, as these create breeding grounds for bacteria. Proper drainage supports effective process line cleaning procedures and maintains hygienic conditions.
Material Selection for Sanitary Components
Select materials that comply with regulatory standards such as FDA and 3A. Stainless steel is preferred for its durability and corrosion resistance. Seals and gaskets must be food-grade and compatible with cleaning chemicals used in CIP/SIP cycles.
Testing and Validation for Sanitary Integrity
Before commissioning, conduct pressure tests and microbial validation to verify the sanitary integrity of the entire line. Regular sanitary process line troubleshooting during setup helps identify and resolve potential contamination or leakage issues early.
Tip: When building a sanitary process line, always prioritize selecting hygienic tube reducers and fittings that align with your CIP/SIP cleaning protocols to ensure seamless maintenance and product safety.
Key Components of a Sanitary Process Line
When building a sanitary process line for milk and juice, selecting the right components is crucial to ensure hygiene, reliability, and ease of maintenance. This section covers the essential parts you need to consider, focusing on sanitary tubing, hygienic tube reducers, valves, pumps, seals, and gaskets designed specifically for dairy and juice processing.
Sanitary Tubing and Pipe Materials
Sanitary tubing forms the backbone of your milk juice processing line setup. Stainless steel tubing, especially SS316L, is the industry standard due to its excellent corrosion resistance, durability, and smooth surface finish that prevents bacterial buildup. Milk juice sanitary tubing must comply with food grade process line setup requirements, ensuring no contamination risk during transfer.
Key features to look for in sanitary tubing include:
Smooth internal surfaces with low surface roughness (Ra ≤ 0.8 µm)
Compliance with FDA and 3A sanitary standards
Compatibility with CIP and SIP cleaning protocols
Availability in various sizes to fit your process design
Hygienic Tube Reducers: Types and Applications
Hygienic tube reducers are vital for connecting pipes of different diameters while maintaining smooth, laminar flow. Choosing the right reducer type prevents stagnation and product buildup, which is critical in milk and juice processing.
There are two main types:
Concentric Reducers: Both pipe ends align on the same central axis, ideal for vertical pipelines and downward flow. They maintain a stable flow pattern and facilitate proper drainage.
Eccentric Reducers: One end is offset to eliminate air pockets and prevent liquid pooling in horizontal pipelines. These are perfect for pump suction lines and horizontal sanitary piping for milk juice.
Both clamp and welded connection types are available. Clamp reducers allow easy disassembly for cleaning, while welded reducers provide a permanent, leak-proof seal for long-term installations.

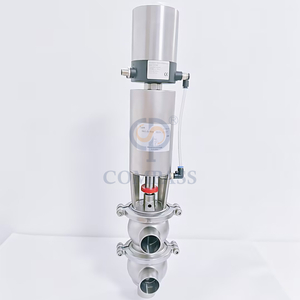

Valves and Pumps Designed for Sanitary Use
Valves and pumps in a sanitary process line must support hygienic operation and cleaning protocols. They should be made from food-grade materials and designed to minimize dead zones where bacteria can grow.
Considerations include:
Use of diaphragm or butterfly valves with smooth surfaces and minimal crevices
Pumps with sanitary seals and smooth impellers to prevent product damage
Compliance with CIP/SIP systems to allow cleaning without disassembly
Selecting valves and pumps designed for sanitary use ensures operational efficiency and product safety.
Seals and Gaskets Suitable for Milk and Juice Processing
Seals and gaskets are critical to maintaining leak-free connections and preventing contamination. They must be made from food-grade elastomers compatible with cleaning agents used in CIP and SIP cycles.
Common materials include:
EPDM (Ethylene Propylene Diene Monomer): Good chemical resistance, widely used in dairy and juice applications
Silicone: High temperature resistance, suitable for sterilization processes
PTFE (Polytetrafluoroethylene): Excellent chemical resistance and durability
Proper selection and installation of seals and gaskets contribute to the overall hygiene and longevity of the sanitary process line.
Tip: When building a sanitary process line, always choose hygienic process line components—such as SS316L tubing, concentric or eccentric tube reducers, and food-grade seals—that align with your cleaning protocols to ensure smooth operation and easy maintenance.
Selecting Materials and Finishes for Sanitary Process Lines
Choosing the right materials and finishes is crucial when building a sanitary process line for milk and juice applications. These choices impact hygiene, corrosion resistance, durability, and compliance with food safety regulations. Let’s explore the key factors to consider for material selection and surface finishing in your dairy juice process line construction.
Stainless Steel Grades: SS304 vs SS316L
Stainless steel is the preferred material for sanitary piping for milk juice due to its strength and resistance to corrosion. The two most common grades are SS304 and SS316L.
SS304: This grade contains chromium and nickel, offering good corrosion resistance and mechanical strength. It is suitable for general food and beverage applications where exposure to harsh chemicals or chlorides is minimal. SS304 is often used in standard sanitary process line setup but may be less durable in acidic or high-chloride environments.
SS316L: This low-carbon variant includes molybdenum, which enhances corrosion resistance, especially against chlorides and acids common in juice processing. SS316L is ideal for high-standard milk juice sanitary tubing and hygienic process line components. Its superior durability makes it the top choice for dairy juice processing line setup where longevity and hygiene are priorities.
Choosing between these grades depends on your product’s chemical profile and cleaning protocols. For most milk and juice lines, SS316L offers better protection and compliance with regulatory requirements.
Surface Finishing Requirements for Hygiene
Surface finish directly affects the cleanability of sanitary process lines. Smooth, polished surfaces prevent bacterial buildup and facilitate effective cleaning protocols for sanitary lines.
Surface Roughness (Ra): A roughness average of ≤ 0.8 µm is standard for food-grade process line setup. Pharmaceutical-grade lines may require even smoother finishes (Ra ≤ 0.4 µm).
Polishing: Electropolishing or mechanical polishing produces a uniform, mirror-like surface that resists corrosion and biofilm formation.
Welding Finishes: Welds must be smooth and flush with the pipe surface to avoid crevices where contaminants can accumulate.
Proper finishing ensures that cleaning-in-place (CIP) and sterilize-in-place (SIP) systems work efficiently, maintaining sanitary integrity throughout production.
Corrosion Resistance and Durability Considerations
Milk and juice processing lines face constant exposure to moisture, cleaning chemicals, and varying temperatures. Materials must withstand these conditions without degrading.
Corrosion Resistance: SS316L excels due to molybdenum content, resisting pitting and crevice corrosion better than SS304.
Chemical Compatibility: Seals, gaskets, and tubing must tolerate CIP chemicals like caustics and acids without losing integrity.
Mechanical Durability: Components should resist wear and deformation during operation and cleaning cycles, ensuring long service life.
Selecting materials with high corrosion resistance reduces maintenance needs and prevents contamination risks from degraded surfaces.
Regulatory Compliance for Materials in Food Processing
All materials used in sanitary process equipment installation must comply with strict food safety standards.
FDA Compliance: Materials must be approved for direct food contact, ensuring they do not leach harmful substances.
3A Sanitary Standards: These specify design and material requirements for dairy and beverage equipment to maintain hygiene.
ISO and EU Regulations: International standards govern material traceability, surface finish, and chemical safety.
Ensuring compliance protects product quality and helps meet audit and certification requirements.
Tip: For building a hygienic process line, always select SS316L stainless steel with a polished surface finish (Ra ≤ 0.8 µm) to maximize corrosion resistance, ease of cleaning, and regulatory compliance in milk and juice processing applications.
Sanitary Standards and Certifications for Milk and Juice Lines
Ensuring your sanitary process line meets the highest standards and certifications is essential for product safety, regulatory compliance, and operational efficiency. Milk and juice processing lines must adhere to strict sanitary standards that govern materials, design, surface finish, and cleaning protocols. Understanding these standards and how to maintain certification during modifications helps build a reliable, compliant dairy juice process line construction.
Understanding 3A, DIN, SMS, ISO, and FDA Standards
Several key standards regulate sanitary process equipment installation and materials for milk and juice applications:
3A Sanitary Standards: Widely used in North America, 3A standards focus on hygienic design for dairy and food equipment. They specify requirements for surface finish, materials, and cleanability to prevent contamination.
DIN Standards (e.g., DIN 11850, DIN 11851): German standards that define dimensions, tolerances, and surface finishes for stainless steel sanitary tubing and fittings. They are common in European dairy and beverage industries.
SMS Standards: European sanitary standards emphasizing hygienic design and material quality for food and beverage processing.
ISO Standards (e.g., ISO 2037): International standards covering stainless steel tubes for the food industry, ensuring consistent quality and surface finish.
FDA Regulations: The U.S. Food and Drug Administration mandates materials and components that are safe for direct food contact, ensuring no harmful substances leach into milk or juice products.
Complying with these standards ensures your sanitary process line setup steps align with global food safety requirements and industry best practices.
Surface Roughness and Its Impact on Cleanability
Surface finish plays a critical role in maintaining hygiene. Rough surfaces encourage microbial growth and product buildup, making cleaning difficult.
Surface Roughness (Ra): For milk and juice sanitary tubing, a surface roughness of Ra ≤ 0.8 µm is standard. Pharmaceutical-grade lines may require Ra ≤ 0.4 µm for enhanced cleanliness.
Polished Surfaces: Electropolishing or mechanical polishing produces smooth, corrosion-resistant surfaces that support effective cleaning protocols for sanitary lines.
Welded Joints: Must be flush and smooth to avoid crevices where bacteria can hide.
Proper surface finish facilitates efficient Clean-in-Place (CIP) and Sterilize-in-Place (SIP) processes, reducing contamination risks and downtime.
Documentation and Quality Assurance for Compliance
Maintaining thorough documentation is vital for proving compliance during audits and inspections. Key documents include:
Material certificates verifying FDA and 3A compliance
Surface finish test reports confirming Ra values
Welding inspection and validation records
Cleaning protocol documentation demonstrating CIP/SIP effectiveness
Traceability records linking components to manufacturers and batches
These documents support quality assurance and help maintain certification throughout the sanitary process line lifecycle.
Maintaining Certification During Line Modifications
Modifying an existing sanitary process line requires careful management to preserve certifications:
Use certified hygienic process line components compatible with original standards
Ensure welding and assembly follow approved sanitary techniques
Revalidate surface finishes and perform microbial testing after modifications
Update documentation to reflect changes and maintain traceability
Coordinate with certification bodies when major changes occur
Proper management prevents certification lapses and ensures ongoing compliance with food safety regulations.
Tip: Always verify that your sanitary process line components and modifications meet recognized standards like 3A, DIN, and FDA, and maintain thorough documentation to ensure seamless compliance and audit readiness.
Installation Best Practices for Sanitary Process Lines
Proper installation is a critical step in building a sanitary process line for milk and juice applications. Following best practices during sanitary process equipment installation ensures system integrity, prevents contamination, and supports efficient cleaning protocols. Below are key guidelines covering welding, assembly, alignment, connections, and commissioning.
Proper Welding and Assembly Techniques
Welding must be performed by certified technicians using sanitary welding methods such as TIG (Tungsten Inert Gas) welding. This technique produces smooth, clean welds with minimal heat distortion.
Welds should be flush and polished to match the pipe's internal surface, avoiding crevices where bacteria can accumulate.
Use low-carbon stainless steel (SS316L) to reduce corrosion risk in welded areas.
Avoid excessive heat input to prevent sensitization of stainless steel.
After welding, perform passivation to restore the chromium oxide layer for corrosion resistance.
Assembly should follow the sanitary process line design guide, ensuring all fittings, seals, and gaskets are correctly installed and food-grade compliant. Use hygienic process line components that fit precisely to prevent leaks.
Avoiding Contamination During Installation
Contamination risks are high during installation if components are exposed to dirt, dust, or unclean tools.
Keep all pipes, fittings, and tubes capped or covered until installation.
Use clean gloves and tools dedicated to sanitary assembly.
Avoid placing components on the floor or unclean surfaces.
Inspect all parts for damage or foreign material before installation.
Maintaining a clean workspace and handling materials carefully protects product safety from the start.
Alignment and Support to Prevent Stress and Leakage
Proper alignment of pipes and components prevents mechanical stress that can cause leaks or premature wear.
Use pipe supports and hangers spaced according to sanitary piping standards.
Avoid misalignment that forces seals or gaskets out of position.
Ensure piping slopes maintain proper drainage to avoid dead zones.
Allow for thermal expansion with flexible joints or loops.
Correct support and alignment enhance system durability and facilitate effective cleaning protocols for sanitary lines.

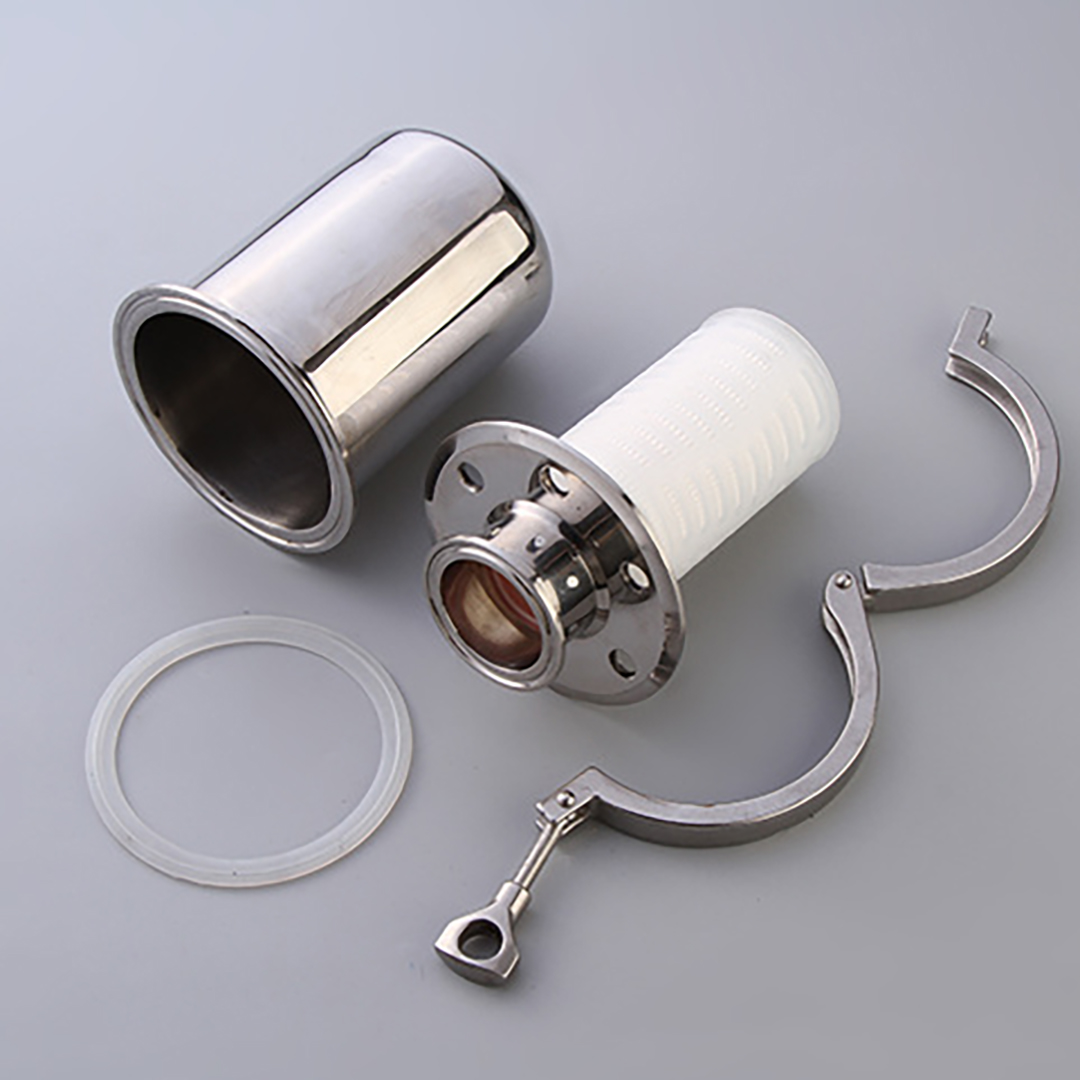

Integration of Clamp and Welded Connections
Sanitary process lines typically use a combination of clamp and welded connections.
Clamp Connections: Ideal for sections requiring frequent disassembly for cleaning or maintenance. They provide quick, leak-free seals using food-grade gaskets.
Welded Connections: Best for permanent joints where durability and minimal contamination risk are priorities. Welded joints reduce potential leak points.
Plan the layout to balance accessibility with system integrity, using clamp fittings at valves, pumps, and CIP/SIP access points.
Commissioning and Initial Cleaning Procedures
Before starting production, the entire sanitary process line must be cleaned and validated.
Conduct a thorough cleaning-in-place (CIP) cycle using approved detergents and sanitizers.
Follow with sterilize-in-place (SIP) if required, especially for milk processing lines.
Perform microbial testing to confirm hygienic integrity.
Inspect all joints and seals for leaks during pressurization tests.
Document cleaning and inspection results for quality assurance.
Commissioning validates the sanitary process line setup steps and ensures a safe start to production.
Tip: During installation, always prioritize sanitary welding and use clamp connections strategically to enable easy cleaning and maintenance while maintaining leak-proof integrity.
Maintenance and Cleaning of Sanitary Process Lines
Maintaining a sanitary process line is essential to ensure product safety, extend equipment life, and minimize downtime in milk and juice processing. Proper maintenance and cleaning protocols help prevent contamination, equipment failure, and costly production interruptions. Below are key aspects of sanitary process line maintenance and cleaning based on best practices and food safety standards.
Routine Inspection and Preventive Maintenance
Regular inspections are vital for identifying wear, leaks, or potential contamination points early. Focus on:
Checking seals and gaskets for cracks or hardening
Inspecting sanitary tubing and fittings for corrosion or damage
Verifying valve and pump operation for smooth, leak-free performance
Monitoring for unusual noises or vibrations that indicate mechanical issues
Ensuring supports and hangers remain secure and aligned
Preventive maintenance schedules should be established according to manufacturer recommendations and operational hours. This proactive approach reduces unexpected failures and supports hygienic process line conditions.
Effective CIP and SIP Protocols
Clean-in-Place (CIP) and Sterilize-in-Place (SIP) systems are crucial for maintaining sanitary integrity without disassembling the line. To optimize these cleaning protocols:
Use cleaning agents compatible with stainless steel and seals, such as caustic soda and nitric acid solutions
Follow validated temperature and flow rate parameters to ensure thorough cleaning and sterilization
Include spray balls or nozzles strategically placed to reach all internal surfaces
Adhere to cleaning cycles recommended for milk juice processing line setup to prevent biofilm formation
Regularly test cleaning effectiveness using microbiological swabs or ATP bioluminescence assays
Consistent CIP/SIP execution reduces contamination risk and complies with food safety regulations.
Troubleshooting Common Sanitary Line Issues
Despite best efforts, issues may arise. Common problems include:
Leaks: Often caused by worn gaskets or misaligned fittings; inspect and replace components promptly.
Clogs or Flow Restrictions: Caused by product buildup or improper slope; perform line flushing and check for dead zones.
Corrosion or Pitting: Usually due to incompatible cleaning chemicals or material defects; review material selection and cleaning agents.
Valve Malfunctions: May result from debris or seal failure; clean valves regularly and replace seals as needed.
Implementing a sanitary process line troubleshooting checklist helps quickly identify and resolve issues, minimizing downtime.
Extending Equipment Life Through Proper Care
Proper care extends the lifespan of sanitary process equipment and reduces total cost of ownership:
Store spare parts like seals and gaskets in clean, dry environments
Train operators on correct cleaning protocols to avoid damage
Schedule periodic passivation treatments to restore stainless steel corrosion resistance
Avoid harsh mechanical cleaning methods that can scratch surfaces and harbor bacteria
Document maintenance and cleaning activities for continuous improvement and audit readiness
By following these maintenance tips, you ensure your dairy juice process line construction remains hygienic, efficient, and compliant over time.
Tip: Establish a routine inspection and preventive maintenance schedule combined with validated CIP and SIP protocols to keep your sanitary process line safe, efficient, and long-lasting.
Advantages of a Well-Built Sanitary Process Line in Milk and Juice Production
Building a sanitary process line for milk and juice applications offers multiple benefits that directly impact product quality, operational efficiency, and cost-effectiveness. Understanding these advantages helps justify the investment and guides you in prioritizing hygienic design and materials throughout your dairy juice process line construction.
Enhanced Product Safety and Quality
A properly designed and built sanitary process line ensures that milk and juice products remain free from contamination. Using food grade process line setup components like SS316L stainless steel tubing, hygienic tube reducers, and sanitary piping for milk juice prevents bacterial growth and cross-contamination. Smooth surfaces and proper flow control reduce dead zones where residues accumulate. This results in:
Consistent product purity and taste
Reduced risk of spoilage and recalls
Compliance with strict food safety standards like FDA and 3A
Ultimately, a hygienic process line safeguards consumer health and brand reputation.
Increased Operational Efficiency and Reduced Downtime
Well-constructed sanitary lines facilitate smooth fluid flow and easy cleaning, which boosts production uptime. Incorporating clean-in-place (CIP) and sterilize-in-place (SIP) systems allows quick sanitation without disassembly, speeding up turnaround times. Proper drainage and avoidance of dead zones reduce maintenance needs and troubleshooting frequency.
Benefits include:
Faster cleaning cycles and minimal production interruptions
Lower labor costs for line maintenance
Improved equipment lifespan due to reduced wear and corrosion
This efficiency supports higher throughput and profitability.
Compliance with Food Safety Regulations
Meeting regulatory requirements is non-negotiable in milk and juice processing. A sanitary process line built according to standards such as 3A, DIN, SMS, ISO, and FDA ensures your facility passes audits and inspections. Using certified hygienic process line components and following sanitary process line design guides help maintain compliance throughout the production lifecycle.
This compliance:
Avoids costly fines and shutdowns
Facilitates market access and customer trust
Supports traceability and quality assurance programs
It also simplifies modifications or expansions by adhering to recognized standards.
Cost Savings Through Reduced Contamination and Waste
Investing in building hygienic process line infrastructure reduces contamination risks that lead to product loss and costly recalls. Efficient cleaning protocols and sanitary equipment installation minimize chemical and water use, lowering utility expenses. Additionally, durable materials like SS316L stainless steel reduce repair and replacement costs.
Key cost-saving outcomes:
Less product waste and rework
Decreased cleaning chemical consumption
Extended equipment service life
Lower risk of liability claims
These savings contribute to a stronger bottom line.
Tip: Prioritize integrating CIP/SIP systems and selecting certified hygienic components during your milk juice processing line setup to maximize product safety, operational efficiency, and regulatory compliance while reducing long-term costs.
Conclusion
Building a sanitary process line requires careful planning, quality materials, and proper installation. Choosing components like SS316L stainless steel tubing and hygienic fittings ensures hygiene and durability. Following standards such as 3A and FDA supports compliance and reliable operation. A well-built line improves product safety, reduces downtime, and saves costs over time. Trust www.xsvalves.com Wenzhou Xusheng Machinery Industry and Trading Co.,Ltd and Wenzhou Compass Machinery Co.,Ltd for expert solutions that deliver lasting value and efficiency in milk and juice processing.
FAQ
Q: What is a sanitary process line and why is it important for milk and juice applications?
A: A sanitary process line is a hygienically designed system for handling milk and juice that prevents contamination. It uses food grade process line setup components like SS316L stainless steel tubing and sanitary piping for milk juice to ensure product safety and compliance with food safety regulations.
Q: How do I start building a sanitary process line for milk and juice?
A: Begin with planning the milk juice processing line setup using a sanitary process line design guide. Map the flow, select hygienic process line components, and ensure proper drainage and cleaning protocols for sanitary lines.
Q: What materials are best for sanitary process equipment installation?
A: SS316L stainless steel tubing with polished finishes (Ra ≤ 0.8 µm) is preferred for durability and corrosion resistance. Food-grade seals and gaskets compatible with CIP/SIP cleaning protocols are essential.
Q: How do CIP and SIP systems integrate into a sanitary process line?
A: CIP and SIP systems enable cleaning and sterilization without disassembly by using spray balls and specific piping layouts, supporting effective cleaning protocols for sanitary lines and reducing downtime.
Q: What are common troubleshooting tips for sanitary process line issues?
A: Inspect seals and gaskets for wear, check for misalignment causing leaks, flush lines to remove clogs, and review cleaning protocols to prevent corrosion or microbial buildup in your sanitary process line.
