The Details of Product
| |
| SS304(1.4301)/SS316L(1.4404) | Provided with material inspection report |
Material Non-contact Parts | |
| |
| Butt-weld, Tri-clamp, Male-thread, Female Threaded, Union,, Flange |
| Silicone, EPDM, FKM, Buna, PTFE, all seals material comply with FDA21CFR117.2600 |
| 2-position SS Pull Handle, 3-position SS Pull Handle, 4-position SS Pull Handle, Multi-position Plastic Gripper Handle, Multi-position SS Gripper Handle |
SS Pneumatic Actuator, Aluminum Pneumatic Actuator, Electric Actuator |
Position Sensor, C-top Controller, C-top Controller (AS-I) |
| |
Supply Pressure for Air Actuator | |
Internal Surface Treatment | |
External Surface Treatment | |

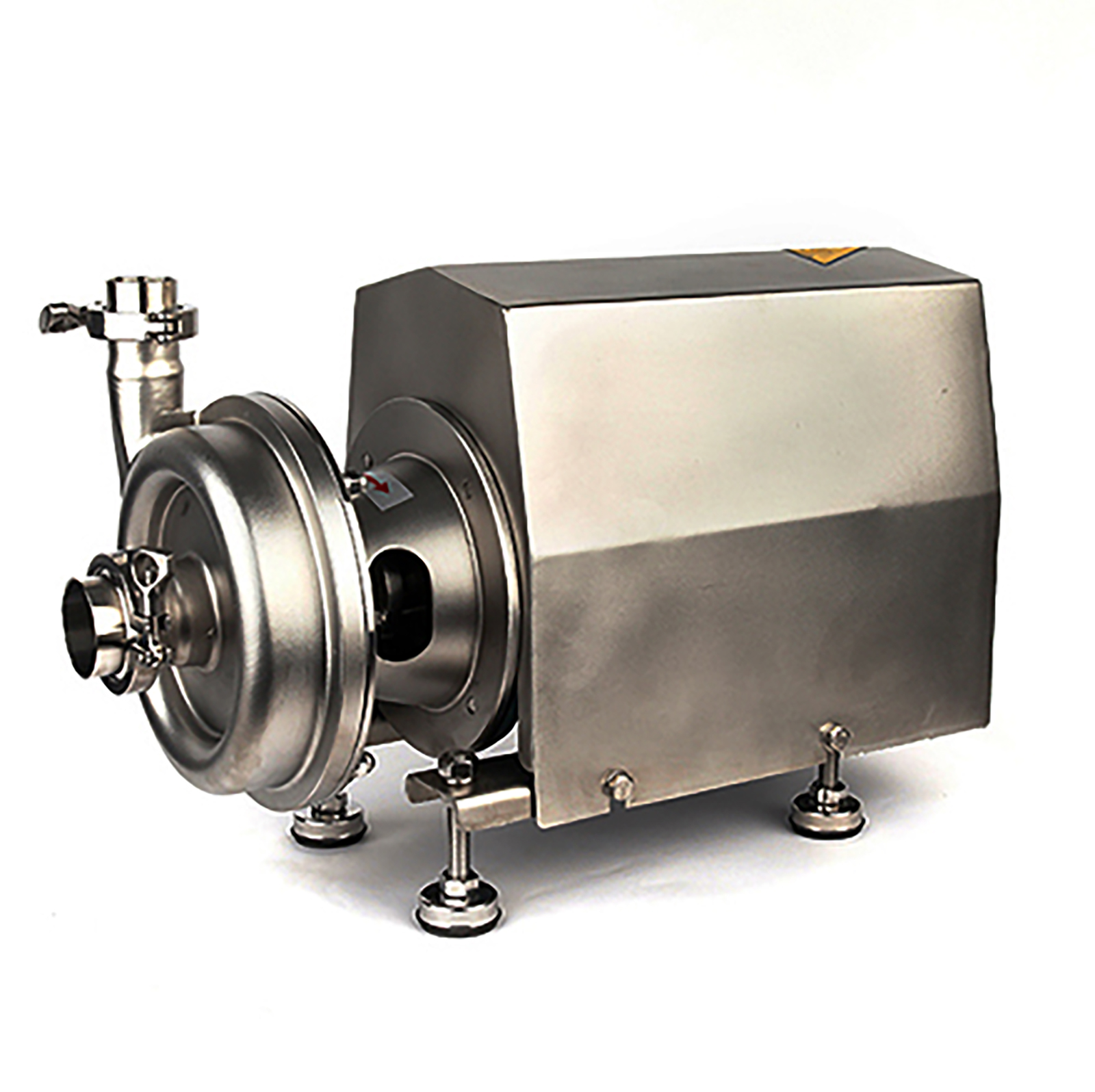

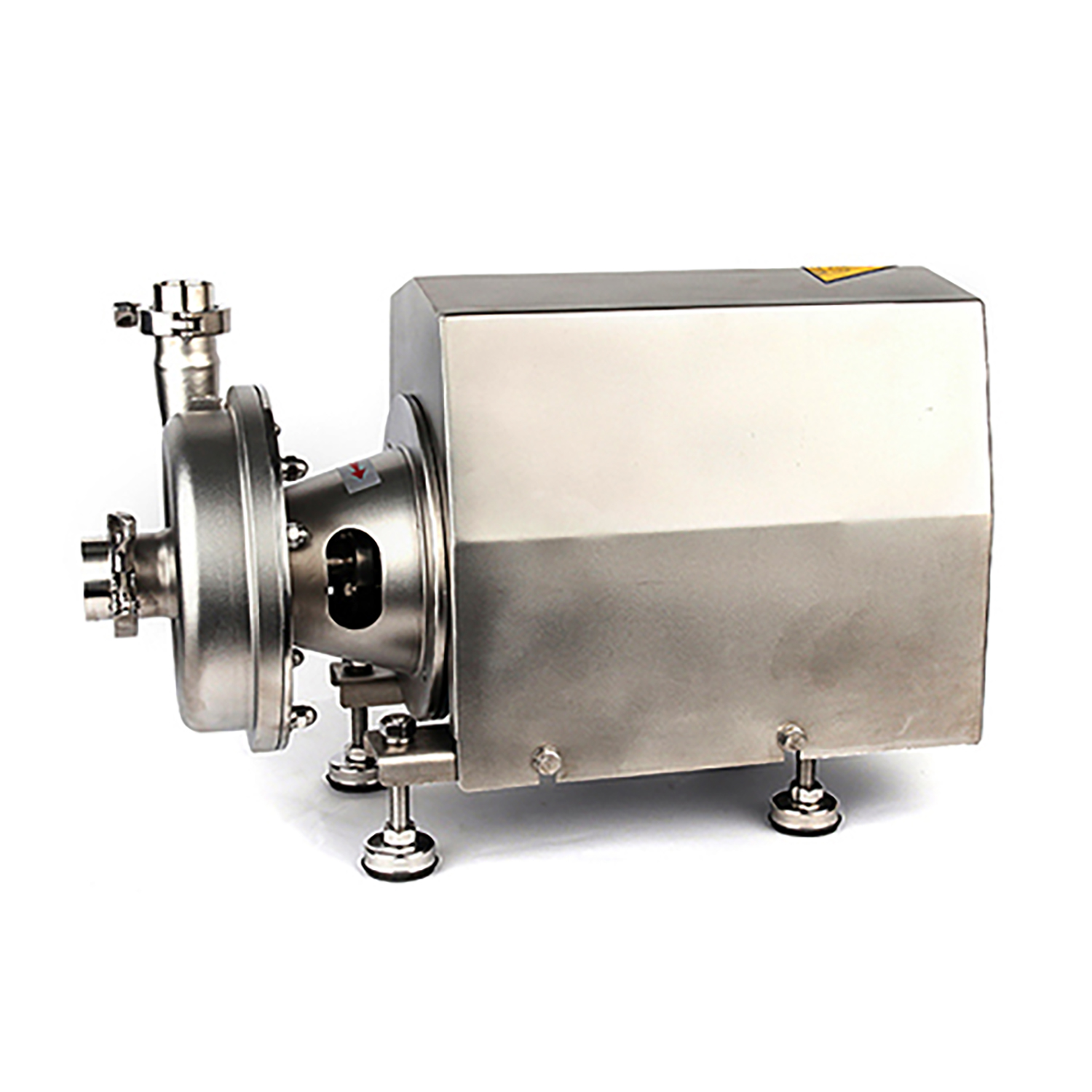

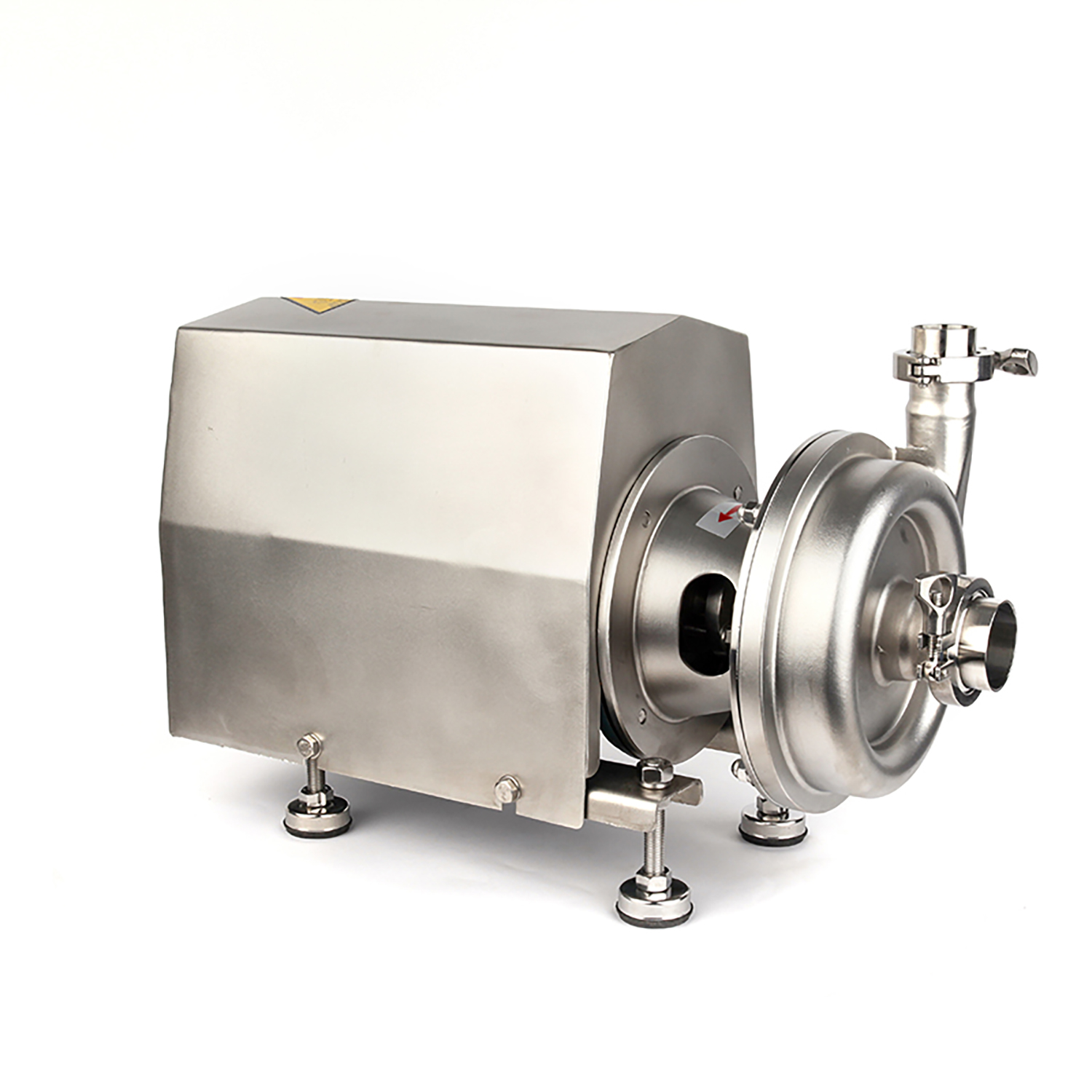

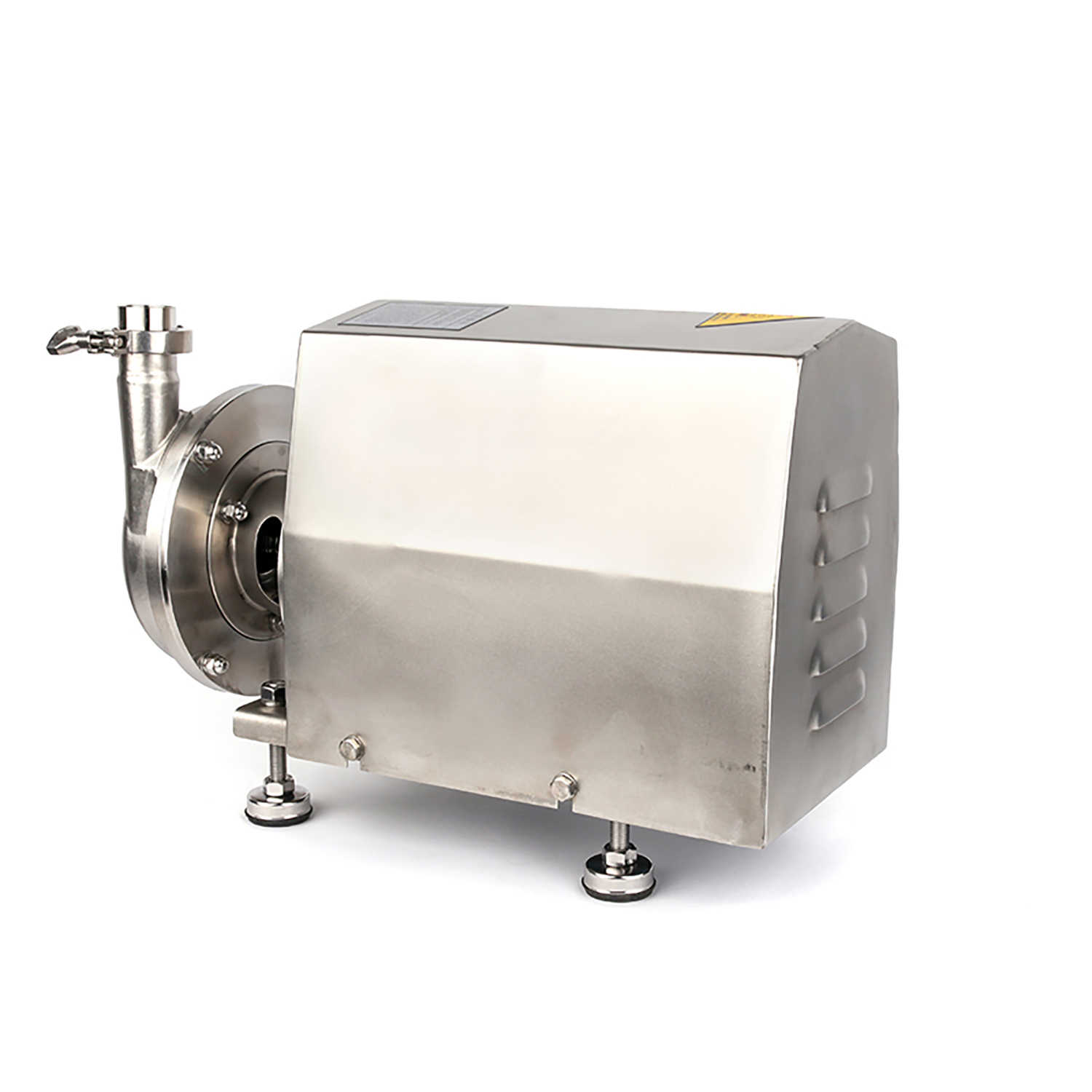

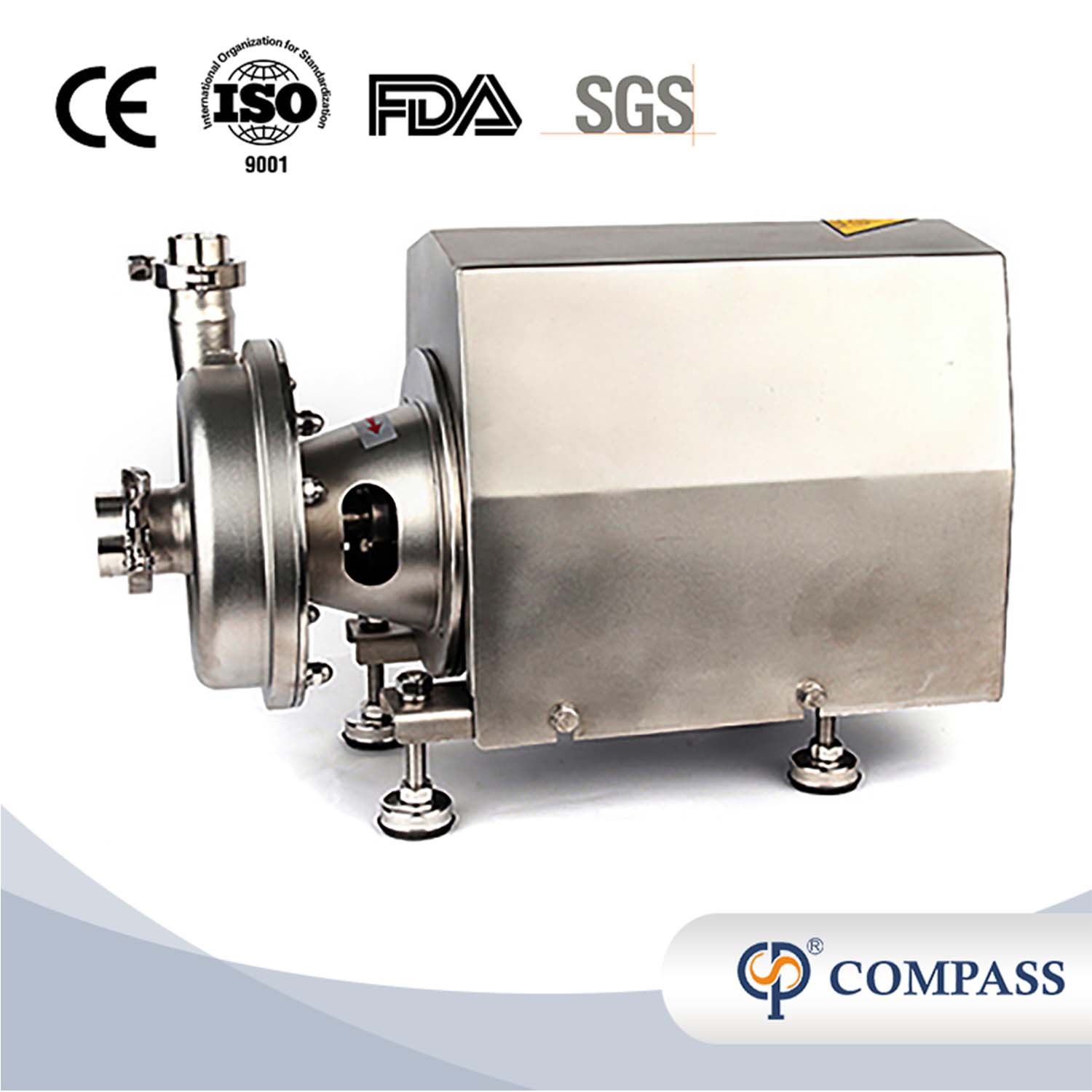

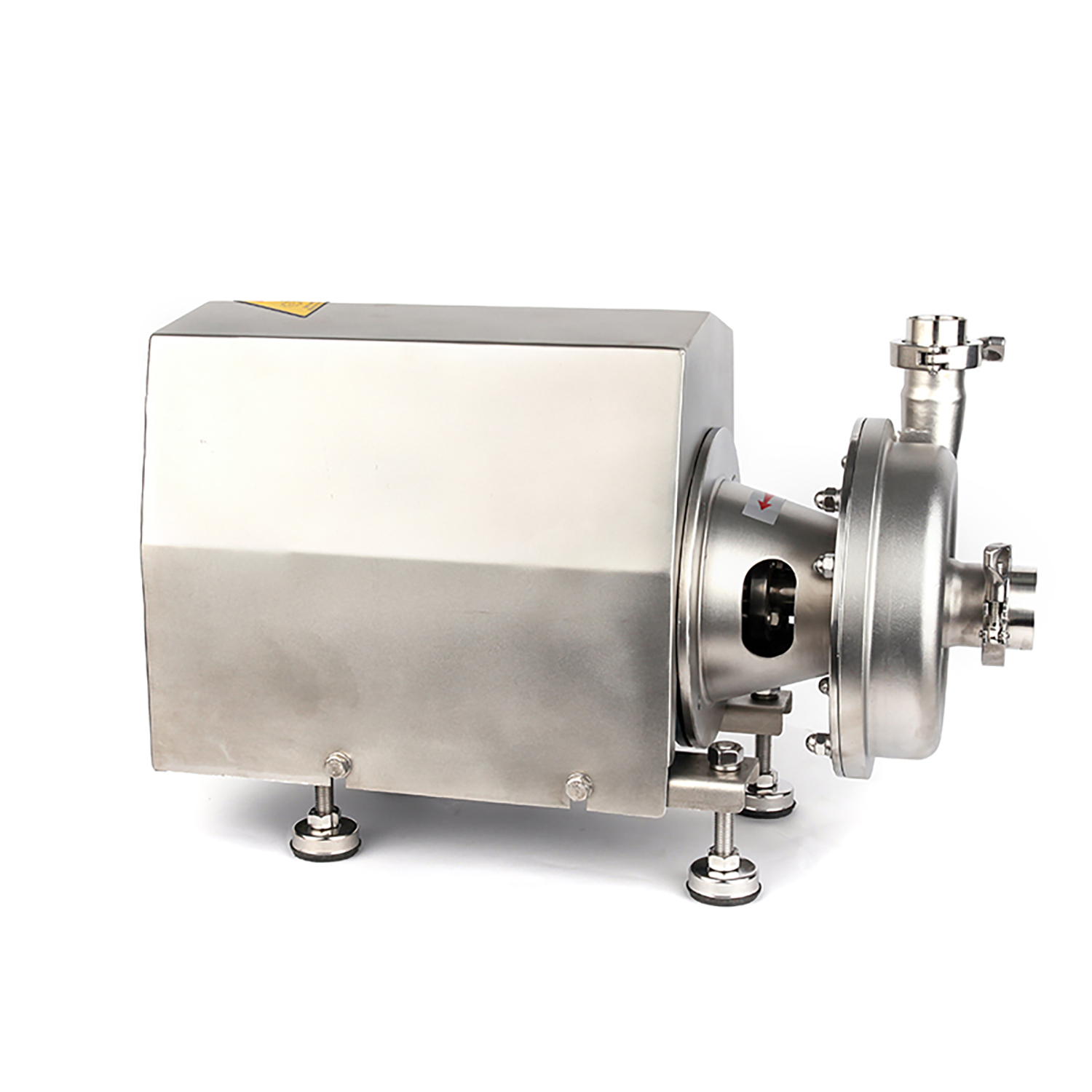

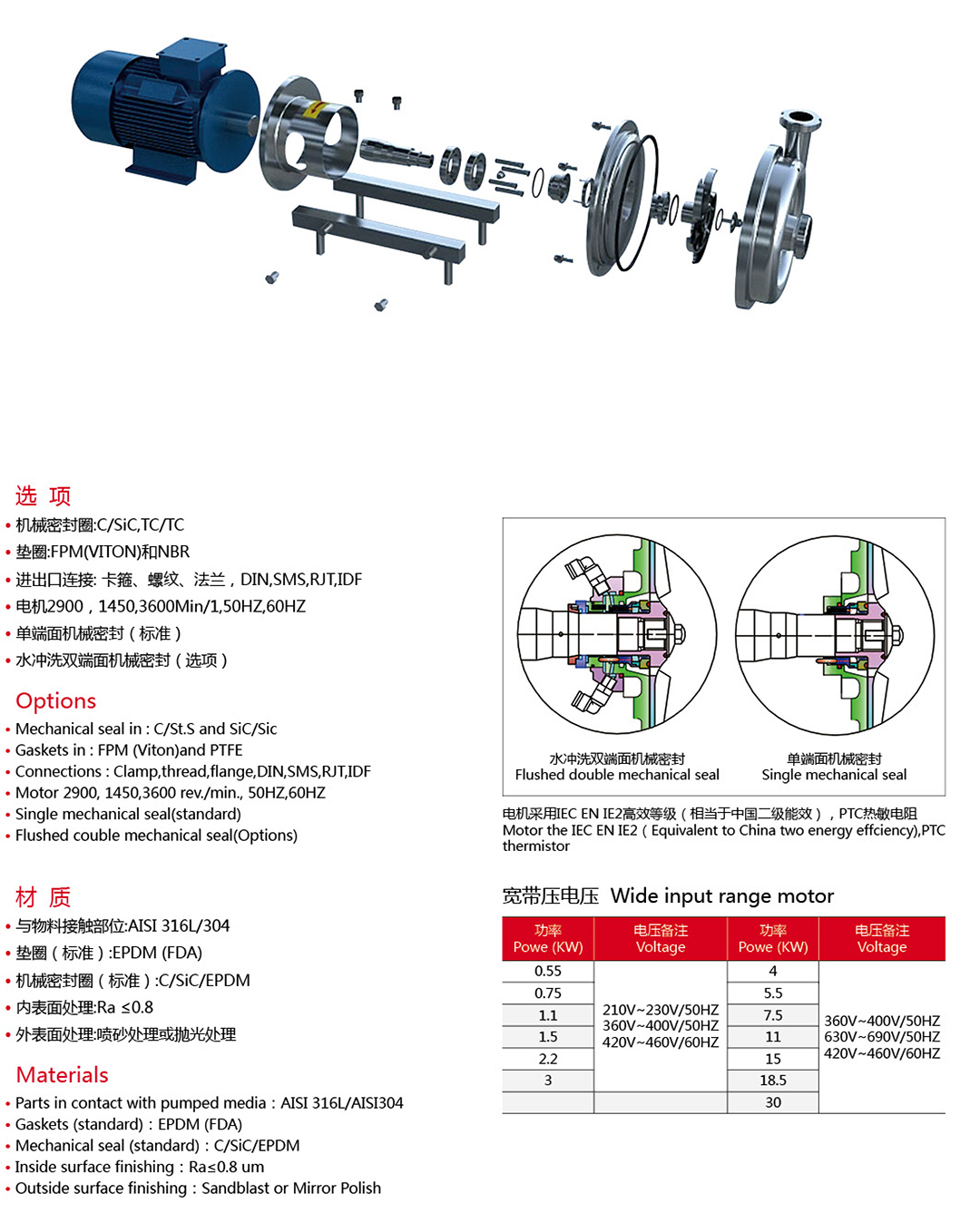

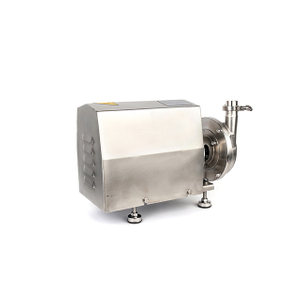

Description of Commodity: KSCP-10-24-2.2 High-Eficiency Sanitary Hygienic Stainless Steel Food Grade SS304 Centrifugal Pump with Open lmpeller
Options
1. The gasket can be Silicone, EPDM, FKM,Buna, PTFE. All seals material comply with FDA21CFR117.2600
2. Connection can be Butt-weld, Tri-clamp, Male Thread, Femal Thread, Union, Flange， or others upon request.
3. Mechanical Seal Type: Single Mechanical Seal ≤120℃; Double Meachanical Seal ≥120℃.
4. Impeller Type: Open Impeller, Closed Impeller, Semi Open Impeller
5. Control: Position Sensor, C-top Controller,C-top Controller (AS-I)
6. Pneumatic head: Normally Closed (NC)-Air to Open,Spring to Close, Normally Open (NO)-Air to Close,Spring to Open, Air to Air (AA)-Air to Open, Air to Close
Design Features
1. Various standards can be provided: SMS,DIN
2. Available in sizes from 1”to 4”，DN25 to DN80
3. Multi position handles can be used for valves up to DN150 / 6"
4. Pull handles can be used for valves from DN25 / 1" to DN300 / 12"
5. Pneumatic actuator and electric actuator are interchangeable.
6. Pneumatic actuator can be double acting or single acting
7. Seals comply with FDA 21CFR 177. 2600.
8. The valve body can be customized with a wide selection of different connections.

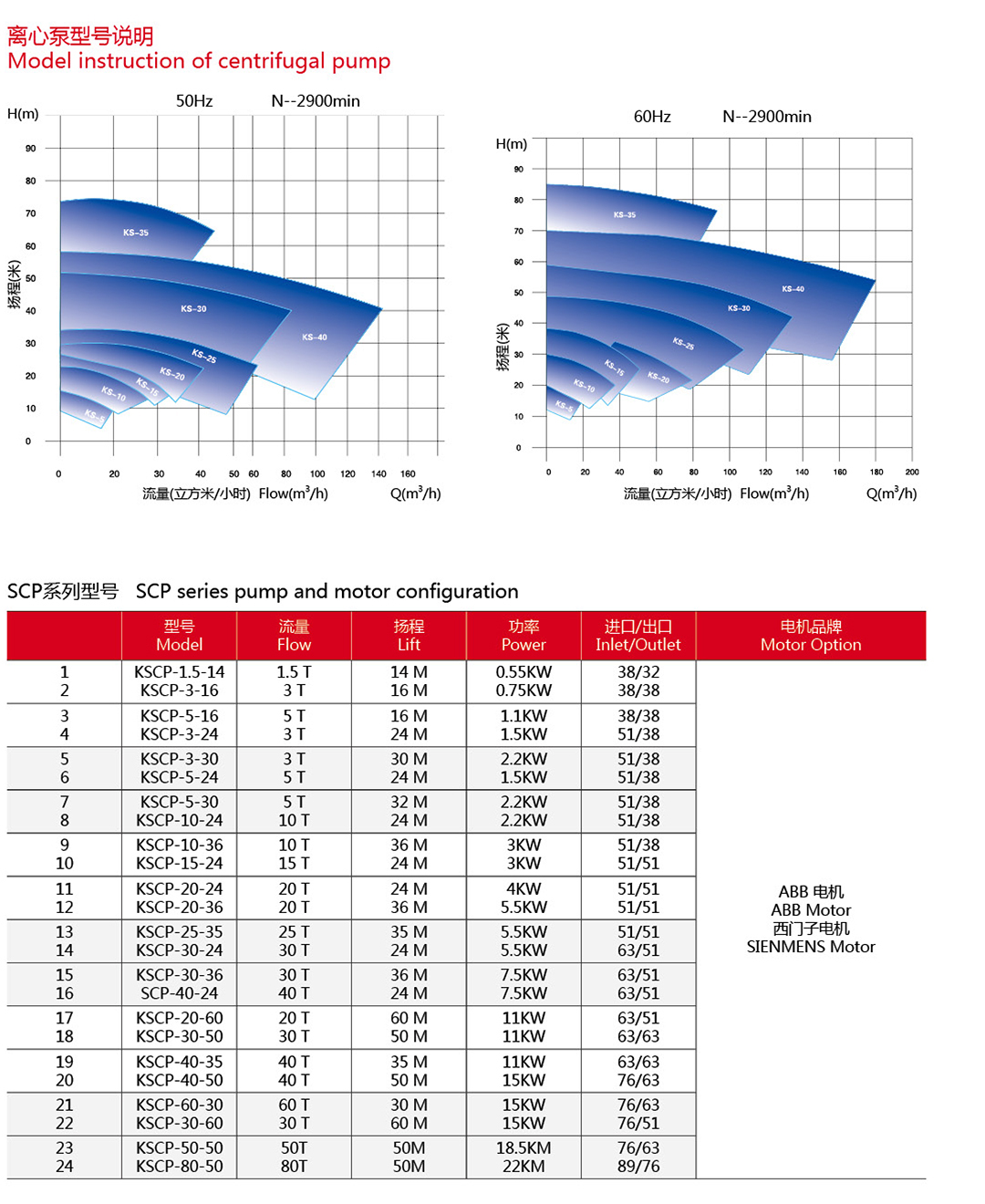

Technical Specifications
Max. flow: 30m³/h/132GPM
Max. head: 40H(M)
Max. pressure: 3Bar/43PSI
Max. operating temp.: 120℃/248℉
Max. rev.: 1750min
Max. suction height: 8m/22ft
Temperature Range
EPDM: -5 ~ 212°F(-20 ~ 100℃)
Silicone: -31 ~ 248°F(-35~ 120℃)
FKM:10~ 392°F(-12.2 ~ 200℃)
Other materials are Available upon request
How to Order about Centrifugal Pump ?
1. What's material quality? Such as SS304 and SS316L for optional
2. What's flow rate for centrifugal pump, such as 1500 liters per hour?
3. What's head, such as 14 meters?
4. What's motor power, such as 0.55kw?
5. What's voltage and hertz, such as 380v, 50hz, three - phase?
6. What's motor brand, such as ABB motor?
7. What's connection end? Such as butt - weld, tri - clamp, male threaded, female threaded, union, ect.
8. What's design temperature and working temperature for pump?
9. Do you need single mechanical seal or double mechanical seal?
10. Type of impeller, such as open impeller, close impeller, semi - open impeller?
