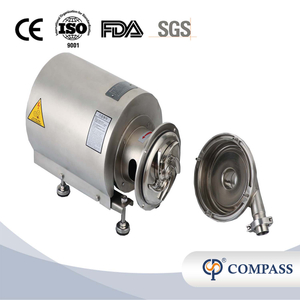

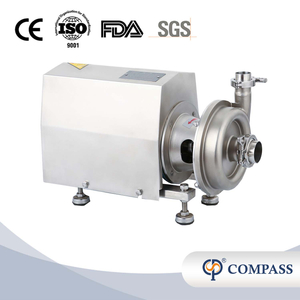

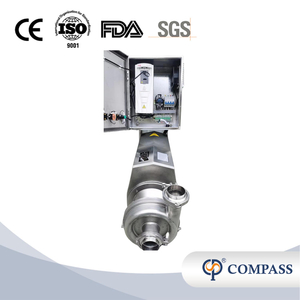

Milk Centrifugal Pumps with with Closed Impeller

Sanitary Hygienic Centrifugal Pumps with Siemens Motor

Sanitary centrifugal pump is one type of centrifugal pump which mainly used for pharmaceutical,food industry, dairy industy.
Sanitary (hygienic )centrifugal pump is one type of centrifugal pump which mainly used for pharmaceutical,
food industry,dairy industry, winery ,turnkey project .The 304 316Lpumps with a surface polished ,can be used to the above industry for sanitary purpose.The Sanitary Hygienic Centrifugal Pumps are used to transfer low viscosity fluids at a high flow rate and low pressure.

Material Stainless Steel:	AISI304, AISI316L
Mechanical Seal(Standard):	Plumbago&Silicon Carbide
Capacity:	1.5ton/Hour~200ton/Hour
Max.Temperature:	120degree Celsius
Surface Finishing:	Inside&Outside Mirror Polished or Sand Blasting Ou
Connection Ends:	Triclover, Butt Weld, Threaded, Union and Flange
Motor:	ABB Motor and China Motor, Siemens
Availability:

Quantity:



Inquire Add to Basket

Product Description

Sanitary Hygienic Centrifugal Pumps with Siemens Motor

Sanitary centrifugal pump is one type of centrifugal pump which mainly used for pharmaceutical,food industry, dairy industy.
Sanitary (hygienic )centrifugal pump is one type of centrifugal pump which mainly used for pharmaceutical,
food industry,dairy industry, winery ,turnkey project .The 304 316Lpumps with a surface polished ,can be used to the above industry for sanitary purpose.The Sanitary Hygienic Centrifugal Pumps are used to transfer low viscosity fluids at a high flow rate and low pressure.

Technical Parameters
Flow Medium Parts	AISI304/AISI316L(1.4301/1.4404)
Without Flow Medium Parts	AISI304(1.4301)
Outside Surface	Semi bright
Inside Surface	Polished Ra0.4
Product Wetted Seals	EPDM,Silicone,FPM.NBR
Max.Inlet Pressure	0.5MPA
Temperature Range	-10ºC~140ºC
Noise Level(At 1m)	60-80dB(A)
Capacity	1.5~200ton/hour
Motor	ABB Motor and China motor,Siemens
Voltage	220V,380V,440V,480V,ect
Impeller Type	Closed Impeller,Open Impeller,Semi-Open Type Impeller
Connection ends	Triclover,butt weld,threaded,union and flange
Machanical seal(standard	plumbago&silicon carbide
