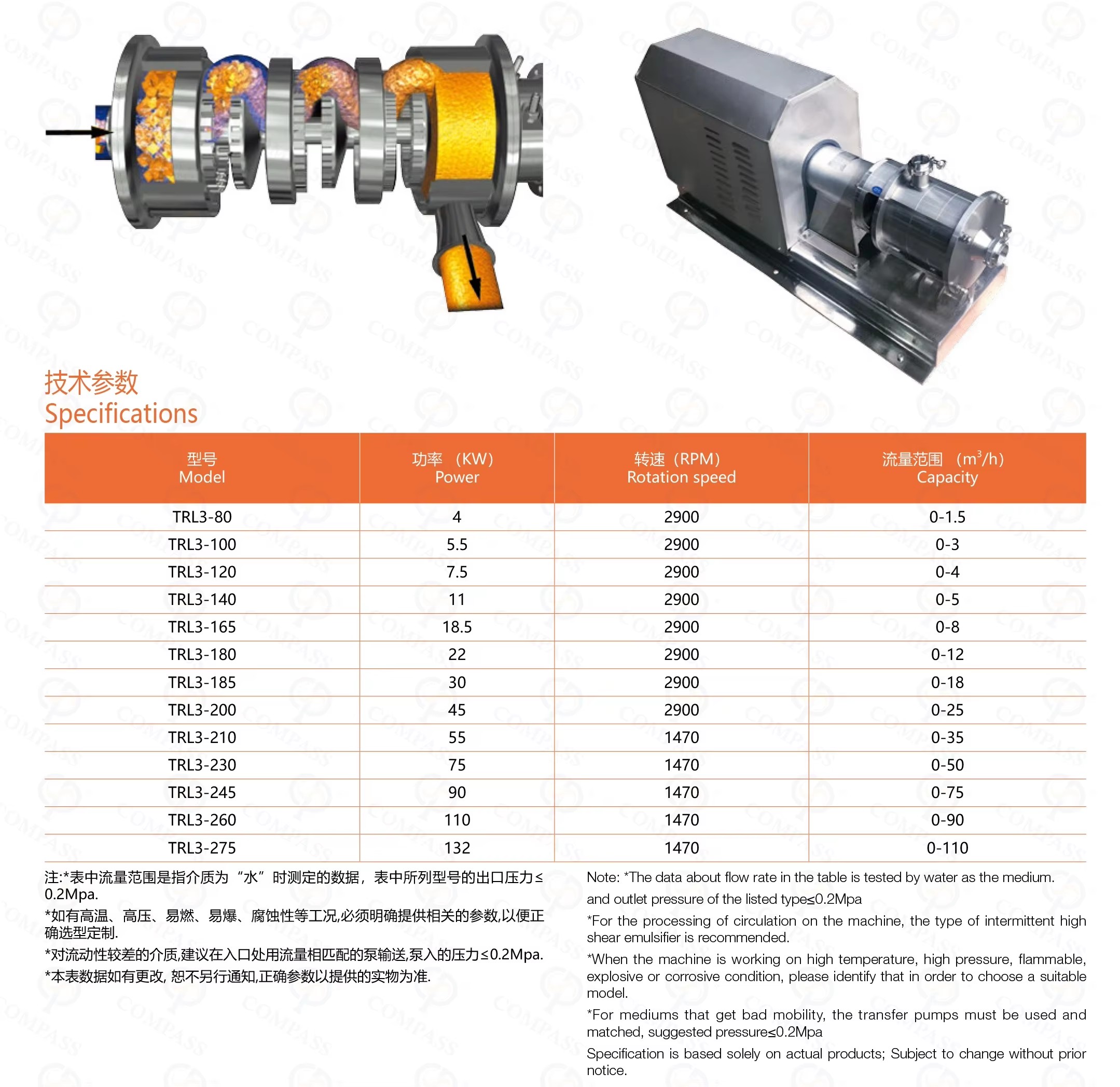

Specification
Material Contact Parts | SS304/SS316L(1.4301/1.4404) | Provided with material inspection report |
Material Non-contact Parts | SS304(1.4301) |
Flow Rate | 1.5-110 m³/hr |
Motor Power | 4-132 kw |
Voltage | 380v,220v, 230v, 208v, 460v, 440v, 415v, 400v |
Hertz | 50hz, 60hz |
Phase | Single Phase, Three Phases |
Speed | 2900rpm, 3500rpm, 1450rpm |
Motor Brand | China |

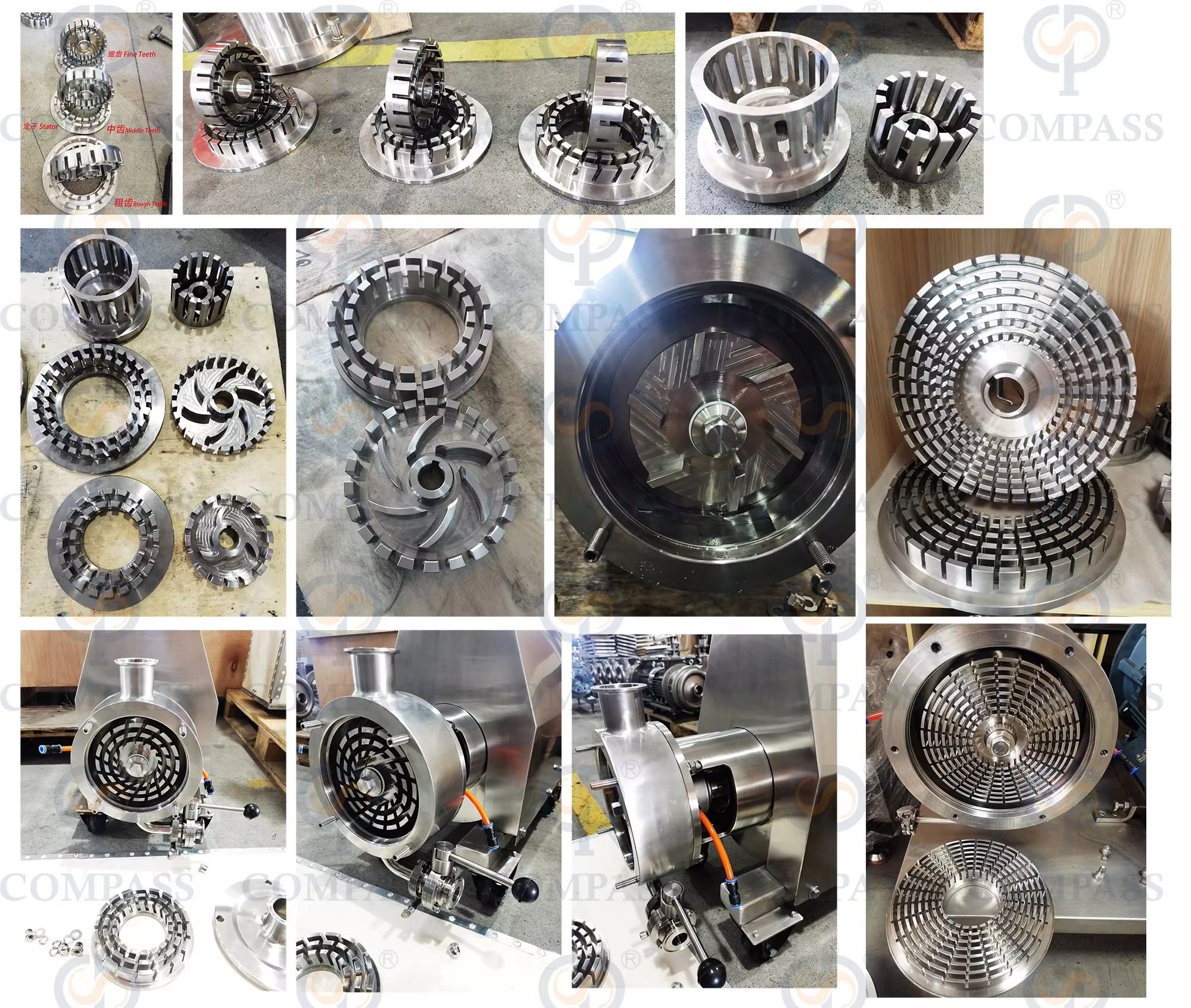

Type of Teeth | Rough Teeth, Middle Teeth, Fine Teeth |
Teeth Type (GC), Jet-Shear (JQ), Slot Type (GK), Jet-Round Ole Type (JR), Round-Hole Type (GY), Jet-Disperse (JF), High-Effective
(GL), No-Air Blender (JA), Double-Rotor Vortex Type (GD), Jet-Vortex (JX), Square-Hole Type (GS), Fast-Speed Blender No-Dead
Corner (GF) |
Head Type | Heating Jacket or Without Heating Jacket |
Processing Method | Mixing→Dispersing→Emulsifying→Homogenizing |
Material of Mechanical Seal | Alloy + FKM & Alloy + EPDM for Double Mechanical Seal |
Connection | Butt-weld, Ferrule End, Male Thread, Female-Male Threaded, Union, Weld-Thread, Flange |
Seal Material | Silicone,EPDM, all seals material comply with FDA21CFR117.2600 |
Working Pressure | ≤10bar(145psi) |
Supply Pressure for Air Actuator | 5~8(72.52psi~116psi) |
External Surface Treatment | Ra32~64ui n(0.8~1.6um) |
Internal Surface Treatment | Ra16~32uin(0.4~0.8um) |
Principle Of Dynamics
1. Medium sucked in by strong axial suction force.
2. Single phase liquid, multi-phase liquid or suspended particles are pumped in though single-stage, double-stage or three-stage rotor and stators.
3. No matter what medium property is, pump will evenly shear all the liquid with high-intensity and controllable force.
4. Shearing rate is constant, different sizes depends on gear of rotor and stator and speed of rotor.

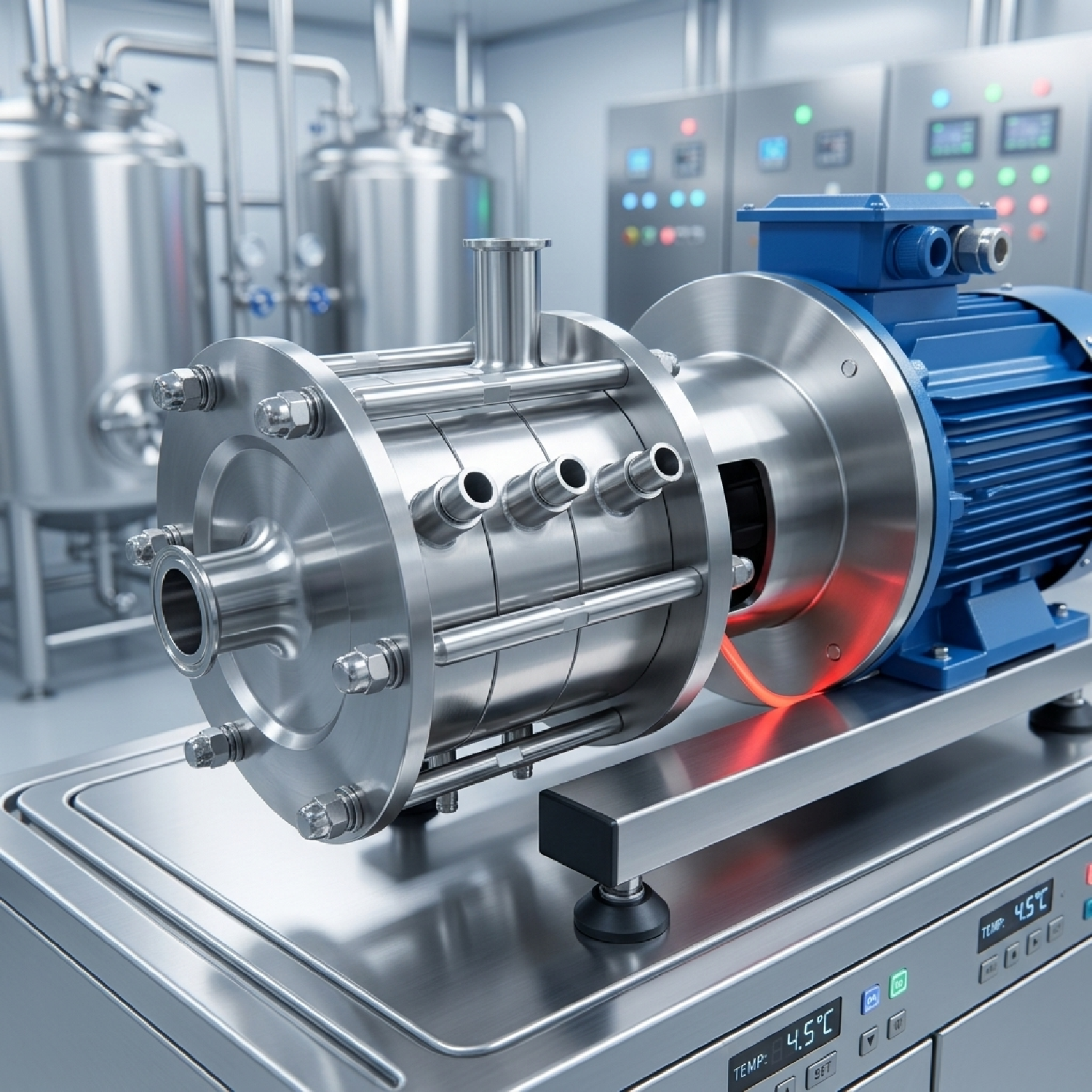

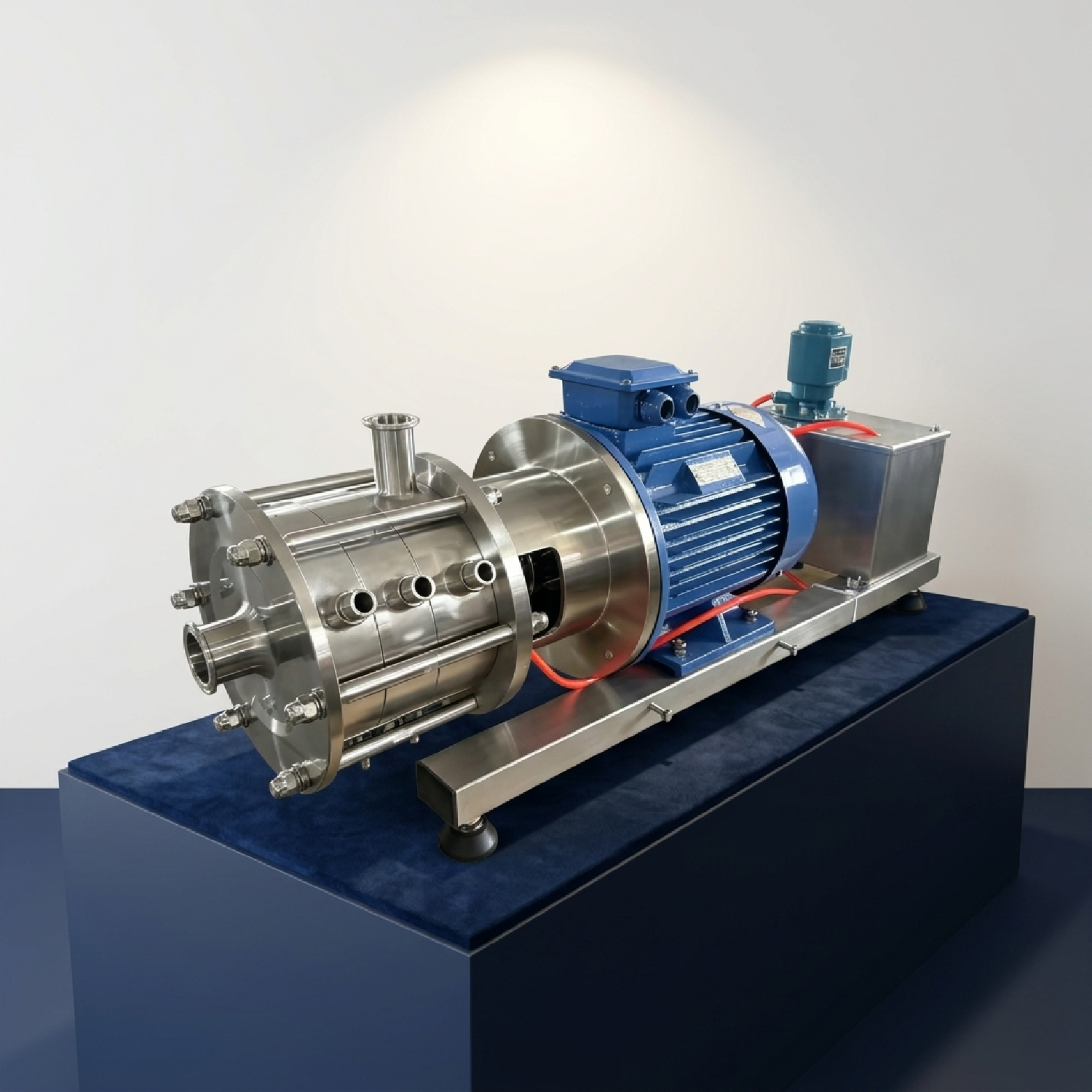

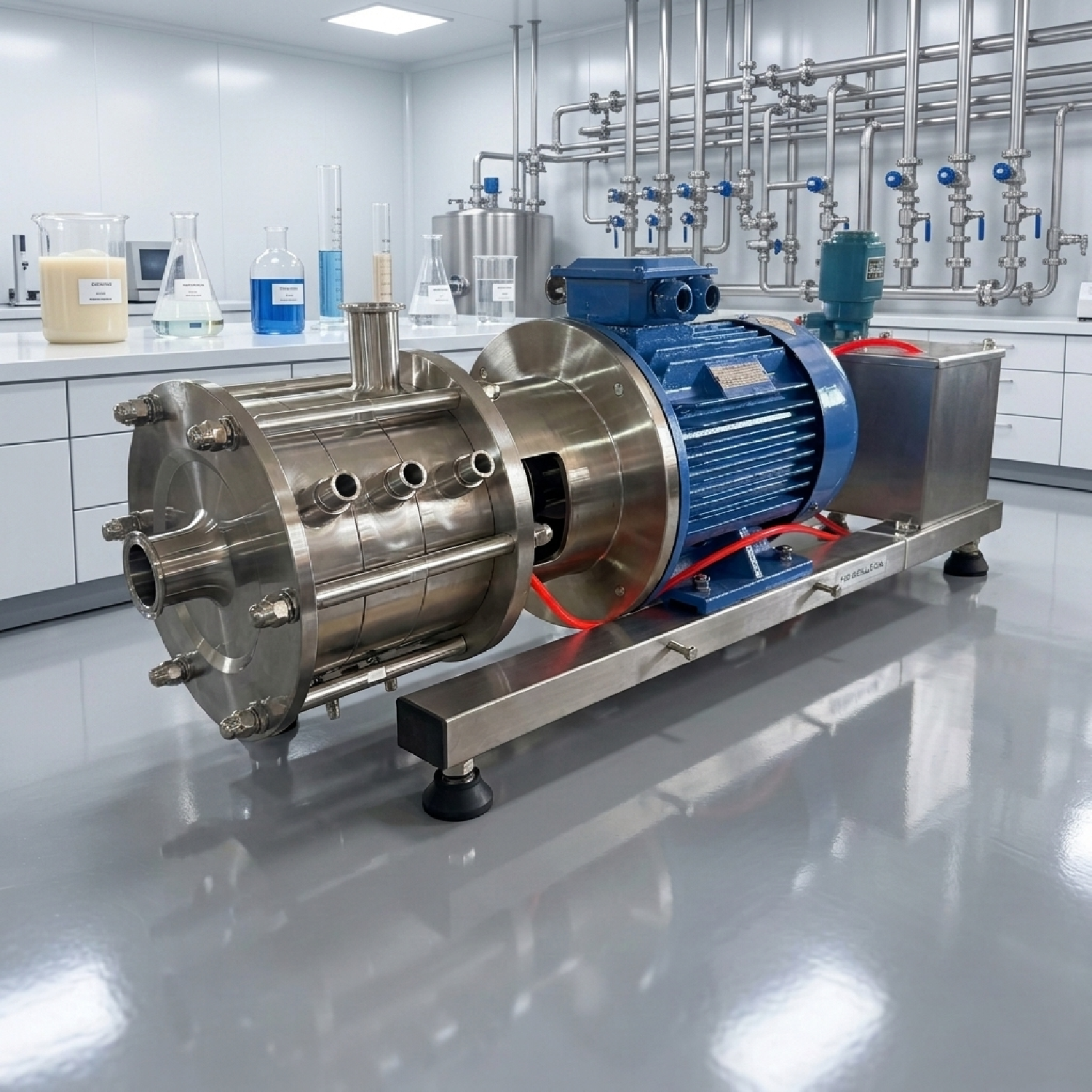

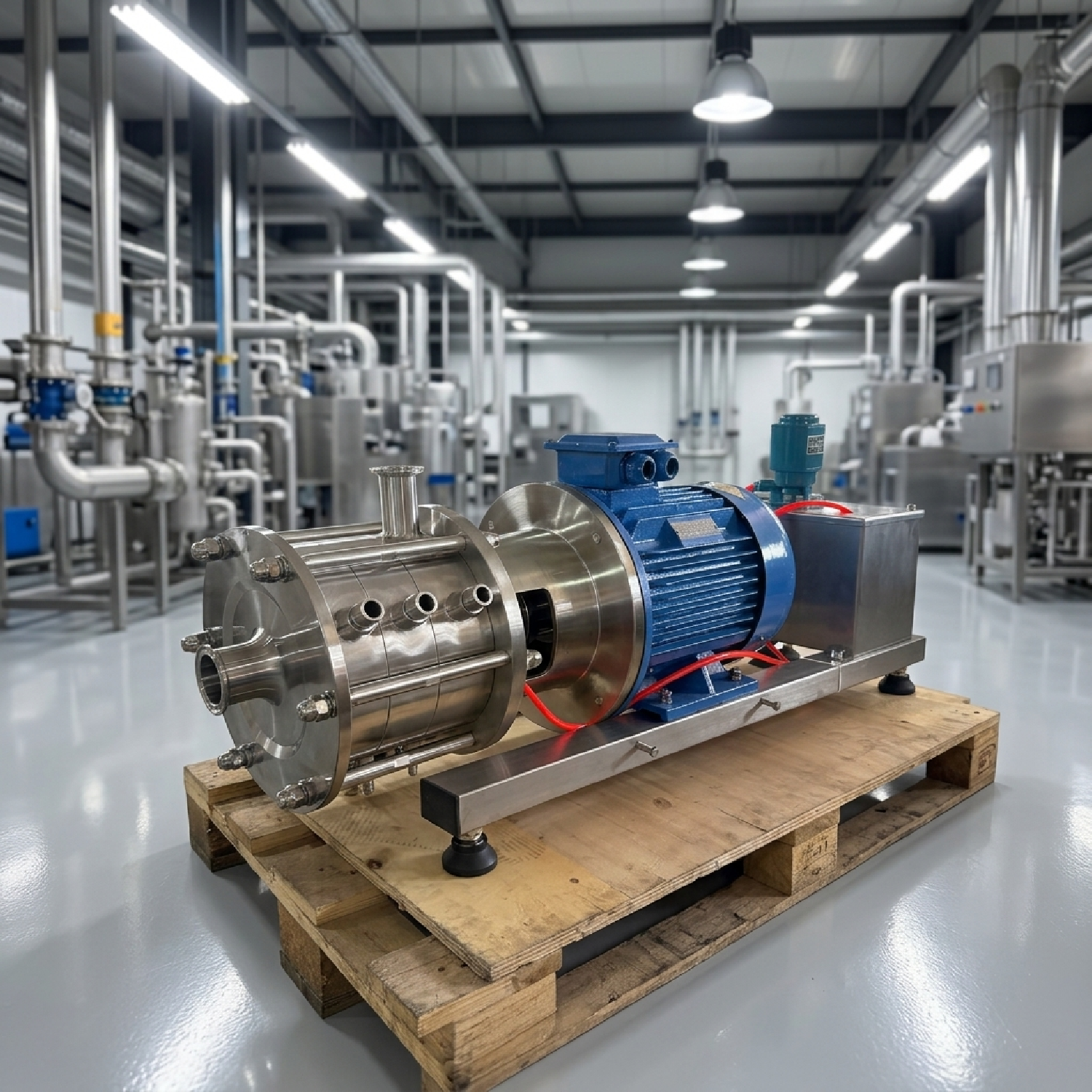

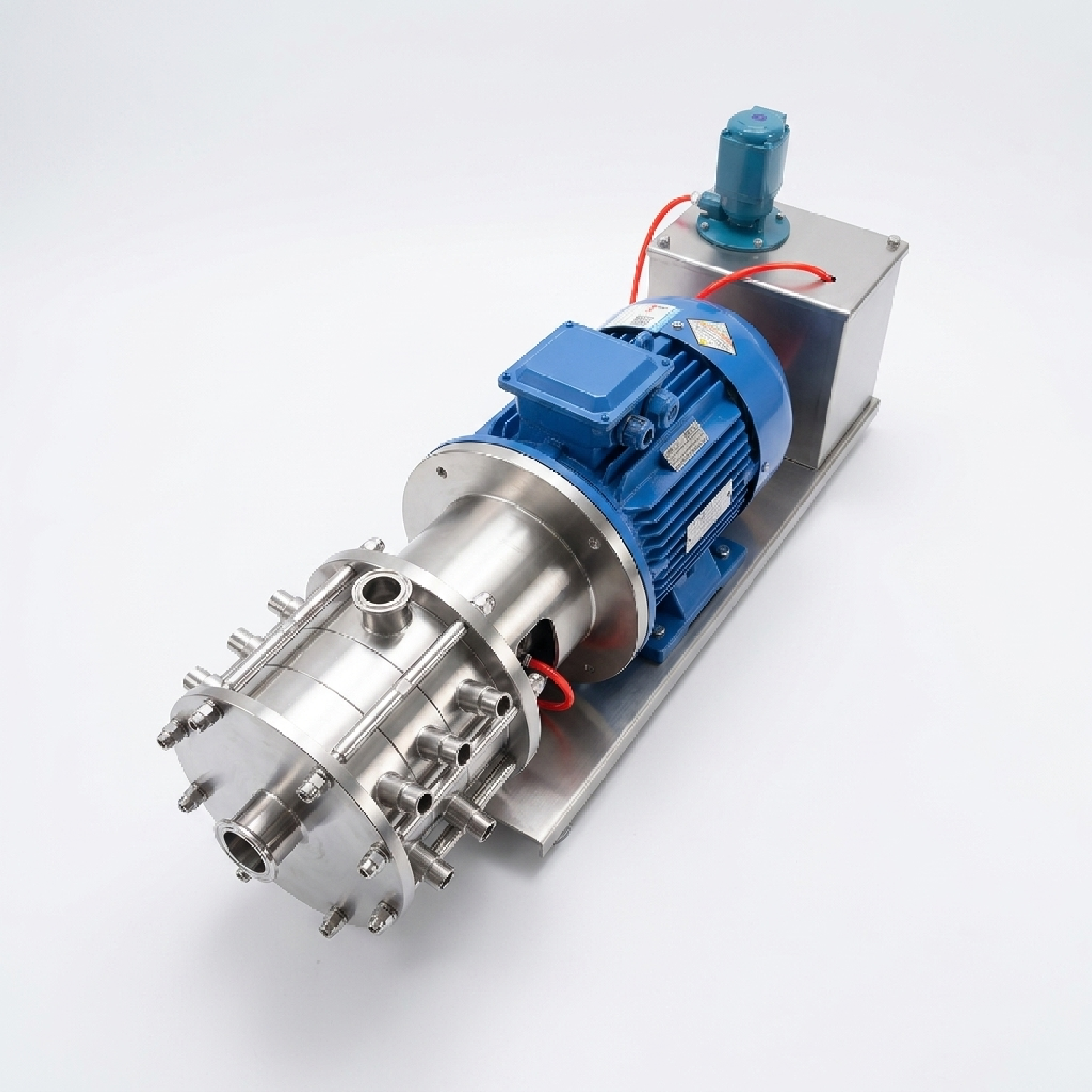

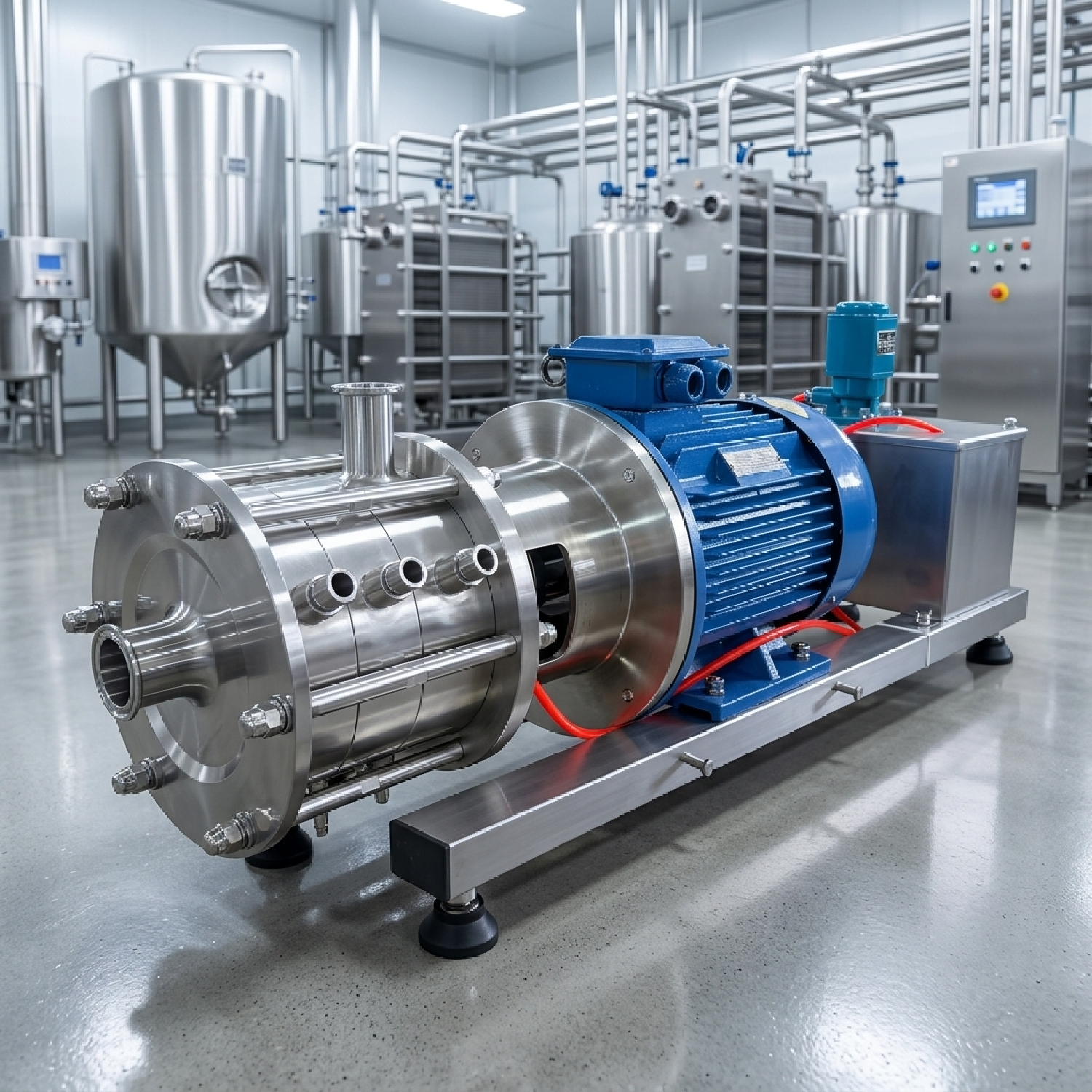

Highlights at a glance
*Stainless Steel Construction: Durability and resistance to corrosion for long-lasting performance.
* High Viscosity Capability: Handles thick liquids efficiently for optimal emulsification.
* Three-Stage Design: Ensures thorough mixing and dispersing for better results.
* Double Mechanical Seals: Provides superior leakage prevention for safety and reliability.
* Heating Jacket: Maintains consistent temperature for precise processing.
Advantage
1. Mass production suitable for continuous production of industrialized assembly line
2. Small diameter range,and highly even
3.Time saving,highly efficient and energy saving
4. Low noise,stable operation
5. Reduced quality difference between lots
6. Material is fully dispersed and sheared
7. Deliver in short distance with low lift
8. Easy operation,convenient maintenance
9. Automatic control
Options
1. Material SS304 an SS316L are optioned
2. Connection can be butt-weld, ferrule, union, flange
3. Motor brand includes of China motor
4.There are different voltage and hertz are optioned, such as 380v/50hz,220v/60hz
5.Silicone material includes
of Silicone,EPDM, all seals material comply with FDA21CFR117.2600
Design Features
1. The flow is designed in 1.5 to 130 m³/hr
2. Motor power can be matched from 1.5 kw to 132 kw
3. The teeth can be designed to
rough teeth, middle teeth and fine teeth
How to Order Emulsifying Pump?
1. What's material quality? Such as SS304 or SS316L.
2. What's products used for pump? Such as cosmetic.
3. What's viscosity of products? Such as 10000cps.
4. What's flow rate per hour? Such as 3000 liters per hour.
5. What's power for pump? Such as 2.2KW.
6. What's voltage and hertz? Such as 380v/50hz/3phase.
7. What's type of motor brand? Such as China motor.
8. Do you need VFD Frequency and Control Cabinet or wheel trolley?
9. Do you need heating jacket or without?
10. How many quantity you need?
