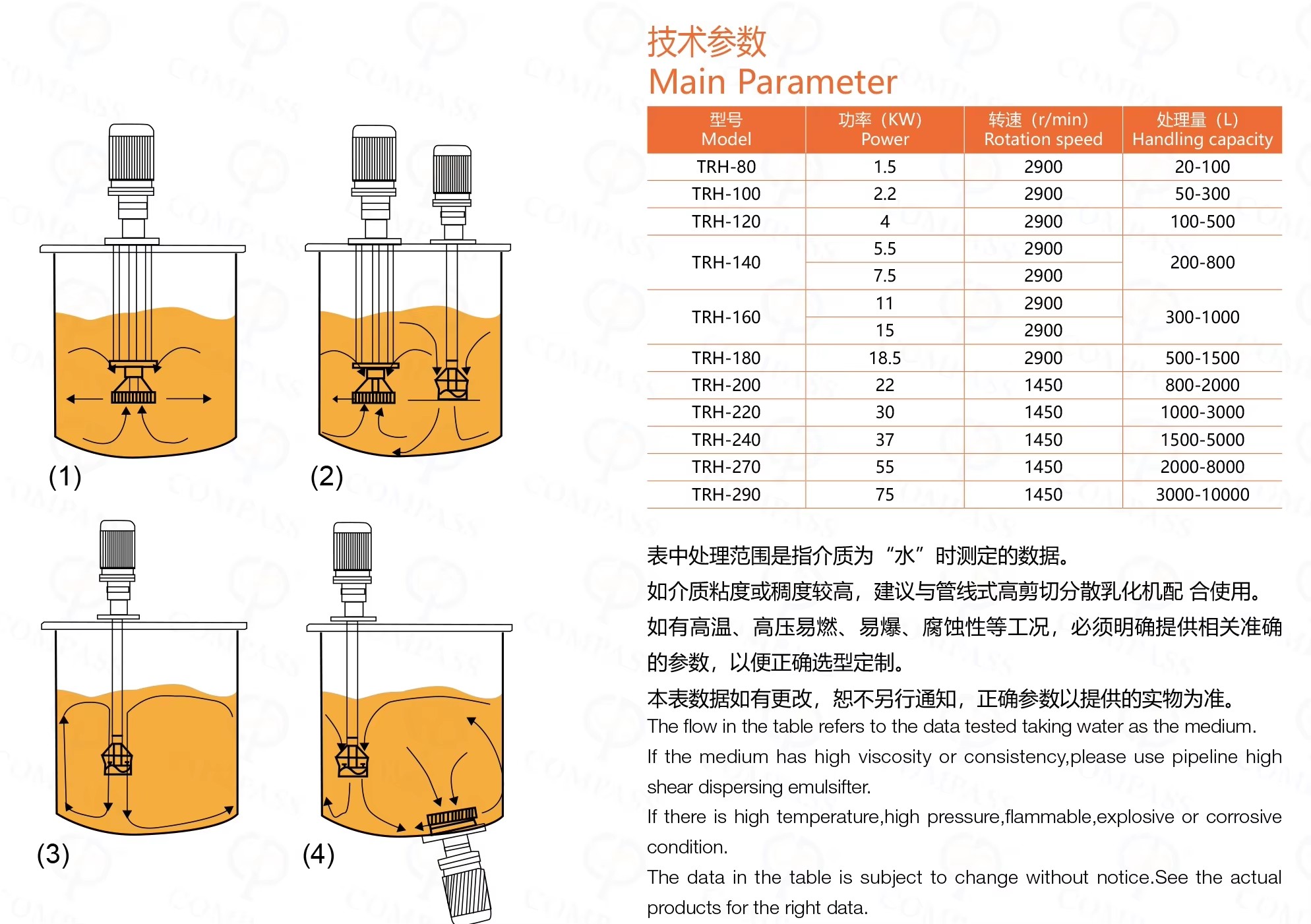

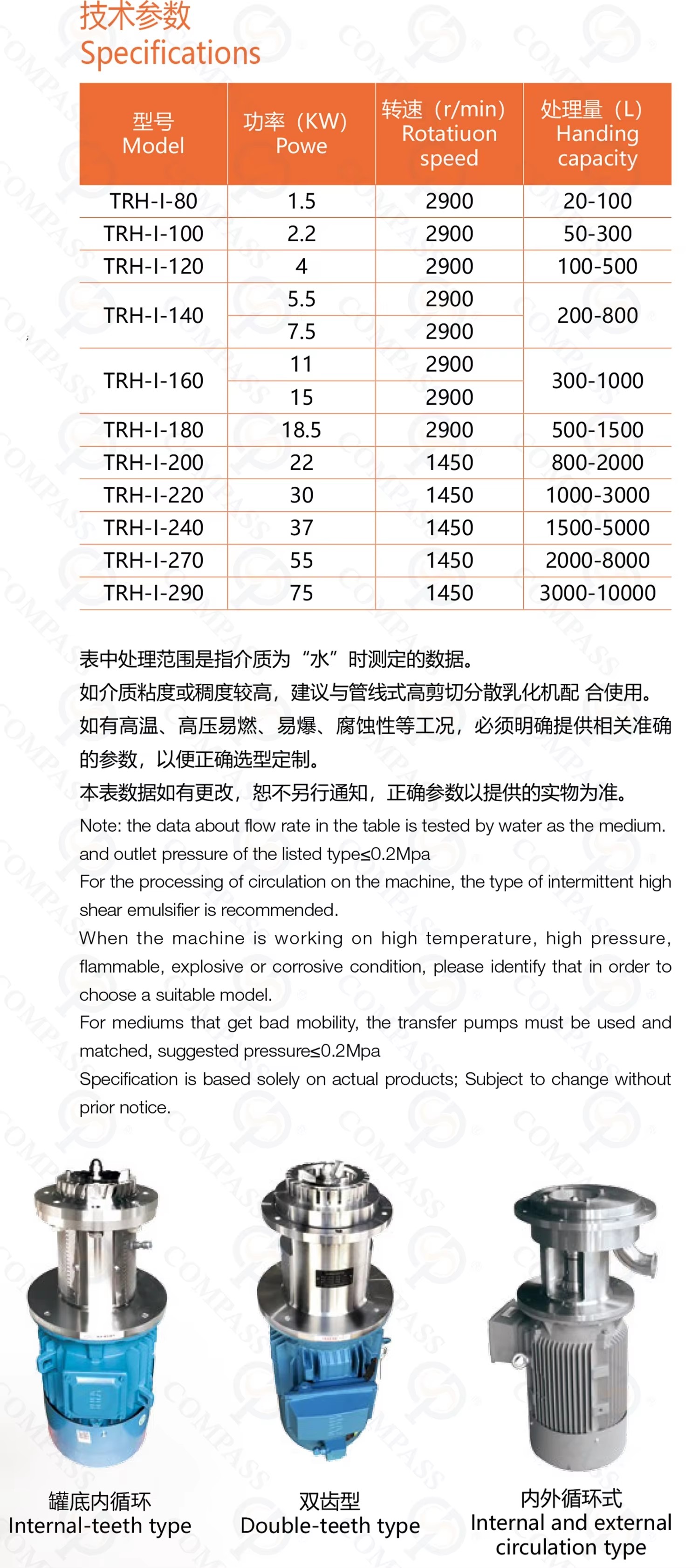

Specification
Material Contact Parts | SS304/SS316L(1.4301/1.4404) | Provided with material inspection report |
Material Non-contact Parts | SS304(1.4301) |
Flow Rate | 20-10000L |
Motor Power | 1.5-75 kw |
Voltage | 380v,220v, 230v, 208v, 460v, 440v, 415v, 400v |
Hertz | 50hz, 60hz |
Phase | Single Phase, Three Phases |
Speed | 2900rpm, 3500rpm,1450rpm |
Motor Brand | China motor |
Type of Rotor Stator Design | Internal-Teeth Type, Double-Teeth Type, Internal and External Circulation Type |
Processing Method | Dispersion, Emulsification, Homogenization effect |
Seal Material | Silicone,EPDM, all seals material comply with FDA21CFR117.2600 |
Working Pressure | ≤10bar(145psi) |
Supply Pressure for Air Actuator | 5~8(72.52psi~116psi) |
External Surface Treatment | Ra32~64ui n(0.8~1.6um) |
Internal Surface Treatment | Ra16~32uin(0.4~0.8um) |
Application | Suitable for low viscosity and high viscosity fluids, it can be applied in industries such as food, cosmetics, coating chemicals, electronic materials chemicals. |
Options
1. Material SS304 and SS316L are optioned
2. Motor brand includes of China motor
3.There are different voltage and hertz are optioned, such as 380v/50hz,220v/60hz
4.Silicone material includes of Silicone,EPDM, all seals material comply with FDA21CFR117.2600
Design Features
1. The flow is designed in 20-10000L
2. Motor power can be matched from 1.5 kw to 75kw

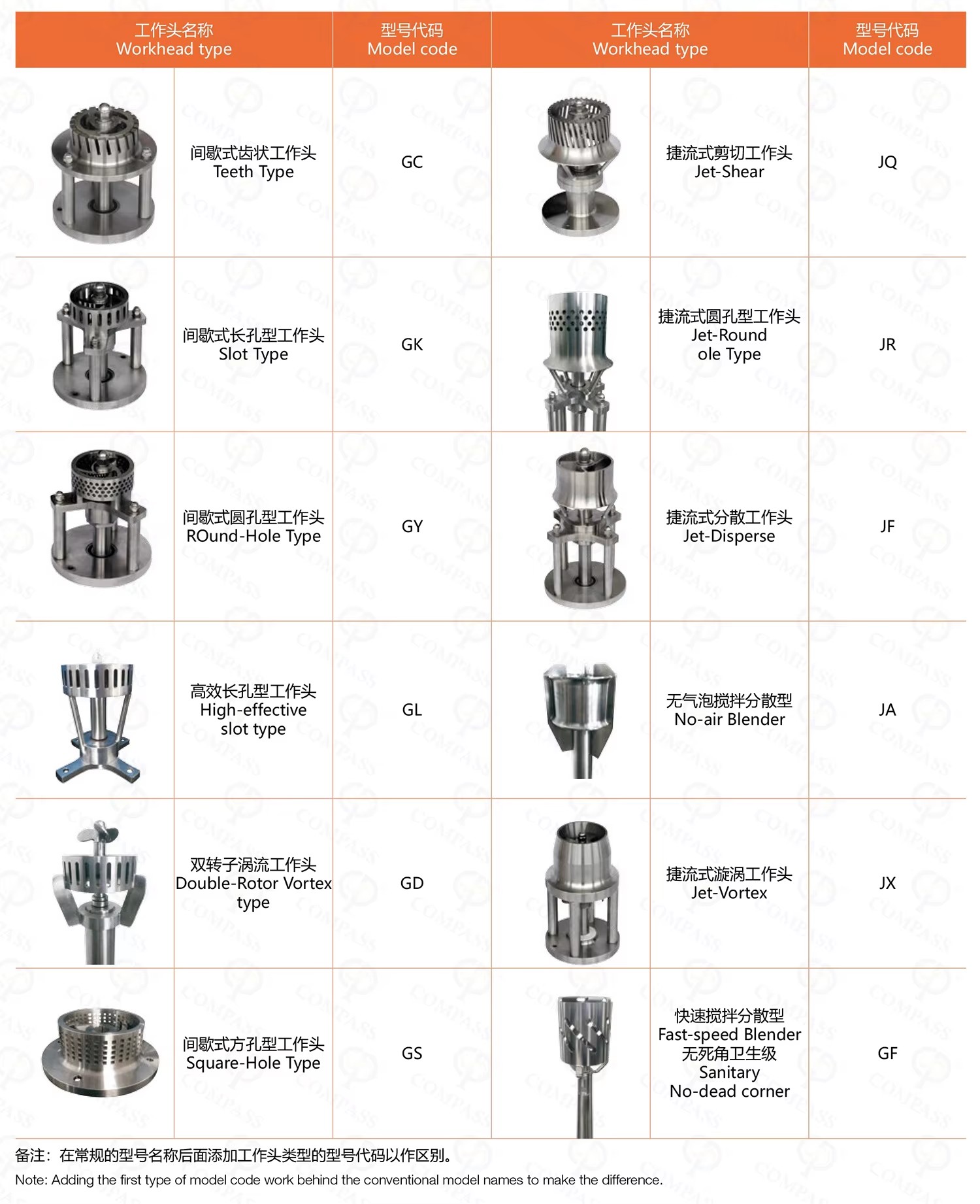

3. Teeth Type (GC), Jet-Shear (JQ), Slot Type (GK), Jet-Round Ole Type (JR), Round-Hole Type (GY), Jet-Disperse (JF), High-Effective (GL), No-Air Blender (JA), Double-Rotor Vortex Type (GD), Jet-Vortex (JX), Square-Hole Type (GS), Fast-Speed Blender No-Dead Corner (GF)
How to Order ?
1. What's material quality? Such as SS304 or SS316L.
2. What's products used for pump? Such as cream.
3. What's flow per hour? Such as 3000 liters per hour.
4. What's motor power? Such as 2.2kw.
5. What's voltage and hertz? Such as 380v/50hz/ 3phase.
6. What's type of motor brand? Such as china motor.
