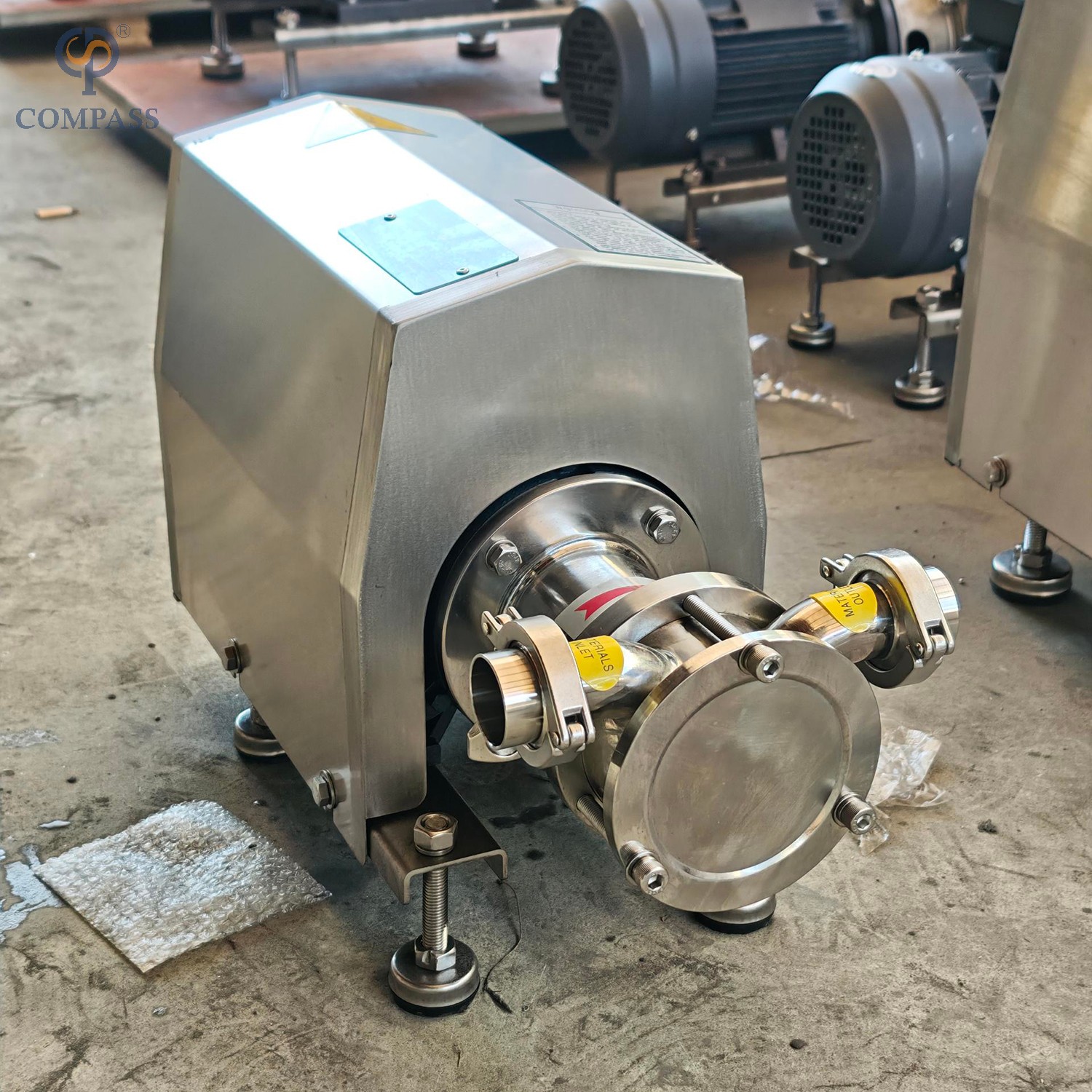

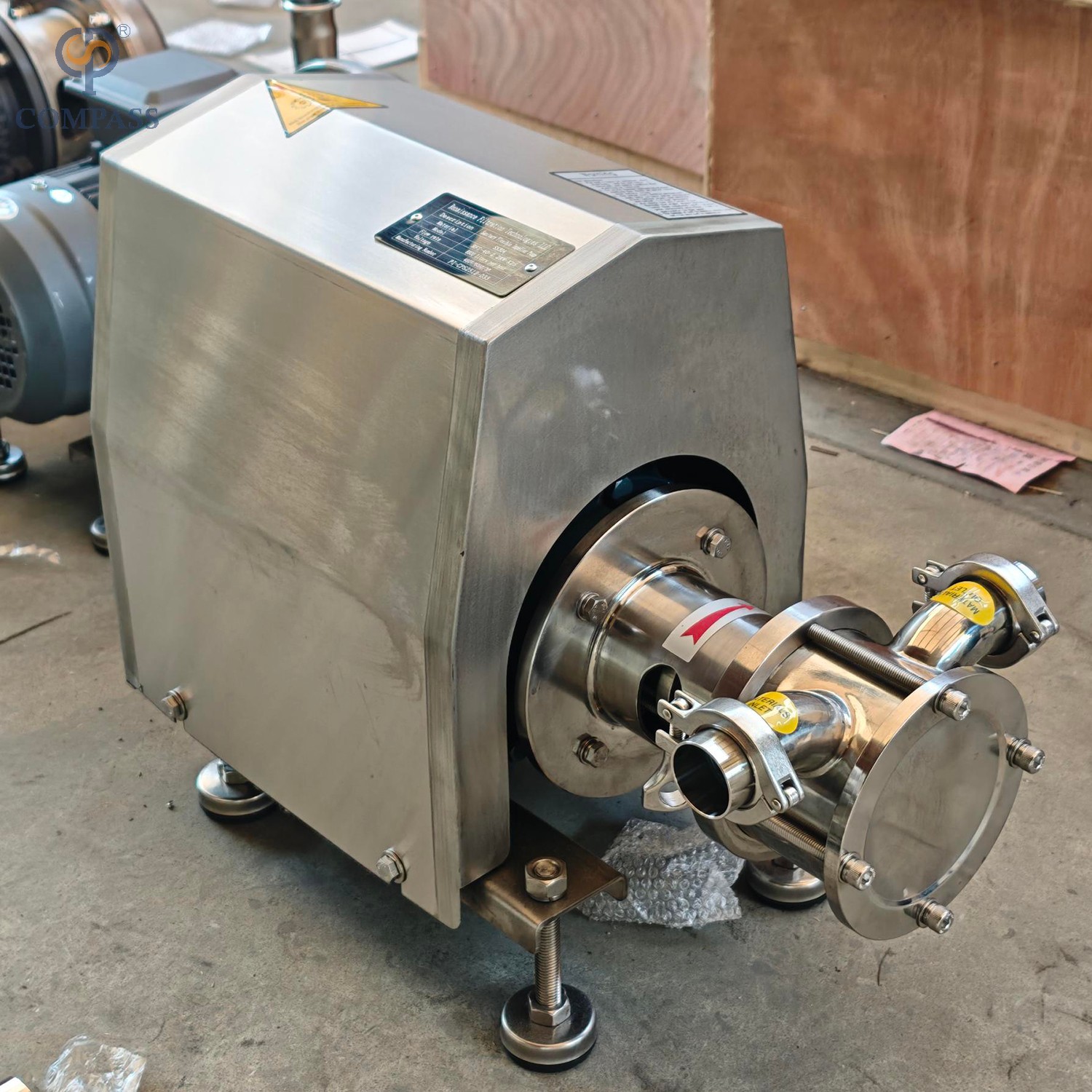

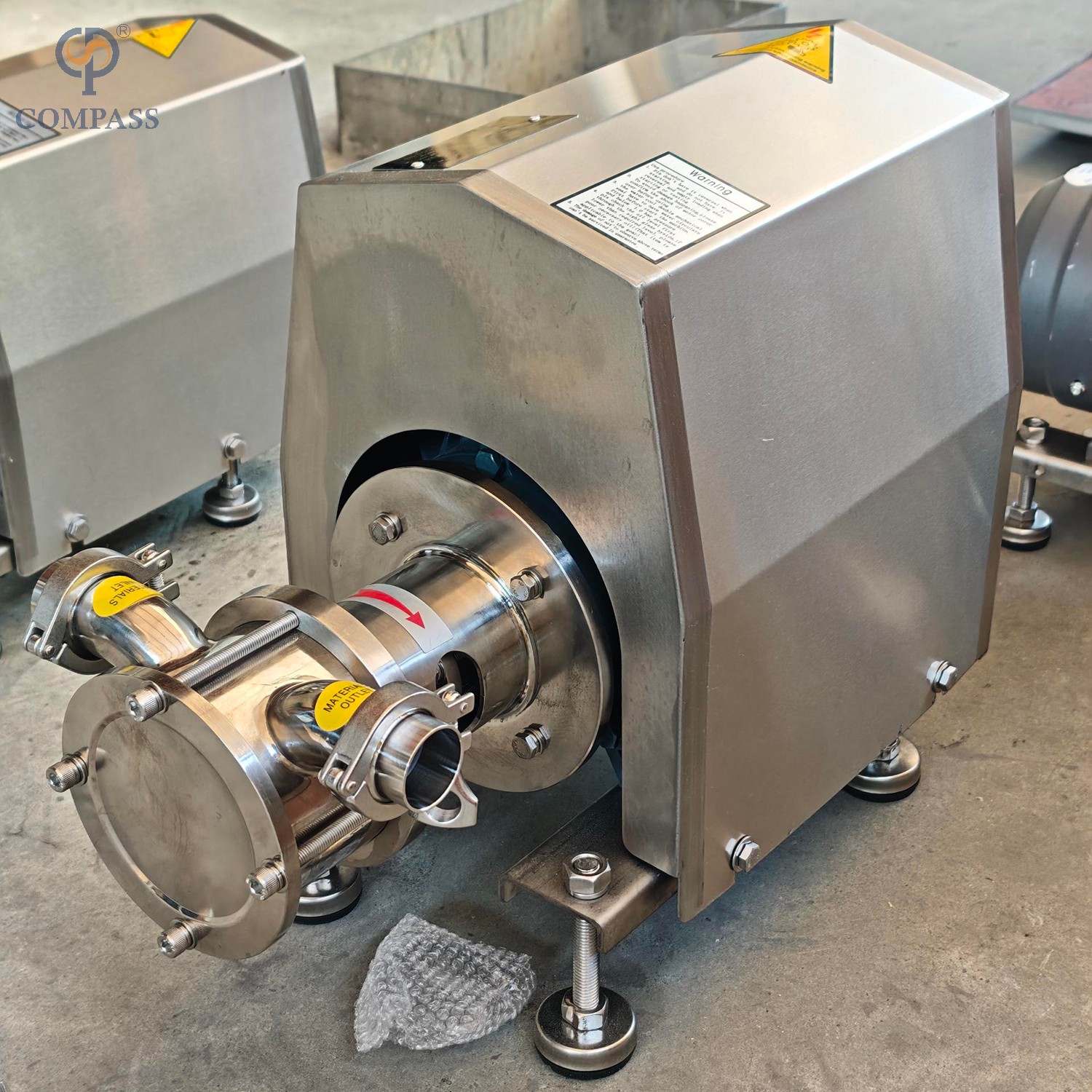

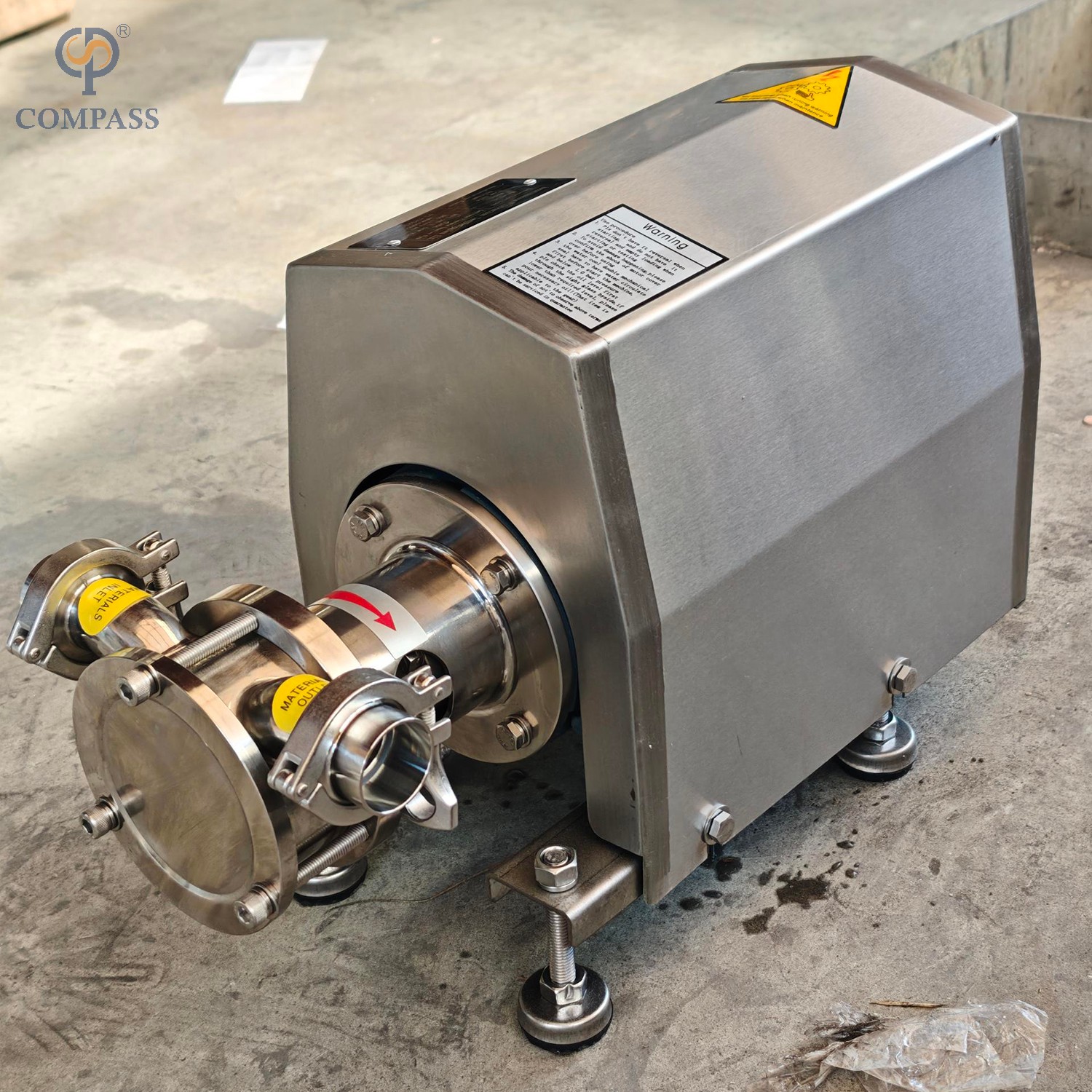

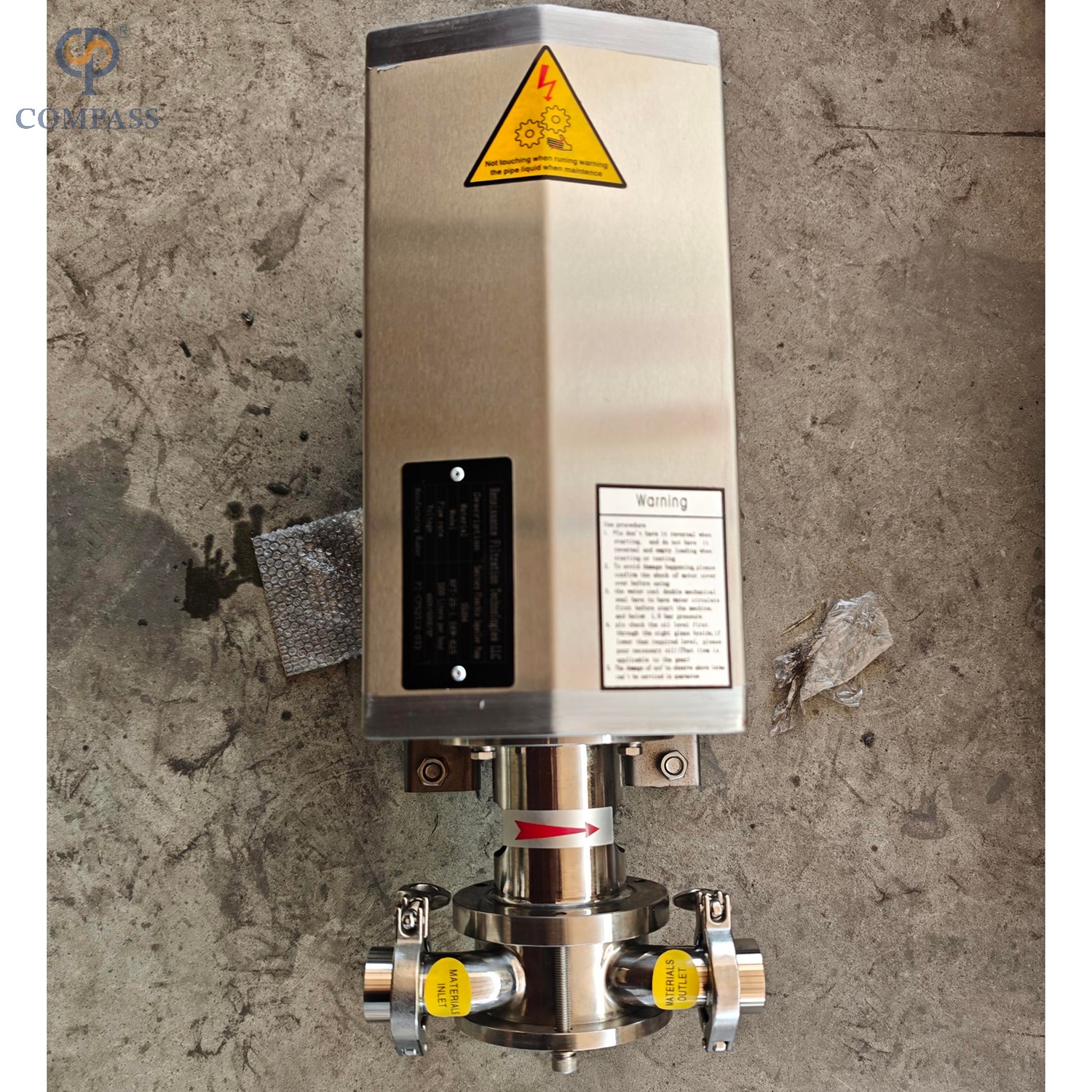

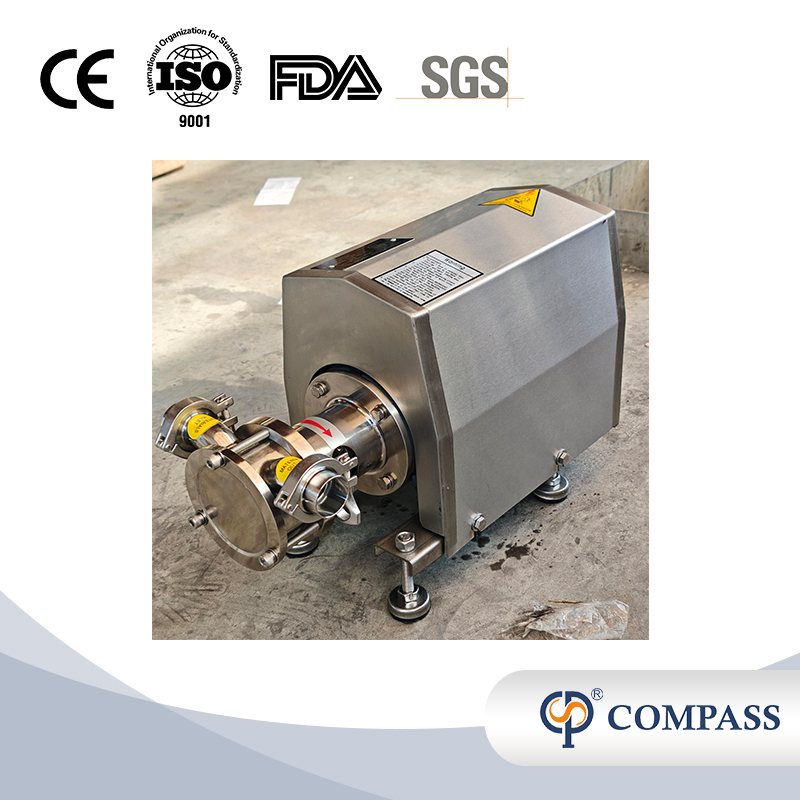

RX Pumps ( Flexible Impeller Pump) can be application for sanitary and industry.
1. RX Application of Sanitary
Hygiene is Paramount importance in the processing of food and dairy products. The RX is designed with polished stainless steel food or milk grade impeller to meet rigorous hygiene requirements. The stainless steel sanitary RX is easy to clean, which use unsoltted shaft seal that does not cause liquid deposition and the used impeller material has been tested and approved, and is certified to comply with FDA regulations. Typical products suitable for delivery by the pump including condiments, gelatin, honey, jam, ointment, canned food, beverage, wine, beer, fruit juice and spices.
2. RX Application of Industry
RX Flexible Impeller Pump also could be applied to the situation without sanitary requirement. However, it is still as main stainless steel pump. RX stainless steel pump is particularly suitable for conveying acidic liquids, ciays, concrete additives, detergents, dyes, film processing chemicals, ink and sewage treatment. Cosmetics are also pumped in this type of pump frequently including the following products, soap, shampoo, detergent and moisturizer.

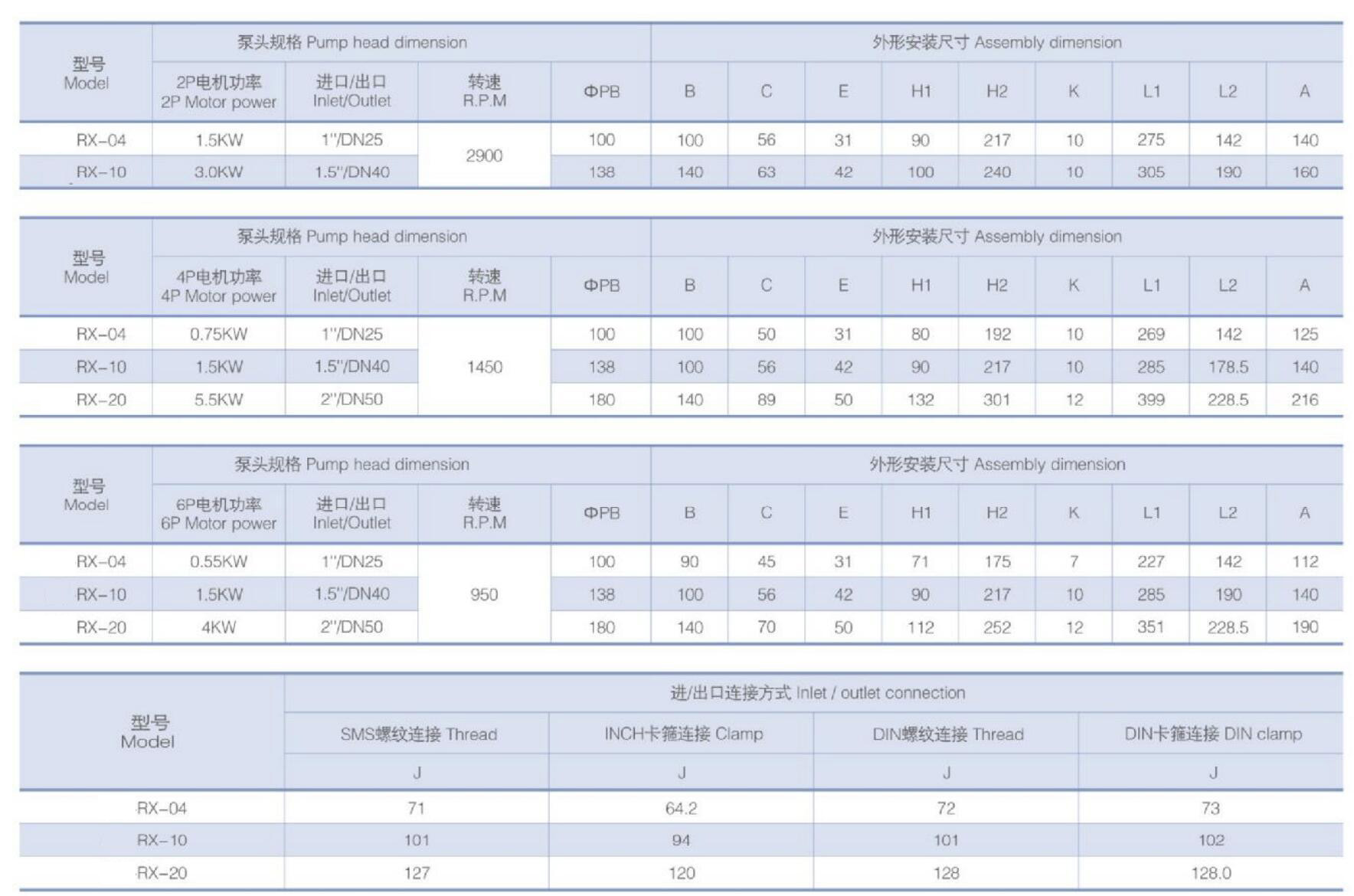

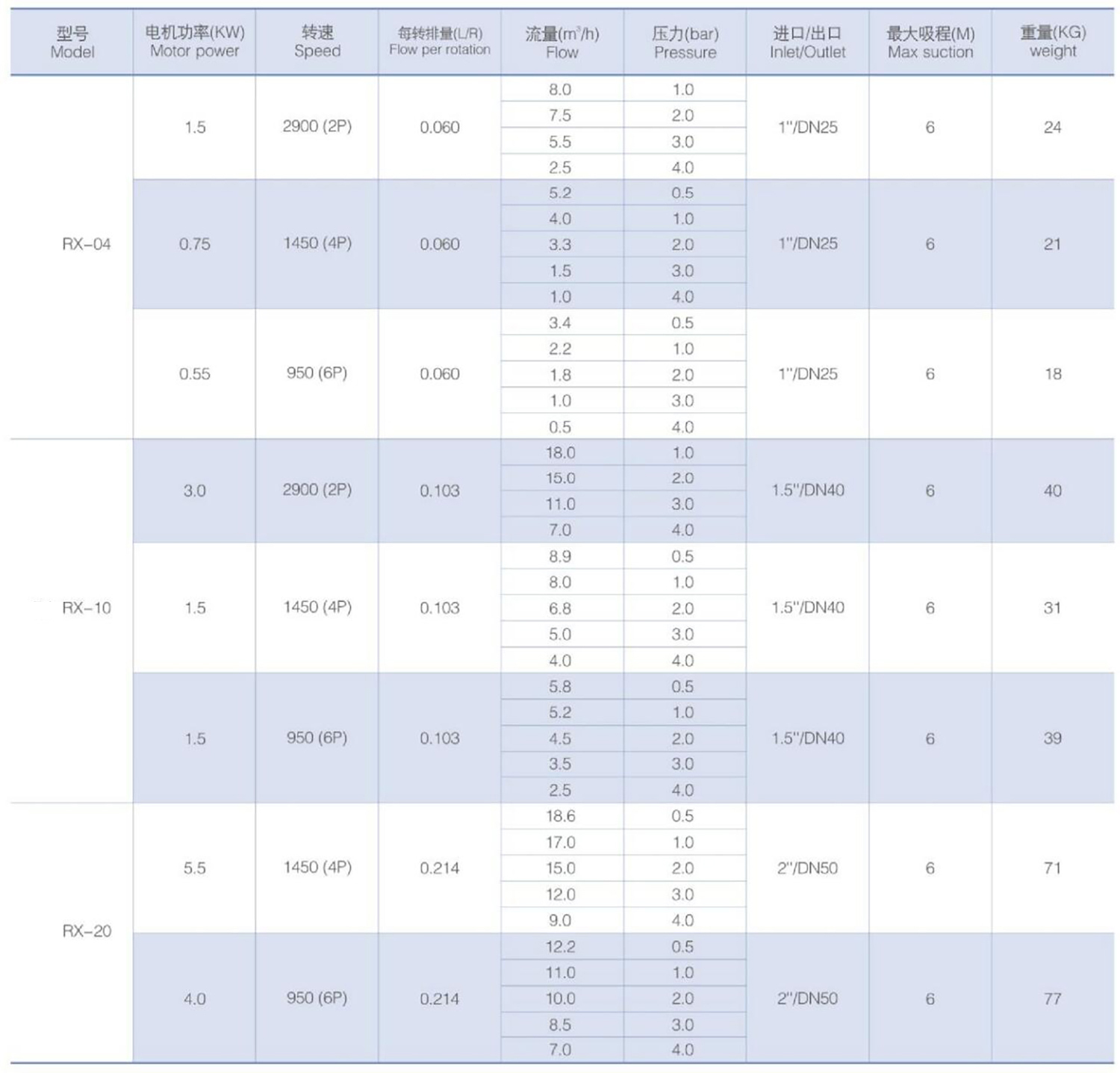

Main Parameter
Material Contact Parts | SS304, SS316L (1.4301,1.4404) | Provided with material inspection report |
Material Non-contact Parts | SS304 (1.4301) |
Material of Flexible Impeller | EPDM |
Material of O Ring Seal | SILICONE, EPDM |
Max Flow | 10m³/h |
Max Head | 40M (4bar) |
Max Suction | 6 M |
Max Temperature | 80° C |
Rotaing Speed | 950RPM to 3500RPM |
Motor Power | ≤ 3Kw，220-240V/380-420 ＞ 3Kw，380-420V/660-690V |
Voltage | 110V, 220V, 380V, 440V |
Motor Frequency | 50HZ, 60HZ |
Type of Motor | China motor |

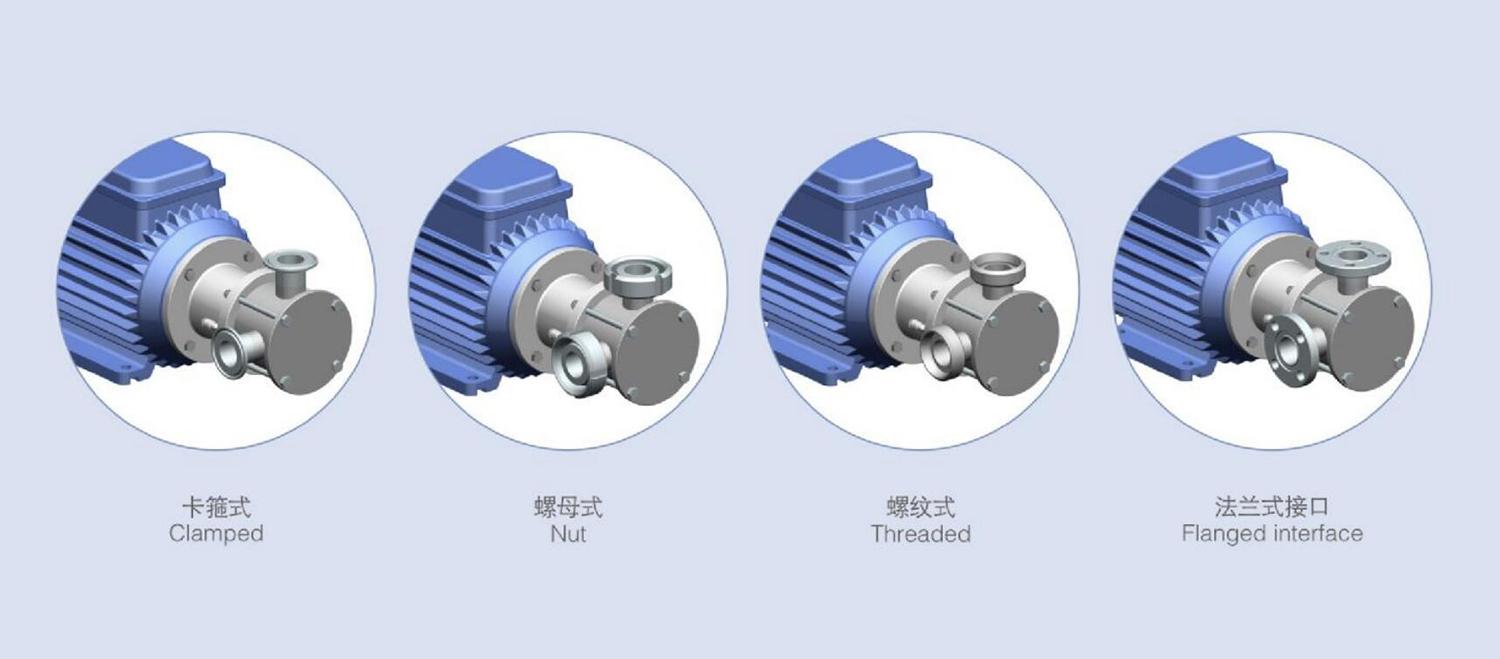

Available Connection | Clamp, Union, Flange, Threaded Fittings |
Mechanical Seal | SIC/C/EPDM (Standard), Alloy Material |
Type of Mechanical Seal | Single Mechanical Seal, Double Mechanical Seal |
Type of Control Box | On and off Control Box and VFD Frequency Converter Control Box |
Certificate | CE |
Excellent Self-priming Fuction

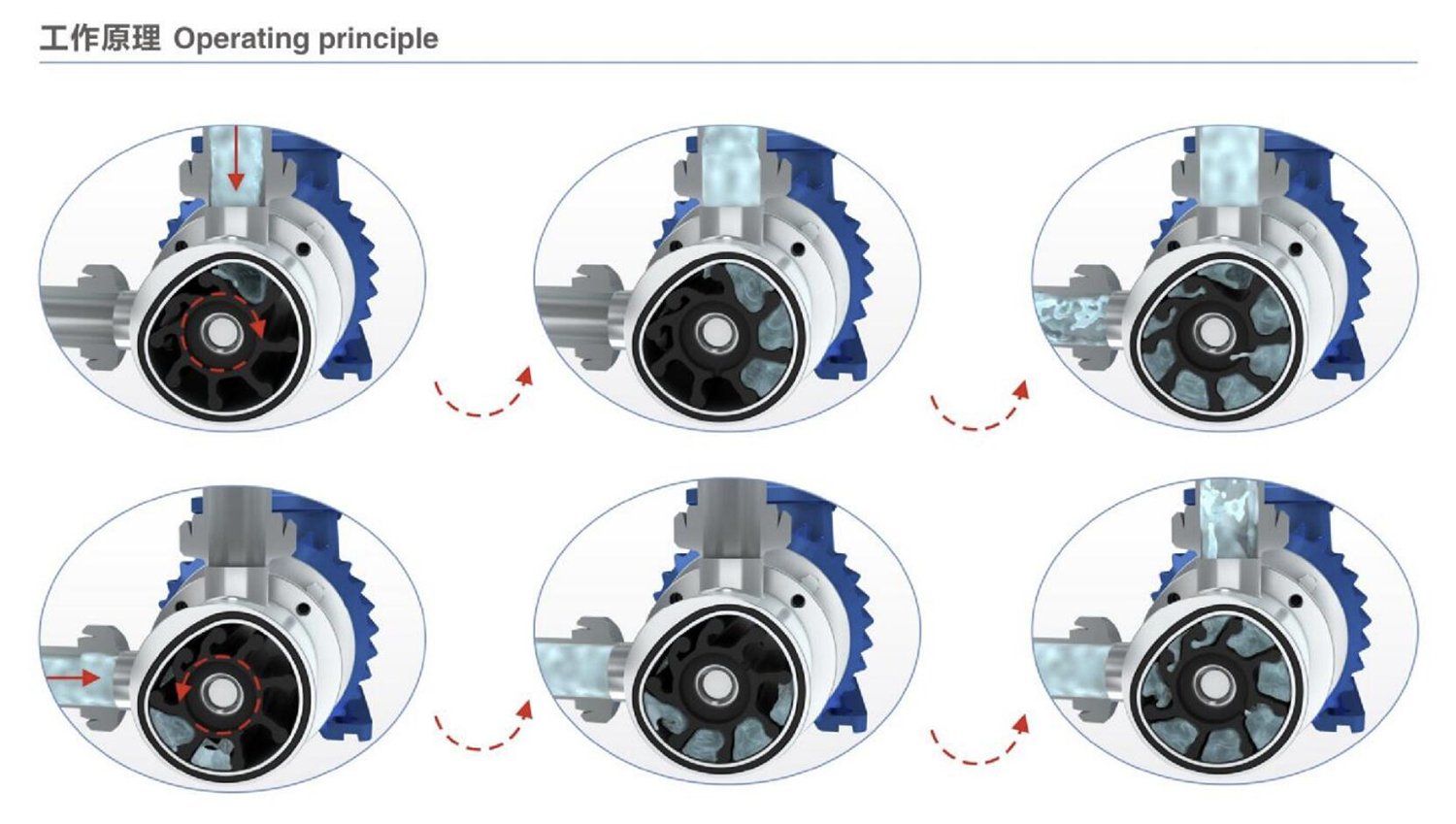

Flexible impeller Pump ( RX), with easy operation, is volumetric pump with excellent self-priming function which could reach 6 meters
Wide Application Range
Because of structure, RX pump could get water drawing effect nearly when conveying viscous liquid, so it's with wide range of application.
Moderate Pumping
The pumping effect of RX pump is very stable and moderate. The medium won't be whipped and damaged, even if it is fragile media like high fat butterfat. Big berry, even if it is half size of a peach, could be passed through the pump without damage. Meanwhile our RX pump could be guaranteed to run without pulsation completely. It also could be used as dosing pump by adjusting pump speed.
Simple Operation, Low Maintenance Cost
Compared with other typical self-priming, such as pneumatic diaphragm pumps and variable volumetric pumps. The operating cost of RX pump is lower, maintenance is more simple and downtime is shorter, just need to disassemble front cover by using standard wrench, maintenance could be done one the flexible impeller pump. More importantly, there is no need ti detach the pump from piping system.
How To Order Flexible Impeller Pump?
1. What's product used for Flexible Impeller Pump?
2. What's viscosity of product?
3. What's material quality? Such as SS304 and SS316L for optional
4. What's flow rate for screw pump, such as 10000 liters per hour ?
5. What's head, such as 6bar?
6. What's motor power, such as 3kw ?
7 What's voltage and hertz, such as 380v, 50hz, three-phase?
8. What's motor brand, such as China motor or other motor brand ?
9. What's connection end? Such as butt-weld, tri-clamp, male threaded, female threaded, union, ect.
