TRL-B Hot Sale Sanitary 4KW SS304 High Efficient High Shear Mixing System Powder Liquid Emulsifier Homogenizer Mixer for Cream

The Details of Product

Description of Commodity: TRL-B Hot Sale Sanitary 4KW SS304 High Efficient High Shear Mixing System Powder Liquid Emulsifier Homogenizer Mixer for Cream

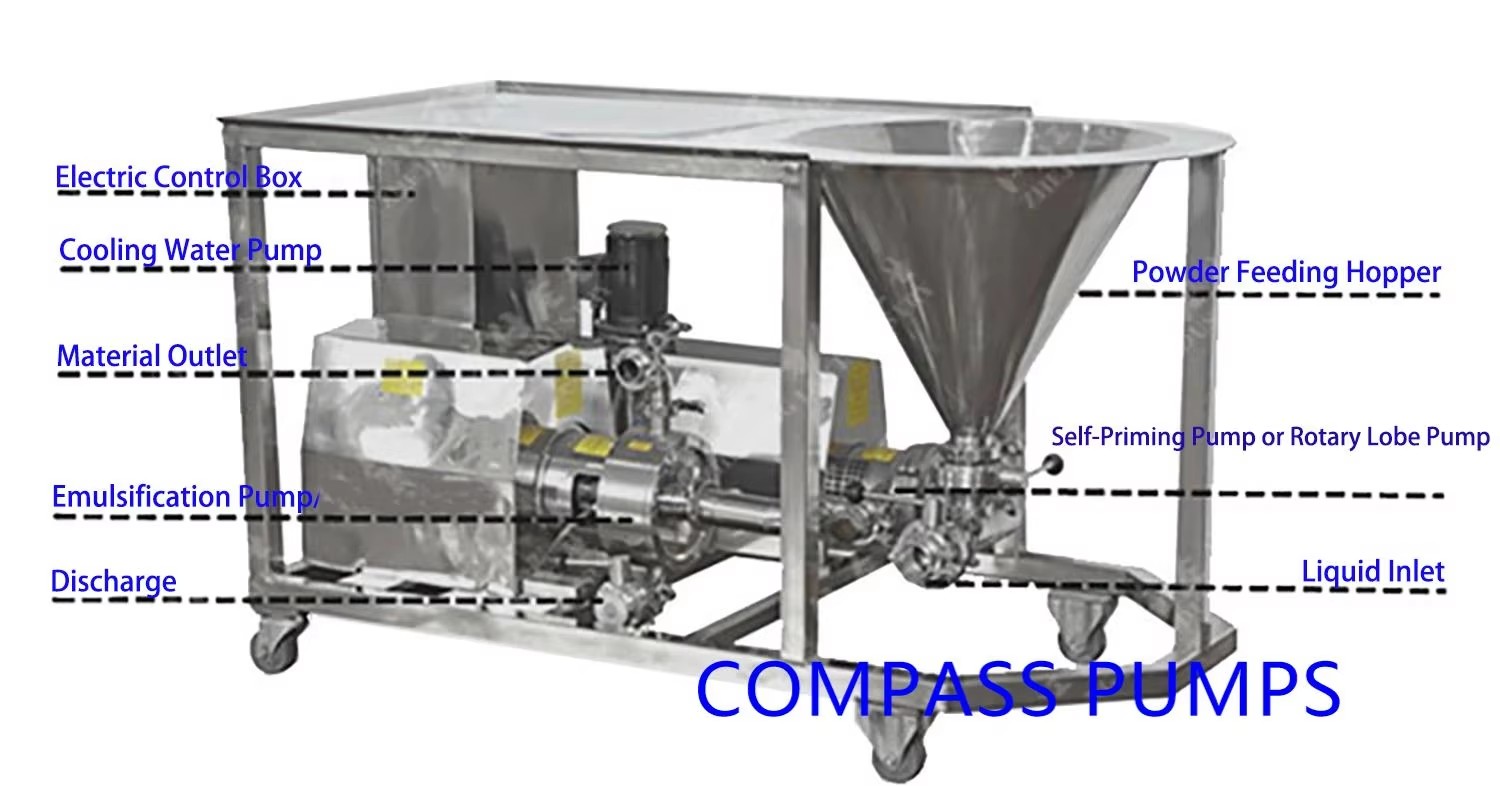

System Combination for TRL-B High Efficient Online Mixer System

1.Table system: according to different application requirementsv, select SS304 or SS316 L stainless steel manufacturing. The relatively closed system equipment, cleaning, sanitation, safety, aesthetics, easy to operate.

2.Dry powder feeding: v-dry powder for solid feeding the mouth of Health with adjustable valves. Can choose manual or pneumatic control. Control Valve: Yes conditioning systems must be part of the system at the same time to adjust the volume and velocity.

3.Endoscopic: (choose to install): To observe the entire system operators provide a convenient working conditions and visual instructions. System emptying system (based on customer requirements choose to install); can be used for cleaning, emptying and sampling.

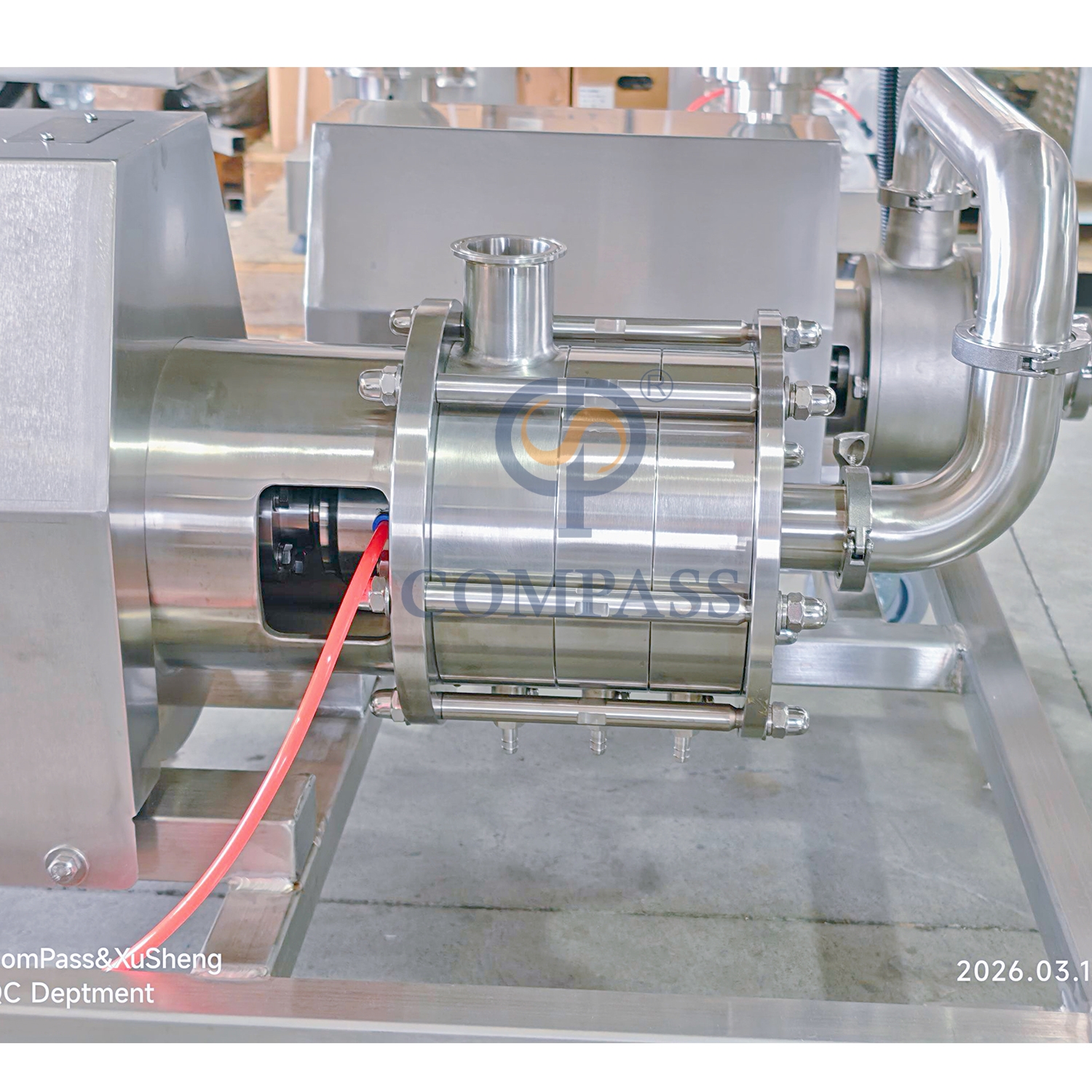

4.Efficient mixer: the system is the core components, the ingenious design of a precise and bite Rotor will close subsystems, making efficient online mixer with a variety of unique and reunification of the functions of each other. They are asked to the relatively high rate of high-speed rotation, but not direct contact with each other, not wear. Health centrifugal pump shape the structure from the structure, shaft, mechanical seals, seals and other imports are Germany; rotor, stator, the whole cavity are forging a stainless steel high-precision CNC machining centers from processing; system strong, secure, Efficient, safe and reliable.

5.Efficient power machine: the powerful Central vacuum of power system is an essential part of system to ensure that systems work efficiently, fast, stable, powerful, safe and reliable. Health of the powerful suction ring true blank suction system for the whole mixer conveyor system, and provide the impetus for solid materials. Sealed in stainless steel, machinery, Kennedy-durable, stable and reliable.

6.Security systems: systems are equipped with stainless steel double-filter protection systems to ensure that the metal to avoid any solid particles (Lo Salim, welding slag, metal, gravel, etc.) on the system damage.

7.Operating system: the operating system designed, single-stop button to launch the operation, were instructed fault. Simple, easy maintenance. Operating system with anti-fertility overload, short-and

8.anti-shortage-and to prevent misuse of the parade, such as interactive chain protection. According to customer needs, can be equipped with automatic operating system.

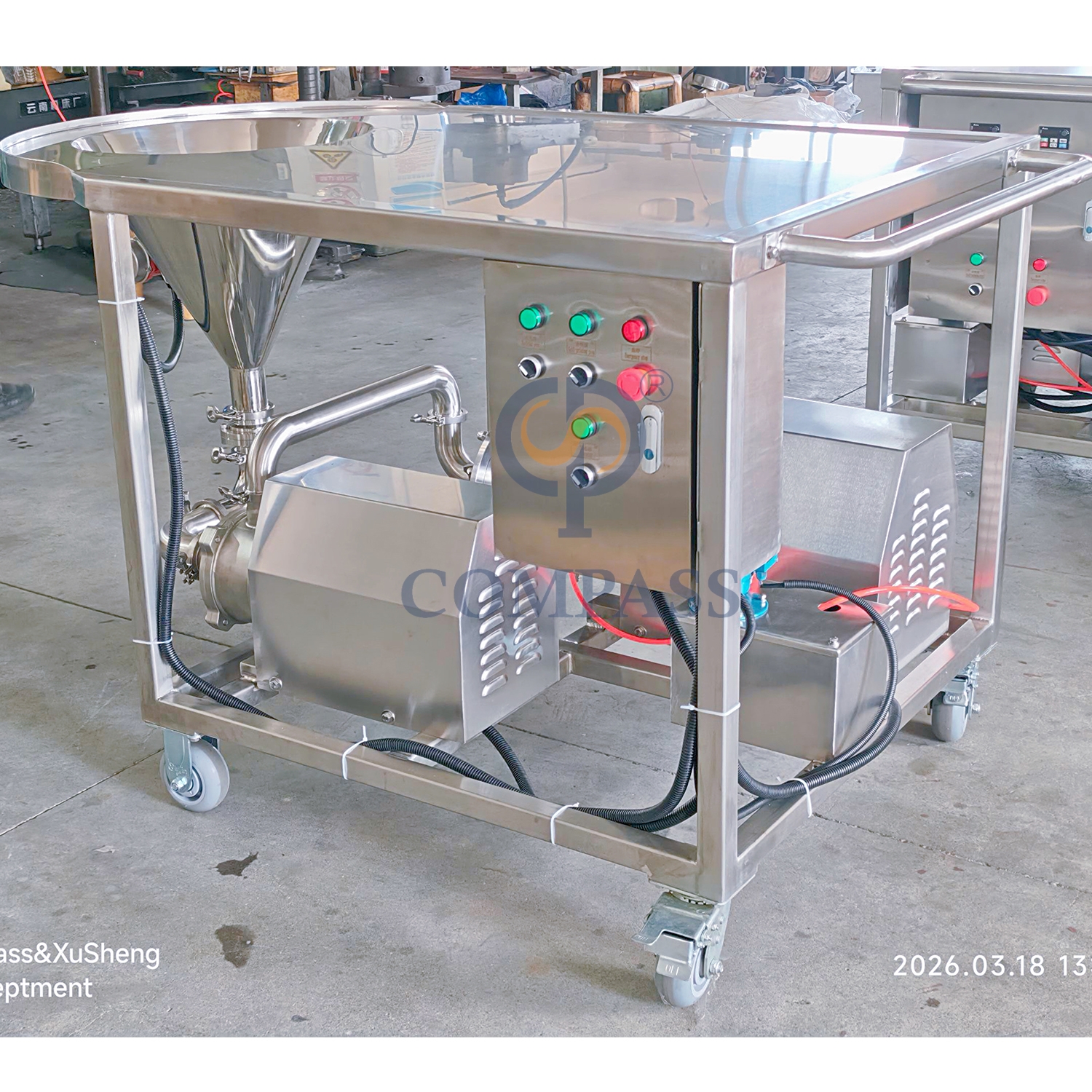

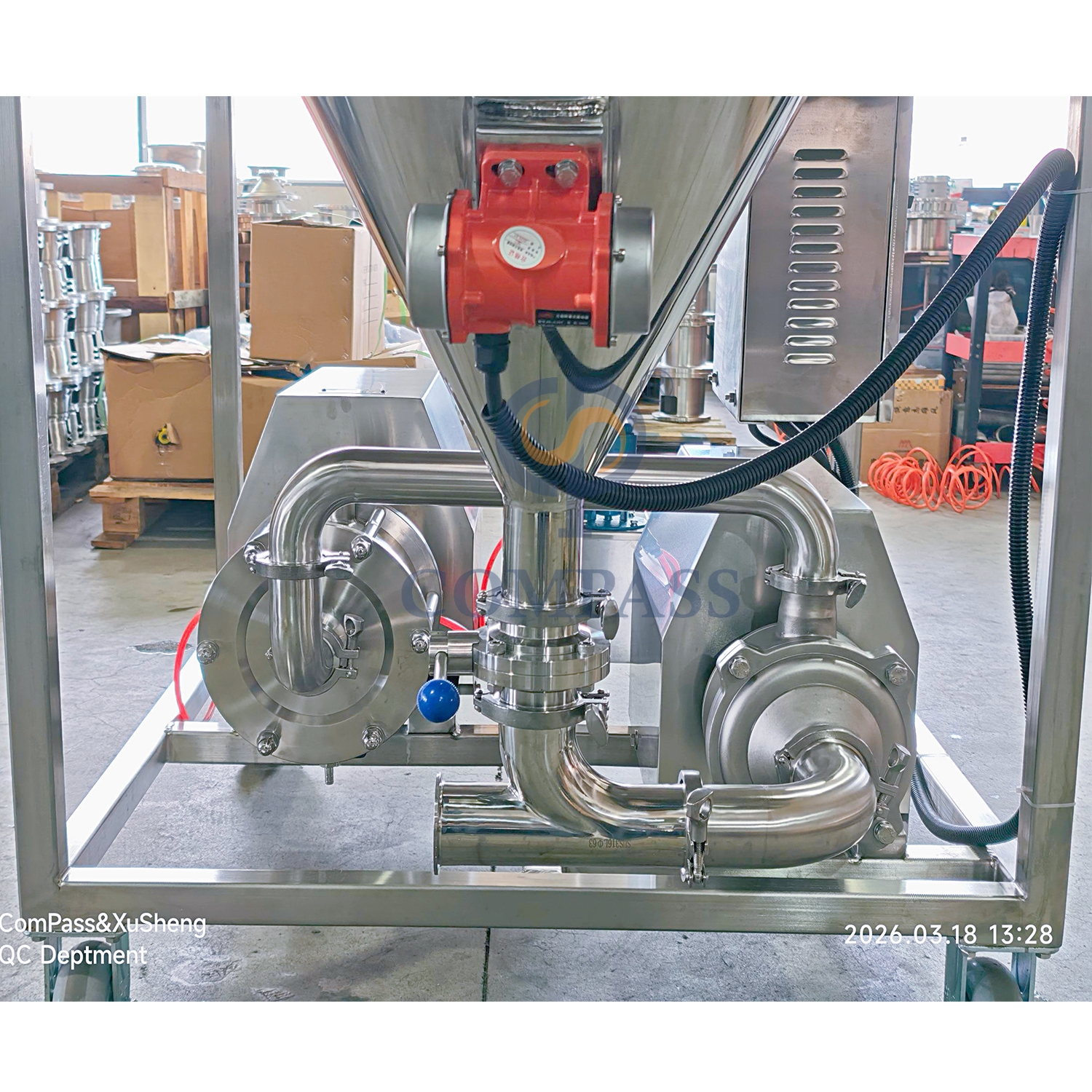

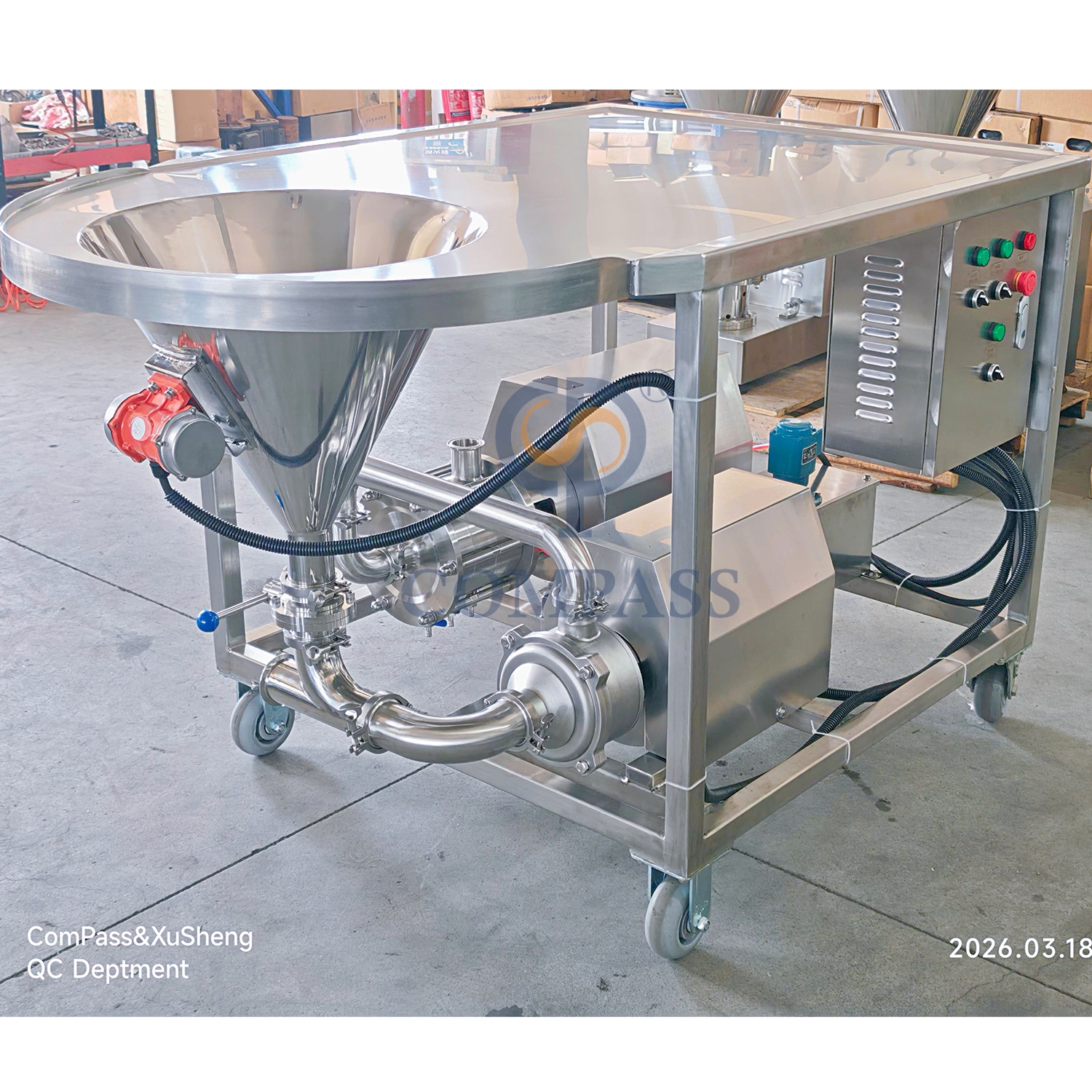

Actual Photos and Selection of Configuration for High Efficient Emulsifier Homogenous Mixer

1. Ordinary Variable Frequency Motor or Ordinary Motor

2. FVD Frequency Converter Control Box, such as Delta Brand or Other Brands

3. Cabinet Mobile Cart with Brake or without Brake

4. With Hopper, such as 40L Hopper, 50L Hopper

5. With Tanks

Application

Food Industry Homogeneous concentrated fruit juice, long fiber drinks, soups, all kinds of jam,fruit juice, potatoes Nigeria, mustard cake

Dairy Homogeneous fermented dairy products: You yogurt, soft cheese, butter, etc.

Heterogeneous mix milk products  Such as ice cream, chocolate milk, cocoa milk, CMC, starch, Mr Jing, etc.

Biological pharmaceutical industry Tissue, cell body grinding, injection; antibiotics; drug ointment, micro capsules emulsion.

Cosmetics Industry Emulsion various facial cream, lipstick, liquid detergent, Ximian Nai, skin care products, shampoo

Chemical industry Resin emulsion, surfactant, carbon black dispersion, dye coating

Homogeneous production of PVC plasticizers All kinds of emulsion agent, photographic emulsion, additives, etc.

Petrochemical Industry Emulsified asphalt; modified asphalt; heavy oil emulsified diesel emulsion;lubricants; silicone oil emulsion

How to order?

1. What's material quality ? Such as SS304 or SS316L

2. What's products used for pump ? Such as cosmetic

3. What's viscosity of products ? Such as 10000cps

4. What's flow rate per hour ? Such as 3000 liters per hour

5. What's head for pump? Such as 2.2kw

6. What's voltage and hertz ? Such as 380v/50hz/ 3phase

7. What's type of motor brand? Such as China motor

8. Do you need VFD Frequency and Control Cabinet or wheel trolley ?

9. How many quantity you need ?
