Main Parameter
Material Contact Parts | SS304/SS316L(1.4301/1.4404) | Provided with material inspection report |
Material Non-contact Parts | SS304(1.4301) |
Flow Rate | 1.5-130 m³/hr |
Motor Power | 1.5-132 kw |
Voltage | 380v,220v, 230v, 208v, 460v, 440v, 415v, 400v |
Hertz | 50hz, 60hz |
Phase | Single Phase, Three Phases |
Speed | 2900rpm, 3500rpm, 1450rpm |
Type of Teeth | Rough Teeth, Middle Teeth, Fine Teeth |
Processing Method | Mixing→Dispersing→Emulsifying→Homogenizing |
Material of Mechanical Seal | Alloy + Viton & Alloy + EPDM for Double Mechanical Seal |
Connection | Butt-weld, Ferrule End, Male Thread, Female-Male Threaded, Union, Weld-Thread, Flange |
Seal Material | Silicone,EPDM,FKM,Buna, all seals material comply with FDA21CFR117.2600 |
Working Pressure | ≤10bar(145psi) |
Supply Pressure for Air Actuator | 5~8(72.52psi~116psi) |
External Surface Treatment | Ra32~64ui n(o.8~1.6um) |
Internal Surface Treatment | Ra16~32uin(0.4~0.8um) |

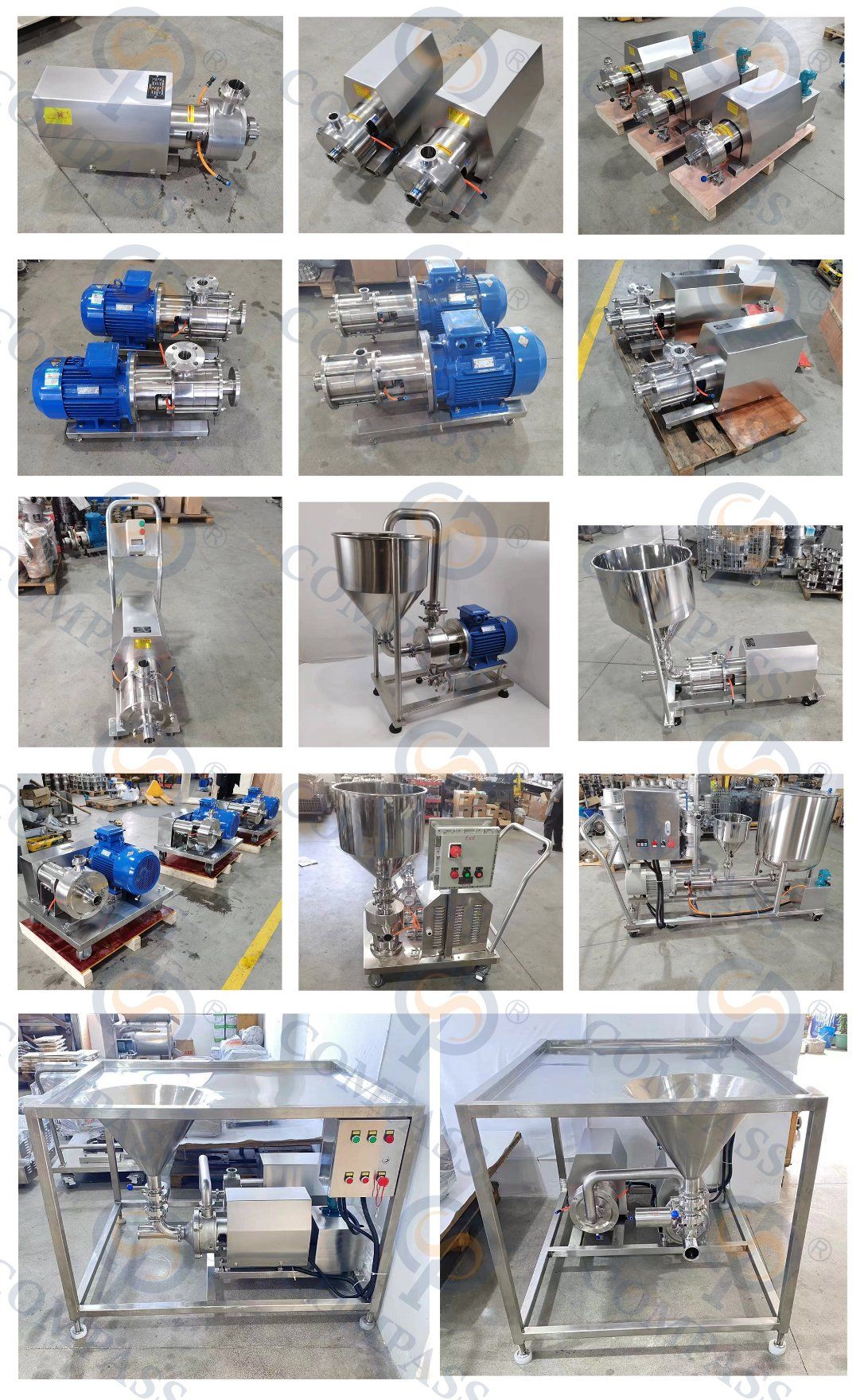

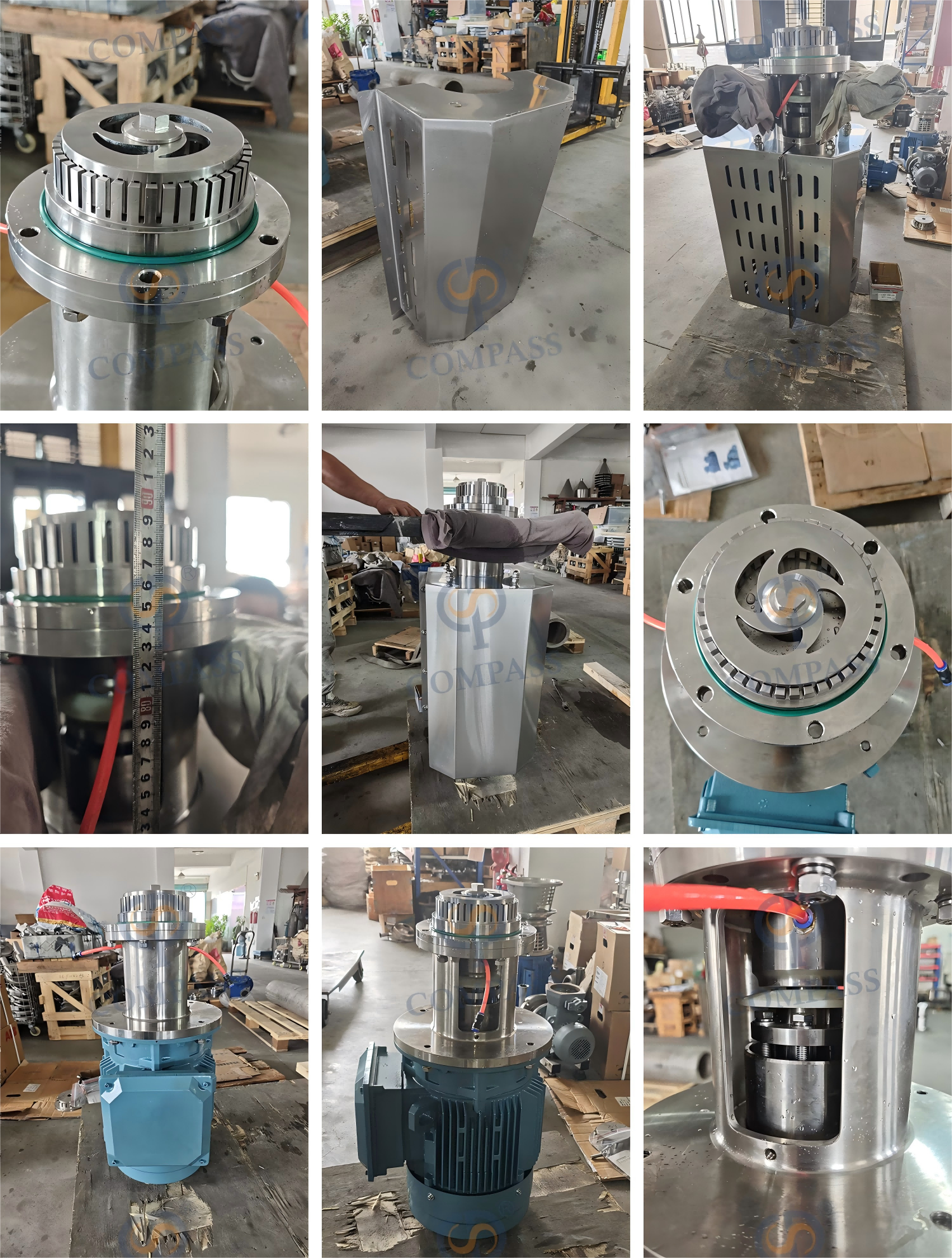

Actual Photos and Selection of Configuration for sanitary kettle type homogeneous emulsifying machine
1. Ordinary Variable Frequency Motor or Variable Frequency Motor or Ordinary Motor
2. FVD Frequency Converter Control Box,
3. Cabinet Mobile Cart with Brake or without Brake
4. With Hopper, such as 40L Hopper, 50L Hopper
5. With Tanks

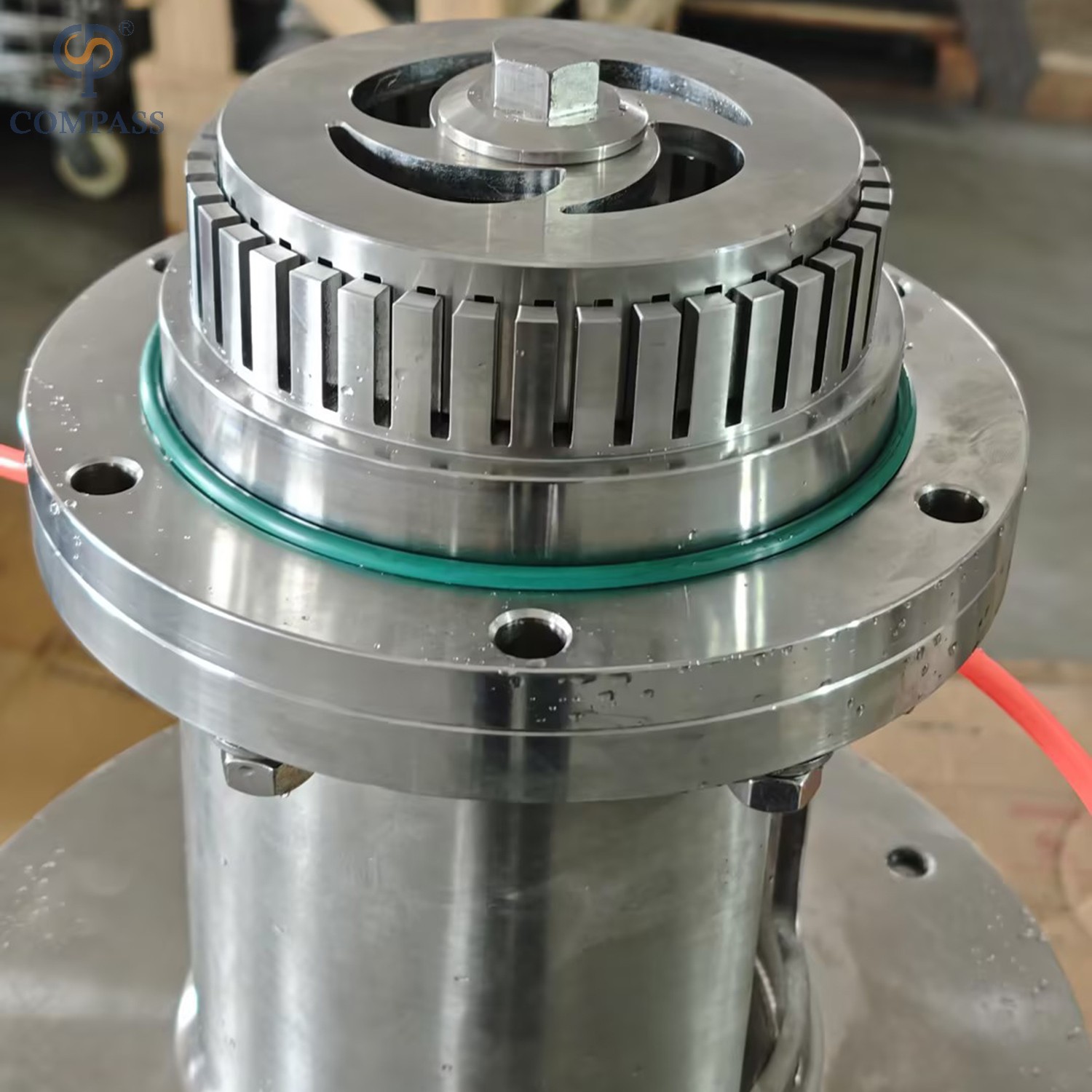

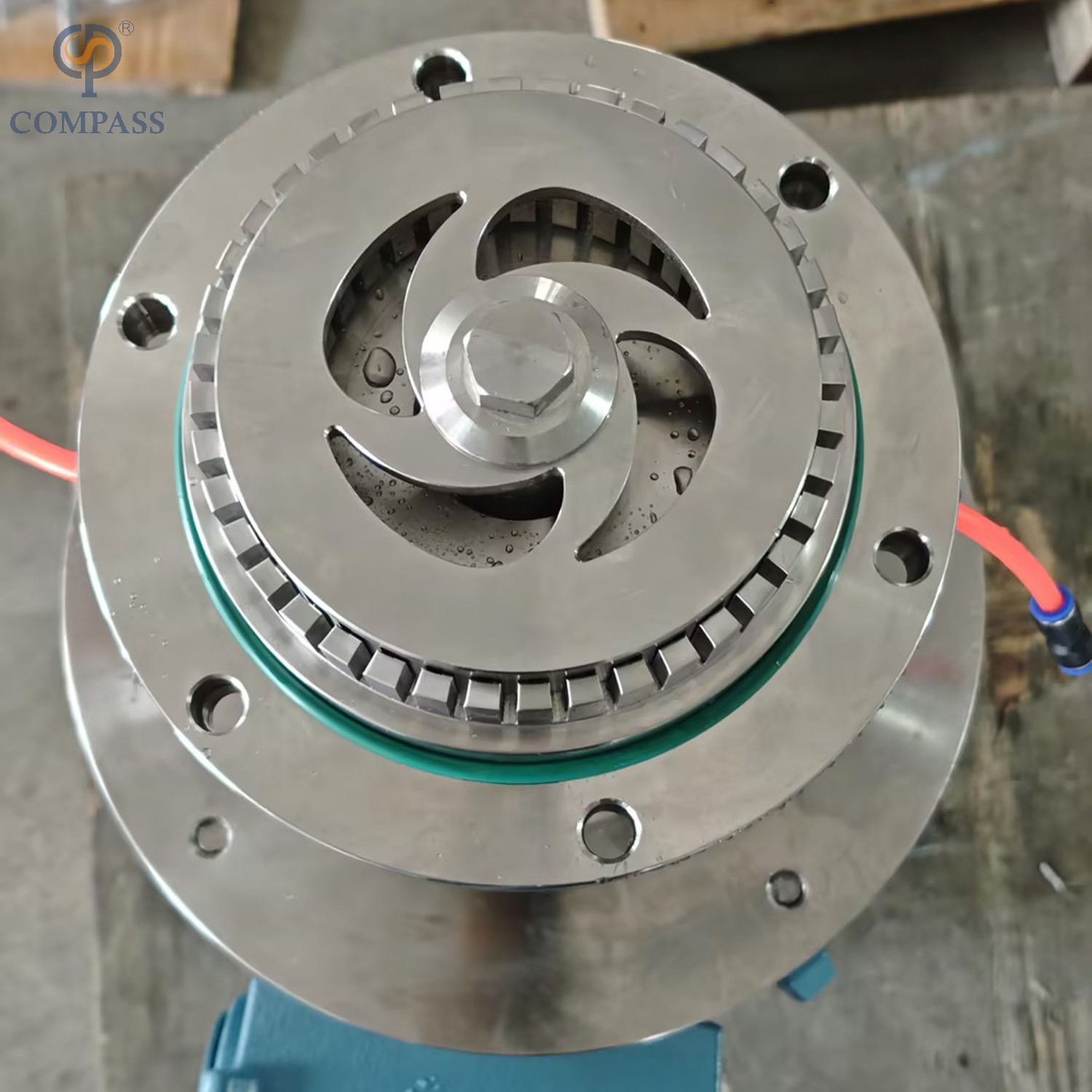

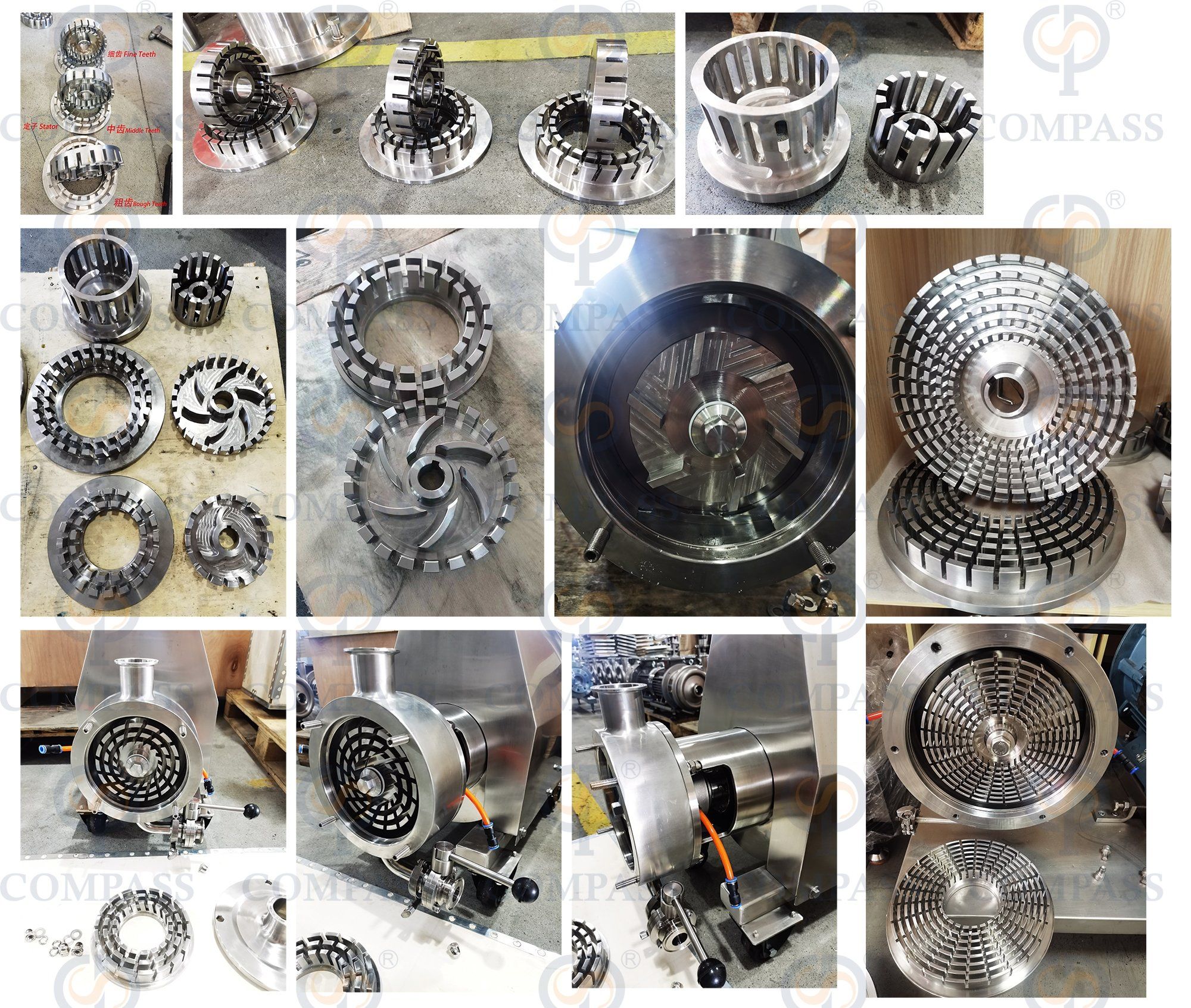

Selection of Different Impellers and Stators for Customers Referance
Such as rough teeth, middle teeth, fine teeth, impeller with blade, and so on.
It depands on your products characteristic to design, then homogenizer emulsifying pump can work high effective and few repairs.
Advantage
1. Mass production suitable for continuous production of industrialized assembly line
2. Small diameter range,and highly even
3. Time saving,highly efficient and energy saving
4. Low noise,stable operation
5. Reduced quality difference between lots
Options
1. Material SS304 an SS316L are optioned
2. Connection can be butt-weld, ferrule, union, flange
3.There are different voltage and hertz are optioned, such as 380v/50hz,220v/60hz
4.Silicone material includes of Silicone,EPDM,FKM,Buna, all seals material comply with FDA21CFR117.2600
How do order sanitary kettle type homogeneous emulsifying machine ?
1. What's material quality ? Such as SS304 or SS316L
2. What's products used for pump ? Such as cosmetic
3. What's viscosity of products ? Such as 10000cps
4. What's flow rate per hour ? Such as 3000 liters per hour
5. What's head for pump? Such as 2.2kw
6. What's voltage and hertz ? Such as 380v/50hz/ 3phase
7. What's type of motor brand?
8. Do you need VFD Frequency and Control Cabinet or wheel trolley ?
9. How many quantity you need ?
