The details of product
Material Contact Parts
Material Non-contact Parts | SS304/SS316L(1.4301/1.4404) Provided with material inspection report
SS304(1.4301) Provided with material inspection report |
Flow Rate | 1.5-130 m³/hr |
Motor Power | 1.5-132 kW |
Voltage Hertz | 380v,220v, 230v, 208v, 460v, 440v, 415v, 400v 50hz, 60hz |
Phase | Single Phase, Three Phases |
Speed | 2900rpm, 3500rpm |
Type of Teeth | Rough Teeth, Middle Teeth, Fine Teeth |
Processing | Method Mixing-→Dispersing-→Emulsifying→Homogenizing |
Material of Mechanical Seal | Alloy + FKM & Alloy + EPDM |
| Connection | Butt-weld, Ferrule End, Male Thread, Female-Male Threaded, Union, Weld-Thread, Flange |
| Seal Material | Silicone,EPDM,FKM,Buna, all seals material comply with FDA21CFR117.2600 |
Working Pressure | ≤10bar(145psi) |
External Surface Treatment | Ra32~64ui n(o.8~1.6um) |
Internal Surface Treatment | Ra16~32uin(0.4~0.8um) |

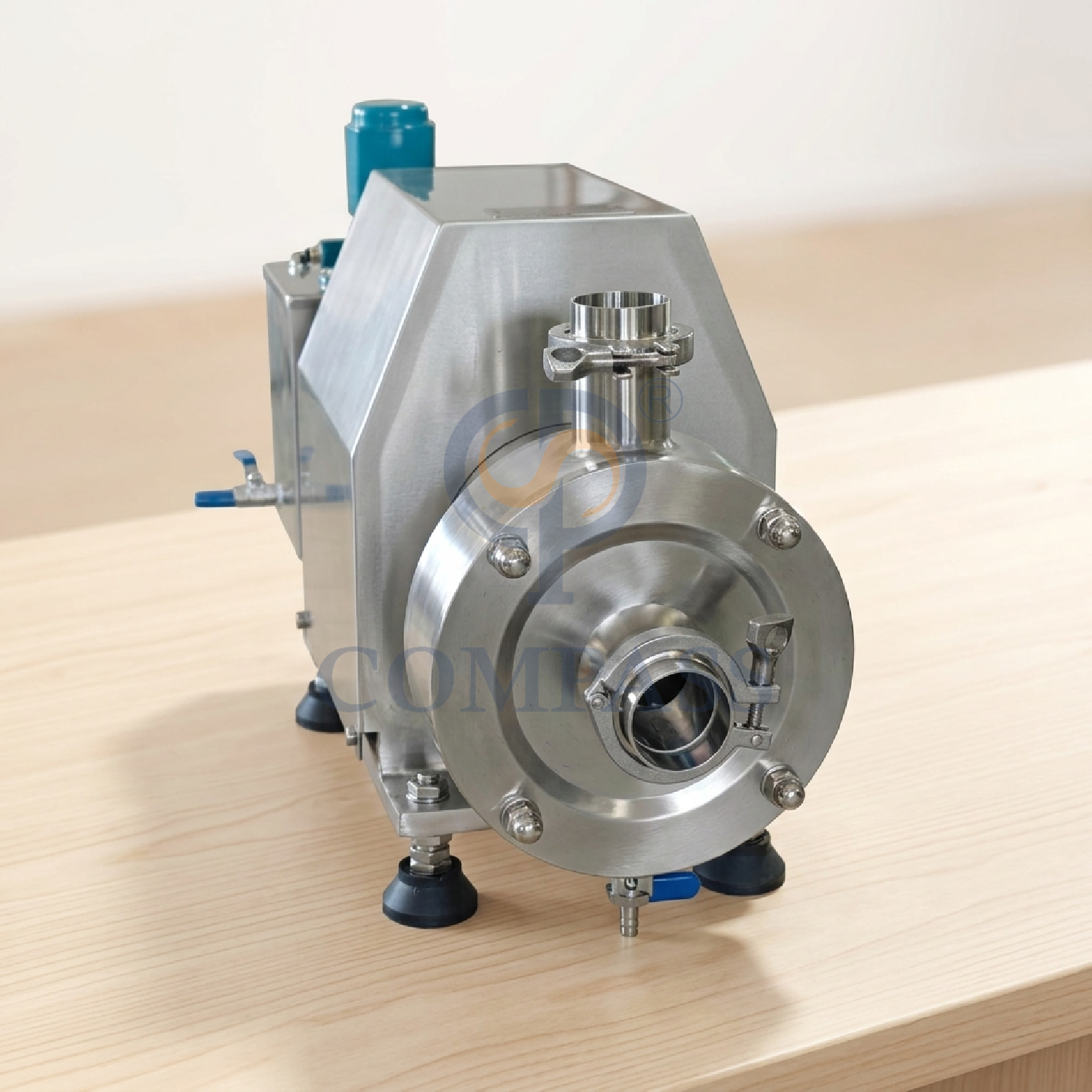

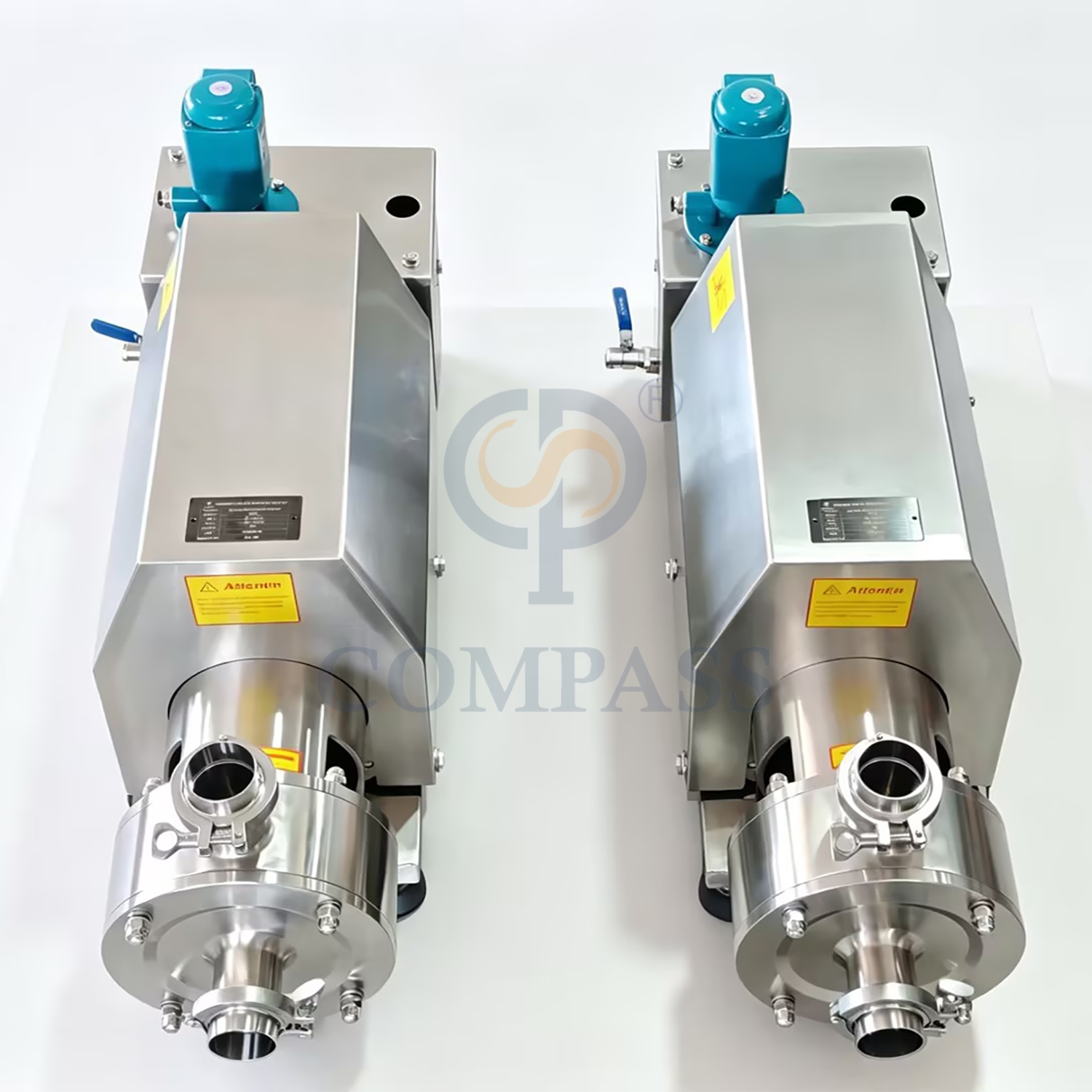

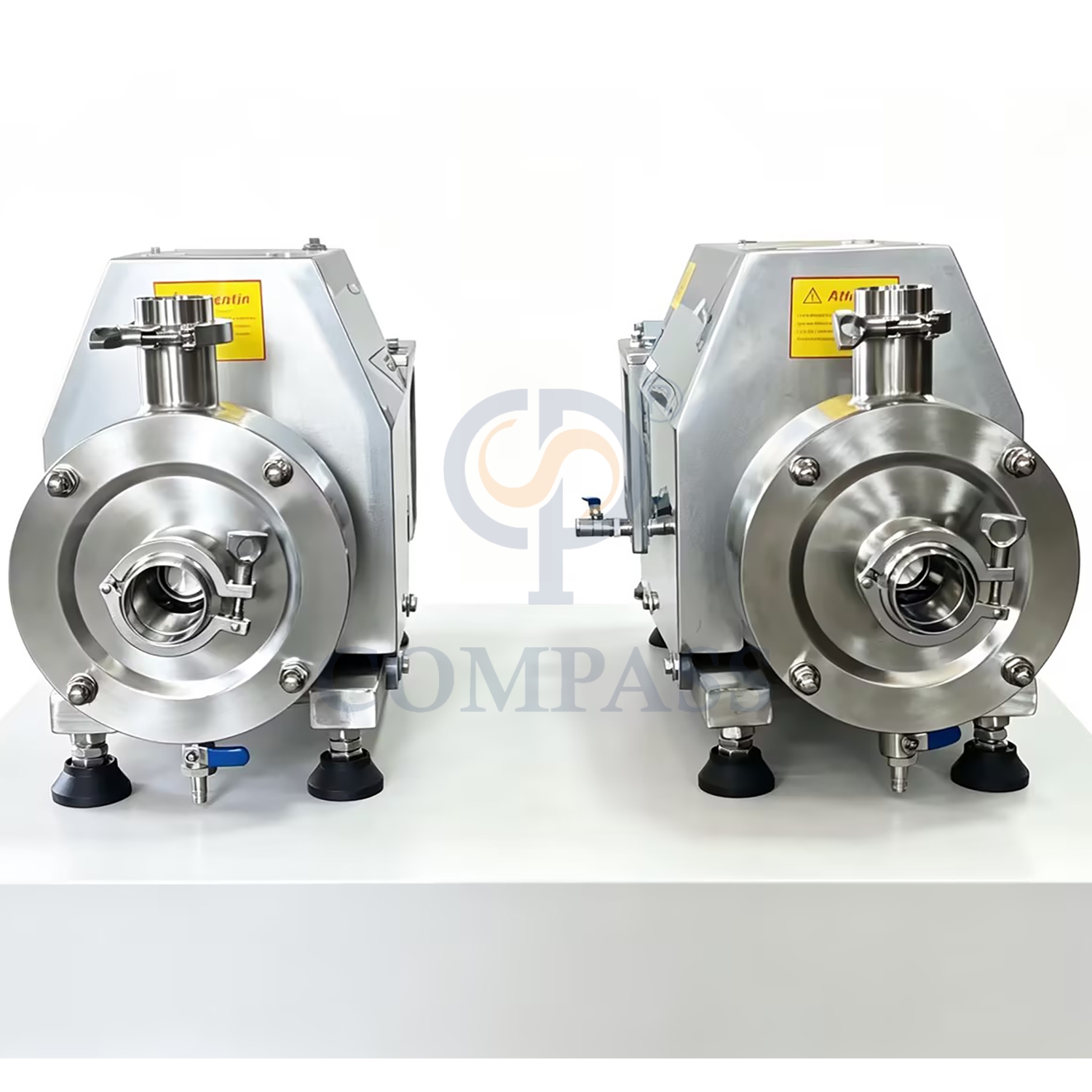

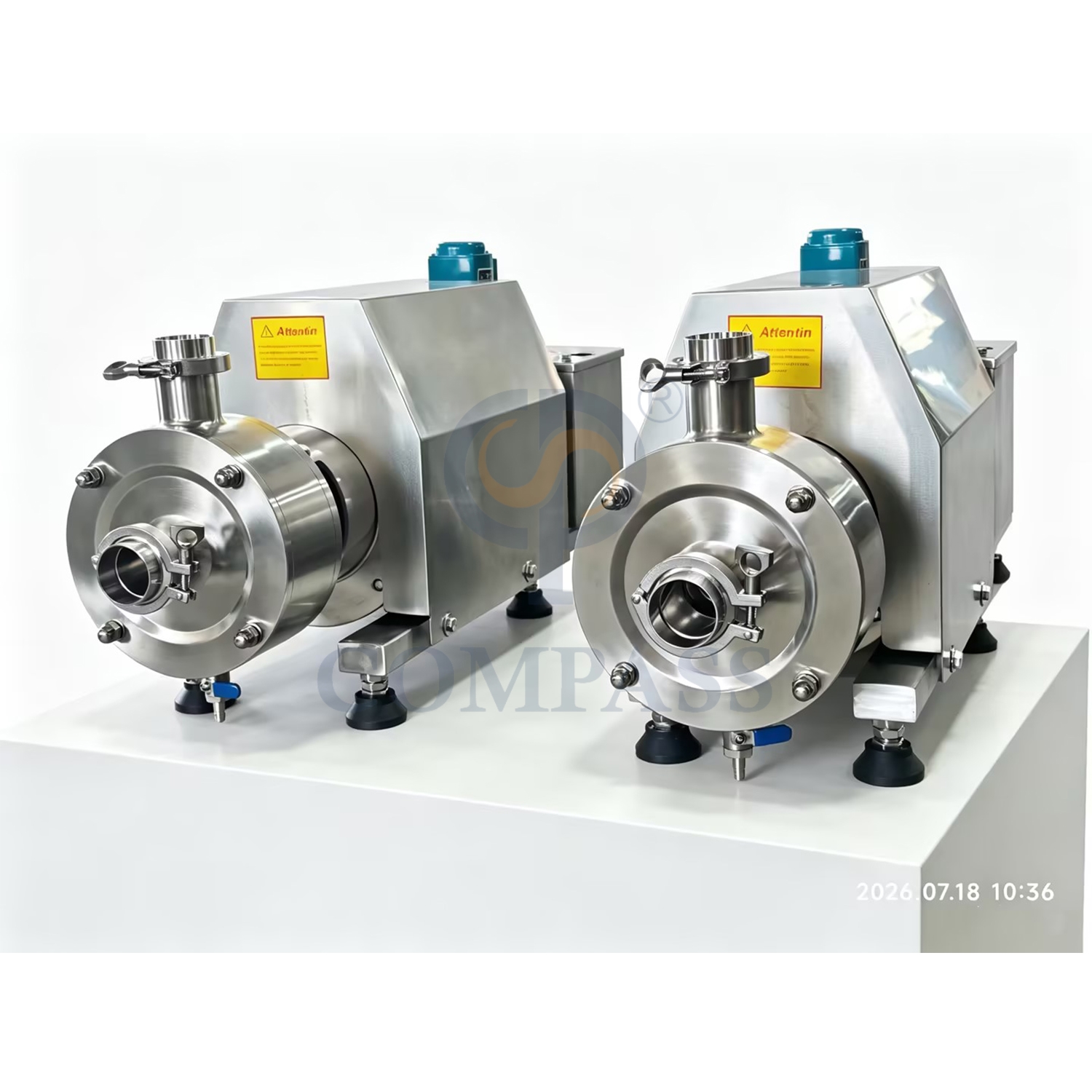

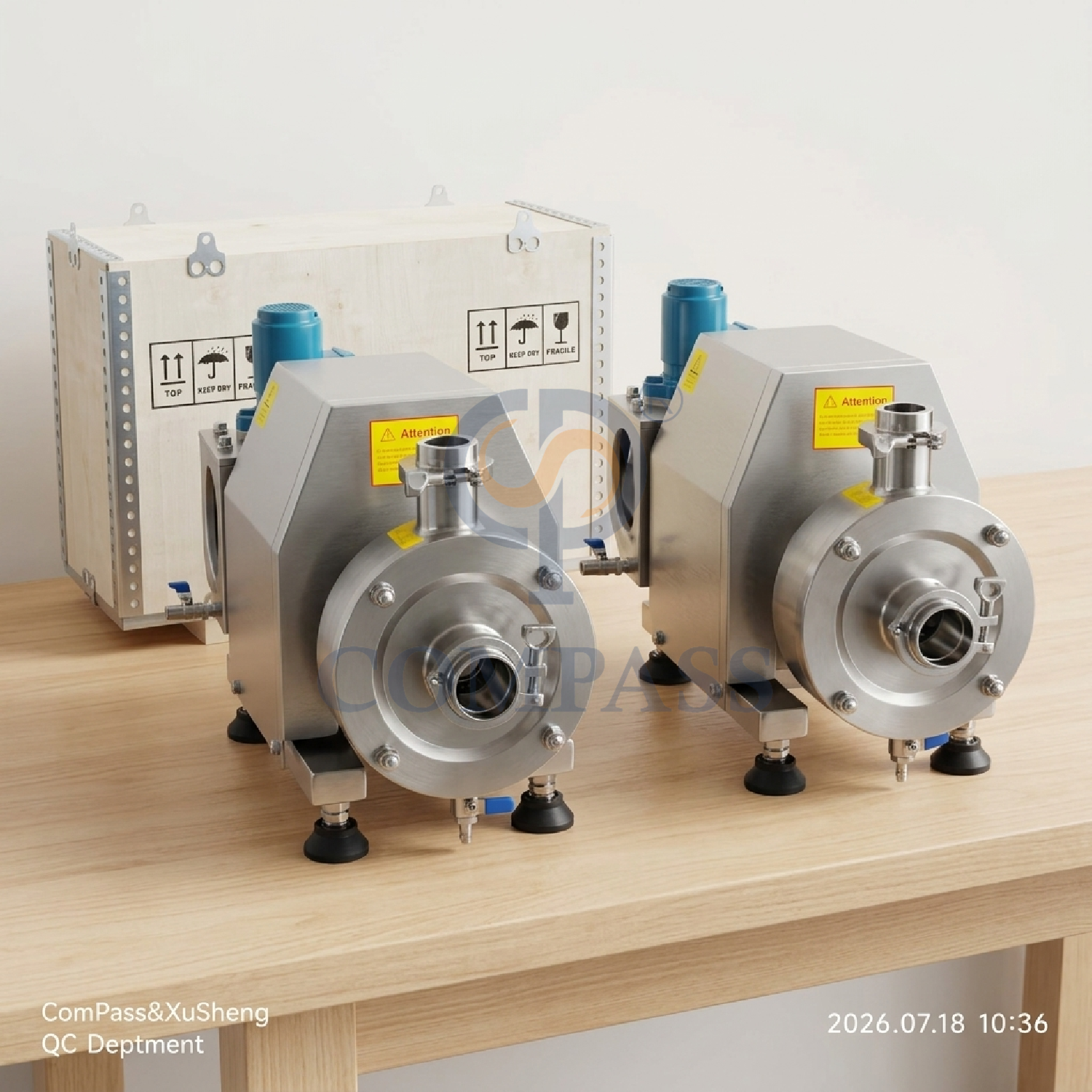

Description of Commodity: 380V 50HZ 3P 4kw SS304 Sanitary Food Grade TRL-1 Pipeline High Shear Dispersing Emulsifier with China Motor and Water Pump Tank
Advantage
1. Mass production suitable for continuous production of industrialized assembly line
2. Small diameter range,and highly even
3. Time saving,highly efficient and energy saving
4. Low noise,stable operation
5. Reduced quality difference between lots
6. Material is fully dispersed and sheared
7. Deliver in short distance with low lift
8. Easy operation,convenient maintenance
9. Automatic control
Options
1. Material SS304 an SS316L are optioned
2. Connection can be butt-weld, ferrule, union, flange
3. Motor brand includes of ABB, Siemens and China
4.There are different voltage and hertz are optioned, such as 380v/50hz,220v/60hz
5.Silicone material includes of Silicone,EPDM,FKM,Buna, all seals material comply with FDA21CFR117.2600
Design Features

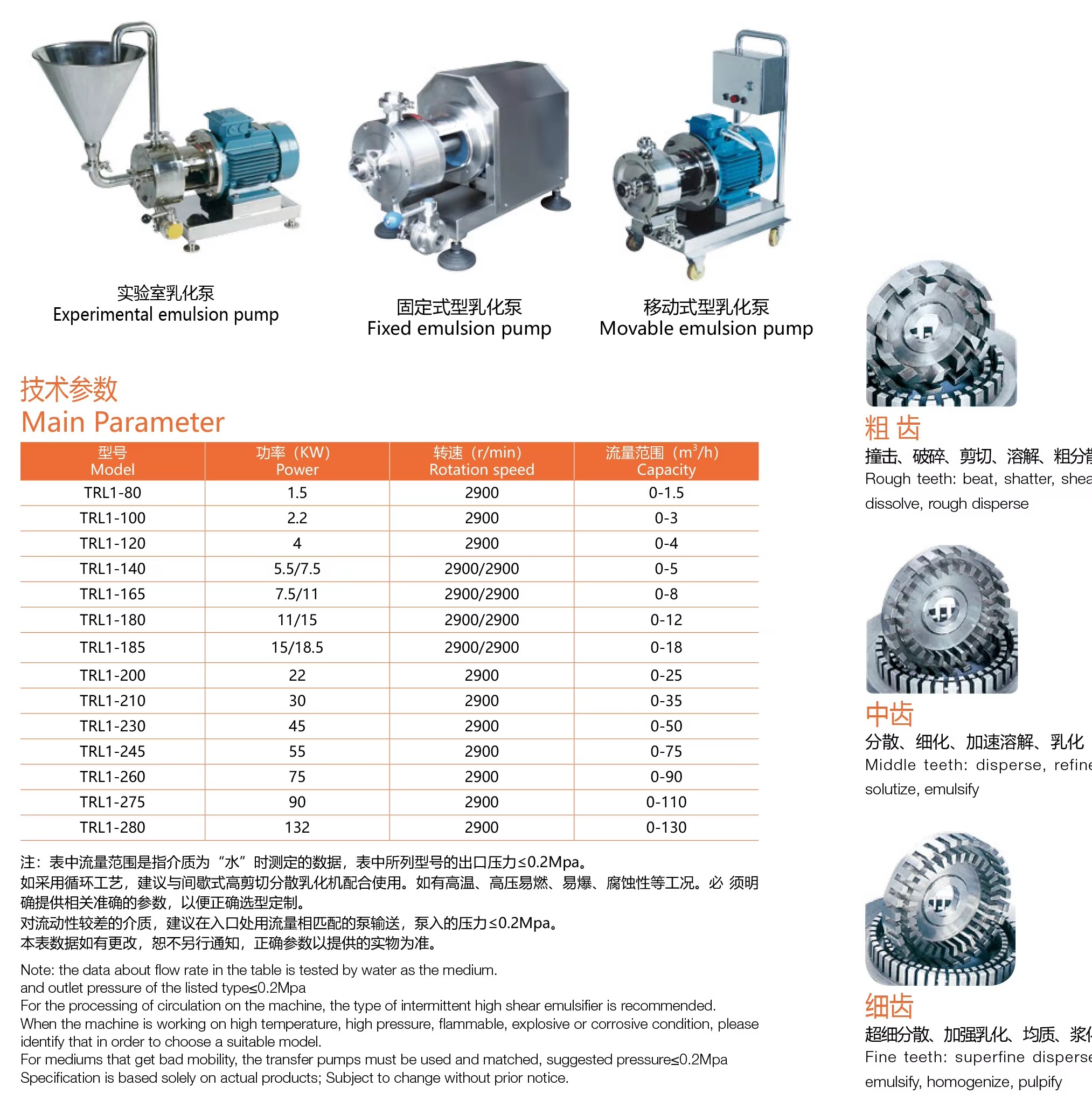

1. The flow is designed in 1.5 to 130 m³/hr
2. Motor power can be matched from 1.5 kw to 132 kw
3. The teeth can be designed to rough teeth, middle teeth and fine teeth
How to order Emulsifying Pump?
1. What's material quality ? Such as SS304 or SS316L
2. What's products used for pump ? Such as cosmetic
3. What's viscosity of products ? Such as 10000cps
4. What's flow rate per hour ? Such as 3000 liters per hour
5. What's head for pump? Such as 2.2kw
6. What's voltage and hertz ? Such as 380v/50hz/ 3phase
7. What's type of motor brand? Such as China motor
8. Do you need VFD Frequency and Control Cabinet or wheel trolley ?
9. Do you need heating jacket or without?
10. How many quantity you need ?
