The details of product
Pump Material Contact Parts
Pump Material Non-contact Parts | SS304, SS316L (1.4301,1.4404)
SS304 (1.4301) |
Material of Rotor | SS304, SS316L (1.4301,1.4404) |
Material of Stator | Silicone, EPDM, NBR, FKM |
Flow Rate Range | 500 to 60000 Lr/h |
Pressure Range | 4 Bar to 18 Bar |
Motor Power | 0.37kw to 15kw |
Inlet & Outlet Size | DN20 to DN100 |
Motor Speed | 470RPM/720RPM/960RPM/1400RPM |
Motor Brand | China Motor |
| Voltage | 110V/220V/380V/440V |
| Motor Frequency | 50HZ/60HZ |
Function of Motor | Gear Constant Speed Ratio Motor Stepless Variator Motor Frequency Type Motor Frequency Converter Control Box |
Available Connection | Clamp, Union, Rectangular Flange, Threaded Fittings, and so on |
Viscosity of Products Temperature | 100-500000cst -20°℃ ~140 °℃ |

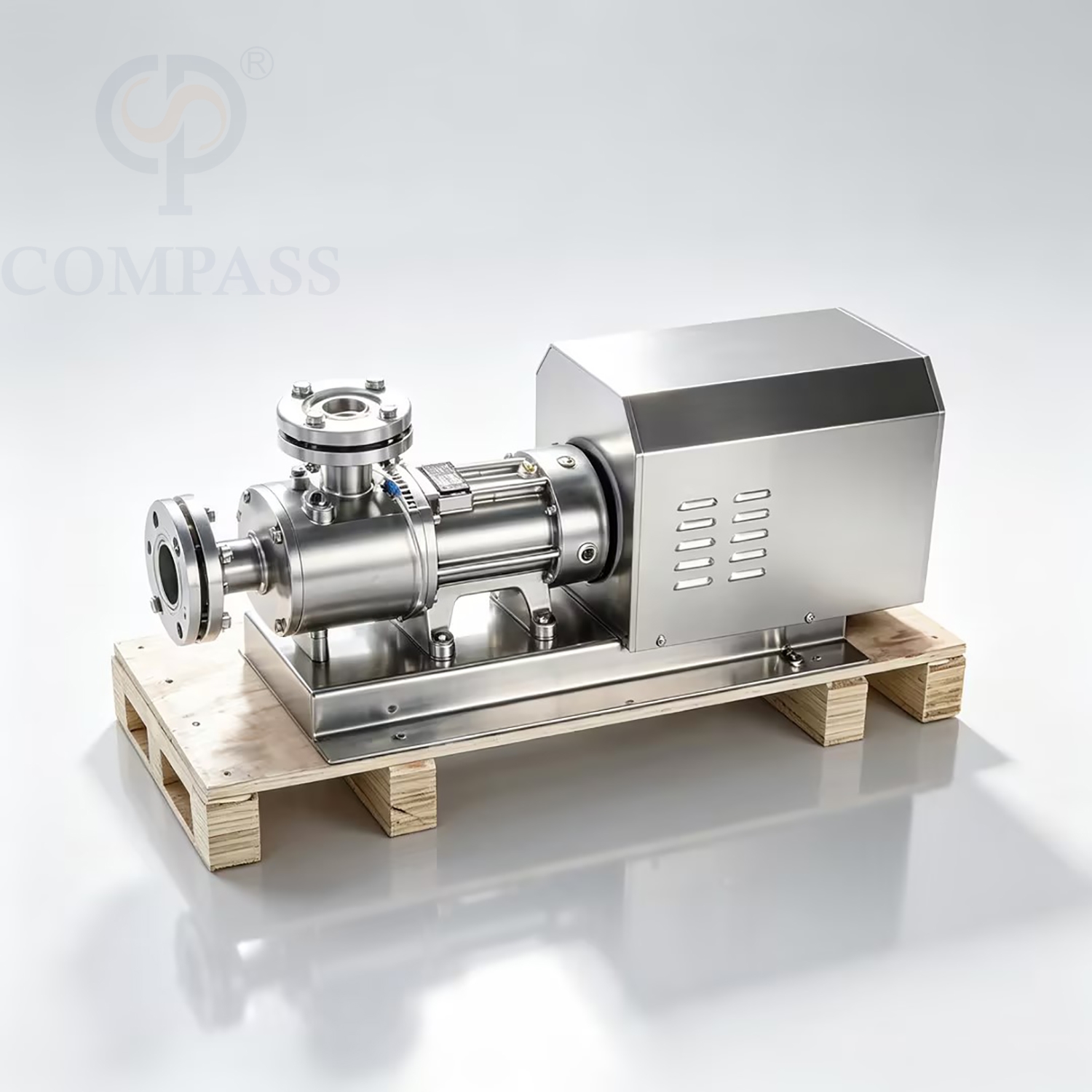

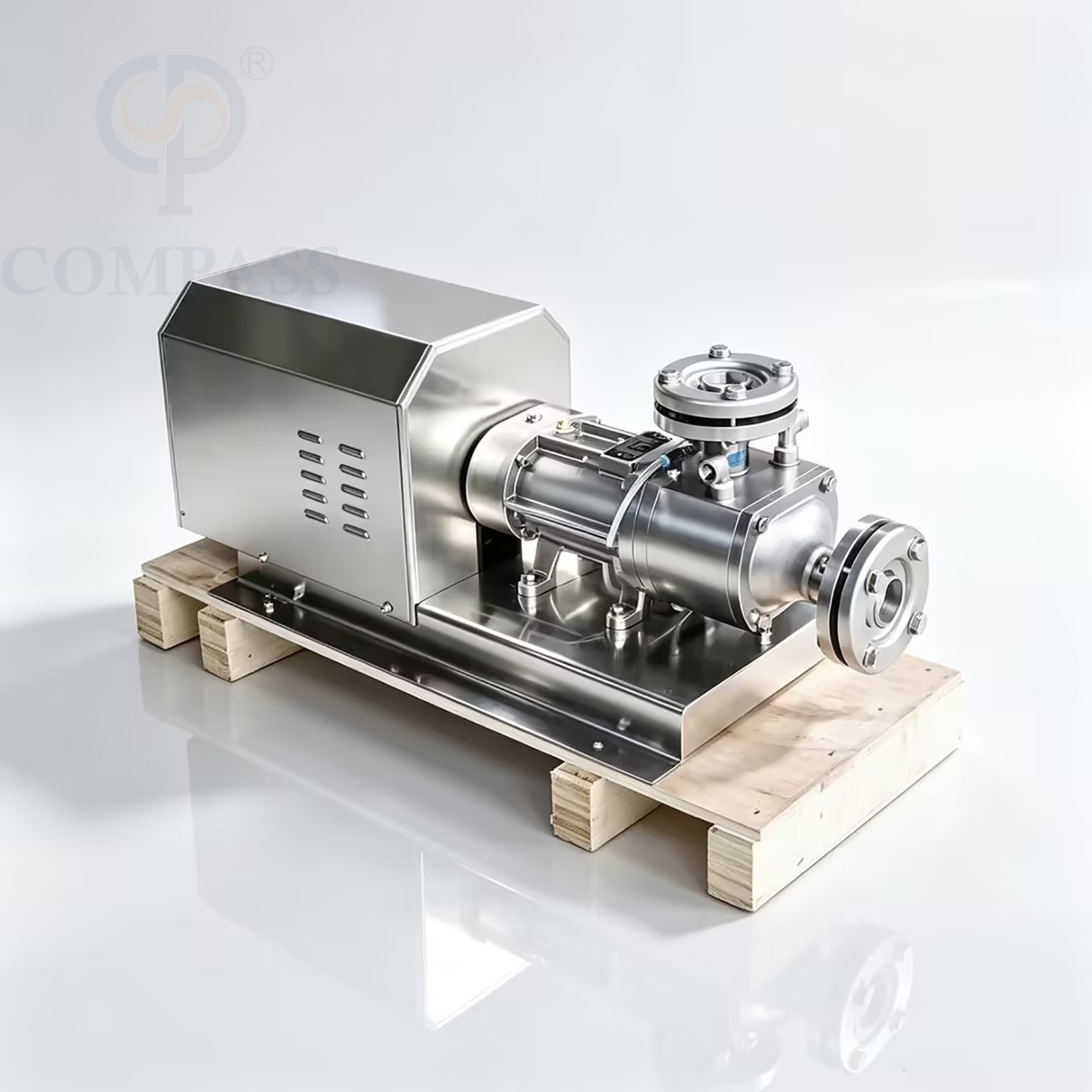

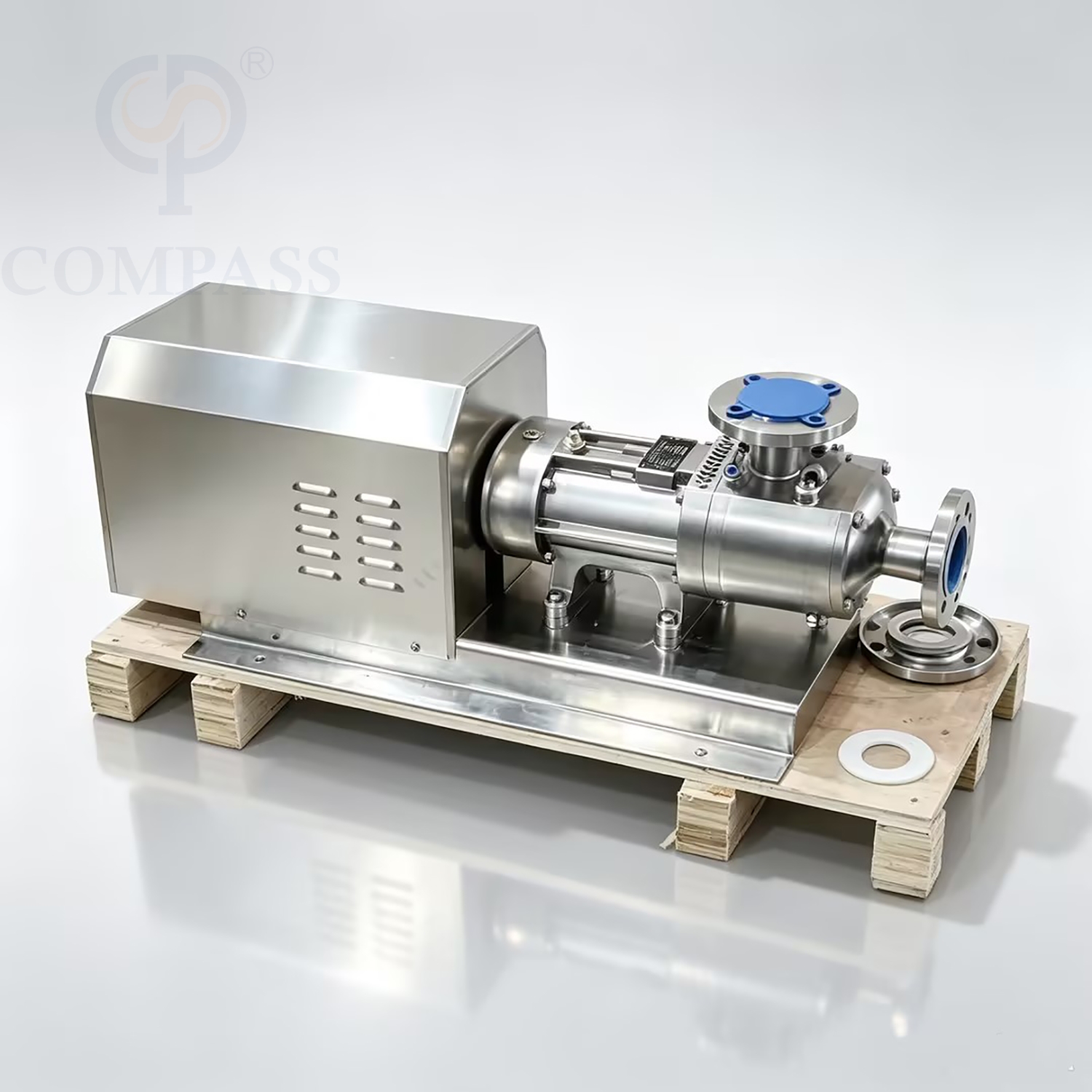

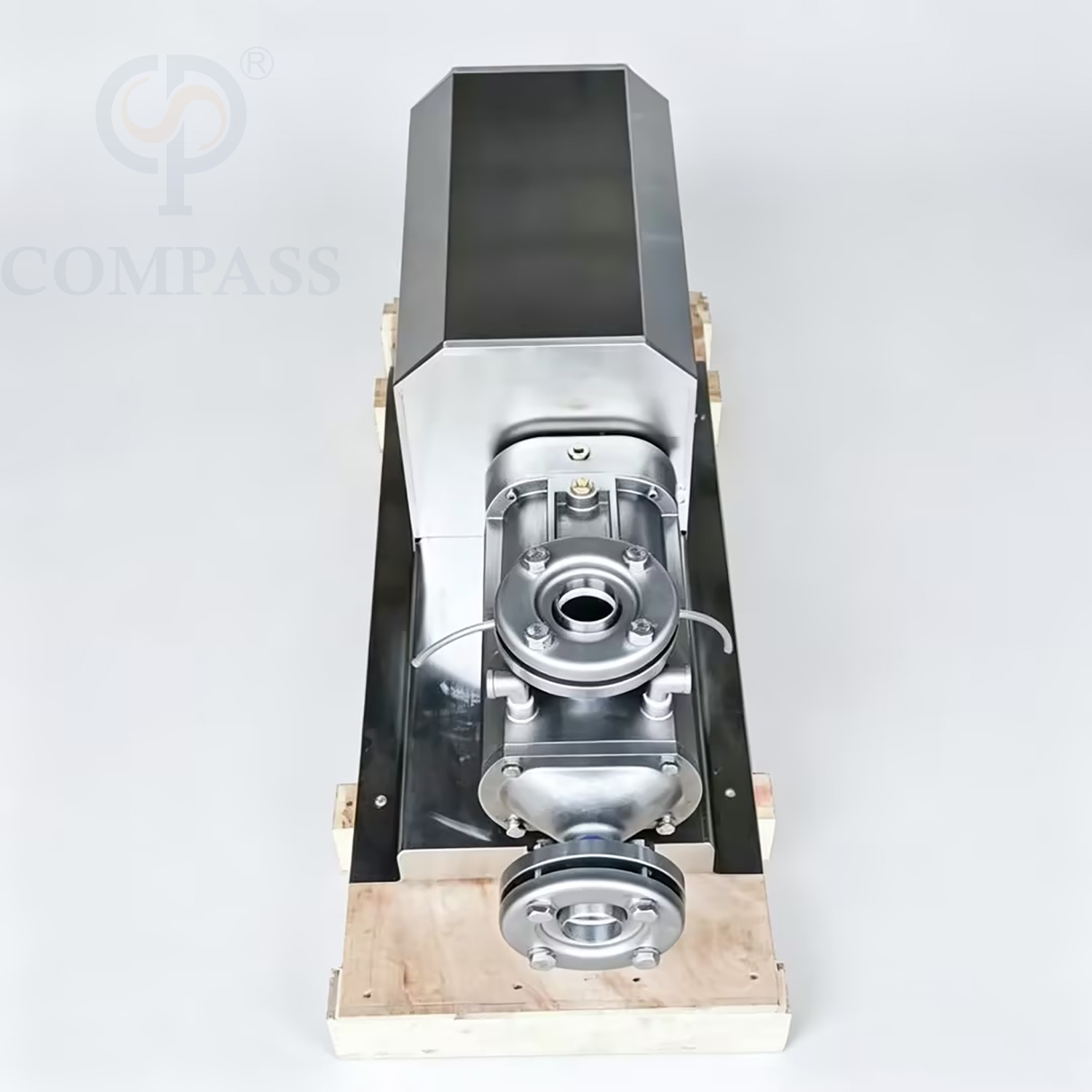

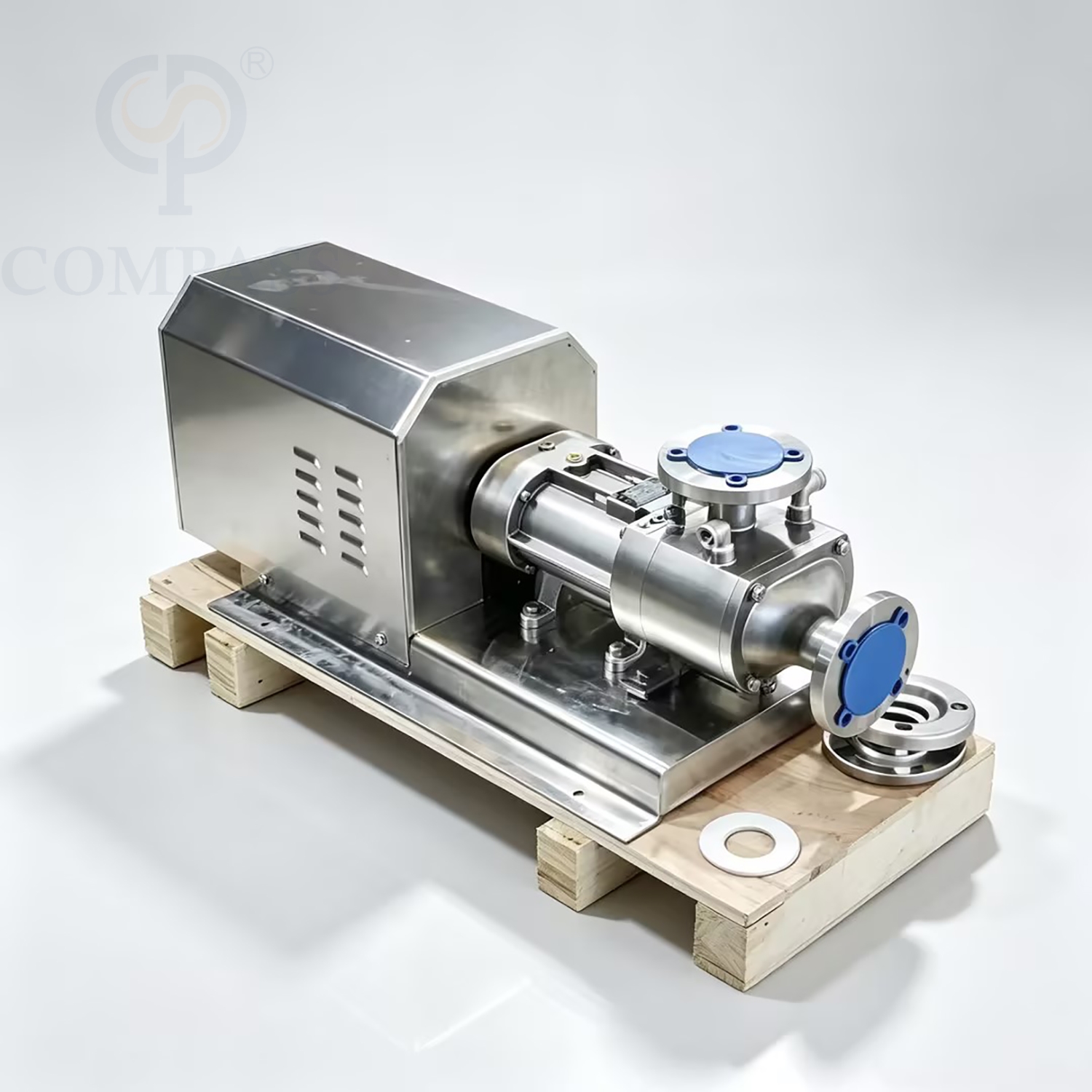

Description of Commodity: SS304 4KW Santary Stainless Steel Electric Pump Hot Selling 400V 3-phase Double Screw Parallel Pump with Jacket Insulation
Advantages
1. Designed for reverse flow capabilities
2. Shaft seal feeding makes the seal work at atmospheric pressure, keeping the pump's sealing ability under high pressure.
3. High self-priming ability. Self-priming down to a vacuum of less than −0.8 bar when the pump is filled.
4. Big range of medium transferred: viscosity from 1~500000 cst, maximum particle size of 40 mm.
5. Large range of speeds, adjustable from 100 up to 3,600 rpm, making it possible to convey with one pump and also use it as a conveying aggregate.
6. Low-pulsation conveyance
7. No dead corners, easy to clean, FDA compliant.
8. Almost no abrasion
9. The conveyed material passes through the entire pump which enables excellent cleaning and hygienic results.
Product Description

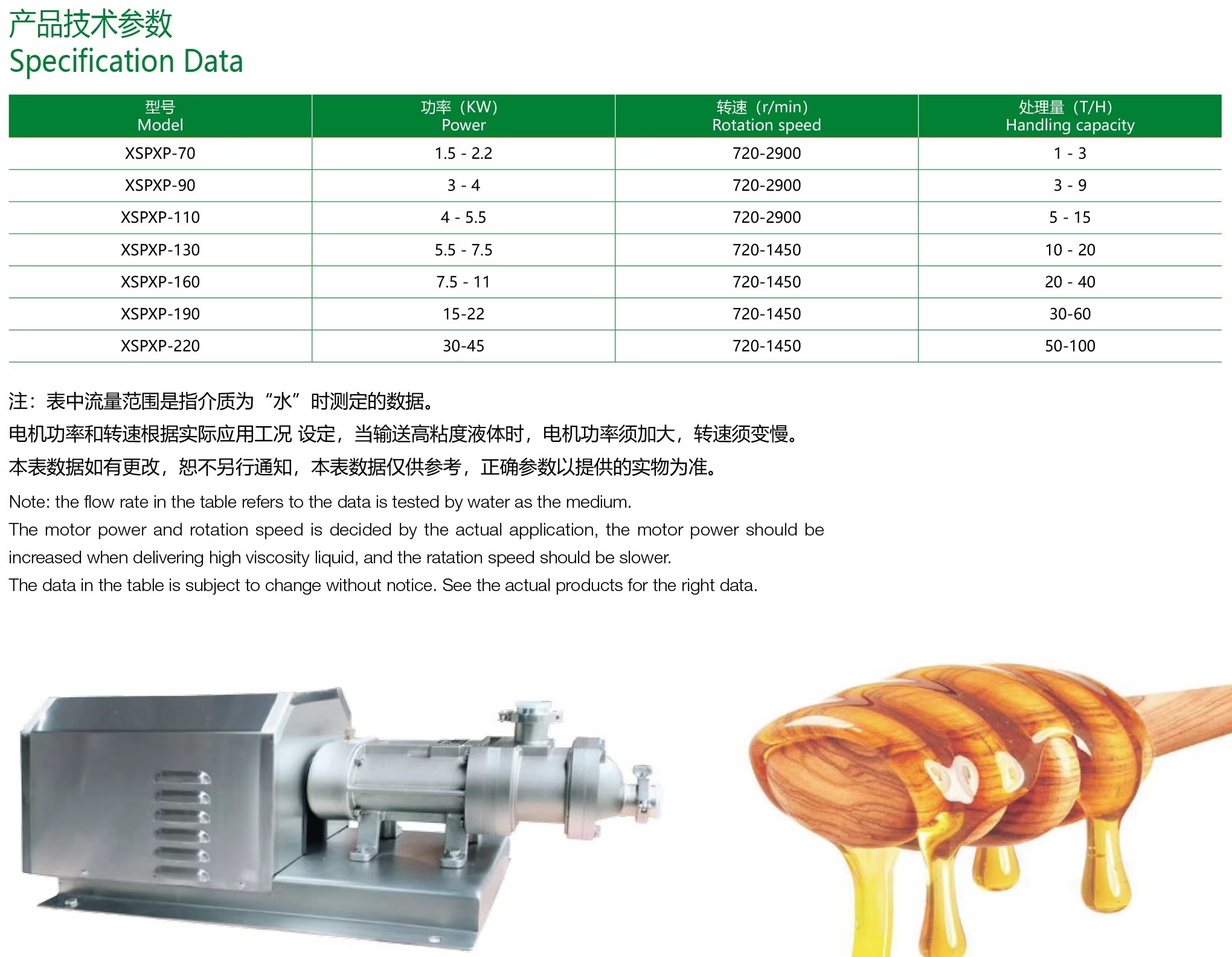

XSPXP pumps provide you with a range of convincing advantages that together result in the highest possible cost and production efficiency. Using a modular system, we offer four pump sizes and different screw sets that cover a conveyance range of 40 L/h to 150 m³/h with unit size up to 40 mm diameter. The different screw sizes make it possible to handle a wide range of flow capacities with the same viscosities, operating pressures and rotation speeds. XSPXP pumps feature no metal-to-metal contact between the pump screws and the housing. This enables the conveyance of non-lubricating or corrosive and impurity-containing materials. As the pump rotates, the intermeshing of the two screws along with the pump housing form chambers. These chambers fill with the pumped fluid and move it from the suction side of the pump to the higher pressure discharge side of the pump.
How to order?
1. What's product used for screw pump?
2. What's viscosity of product？
3. What's material quality? Such as SS304 and SS316L for optional
4. What's flow rate for screw pump, such as 10000 liters per hour ?
5. What's head, such as 6bar?
6. What's motor power, such as 3kw ?
7 What's voltage and hertz, such as 380v, 50hz, three-phase?
8. What's motor brand, such as China motor?
9. What's connection end? Such as butt-weld, tri-clamp, male threaded, female threaded, union, ect.
