The Details of Product
| |
| SS304/SS316L (1.4301/1.4404) | Provided with material inspection report |
Material Non-contact Parts | |
| All seals material comply with FDA21CFR117.2600 |
| 1inch to 6inch, DN25 to DN150 |
| 3Mesh to 400Mesh, 37Micron to 6730Micron, 0.037MM to 6.730MM |
| Screen Perforated Plate Screen, Wedge Wire Screen, Metal Mesh Screen |
| Body Combination | Straight Type, Angle Type, Y Type, Duplex Type |
| Connection | Butt Weld,Tri Clamp, Male Thread, Female Male Threaded, Union, Weld Thread, Flange |
| |
| Minus 20degree Celsius~135degree Celsius |
External Surface Treatment Internal Surface Treatment | Ra32~64uin (0.8~1.6um) Ra16~32uin (0.4~0.8um) |
| Milk, Juice, Beer, Beverage, Ect. |

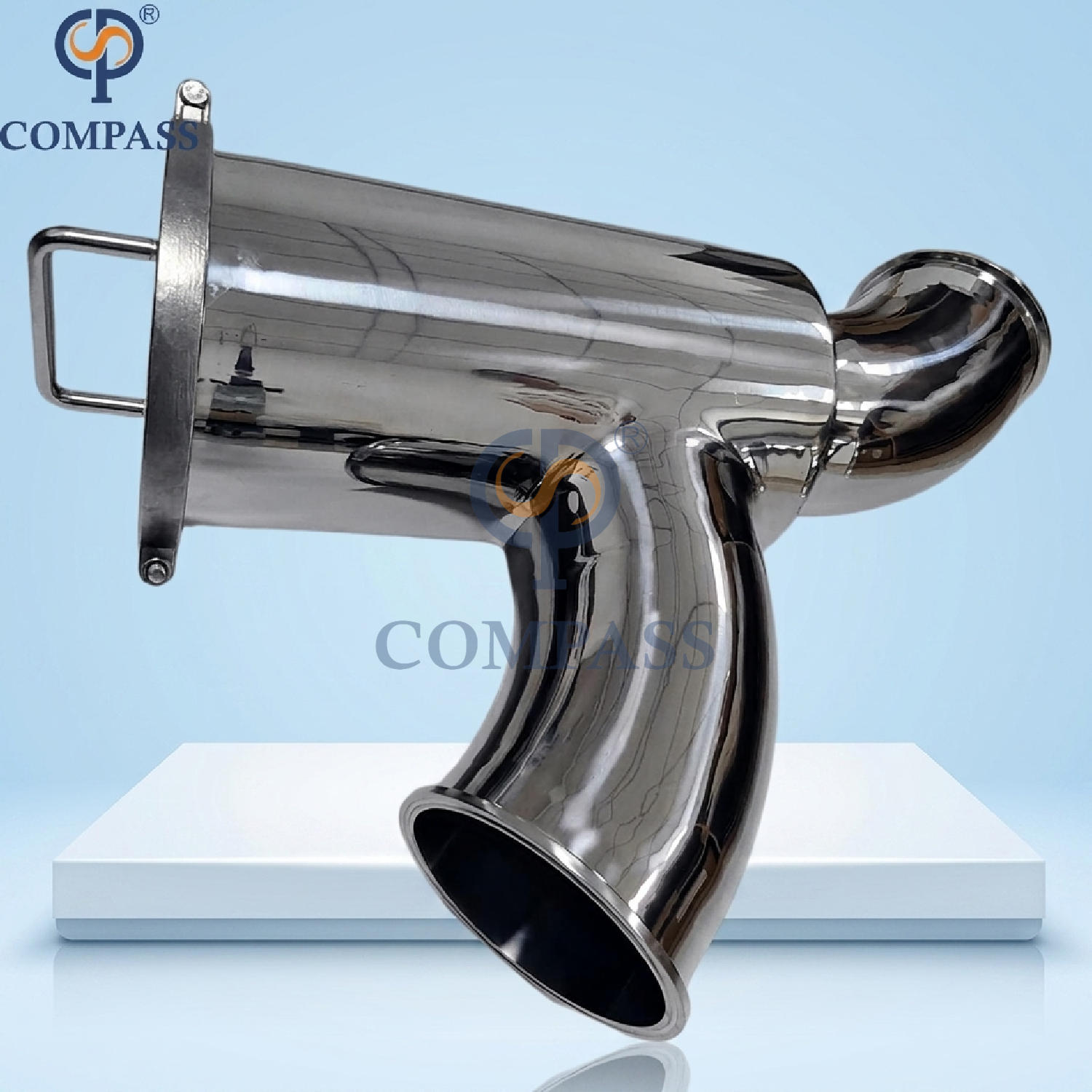

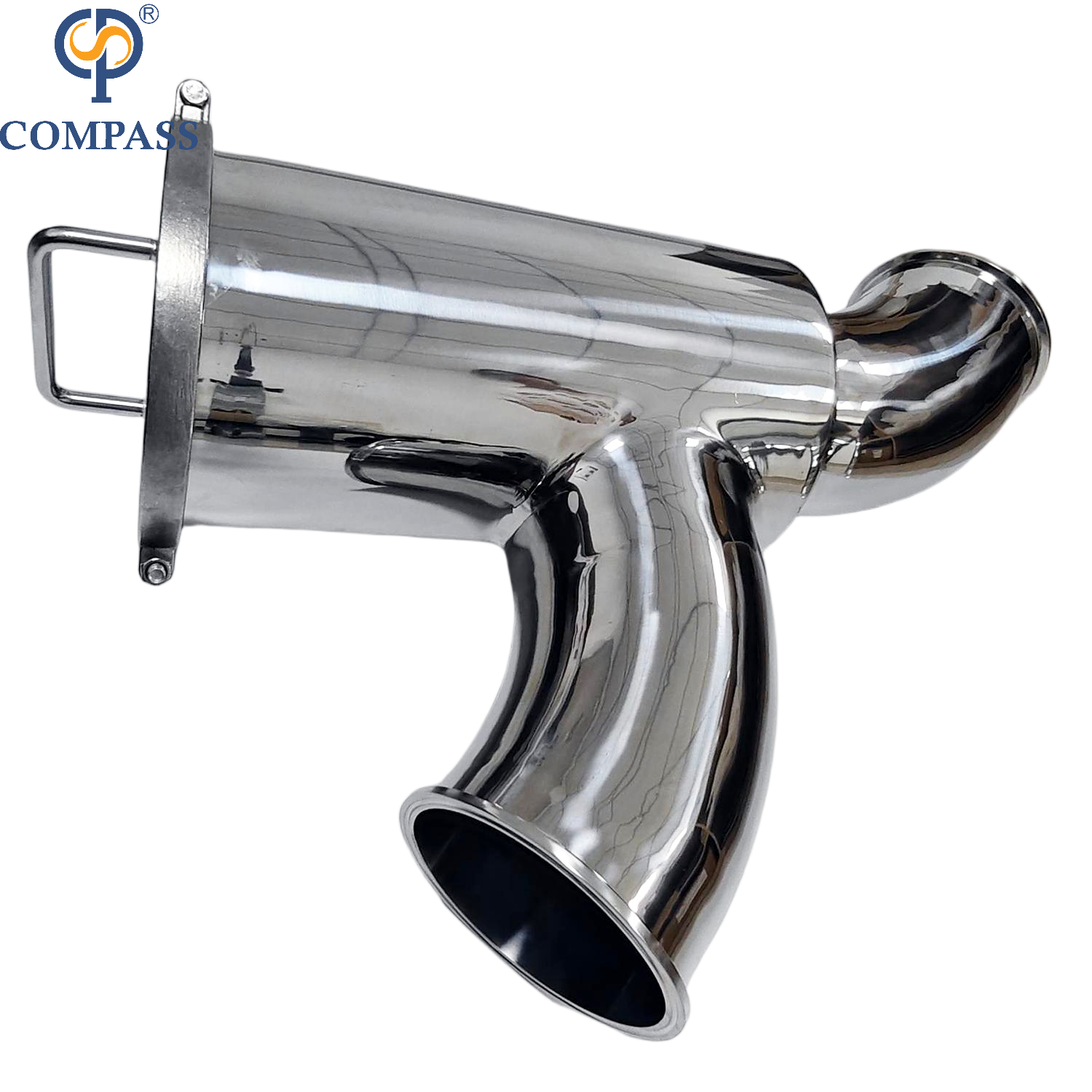

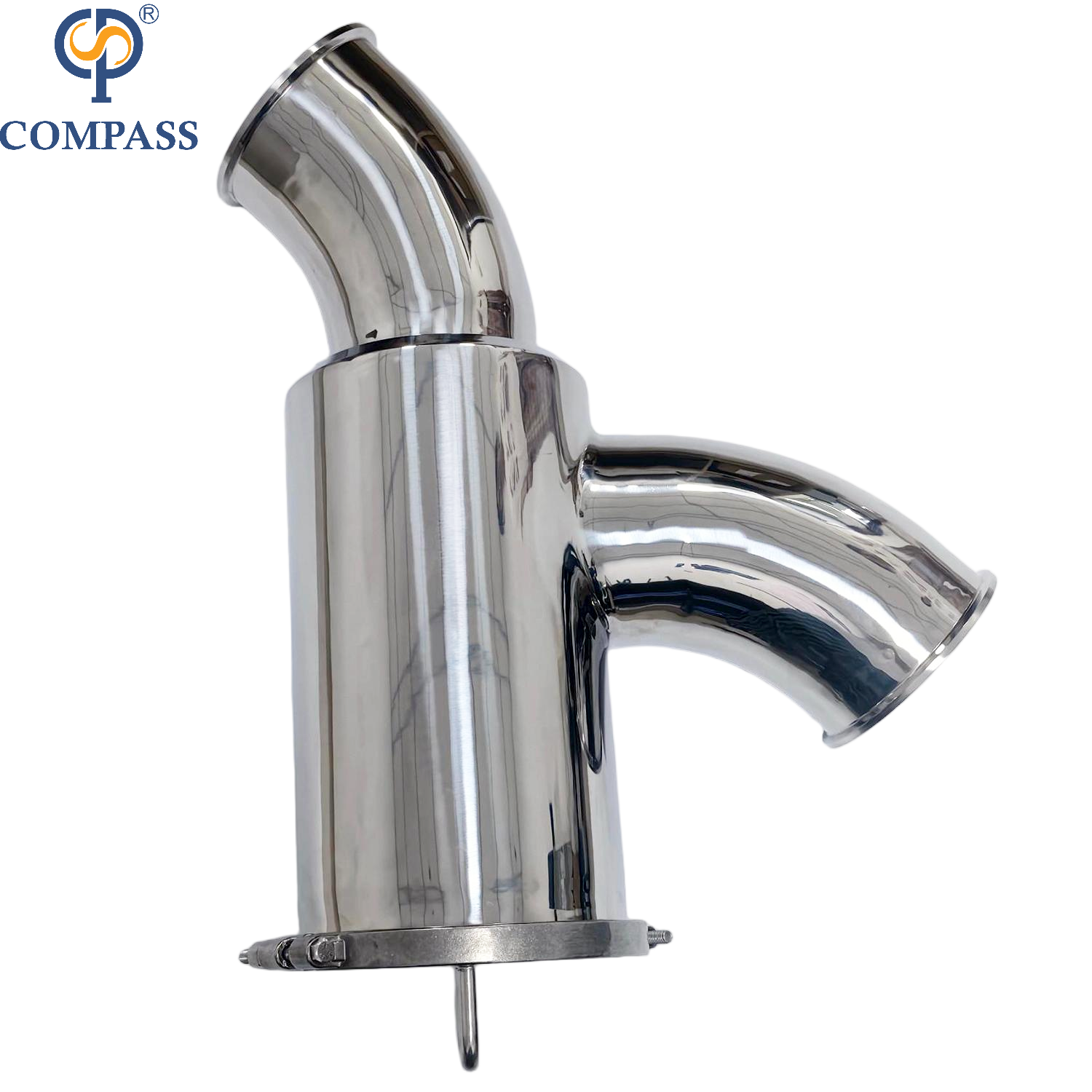

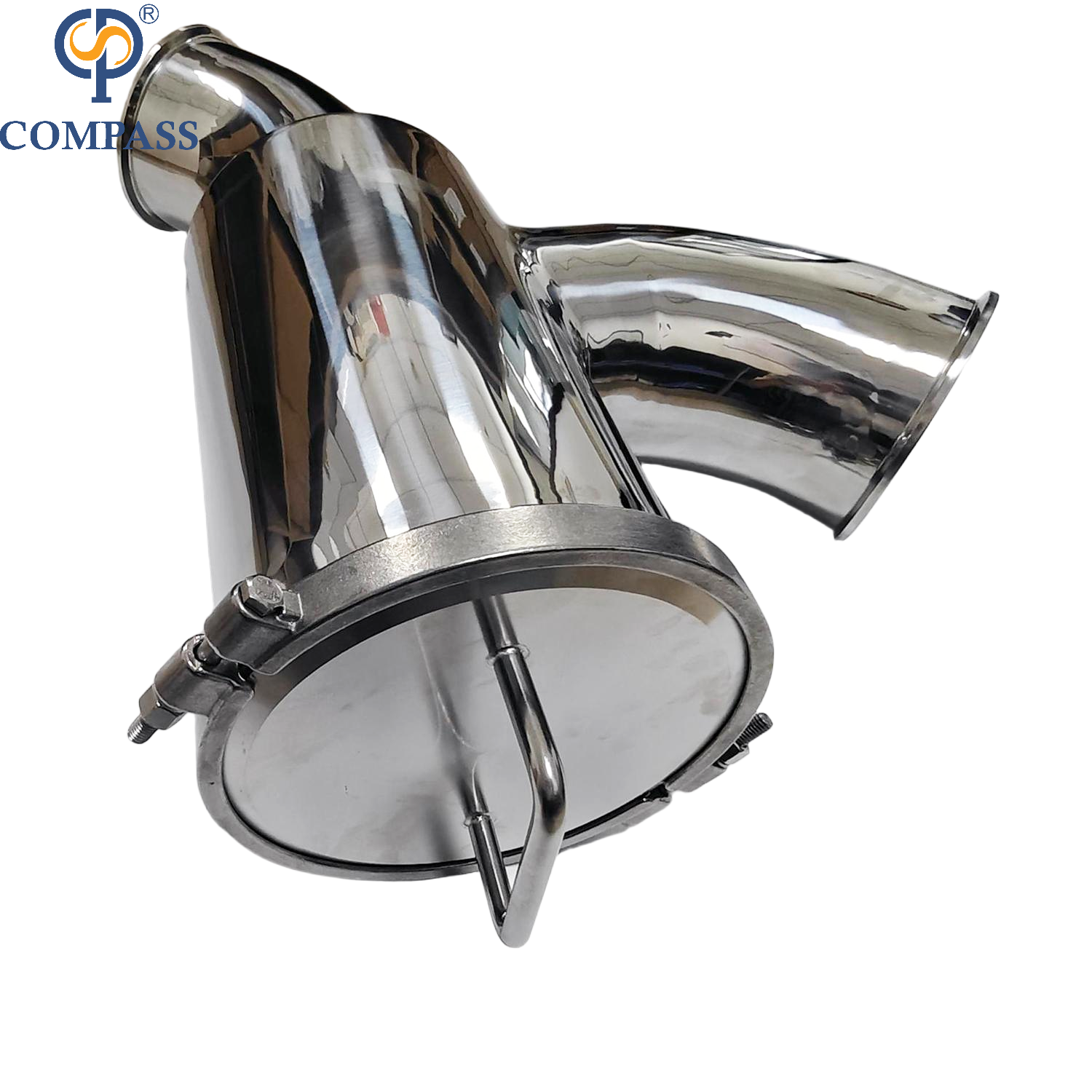

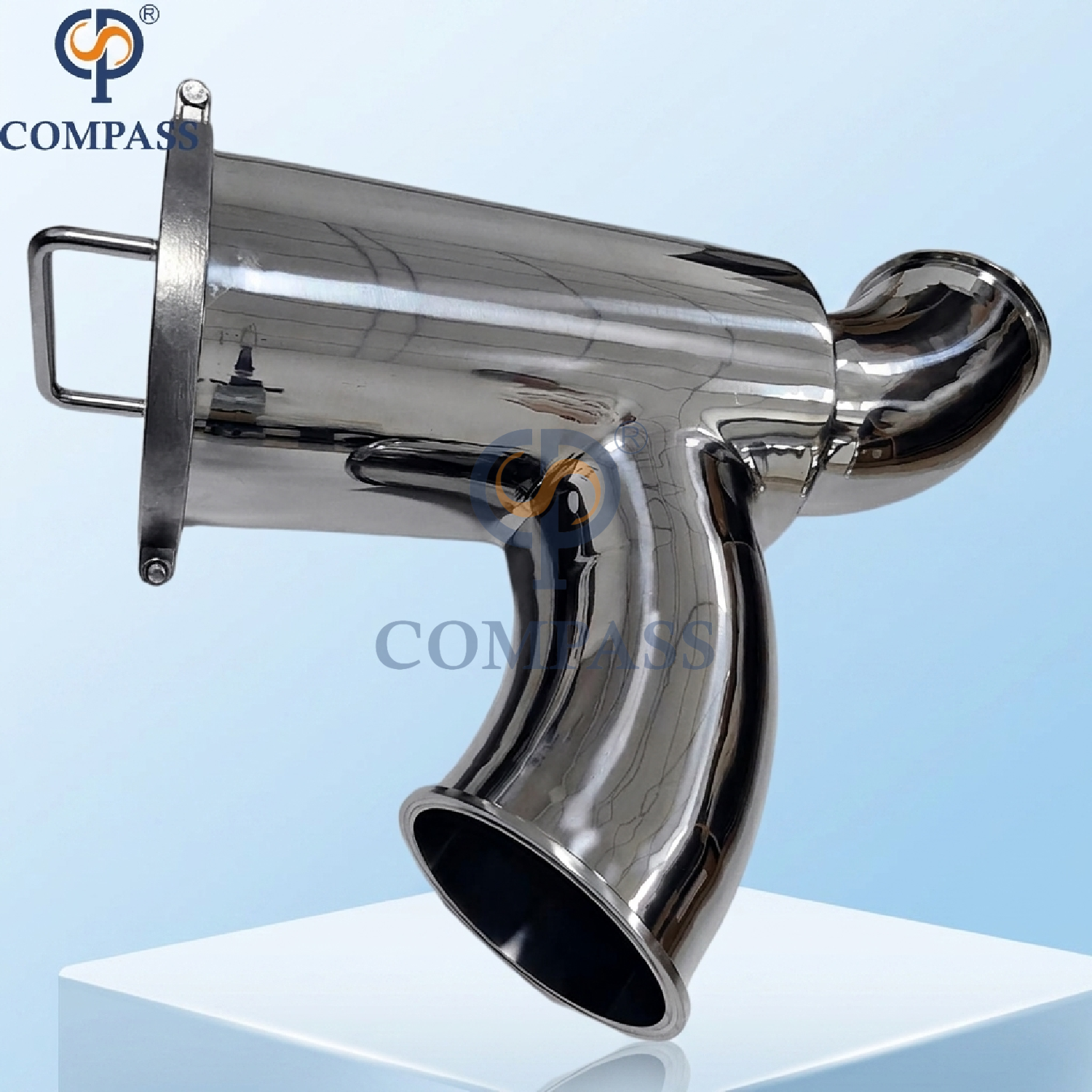

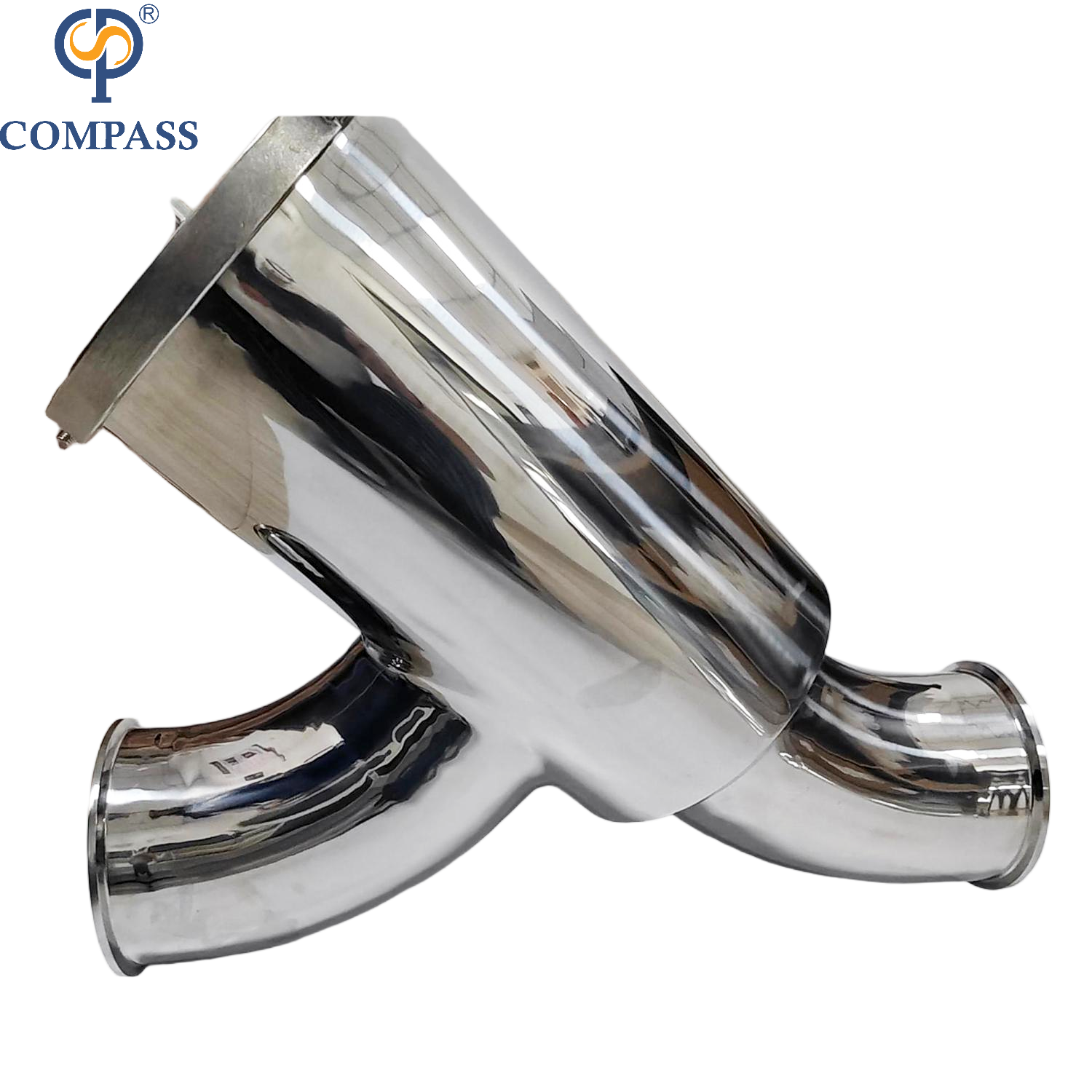

Description of Commodity: Good Price 6inch SS304 Sanitary Stainless Steel 0.5 Micron SMS Premium Clamp Non Retention Elbow-type Filter with Mirror Polish
Operating Principle
The filter basically consists of a filter body with an inlet and an outlet for the product.
The screen is fixed inside the body. The screen retains all particles that are equal or larger than the size of the screen openings.
Materials
Filter body AISI316L.
Gaskets EPDM (according to FDA 117.2600)
Internal surface finish Ra < 0,8μm
External surface finish mirror polish
Design and Features
There are several configurations:
- Cleaning of the screen without disassembling the filter:
Angular filter: the inlet and the outlet form a right angle.
Y filter: the product enters and leaves the filter in the same direction.
- Cleaning of the screen disassembling the filter:
Straight filter: the product enters and leaves the filter in the same direction.
Low pressure drops.
DIN 11850 standard connections.
DIN 11850 standard connections.

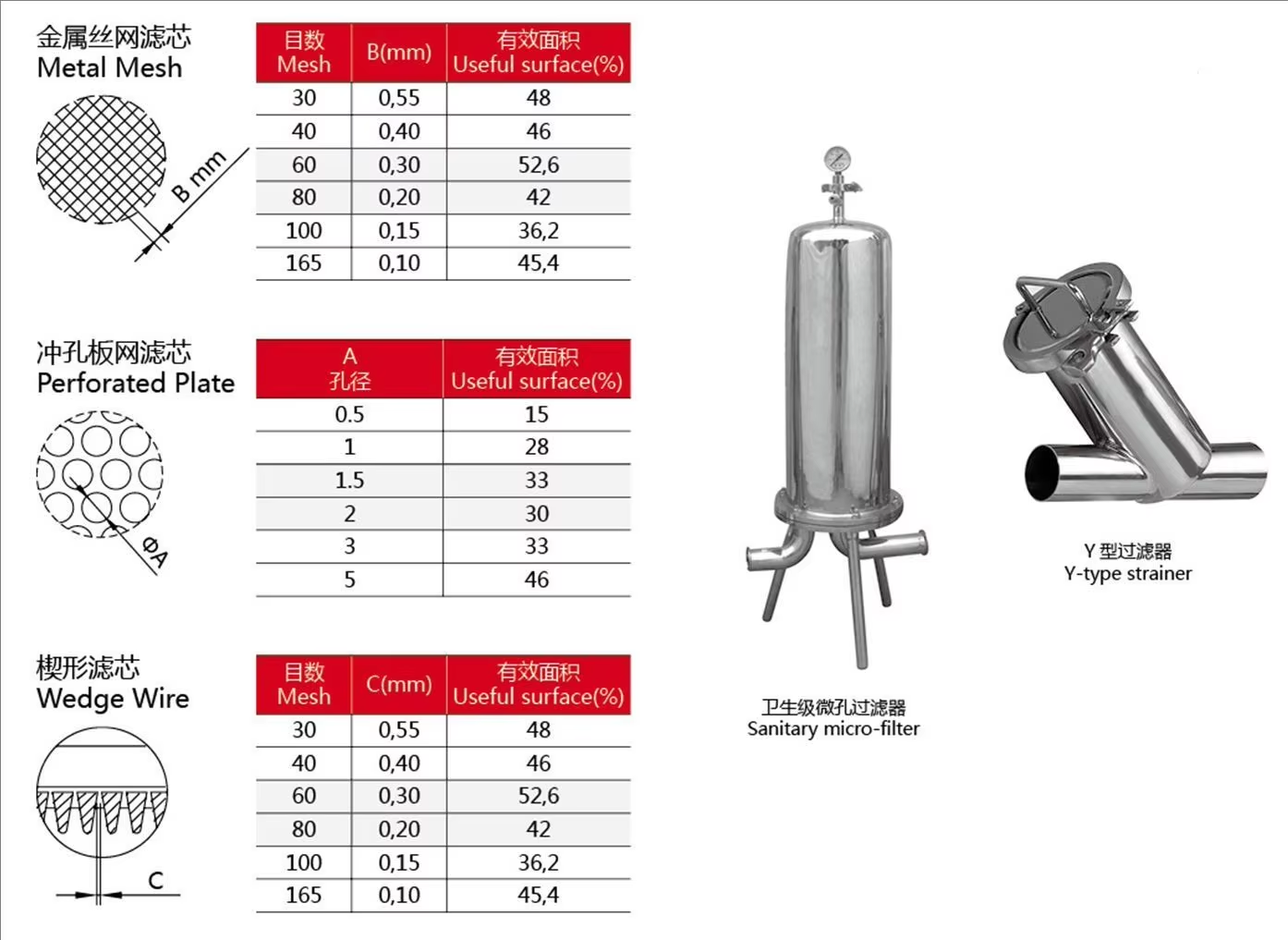

Screen with circular (fromΦ0,5 mm toΦ3 mm) or longitudinal openings (10 x 1 mm).
Options
Gaskets in FMP.
Connections: DIN, Clamp, SMS, RJT, FIL-IDF, etc.
Wedge wire screen cylinder.
Heating jacket.
Option of filtering from outside to inside of the screen.
Double filter.
Advantage of Products
1.Each kind of products has strong corrosion resistance and over-long service lifetime
2.Problem-free welding and assembly and highest possible Strength
Technical Specifications
STRAIGHT FILTER / ANGULAR FILTER
Available sizes DN 25 - DN 100 (1’’-4’’) DN 125 - DN 150 (5’’-6’’)
Working temperature -10°C to +120°C (EPDM) 14°F to 248°F +140°C (SIP, max. 30 min) 2849F
Max.working pressure 10 bar 145 PSI

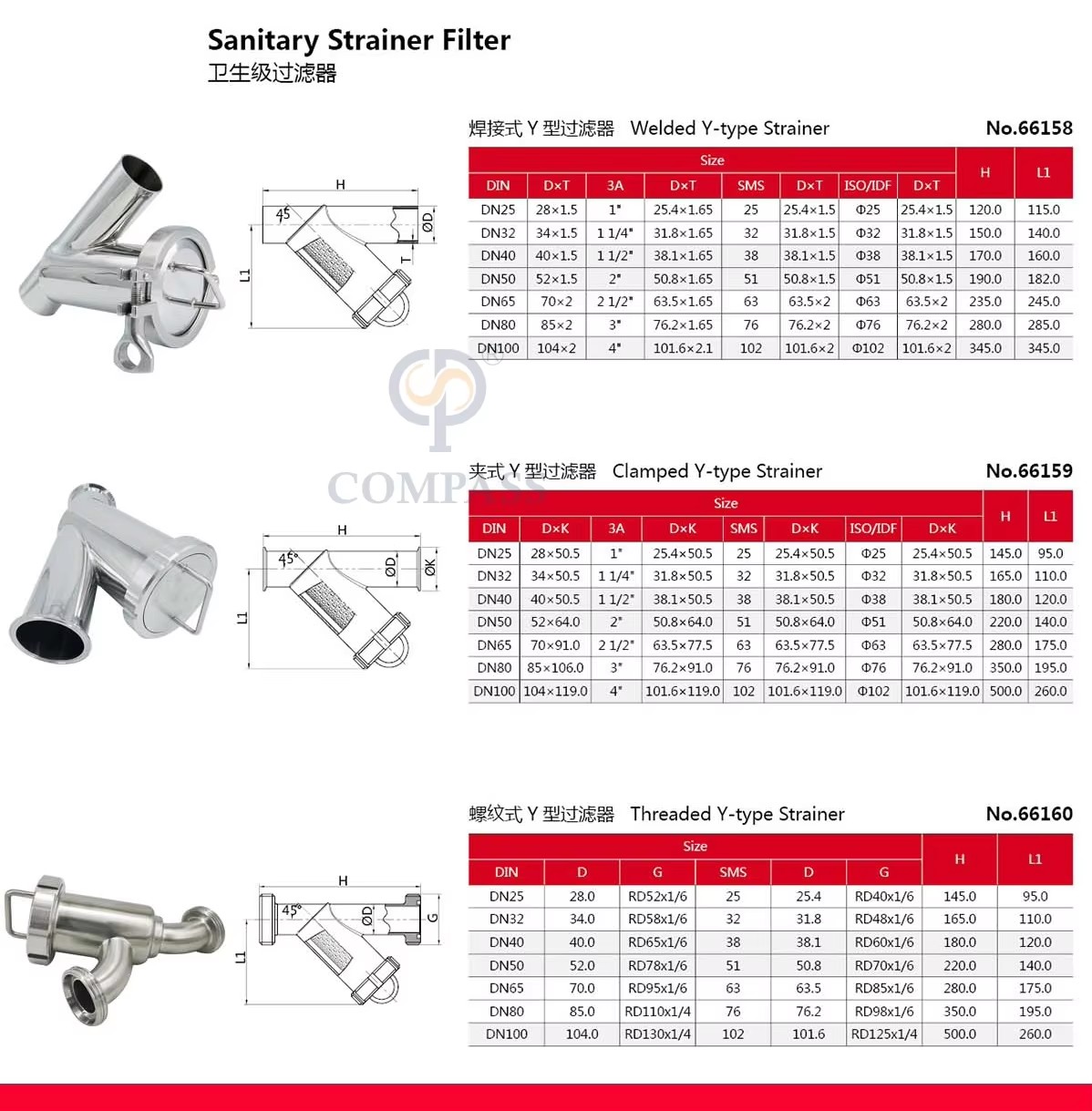

Y FILTER
Available sizes DN 25 - DN 50 (1’’-2’’)
DN 65 - DN 80 (2’’-3’’)
DN 100 - DN 150 (4’’-6’’)
Working temperature -10°C to +120°C (EPDM) 14°F to 248°F +140°℃ (SIP, max. 30 min) 284°F
Max.working pressure 10 bar 145 PSI
How To Order Filters ?
1. Which's material you need, such as SS304 or SS316L ?
2. Which's available size, the size is ranged from 1inch to 6inch, DN25 to DN150 ?
3. Which's combination body of filter, such as Y type, Angle Type, Inline Type or Duplex Filter ?
4. What's Connection you need, such as butt weld, tri clamp, male thread ?
5. What's micron or mesh for inside cartridge filter, such as perforated plate screen, wedge wire screen, metal mesh screen ?
