You should choose a pump based on how thick your liquid is. Think about how fast you want to move the liquid. You also need to know what pressure your process needs. The temperature of the liquid matters too. If there are solids in the fluid, that is important. You should also consider how gentle the pump is with your product. Milk and juice usually need different pumps than thick or sticky liquids. Always check if the pump is easy and quick to clean. Make sure it matches your cleaning process. The table below shows what most dairy and juice plants want when they choose a sanitary pump:
Criteria | Description |
Cleaning Processes | Good CIP or COP cleaning saves time and helps make more product. |
Metal Composition | The metal must be good quality for food. The government often has rules about this. |
Size | Having many sizes helps you find the right pump for your job. |
Seal Maintenance | Front-loaded seals are easy to change. This lets you get to the process line fast. |
You should also choose pumps that can handle high heat. They should work for a long time. They need to fight rust and handle solids in your product.
Key Takeaways
Pick a pump based on how thick your liquid is. Thick liquids need special pumps. Thin liquids use different pumps.
Check how fast and strong the pump needs to be. This helps the pump move the right amount of liquid. It also makes sure it works well.
Find pumps that let you clean them without taking them apart. This saves time. It keeps your product safe from germs.
Think about how hot your product gets. Also, think about how hot cleaning gets. Make sure the pump can handle both heat and not break.
Choose a pump that fits your liquid. Centrifugal pumps work for milk. Rotary lobe pumps work for thick liquids.
Choose Pump Criteria
To choose pump equipment for milk, juice, or viscous liquids, you need to match the pump to your liquid type, the flow you want, the pressure your process needs, your cleaning method, and the temperature of your product. You must also make sure the pump supports Clean In Place (CIP) if you want to clean without taking the pump apart. The right pump capacity helps you unload product quickly and keeps your process running smoothly.
Fluid Properties
You must look at the main properties of your liquid before you choose pump equipment. Each property affects how the pump works and how well it fits your process. The table below shows the most important fluid properties and why they matter:
Fluid Property | Importance in Pump Selection |
Viscosity | Affects flow through the pump and packaging system, influencing pump type and filling method. |
Flow Behavior | Determines how the liquid moves and is handled during filling operations. |
Accurate Filling | Essential for maintaining hygiene and precision in packaging, especially for beverages and viscous liquids. |
Viscosity is one of the most important factors. If your liquid is thick, it will move slower through the pump. This can lower your flow rate and make the pump work harder. Different pumps work best for different viscosity ranges. For example:
Higher viscosity means slower flow, more pressure loss, and less accurate filling.
Diaphragm fillers work for thin to medium liquids.
Piston fillers handle thicker products like creams.
Rotor pumps move very thick materials such as honey.
Gravity fillers are best for thin drinks like juice.
You should always check the viscosity of your product before you choose pump equipment.
Flow Rate
Flow rate tells you how much liquid you need to move in a certain amount of time. You measure flow as volume per minute or hour. Knowing your flow rate helps you size your pump correctly. If you choose pump equipment that is too big, you may get too much noise and vibration. If you choose a pump that is too small, you may not move enough product and your process will slow down.
Tip: Write down your target flow rate before you choose pump equipment. This helps you avoid mistakes and keeps your process efficient.
If you work with thicker liquids, you need to remember that higher viscosity slows down the flow. Centrifugal pumps work well for milk and juice, but you may need a different pump for thicker products. If you do not size your pump correctly, you may have to replace seals and bearings more often. This can increase your costs and reduce productivity.
Pressure Needs
You must know the pressure your process needs. Pressure is the force that moves your liquid through pipes and equipment. If you need to move liquid up to a higher level or through long pipes, you need more pressure. Thicker liquids need more pressure than thin ones. If you choose pump equipment with the wrong pressure rating, you may not get enough flow or you may damage the pump.
Oversized pumps can cause too much pressure, leading to leaks or equipment damage.
Undersized pumps may not move your product at all.
Always check your system’s pressure needs before you choose pump equipment.
CIP Compatibility
Sanitary pumps must support Clean In Place (CIP) if you want to clean them without taking them apart. This is important for milk, juice, and other foods because it keeps your process safe and saves time. When you choose pump equipment, look for these features:
Feature | Description |
Media & compatibility | Check if the pump can handle your cleaning chemicals, temperature, and pH. Use 316L stainless steel and FDA-approved seals. |
Cleanability | Make sure the pump design allows for full cleaning and draining. Avoid dead spots where product can get stuck. |
If you choose pump equipment with good CIP features, you can clean faster and reduce downtime. This helps you make more product and keeps your process safe.
You should always choose pump equipment that matches your liquid, flow rate, pressure, cleaning method, and temperature. This helps you run your process smoothly and keeps your product safe.
Understand the Liquid
Milk and Juice
You use milk and juice a lot. These liquids are not thick. They flow fast and easy. Milk has a viscosity of about 3 cP. Juice can be from 1 to 180 cP. The type and temperature change the viscosity. The chart below shows how viscosity changes with heat:
You also need to think about other properties. Some bacteria, like Pseudomonas, can cause problems. They can clog pumps or make the product unsafe. High somatic cell counts in milk can make less cheese. Free fatty acids can change taste and texture. You need a pump that keeps your product safe and good.
Property Type | Description | Impact on Pump Selection |
Microbial | Bacteria can cause flavor defects and clogging. | Pumps must prevent contamination. |
Chemical | Somatic cells affect cheese yield. | Pumps should minimize shear. |
Physical | Free fatty acids change milk properties. | Pumps must reduce agitation. |
Viscous Liquids

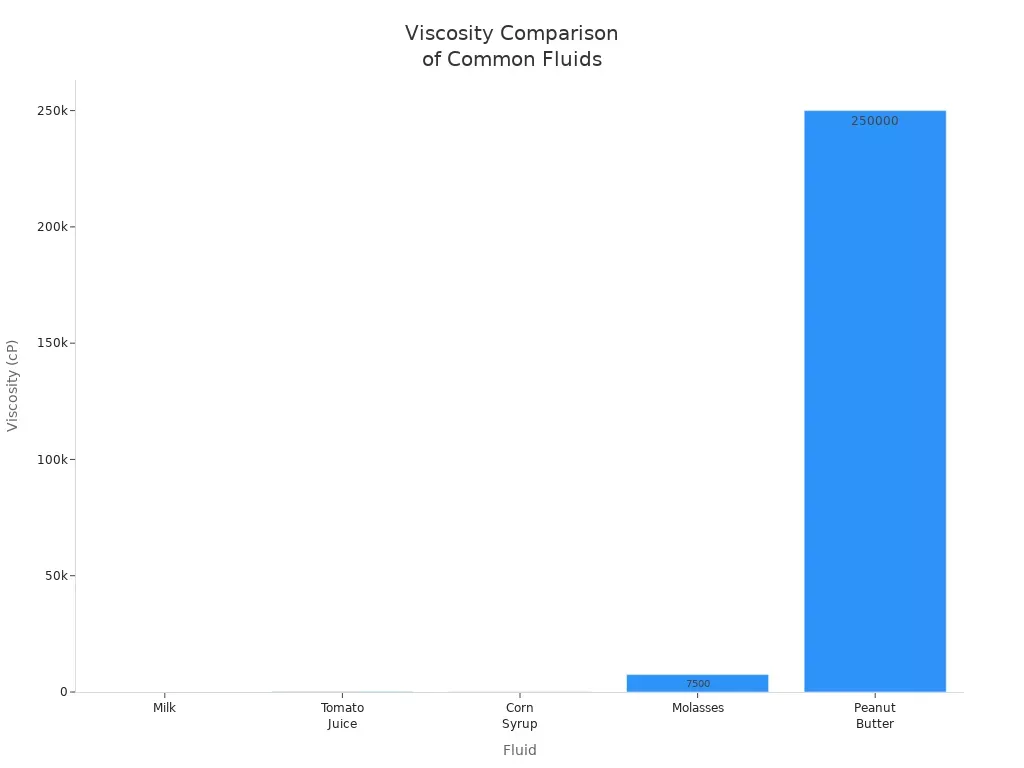

Thicker liquids like honey and syrup are harder to move. They have much higher viscosity. Peanut butter can be as thick as 250,000 cP. The chart below shows how thick these liquids are:
You need a strong pump for thick liquids. These pumps must push harder and not get clogged. If you pick the wrong pump, your process can slow down. You might even break your equipment.
Solids and Pulp
Juice can have pulp or small pieces in it. These solids can wear out pump parts. They can cause damage over time. The size and hardness of the solids matter. Thicker liquids can help protect the pump. But you still need to check the pump design.
Solids can cause damage and wear.
Hard particles make fluids more abrasive.
Thick liquids help lower abrasion.
You need a pump that can handle solids without breaking.
Shear Sensitivity
Some products, like milk and juice, are easy to damage. Shear means mixing or shaking the liquid too much. If the pump is too rough, the product can lose quality. You need gentle pumps for these liquids.
Pump Type | Description |
Lobe Pumps | Gentle handling for dairy, keeps quality high. |
Peristaltic Pumps | Good for juice, reduces contamination risk. |
Tip: Use gentle pumps for shear-sensitive products. This keeps flavor and texture safe.
Always pick a pump based on viscosity, solids, and shear sensitivity. This keeps your product safe and your process smooth.
Sanitary Pump Types
When you pick a pump for milk, juice, or thick liquids, you need to know the main types. Each pump works best for certain jobs. Here are the most common sanitary pumps and how they fit different uses.
Centrifugal Pumps
Centrifugal pumps are very popular in dairy and juice plants. You see them almost everywhere milk or juice is made. These pumps spin liquid fast with an impeller. They work best for thin or medium-thick fluids.
Advantages | Disadvantages |
Move lots of liquid quickly | Not good for thick fluids |
Simple design with fewer parts | Not great with solids |
Need less care and cost less to fix | May need special designs to self-prime |
Small and save space |
|
Give a steady flow without stops |
|
Best for thin fluids |
|
Can move some solids in the liquid |
|
No inside seals for rough fluids |
|
You use centrifugal pumps to move milk, buttermilk, and juice. These pumps help move big amounts fast. They also work for cleaning and heating. If you have thick liquids or lots of pulp, you may need another pump. Centrifugal pumps can have trouble with thick fluids or big solids.
Note: Centrifugal pumps save space and lower care costs. They keep your process smooth and steady.
Self-Priming Pumps
Self-priming pumps can start pumping without filling the suction line first. This is helpful if there is air in the line or if the pump sits above the liquid. You often use these pumps when you need to move thick or gentle liquids.
Self-priming pumps use stainless steel for safety.
They are easy to clean with CIP or COP.
You can use them when fluid levels and pressures change.
These pumps work for both thin and thick fluids, even with air.
Self-priming pumps are good for juice with pulp, sauces, and other products that need gentle care. They keep your process working, even if the liquid is thick or there are air bubbles.
Flexible Impeller Pumps
Flexible impeller pumps use a soft rotor to move liquid. This lets them handle products with pulp or small solids better than many pumps. You can use these pumps for juice with fruit bits, soups, or sauces.
The soft rotor moves solids gently and does not hurt the product.
These pumps can move thin juices and thicker sauces.
They are easy to clean and fix.
If you work with liquids with pulp or small pieces, flexible impeller pumps give gentle care and steady flow. They are not best for very thick things like peanut butter, but they work well for most juice and dairy with some solids.
Rotary Lobe Pumps
Rotary lobe pumps use two or more lobes that turn to move liquid. You see them in dairy, juice, and food plants that need to move thick or gentle products. These pumps have many good points:
Clean design with safe materials and smooth surfaces.
Gentle handling keeps flavor and texture safe.
Can start on their own for steady flow, even with thick fluids.
Easy to clean with CIP and quick parts.
Work well and can move products with solids or pieces.
Meet strict rules for food safety.
You can use rotary lobe pumps for milk, cream, fruit mixes, and even chocolate. They keep your product safe and good, even with thick or gentle fluids.
Tip: Rotary lobe pumps let you move many products with one pump. They also cut down on time lost because they are easy to clean.
Twin-Screw Pumps
Twin-screw pumps use two screws that fit together to move liquid. This lets you move both thin and thick fluids with one pump. You can use twin-screw pumps for milk, juice, yogurt, and chunky sauces.
Feature | Description |
Viscosity Handling | Moves both thin and thick fluids. |
Flow Characteristics | Gives a smooth flow that keeps product quality safe. |
Design | Screws work well at different speeds. |
Applications | Good for food, drink, dairy, and medicine making. |
Twin-screw pumps can go slow for gentle moving and fast for cleaning. This means you can use one pump for both making and cleaning. They also move fluids with solids, so you do not need to switch pumps for different jobs.
Note: Twin-screw pumps give you choices and make your process simple. You can move many kinds of liquids without changing pumps.
Other Pump Types
You might also see pumps like diaphragm or piston pumps in some food plants. These pumps are good for very thick or chunky products. They move liquid in bursts, which helps fill things just right. But they are not used much for milk or juice because they are harder to clean and fix.
Market Trends and Leading Brands
More people want safe and different foods, so the market for sanitary pumps is growing. Companies like Alfa Laval, Flowserve Corporation, Pentair plc, and GEA Group lead with new ideas and high safety. North America uses the most pumps, then Europe and Asia Pacific. Each place uses different pumps, but all care about safety and working well.
When you pick a pump, always match it to your product and process. This keeps your process safe, fast, and ready for the future.
System and Temperature
Product Temperature

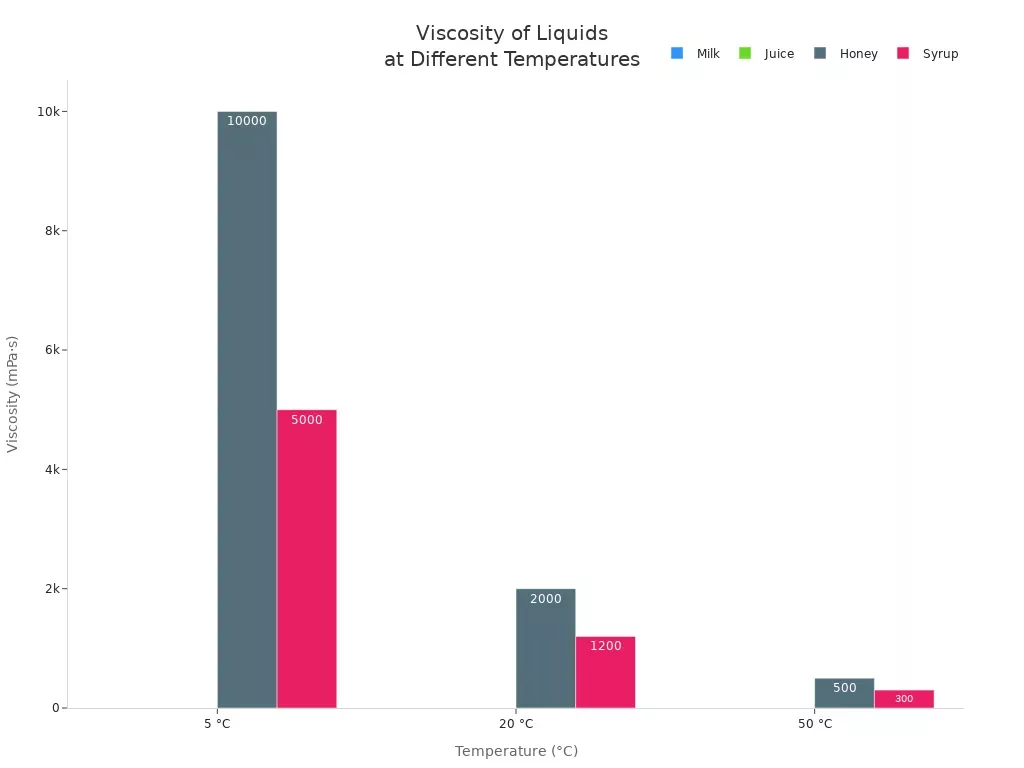

You need to know the temperature of your product before you choose a pump. Milk and juice often stay cold to keep them fresh and safe. Most dairy and juice plants keep these products chilled between 35°F and 45°F. This temperature range helps prevent spoilage and keeps bacteria from growing. If your product gets too warm, it can spoil quickly. Always check the temperature before you start pumping.
If you work with products outside this range, you may need special pumps or seals that can handle higher or lower temperatures.
Cleaning Temperature
Cleaning your pump is just as important as moving your product. Many plants use hot water or cleaning solutions to wash out the pump and pipes. Some cleaning cycles use temperatures above 160°F. You must make sure your pump can handle these high temperatures without damage. Stainless steel pumps and FDA-approved seals work best for both product and cleaning cycles. If your pump cannot handle the heat, it may break or leak.
Tip: Always check the pump’s temperature rating for both product and cleaning cycles.
Suction Conditions
Good suction keeps your pump working well, especially with thick liquids. You need to set up your system so the pump can pull in the liquid easily. Here are some key points:
Make sure the pump is primed before starting.
Check for air leaks in the suction line.
Use pumps designed for high-viscosity fluids.
Keep suction lines short and wide to lower friction.
Watch fluid temperature to avoid cavitation.
Maintain enough Net Positive Suction Head (NPSH).
Seal suction lines properly.
If you pump thick liquids like honey or syrup, you need a positive displacement pump. Centrifugal pumps may not work well with high-viscosity fluids. Always check your setup to avoid problems like air pockets or low flow.
Pressure Rating
You must know the pressure your system needs. Most sanitary pumps in food plants run below 200 psi. If you move thick liquids, you need a positive displacement pump with the right pressure rating. Centrifugal pumps work for thin liquids up to 200 cP, but thicker products need a different type. Always size your pump for the right discharge pressure. If you choose the wrong pump, you may get leaks or not enough flow.
Understand your system’s discharge pressure.
Use positive displacement pumps for high-viscosity fluids.
Most food pumps operate below 200 psi.
Choosing the right pump for your system and temperature keeps your process safe and efficient.
Step-by-Step Selection
Choose Pump by Fluid
You need to match your pump to the type of liquid you want to move. Milk flows easily, so you can use a centrifugal pump for fast transfer. Juice with pulp needs a pump that handles solids gently. Flexible impeller pumps work well for juice with fruit bits. Thick liquids, like honey or syrup, require a positive displacement pump. Rotary lobe or twin-screw pumps move these products without clogging or damaging them. Always choose pump equipment that fits your fluid’s viscosity and solids content.
Match Pump Capacity
Pump capacity must fit your process. If you work with milk, your cooling system changes based on how much milk you handle. Small batches use a cooling tank. Large batches use a plate type heat exchanger for quick cooling. The pasteurizing system uses a homogenizer at high pressure to keep milk stable. Storage tanks keep milk cold and safe. You need a pump that moves milk fast enough to prevent spoilage. Juice lines also need pumps sized for the right flow. If your pump is too small, your process slows down. If it is too big, you waste energy and risk damaging your product.
Cooling tanks suit low-capacity milk lines.
Plate heat exchangers fit high-capacity milk lines.
Homogenizers need pumps that handle high pressure.
Storage tanks require pumps that keep milk moving and cold.
Check Cleaning Needs
You must check how easy it is to clean your pump. Food plants often use Clean In Place systems. These let you wash pumps without taking them apart. Pumps with smooth surfaces and no dead spots clean faster. Stainless steel and FDA-approved seals help keep your process safe. If you handle milk or juice, you need pumps that support CIP. This saves time and keeps your product safe from germs.
Tip: Always check if your pump supports CIP before you install it.
Review Use Cases
Look at real examples to guide your choice. You can use a centrifugal pump for milk transfer in a dairy plant. Juice with pulp needs a flexible impeller pump to protect fruit bits. Thick liquids, like peanut butter, require a rotary lobe pump for smooth movement. You should choose pump equipment based on your product and process needs. This keeps your line running and your product safe.
You should always start by understanding your liquid and process needs. Milk, juice, and viscous liquids each need a different pump. Check flow, pressure, temperature, and cleaning before you decide. Compare pump designs for hygiene and fit.
Need help? Talk to a pump specialist or supplier. They can help you pick the best pump for your product and process.
FAQ
What is the best pump for milk?
You should use a centrifugal pump for milk. This pump moves milk quickly and gently. It keeps your product safe and clean. Most dairy plants use this type because it works well with thin liquids.
Can I use the same pump for juice and thick syrup?
No, you should not use the same pump. Juice needs a gentle pump like a flexible impeller. Thick syrup needs a rotary lobe or twin-screw pump. Each pump fits a different liquid.
How do I know if my pump supports CIP?
Check the pump manual or ask your supplier. Look for these signs:
What happens if I use the wrong pump size?
If you use a pump that is too small, your process slows down. If you use one that is too big, you waste energy and may damage your product. Always match the pump size to your flow needs.
