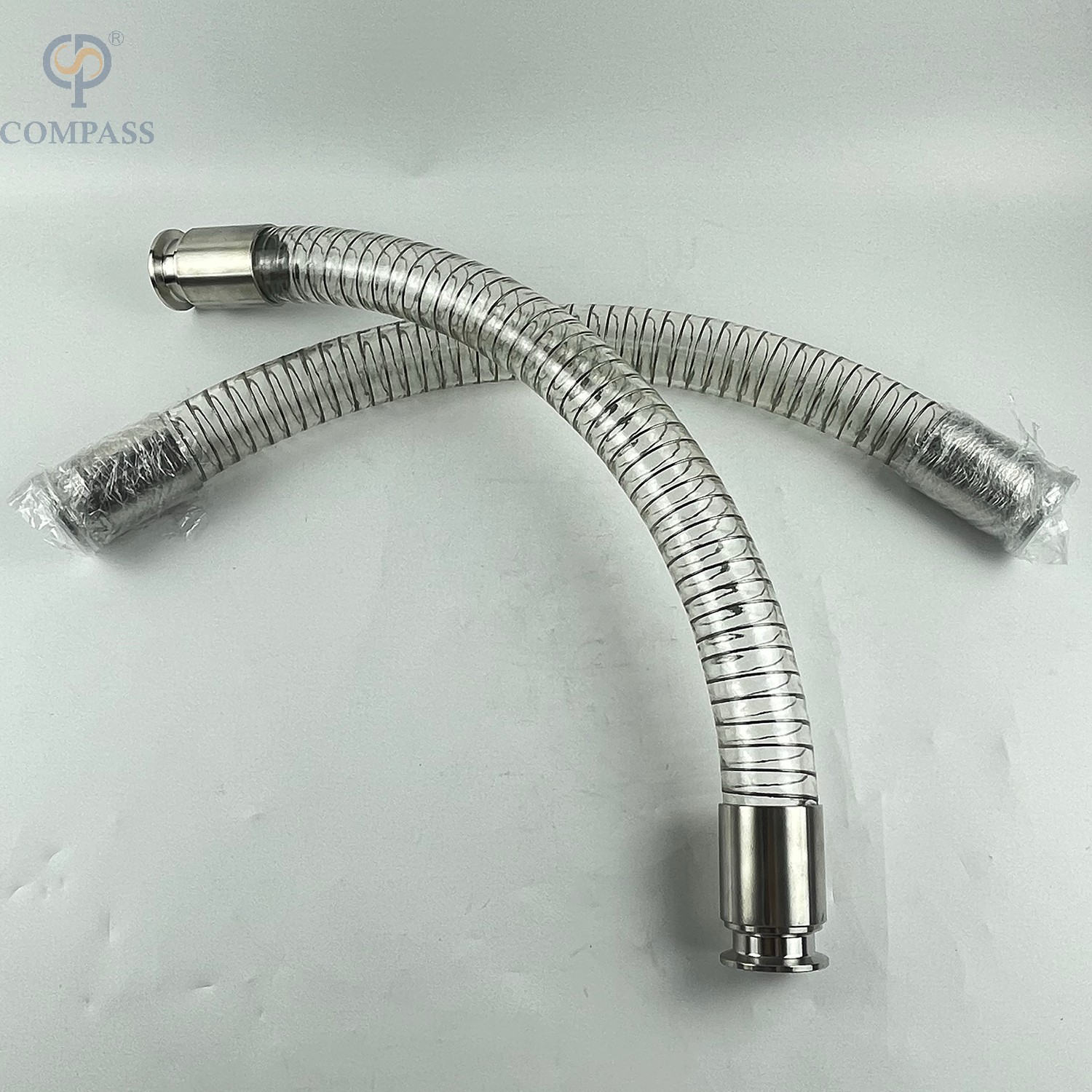

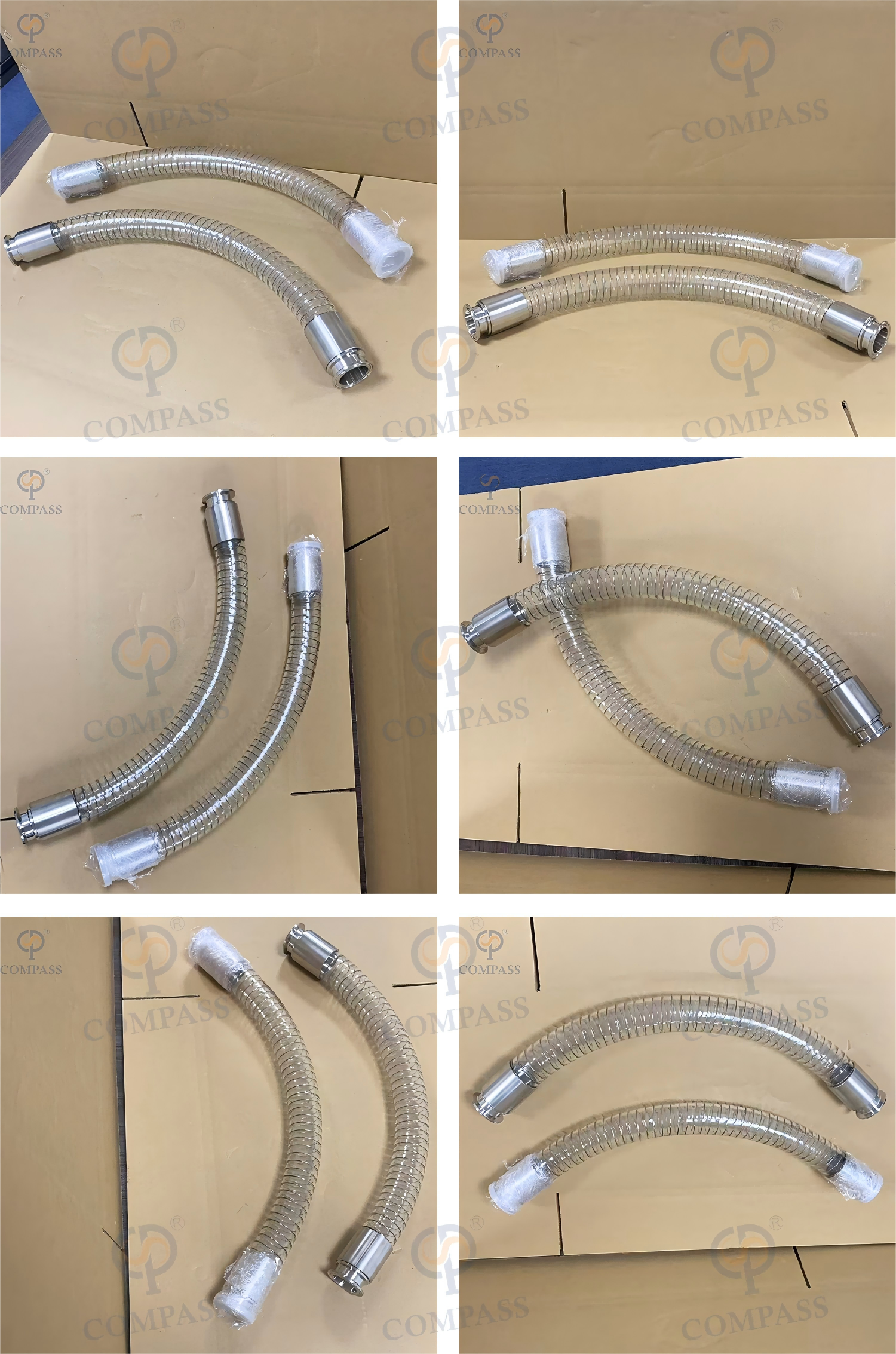

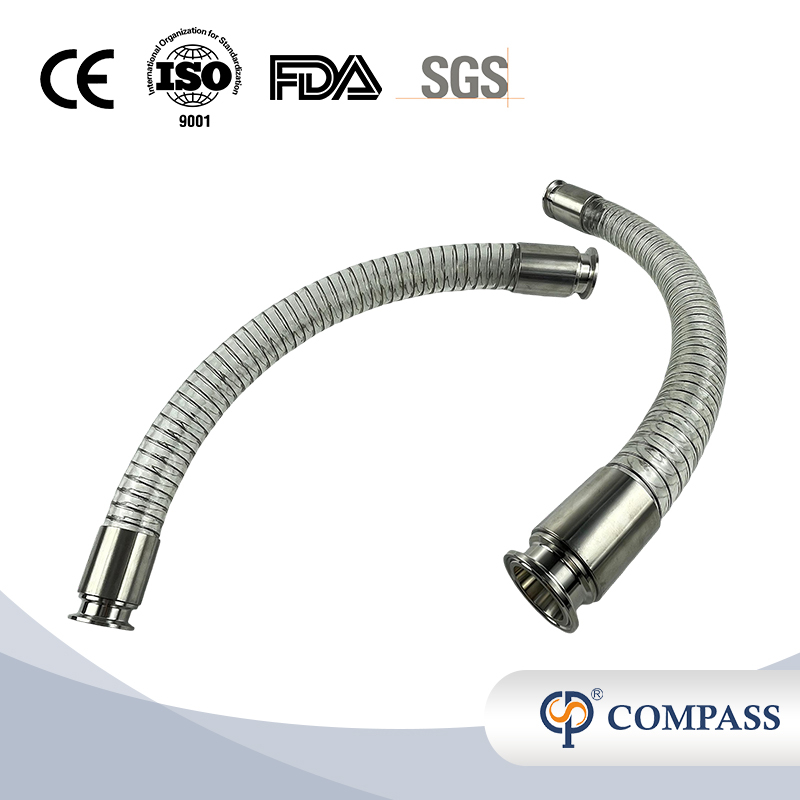

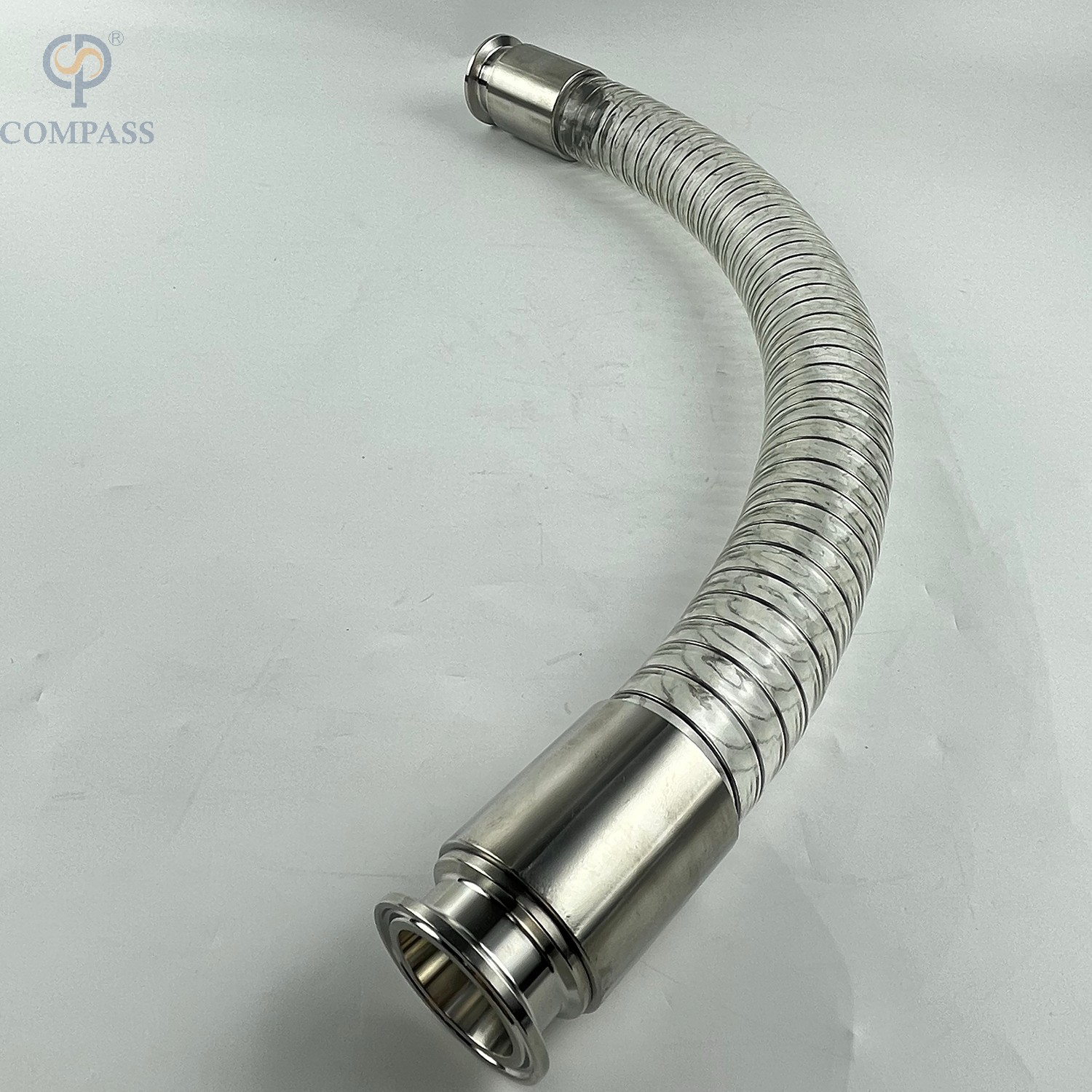

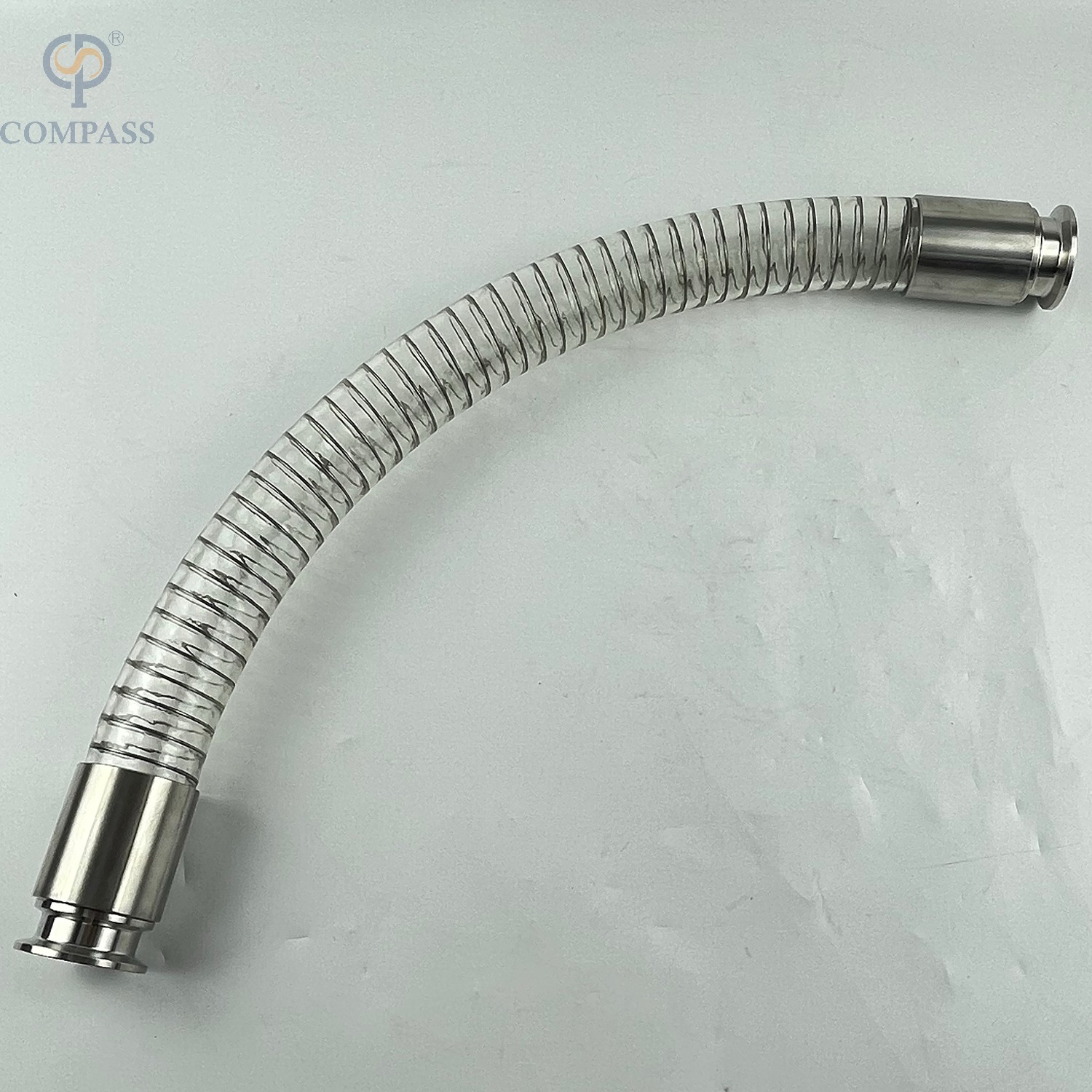

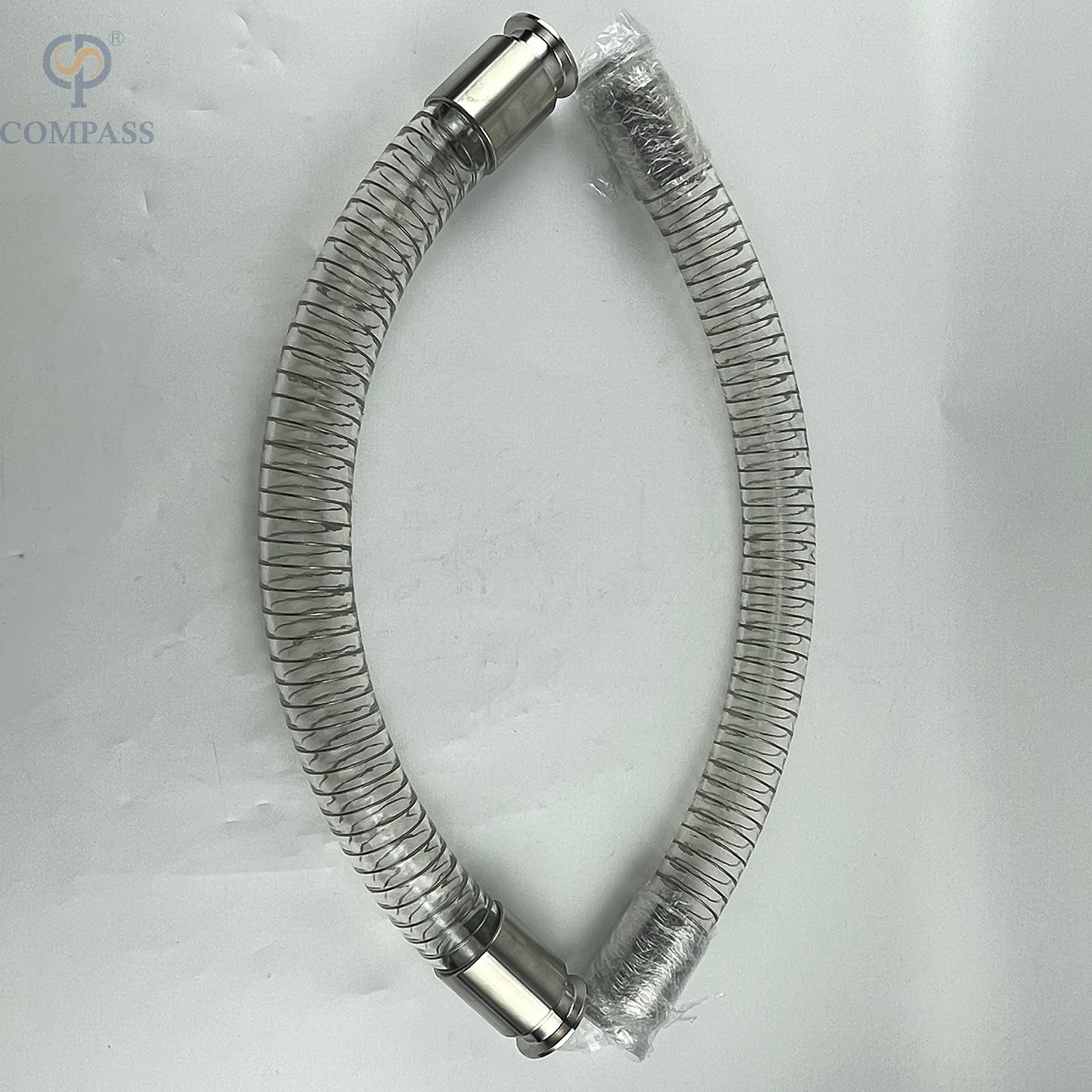

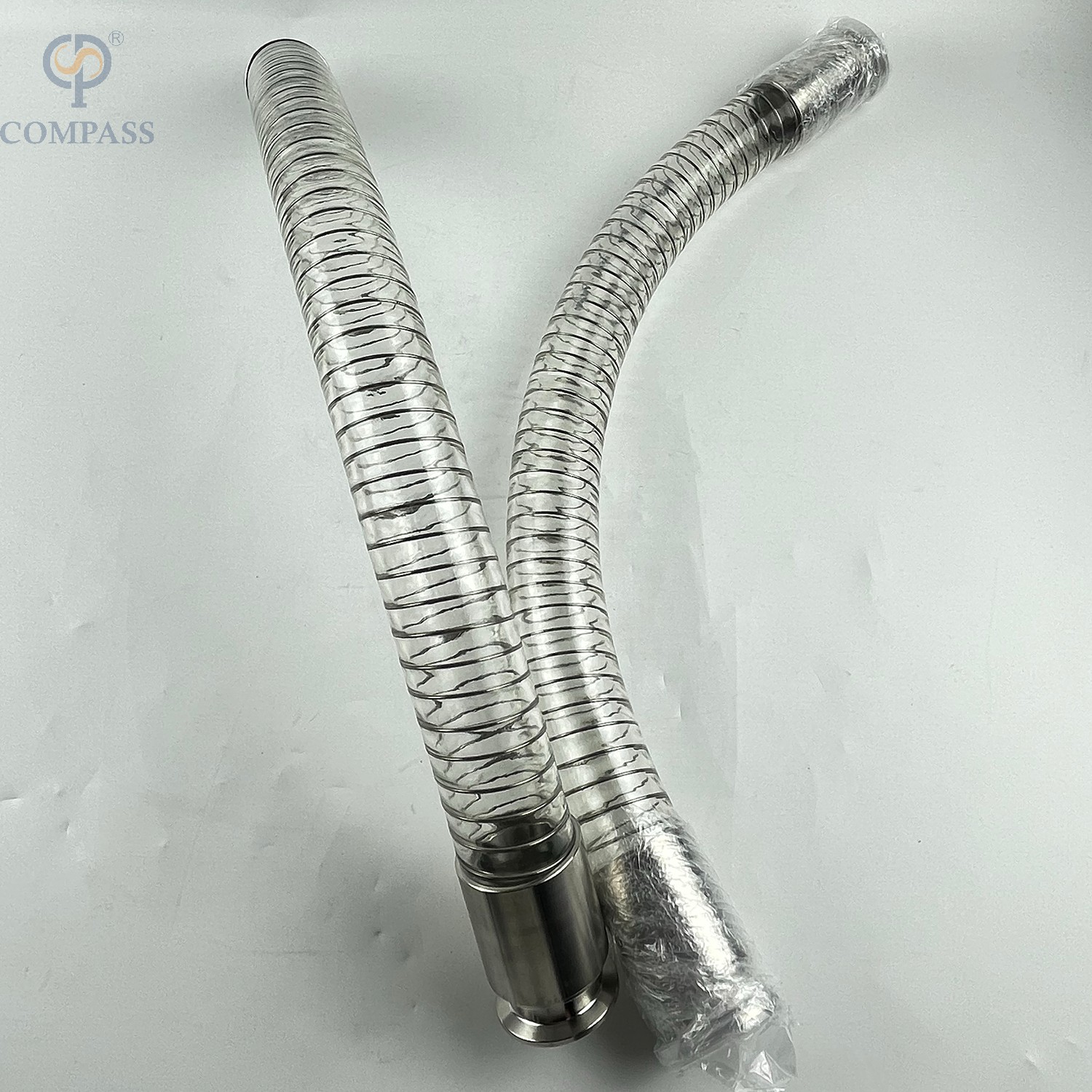

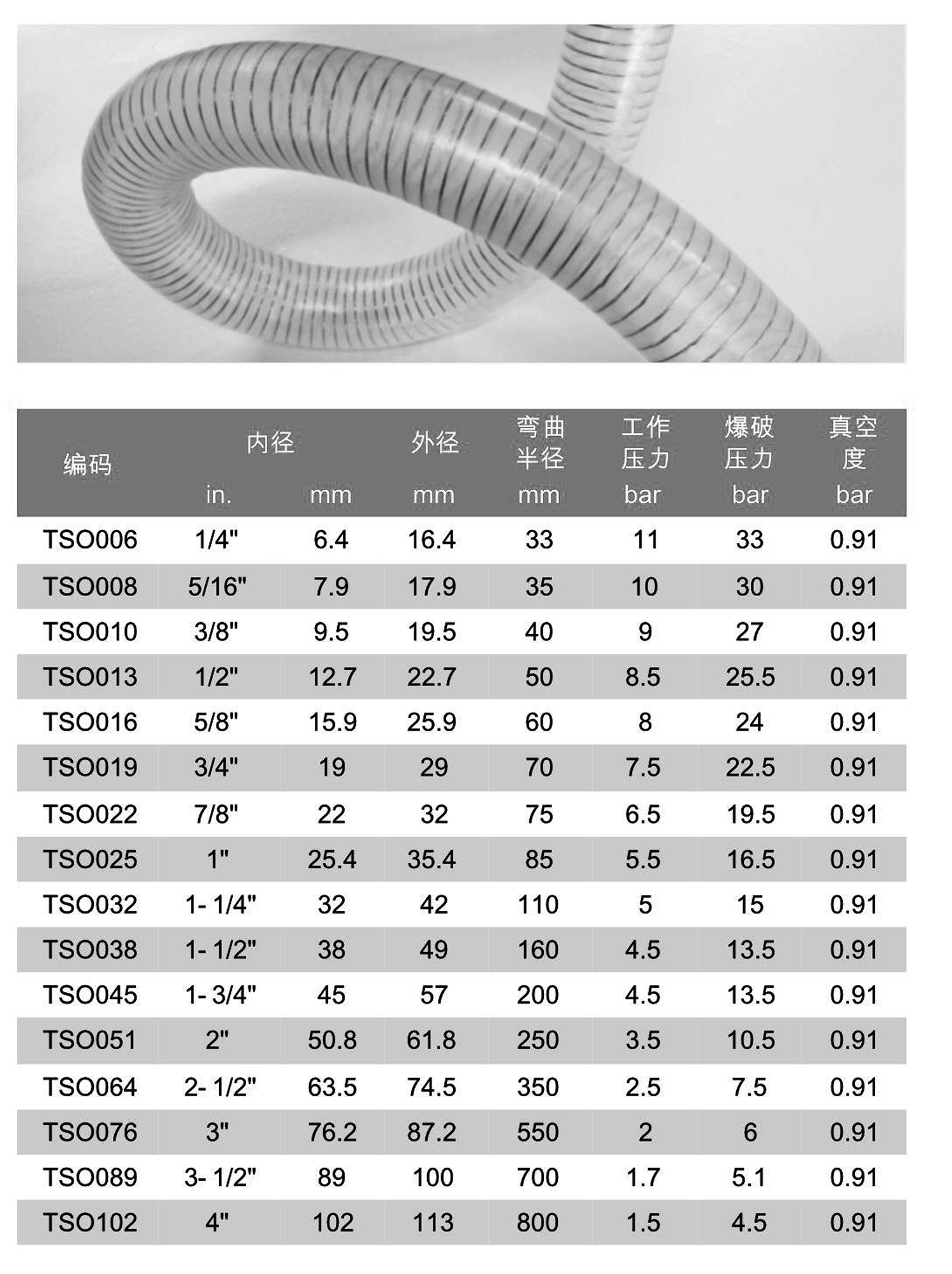

1.5INCH -24INCH SANITARY FOOD GRADE CLEAR SPIRAL HOSE

Flexible Hose Fittings refer to tubular elastic sensitive components connected by foldable corrugated sheets along the folding and stretching directions. Bellows are widely used in instruments and meters, mainly as measuring elements for pressure measuring instruments, converting pressure into displacement or force. The corrugated pipe has a thin wall and high sensitivity, with a measurement range of tens of pascals to tens of megapascals. Its open end is fixed, the sealed end is in a free state, and auxiliary coil springs or spring plates are used to increase elasticity

Model:
1.5"×24"
Brand:
2501001AB38-610

Availability:

Quantity:



Inquire Add to Basket

Main Parameter

Standard Type	SMS, DIN
Material Quality	Stainless Steel 304, 321, 316 and 316L
Connect Type	Flange/Thread/Quick coupling
Braided Mesh	Single / Double layer
Working Pressure	8bar.0.08MPa
Temperature Range	-20degree Celsius~135degree Celsius
Flow Pattern	Thread, clamp, Weld, Flange
Port Size	DN15-DN300
Hose Type	Annular corrugated
Connector approval	Loose or flexed flange
Braided mesh layer	single or double layer braiding

Application areas

It is applied in industry and sanitary system. Good sealing,no leak,in the oil, chemical industry, water conservancy,electric power, boiler, machinery, metallurgy, sanitary, construction etc

Advantage

Wide temperature resistance range, good flexibility and elasticity, shock absorption and noise reduction, non stick surface

Types of corrugated pipes
Corrugated pipes mainly include metal corrugated pipes, corrugated expansion joints, corrugated heat exchange pipes, diaphragm boxes, and metal hoses

How To Order Spiral Hose ?

1.What's material quality? Such as SS304 and SS316L
2. What size do you need? Such as DN20 and DN50.
3.What interface method is needed? Such as Flange/Thread/Quick coupling
