Main Parameter
Material | Stainless Steel SS304, Stainless Steel SS316L |
Applicantion | Dairy, Industry, Food, Pharmaceutical, Chemical, Beverage, Biological and so on. |

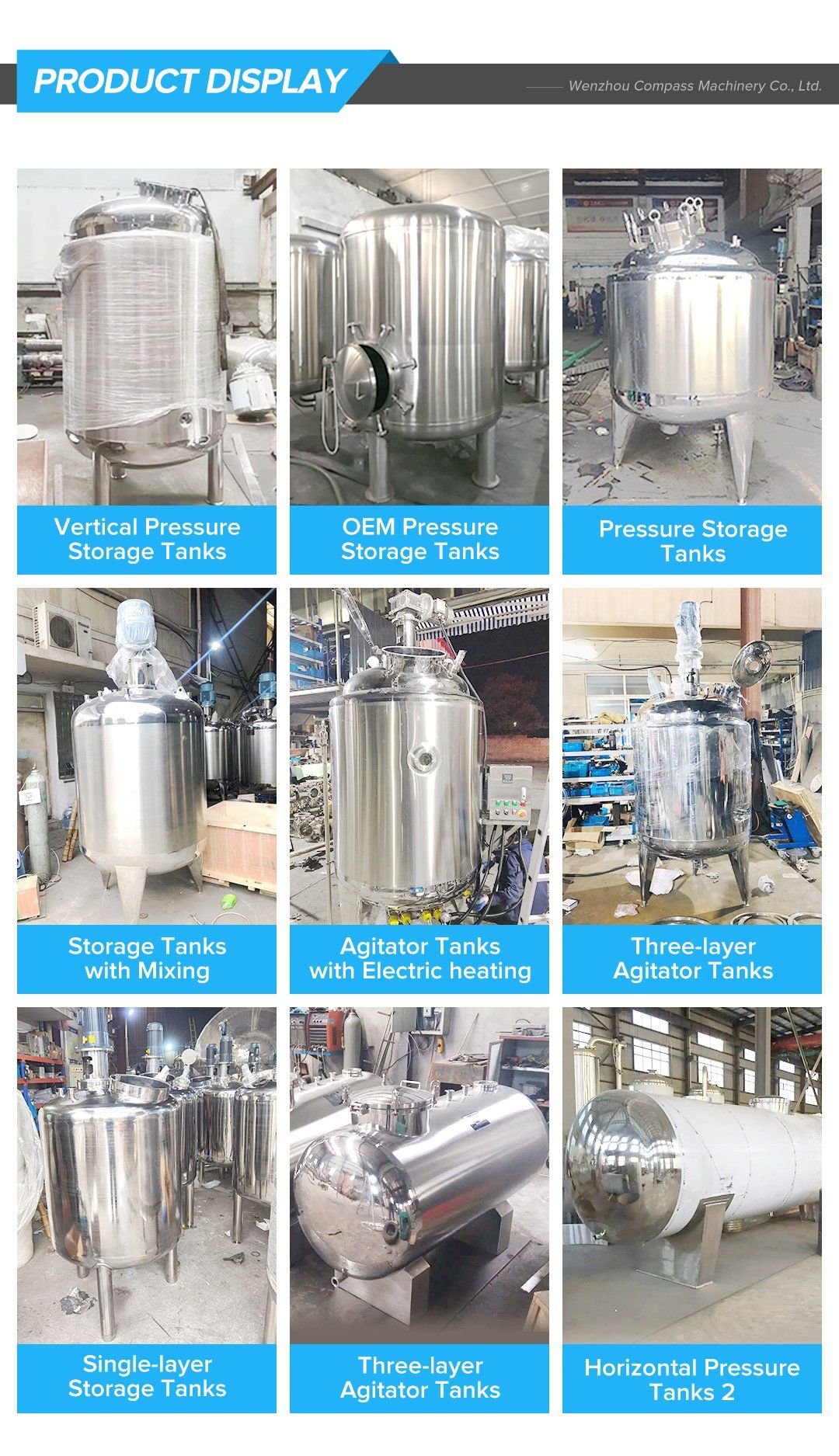

Type of Tanks | Storage Tank, Agitator Tank , High Shear Emulsification Tank, ect. |
Capacity | 50L, 100L, 200L, 300L, 500L, 1000L, 2000L, 5000L, 10000L,20000L |
|
|
|
Pressure | Atmosphere,1bar, 2bar, 3bar, 4 bar, 5bar, 6bar, 7bar |
Type of Jacket | Dimple Jacket, Coil Jacket, Barrel Jacket |
|
|
|
Type of Insulation | Polyurethane Foam, Thermal Insulation Rock Wool, Pearl Particles |
|
|
|
Type of agitator | 15-120r/min, 0-200rpm/min, 0-400rpm/min, |
Internal Polished | Mirror Polish Ra0.28um-Ra0.45um |
External Polished | Mirror Polished or Matte Polished |
Position of Tanks | Vertical or Horizontal |
Main functions and purposes
The mixing tank can achieve various process functions by changing its configuration:
Homogeneous mixing: Mixing multiple miscible liquids into a homogeneous mixture.
Solid liquid suspension: prevents solid particles from settling at the bottom and evenly suspends them in liquid.
Gas liquid dispersion: dispersing gases (such as air and oxygen) in the form of small bubbles into liquids, such as fermentation tanks and aeration tanks.
Liquid liquid dispersion (emulsification): two immiscible liquids (such as oil and water) are dispersed to form lotion.
Enhanced heat transfer: By stirring, the fluid flows vigorously, breaking the boundary layer and greatly improving the heat transfer efficiency of the tank wall
Key selection points
Choosing a suitable mixing tank requires consideration of multiple factors:
Material properties: viscosity, density, corrosiveness, presence of solid particles, etc.
Process objective: Is it mixing, suspension, dispersion, or heat transfer? Different purposes require different types of mixers.
Operating conditions: working temperature, pressure, and whether vacuum operation is required.
Hygiene requirements: The food and pharmaceutical industries usually require high standards of hygiene grade design (such as SIP sterilization, CIP online cleaning), and the inner surface of the tank needs to be polished with high smoothness.
Capacity and scale: ranging from a few liters in the laboratory to tens of thousands of liters in industrial production
