Main Parameter
Standard | SMS, DIN |
Material Contact Parts | SS304/SS316L (1.4301/1.4404) | Provided with material inspection report |
Material Non-contact Parts | SS304 (1.4301) |
Seal Material | Silicone, EPDM, FKM, PTFE. All seals material comply with FDA21CFR117.2600 |
Size | 1inch to 6inch, DN25 to DN150 |
Mesh Size | 3Mesh to 400Mesh, 37Micron to 6730Micron, 0.037MM to 6.730MM |
Inside Cartridge Filter Screen | Perforated Plate Screen, Wedge Wire Screen, Metal Mesh Screen |
Body Combination | Staringht Type, Angle Type, Y Type, Duplex Type |
Connection | Butt Weld,Tri Clamp, Male Thread, Female Male Threaded, Union, Weld Thread, Flange |
Working Pressure | ≤10bar(145psi) |
Temperature Range | Minus 20degree Celsius~135degree Celsius |
External Surface Treatment | Ra32~64uin (0.8~1.6um) |
Internal Surface Treatment | Ra16~32uin (0.4~0.8um) |
Warrenty | One Year |
Support | OEM, ODM Are Welcome |
Application | Milk, Juice, Beer, Beverage, Ect |
Operating Principle
The filter basically consists of a filter body with an inlet and an outlet for the product.
The screen is fixed inside the body. The screen retains all particles that are equal or larger
than the size of the screen openings.
Materials
Filter body AISI316L
Gaskets EPDM (according to FDA 117.2600)
Internal surface finish Ra < 0,8μm
External surface finish mirror polish
Design and Features
There are several configurations:
- Cleaning of the screen without disassembling the filter:
Angular filter: the inlet and the outlet form a right angle.
Y filter: the product enters and leaves the filter in the same direction.
- Cleaning of the screen disassembling the filter:

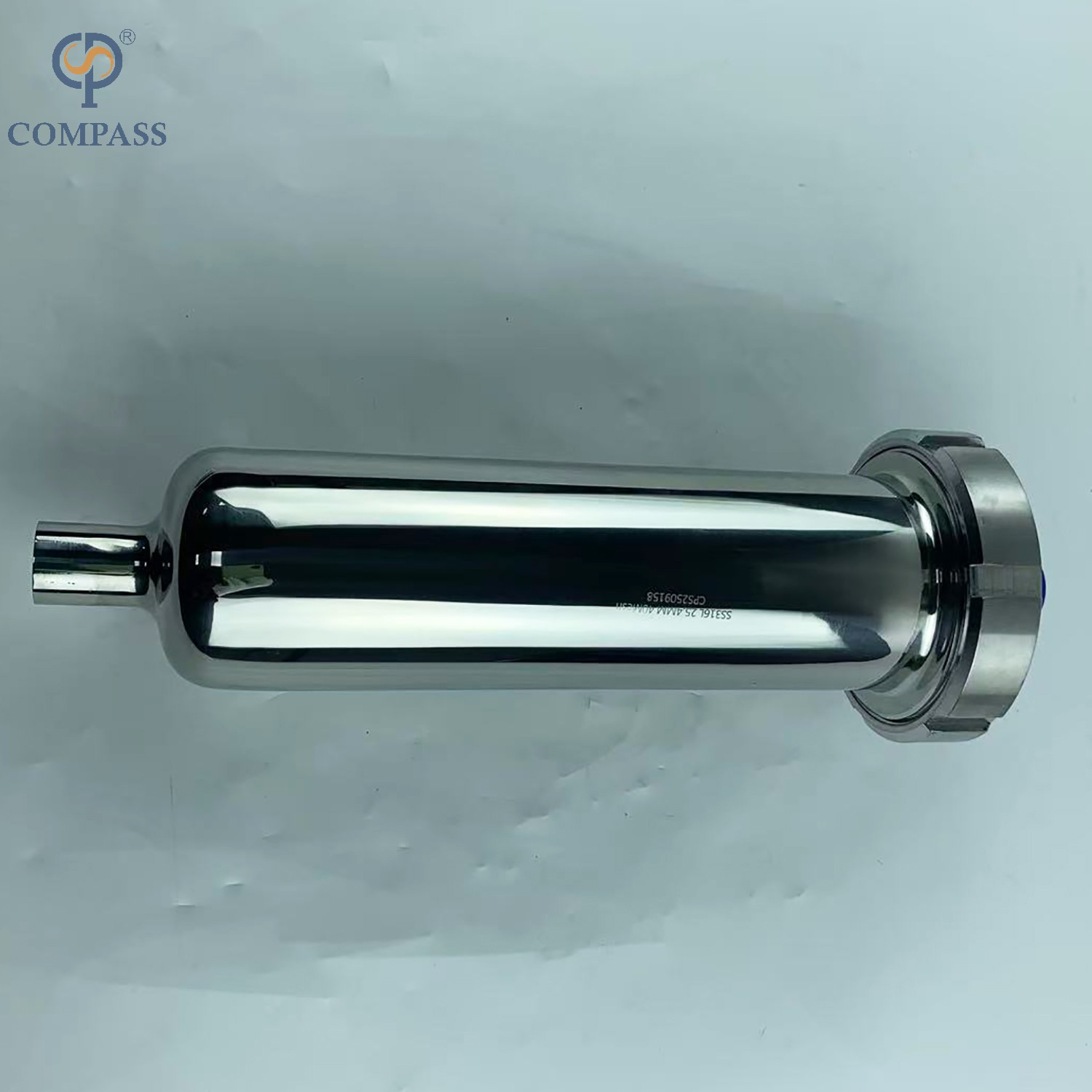

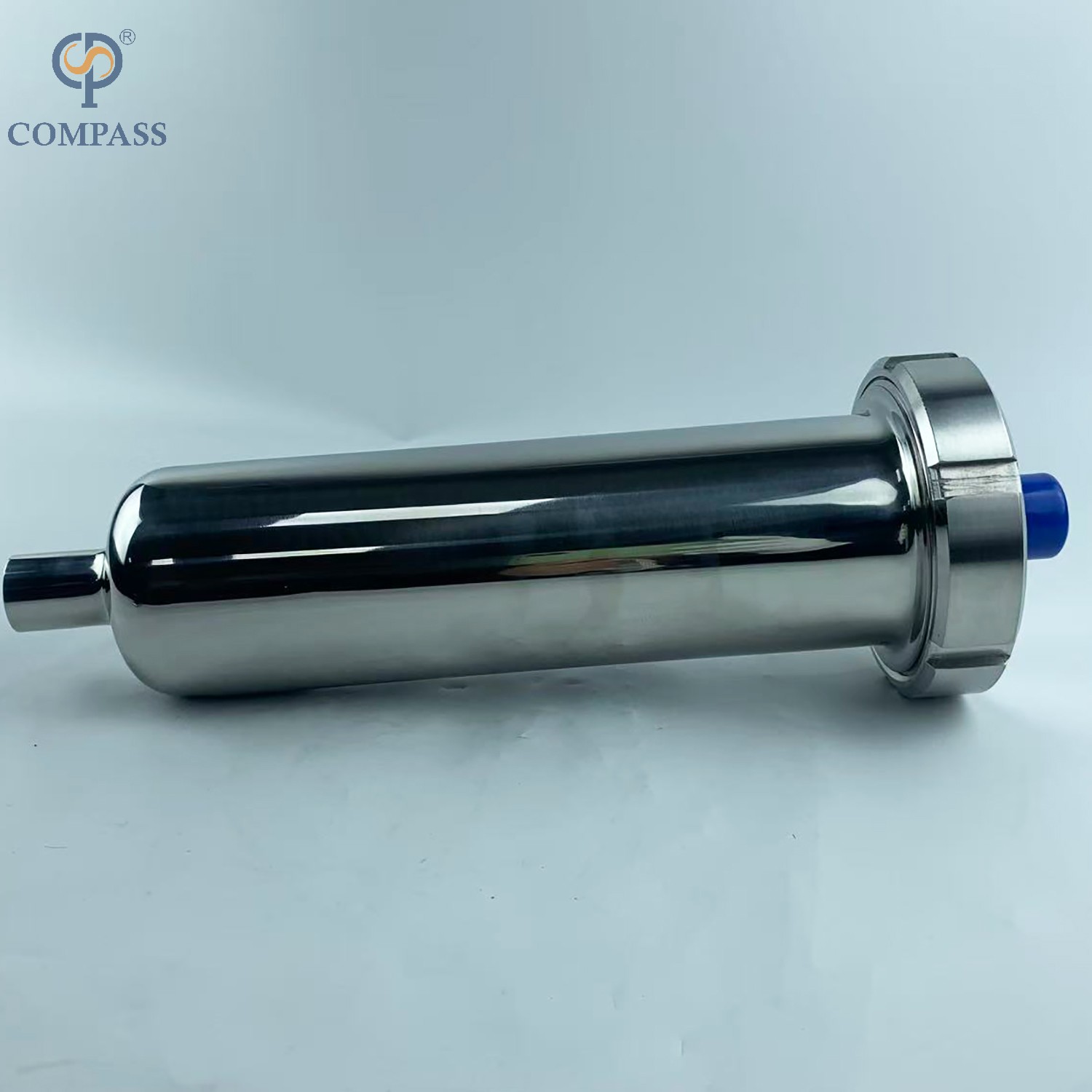

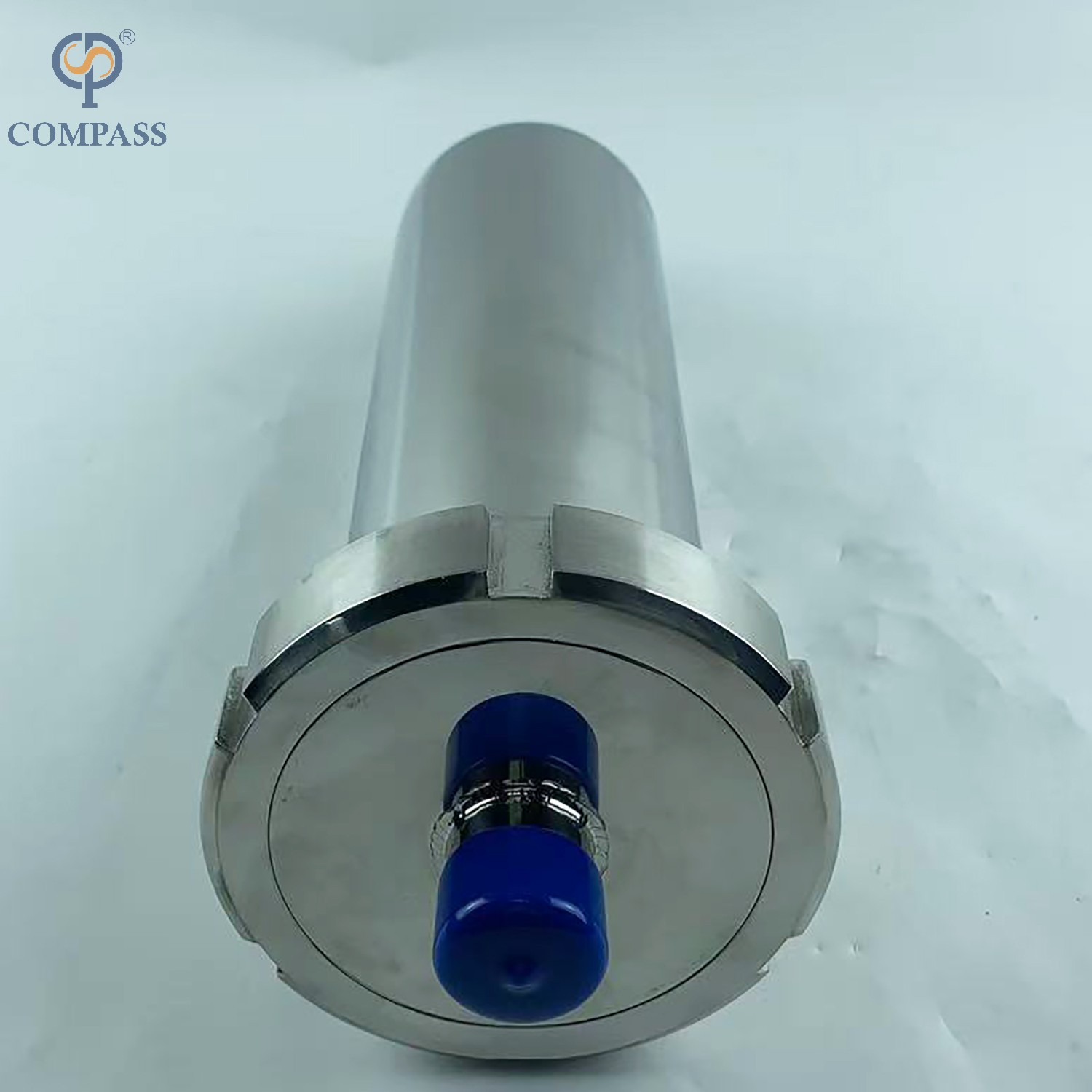

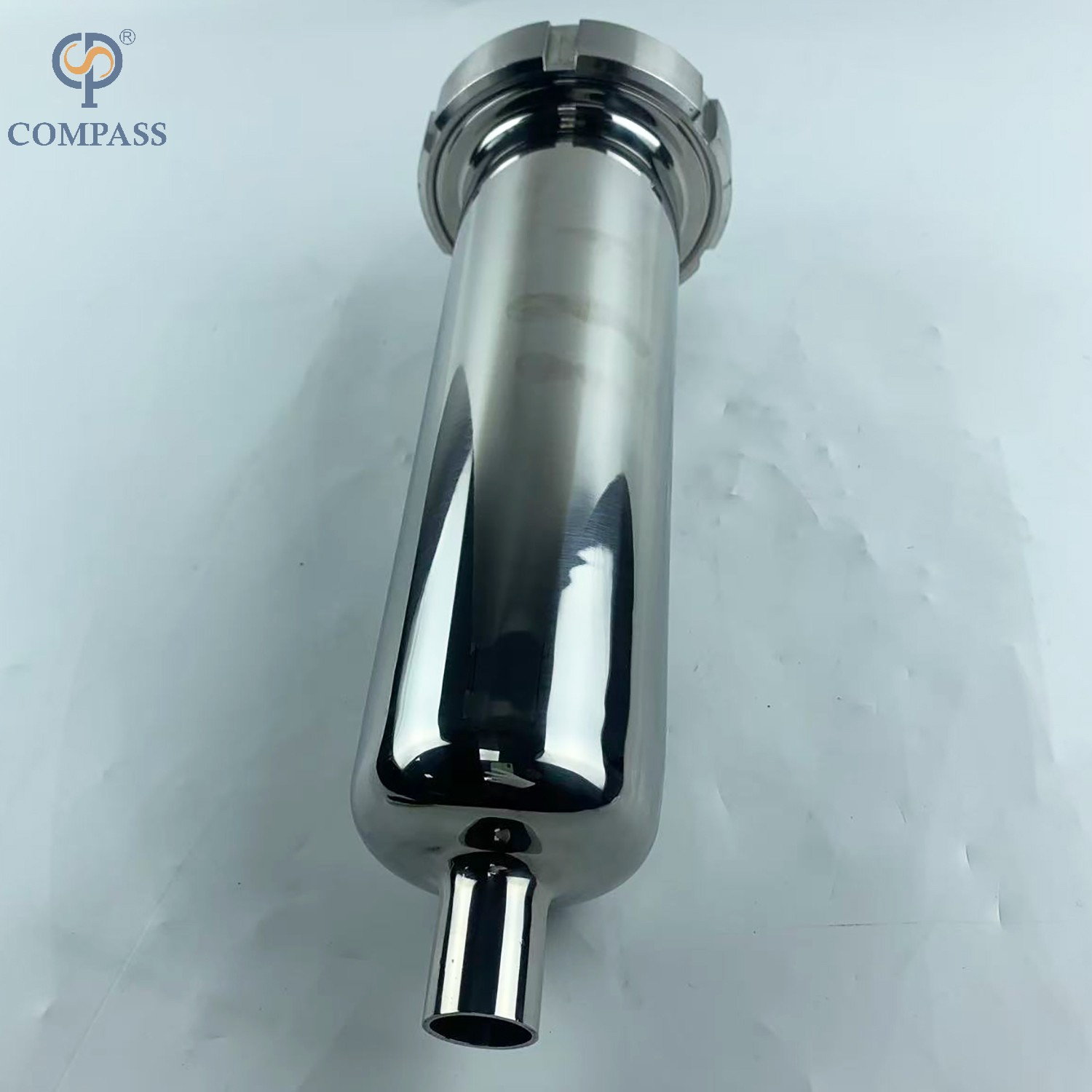

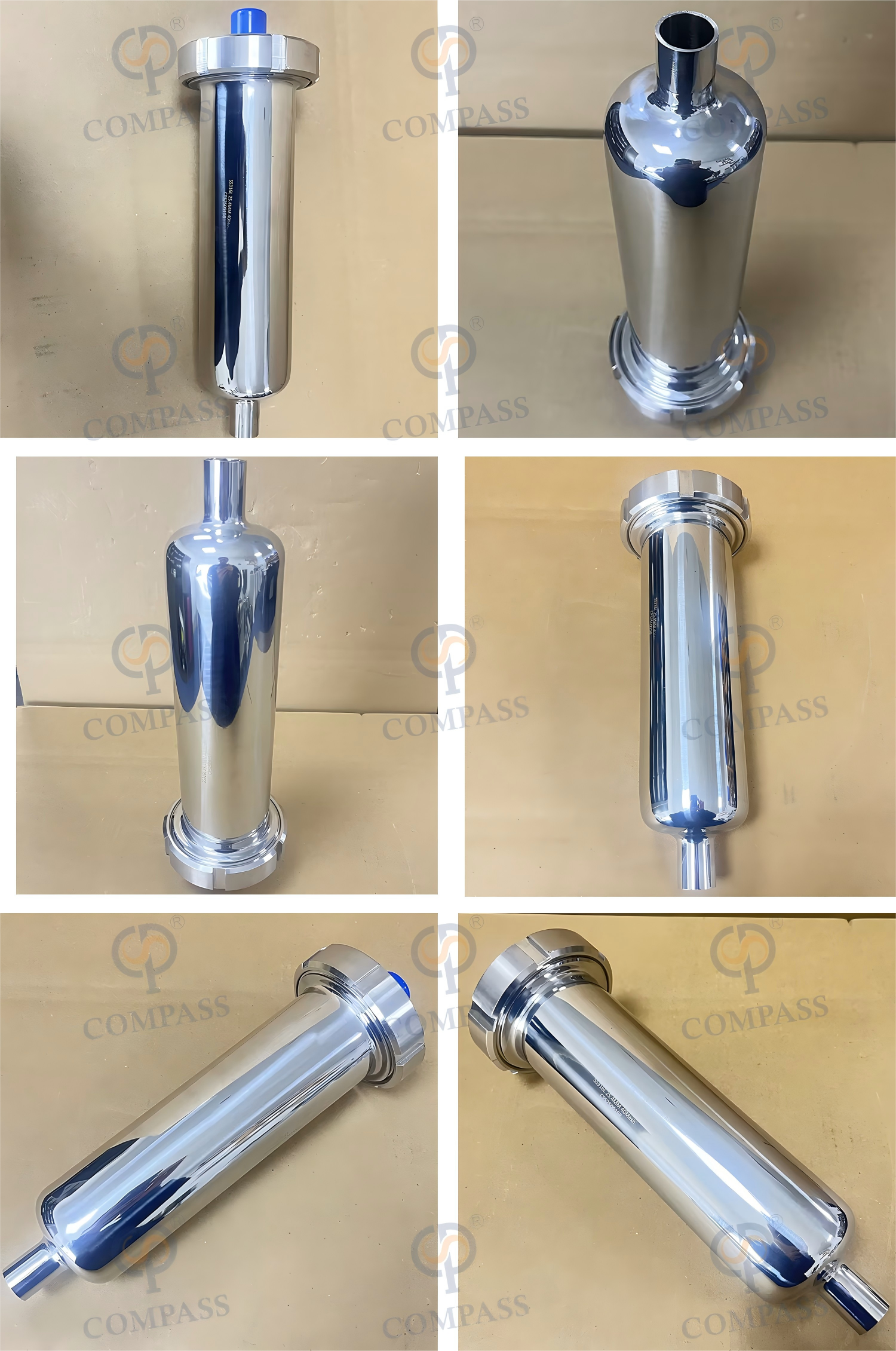

Straight filter: the product enters and leaves the filter in the same direction.
Low pressure drops.
DIN 11850 standard connections.
Screen with circular (from Ø 0,5 mm to Ø 3 mm) or longitudinal openings (10 x 1 mm).
Technical Specifications

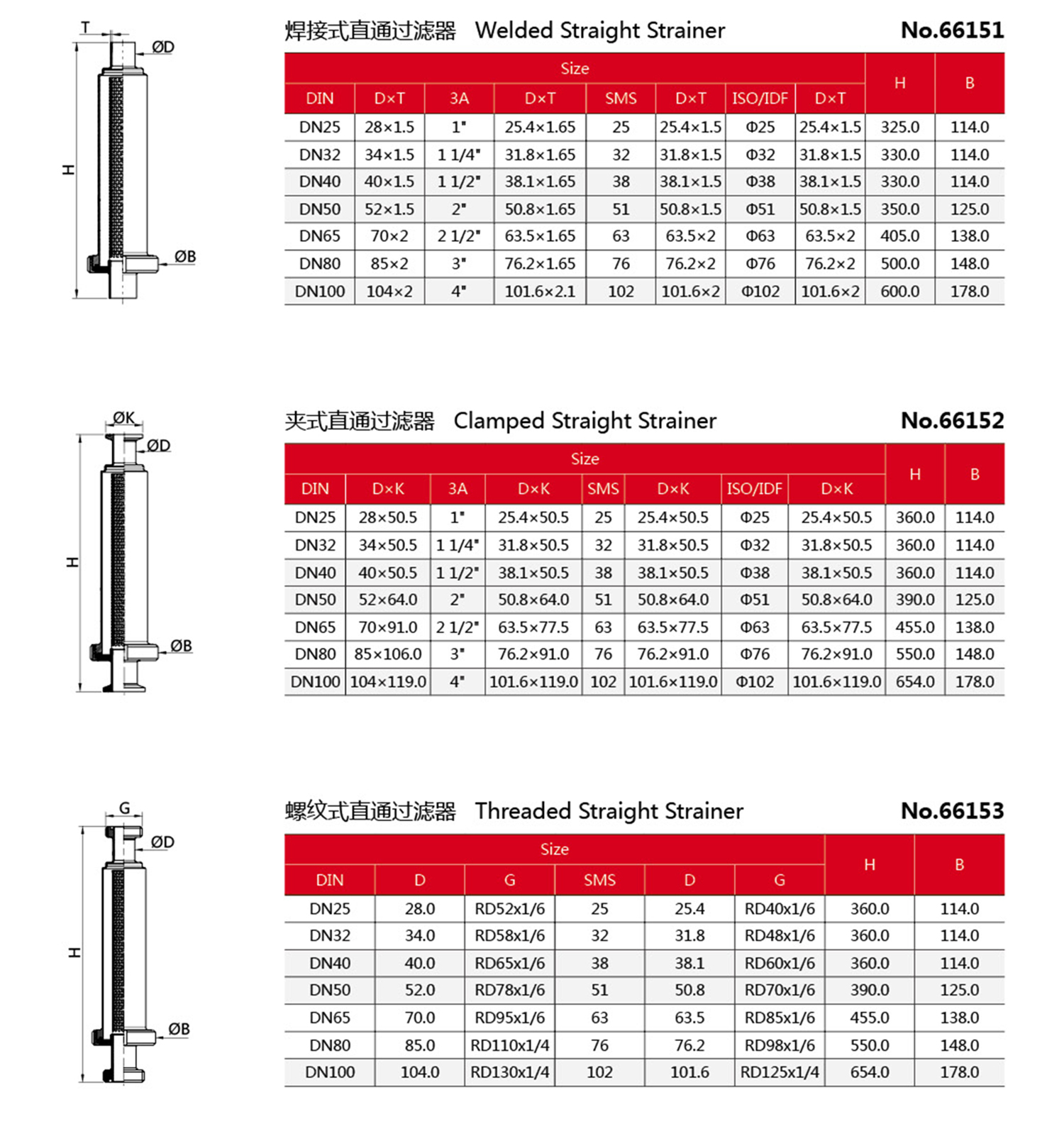

STRAIGHT FILTER / ANGULAR FILTER
Availabale sizes DN 25 - DN 100 (1) 1˝ - 4˝
DN 125 - DN 150 (2) 5˝ - 6˝
Working temperature -10ºC to +120ºC (EPDM) 14ºF to 248ºF
+140ºC (SIP, max. 30 min) 284ºF
Max.working pressure 10 bar 145 PSI
Y FILTER
Availabale sizes DN 25 - DN 50 (1) 1˝ - 2˝
DN 65 - DN 80 (2) 2 ½˝- 3 ½˝
DN 100 - DN 150 (3) 4˝- 6˝
Working temperature -10ºC to +120ºC (EPDM) 14ºF to 248ºF
+140ºC (SIP, max. 30 min) 284ºF
Max.working pressure 10 bar 145 PSI
Options
Gaskets in FMP.
Connections: DIN, Clamp, SMS, RJT, FIL-IDF, etc.
Wedge wire screen cylinder.
Heating jacket.
Option of filtering from outside to inside of the screen.
Double filter.
Advantage of Products1.Each kind of products has strong corrosion resistance and over-long service liftime
2.Problem-free welding and assembly and highest possible strenghth
How To Order Filters ?
1. Which's material you need, such as SS304 or SS316L ?
2. Which's available size, the size is ranged from 1inch to 6inch, DN25 to DN150 ?
3. Which's combinarion body of filter, such as Y type, Angle Type, Inline Type or Duplex Filter ?
4. What's Connection you need, such as butt weld, tri clamp, male thread ?
5. What's micron or mesh for inside cartridge filter, such as perforated plate screen, wedge wire screen, metal mesh screen ?
