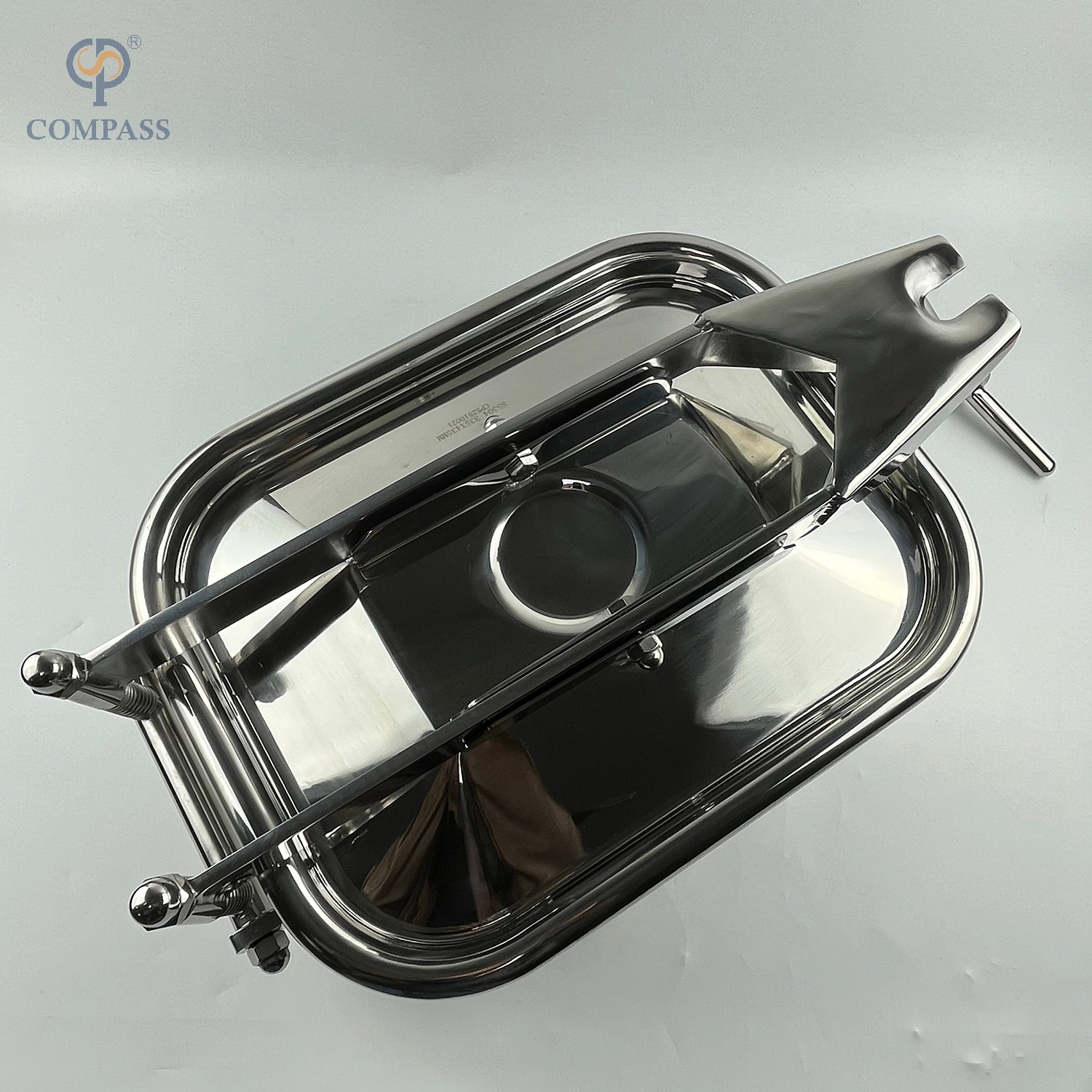

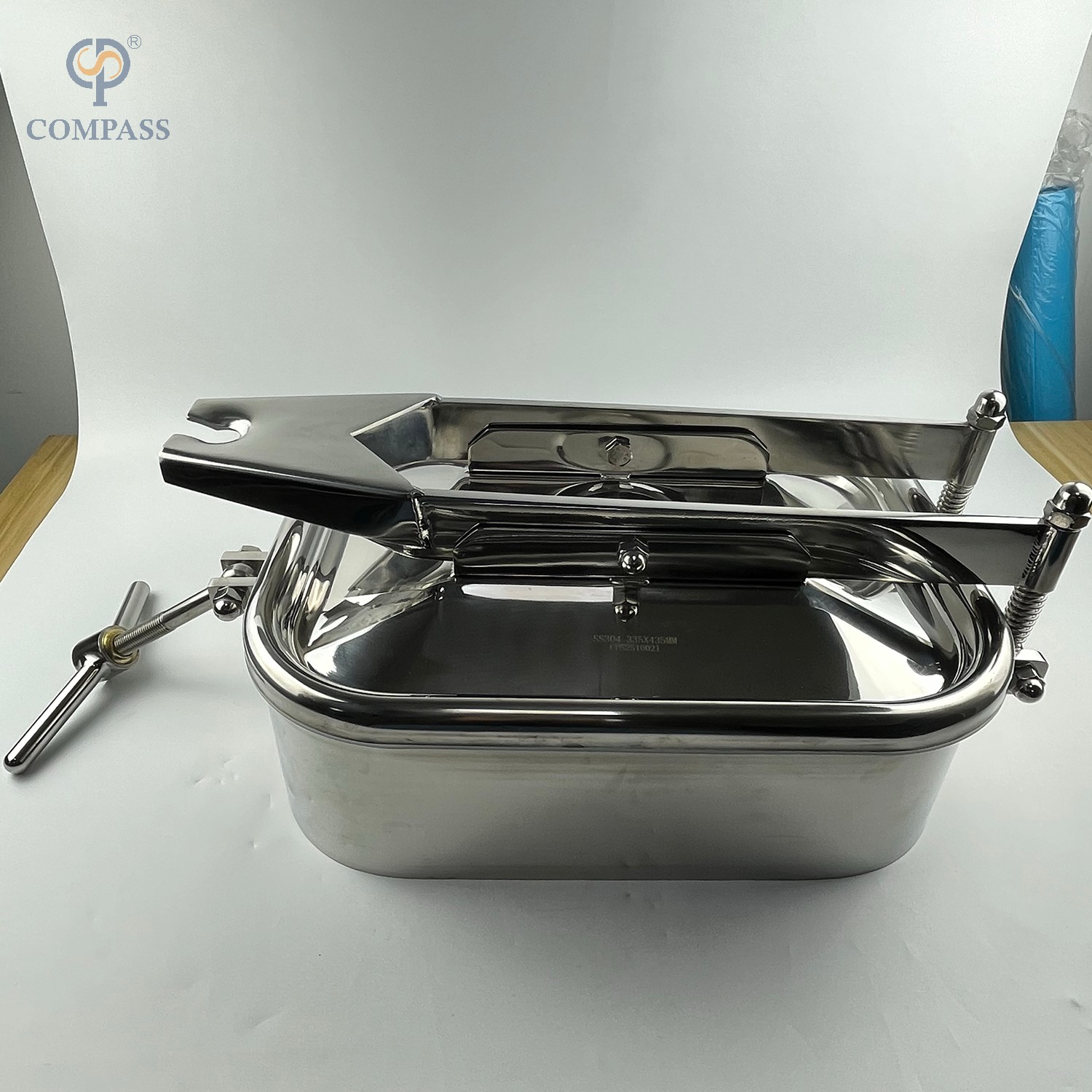

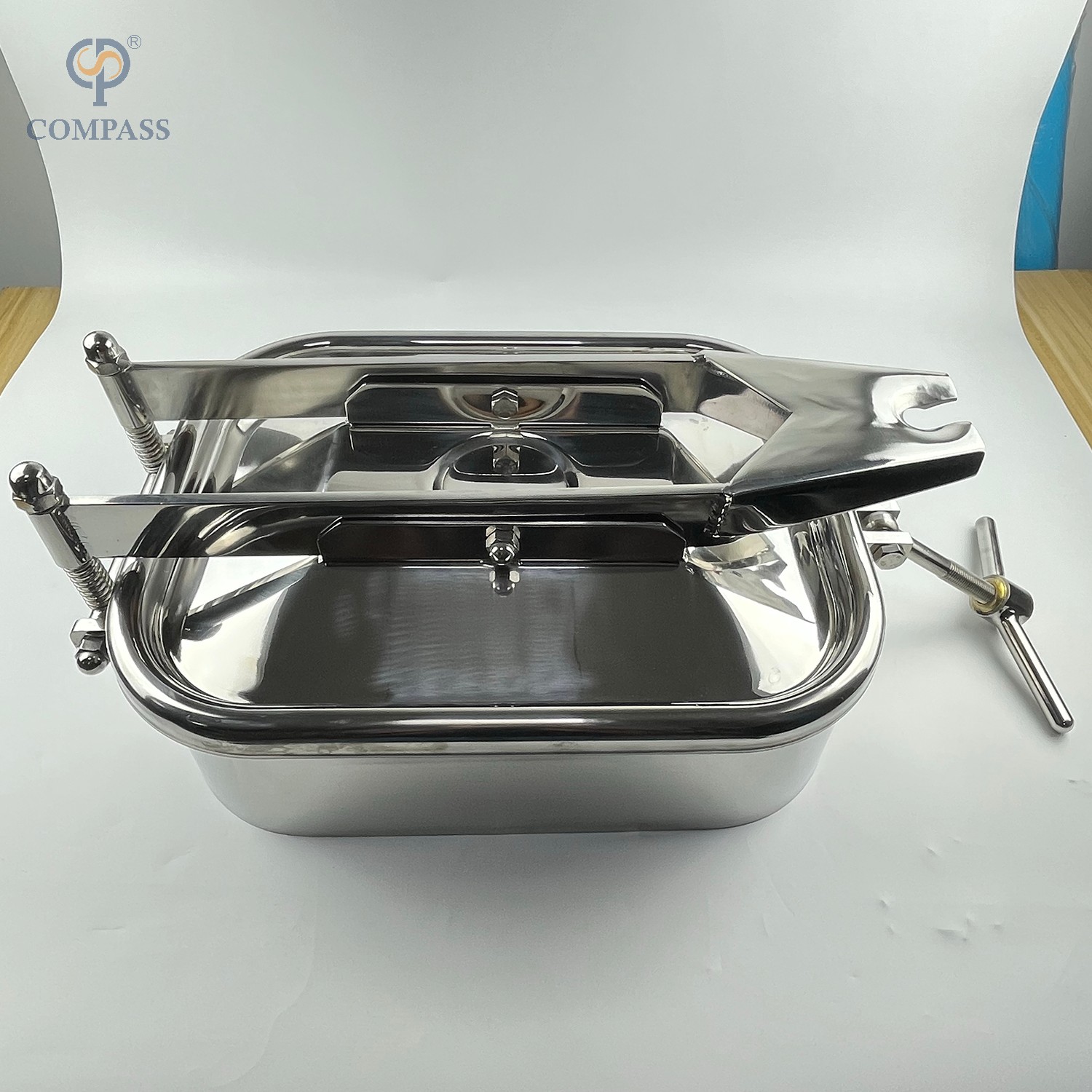

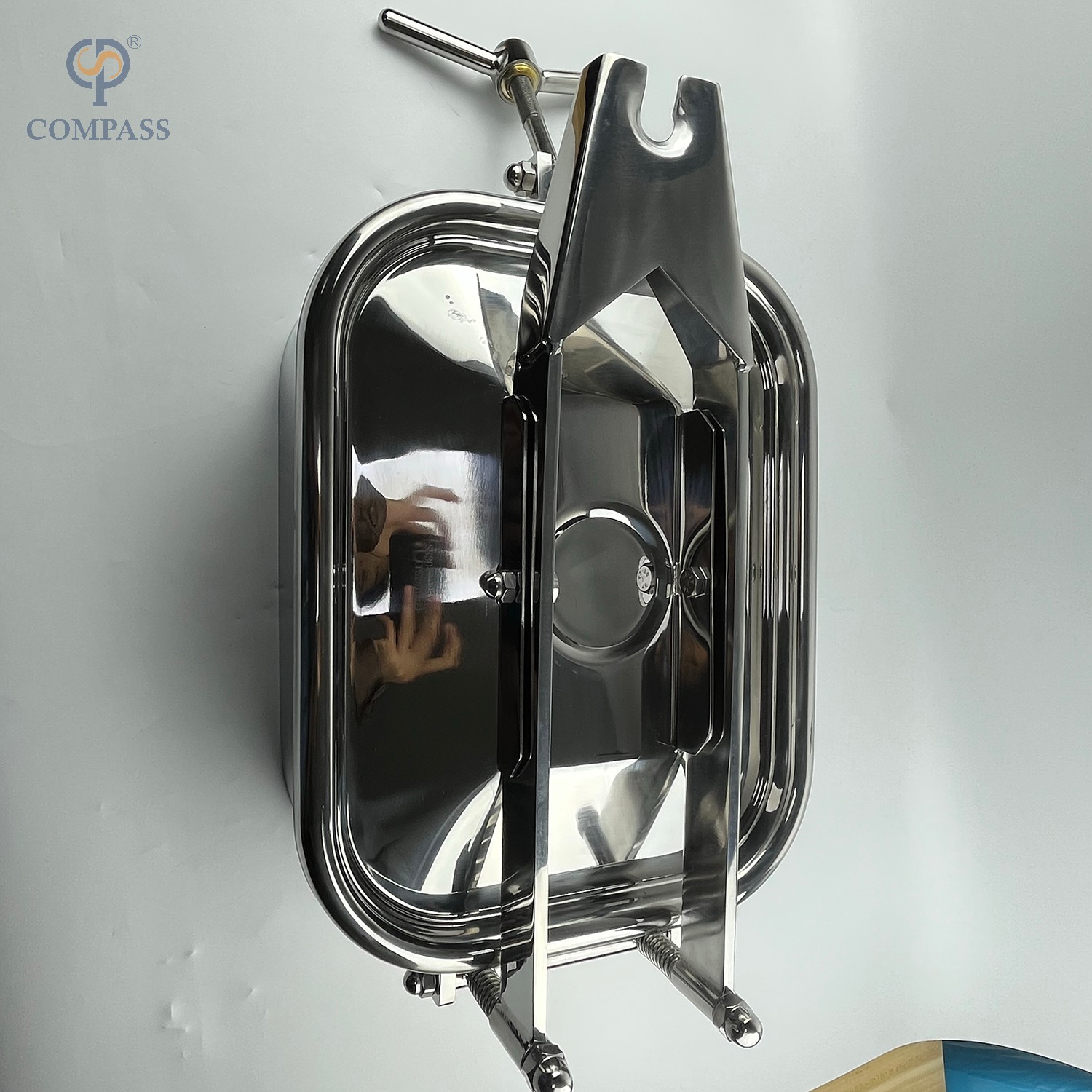

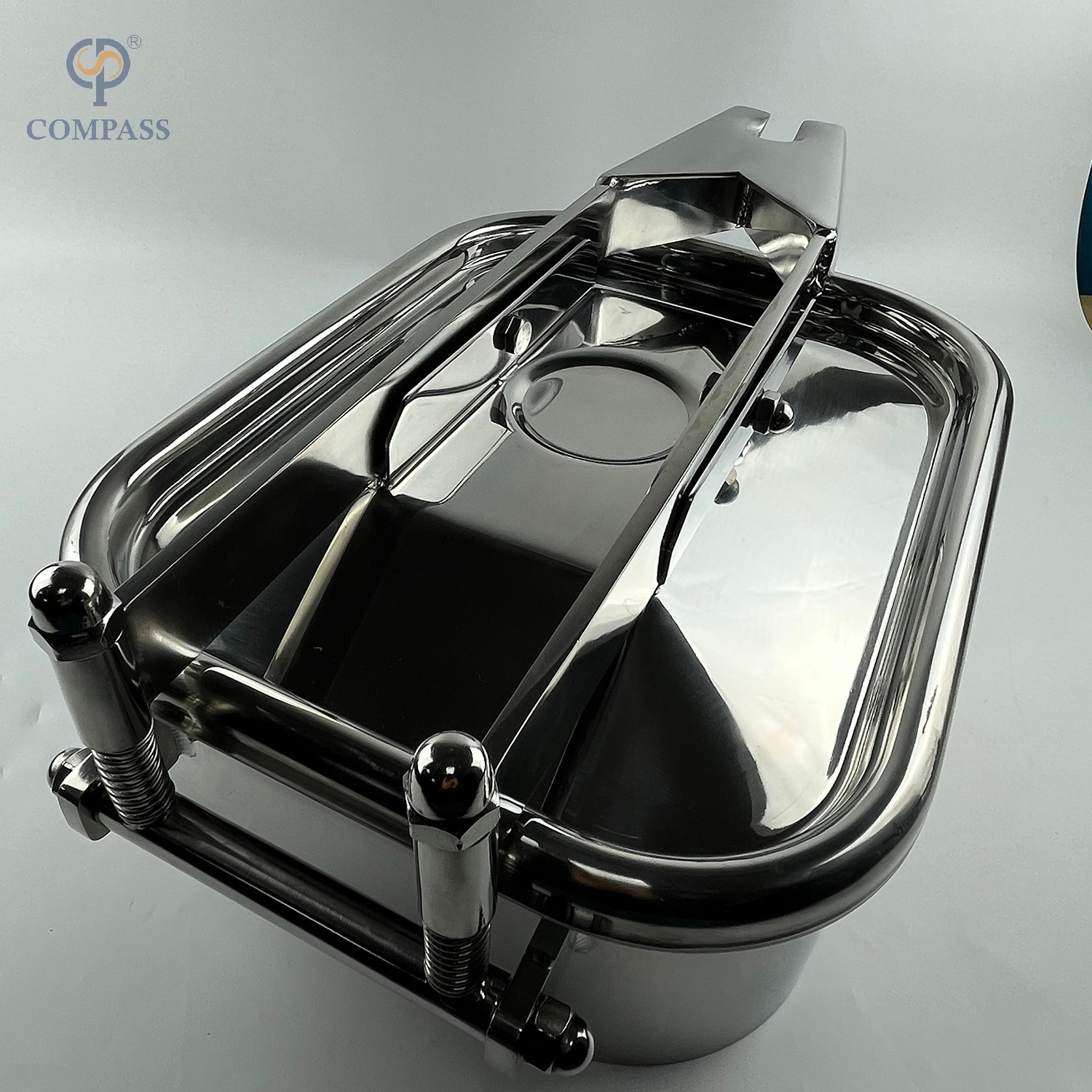

STAINLESS STEEL SS304 OUTWARD RECTANGULAR MANWAYS WITH ONE INTERSECTANT ARMS

Sanitary manholes are used in industrial fields such as dairy products, beer, food, beverages, and pharmaceutical processes.Generally all meet the special requirements of various media in food and biopharmaceutical fields.they are all relatively hygienic industries, completely food machinery industries, especially the equipment of large companies such as brewing and beverages.

Model:
335X435X120MM(H)
Brand:
COMPASS
Code:
030109A432335X435-120

Availability:

Quantity:



Inquire Add to Basket

Main Parameter

Material Contact Parts	SS304/SS316L(1.4301/1.4404)	In accordance with FDA 177.2600 Provided with material inspection report
Material Non-contact Parts	SS304(1.4301)

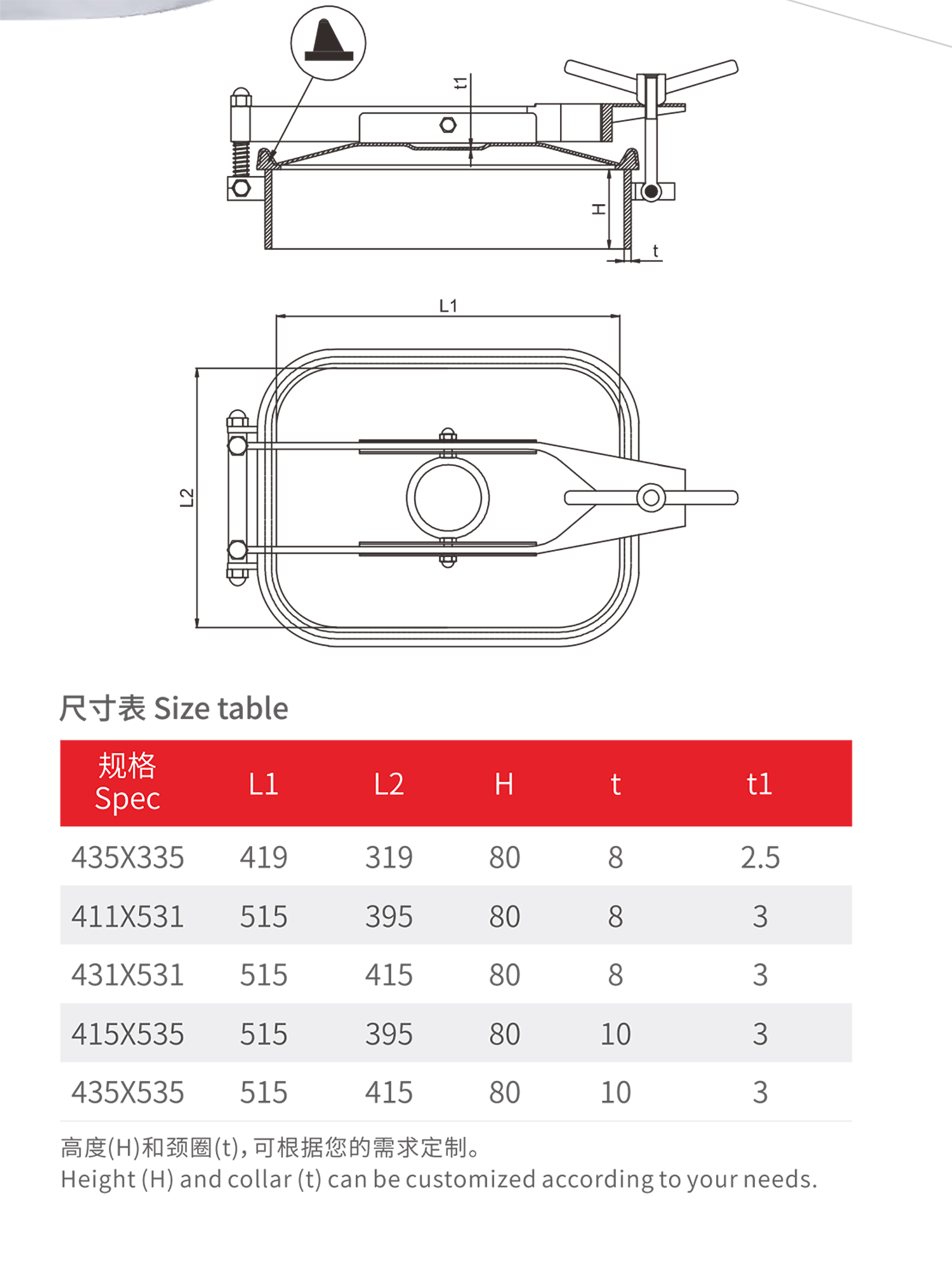

Size	235X185MM, 150X250MM, 430X330MM, 435X335MM, 530X430MM, 535X435MM, 530X410MM, 535X415MM, 435X555MM, 700X500MM
Seal Material	Silicone, EPDM, FKM, Buna. All seals material comply with FDA21CFR117.2600
Height of Frame	80MM, 100MM, 120MM, 150MM, 200MM
Thickness of Frame	5MM, 8MM, 10MM, 12MM
Thickness of Cover	1.5MM, 2MM, 2.5MM 3MM
Pressure Rating	Atmospheric to 1Bar
External Surface Treatment	Ra32~64ui n (0.8~1.6um)
Internal Surface Treatment	Ra16~32uin (0.4~0.8um)
Temperature range	-20~150 ºC (up to Seat Seal)

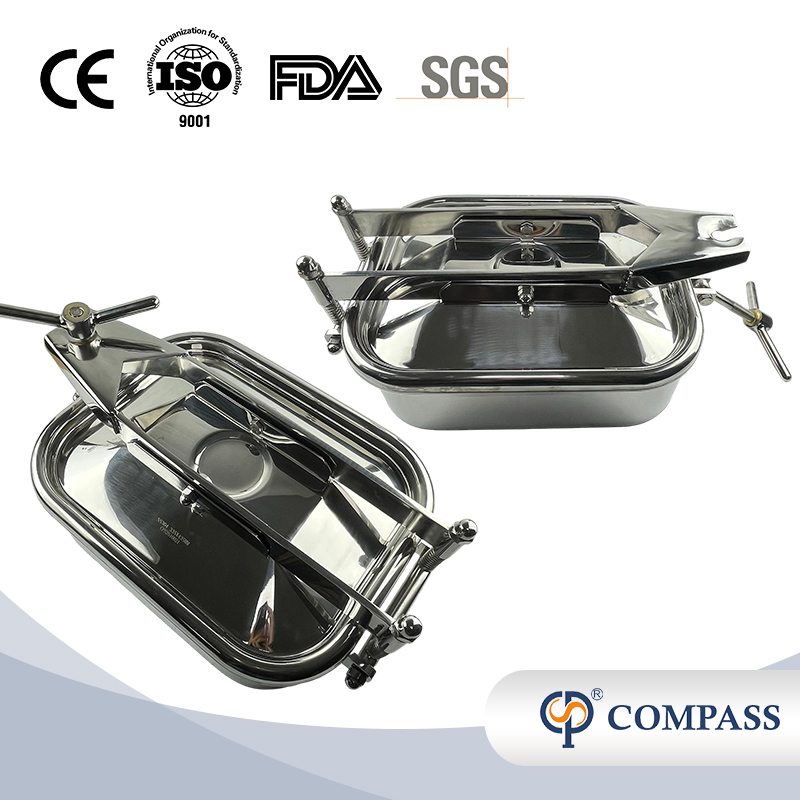

Certificate	ISO 9001, FDA, SGS, CE
Original	Made In China from Compass Machinery

Feature

1. Gasket: Silicone, EPDM, FKM, Buna, . All seals material comply with FDA21CFR117.2600

2. Material: 304(1.4301), 316L(1.4404)
3. Internal surface: 0.8um-0.4um Outside surface: Mirror polished, Matte,sand-blasting finished.

4. Height and frame and cover can be customized according to customer's requirement.

How to Order Manhole Cover ?

1. What's material quality? Such as SS304 and SS316L for optional
2. Which size you need ?
3. What's Polished for External and Internal ?
4. What's material of seal, such as silicone, EPDM or FKM or Buna ?
