Main Parameter
Product Name | Temperature Gauge |
Model | WSS, WSS-30/11,WSS-40/11,WSS-50/1 |
Insertion length | 50.8MM |
Connection | Thread and flange optional |
Dail | 60/100/150mm |
Rod diameter | 6MM |
Type | Raxial (Bottom Connection) Axial (Back Connection) Universal |
Temperature | 0~200ºC |
Application | industrial temperature measuring |
Structural principle

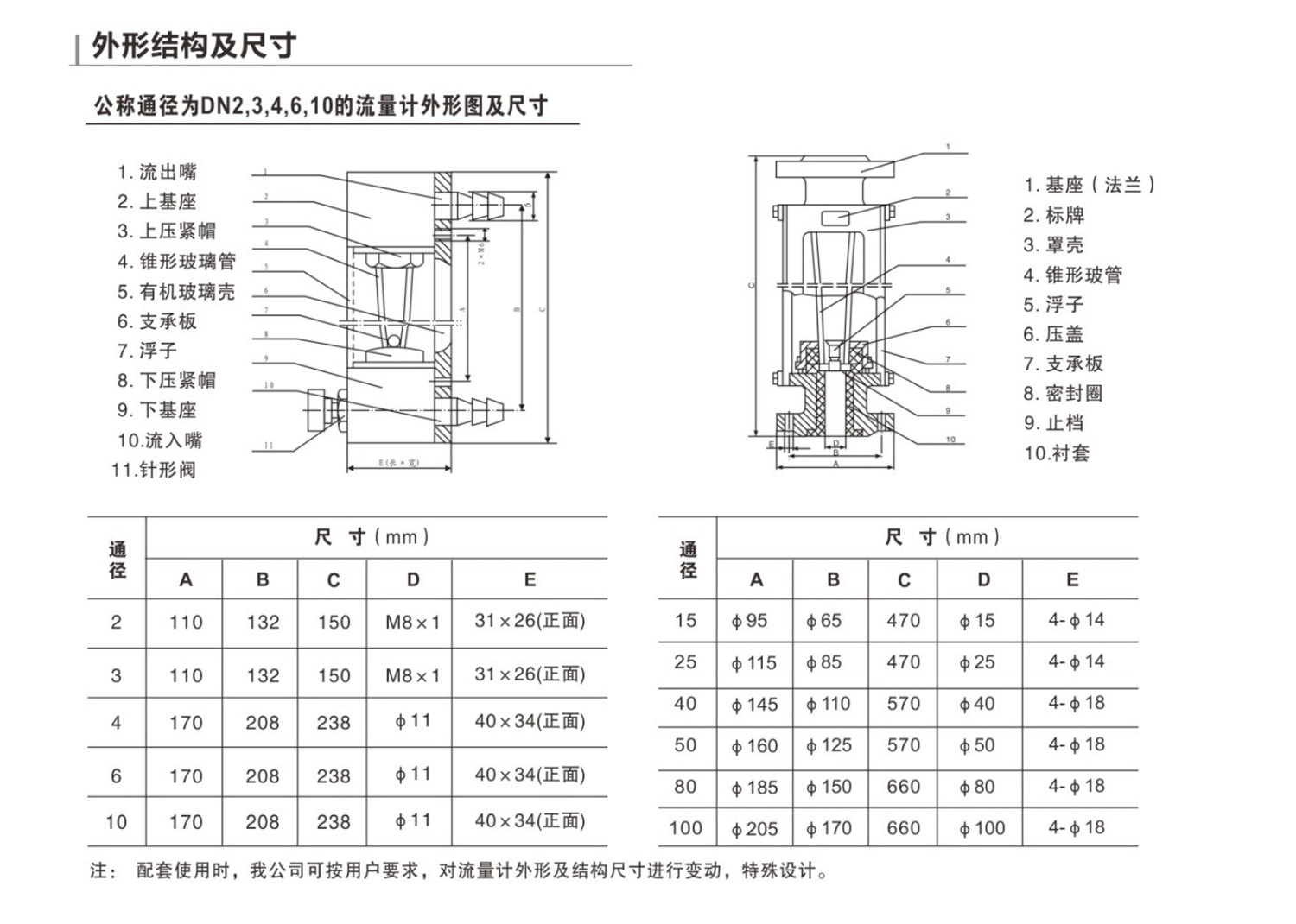

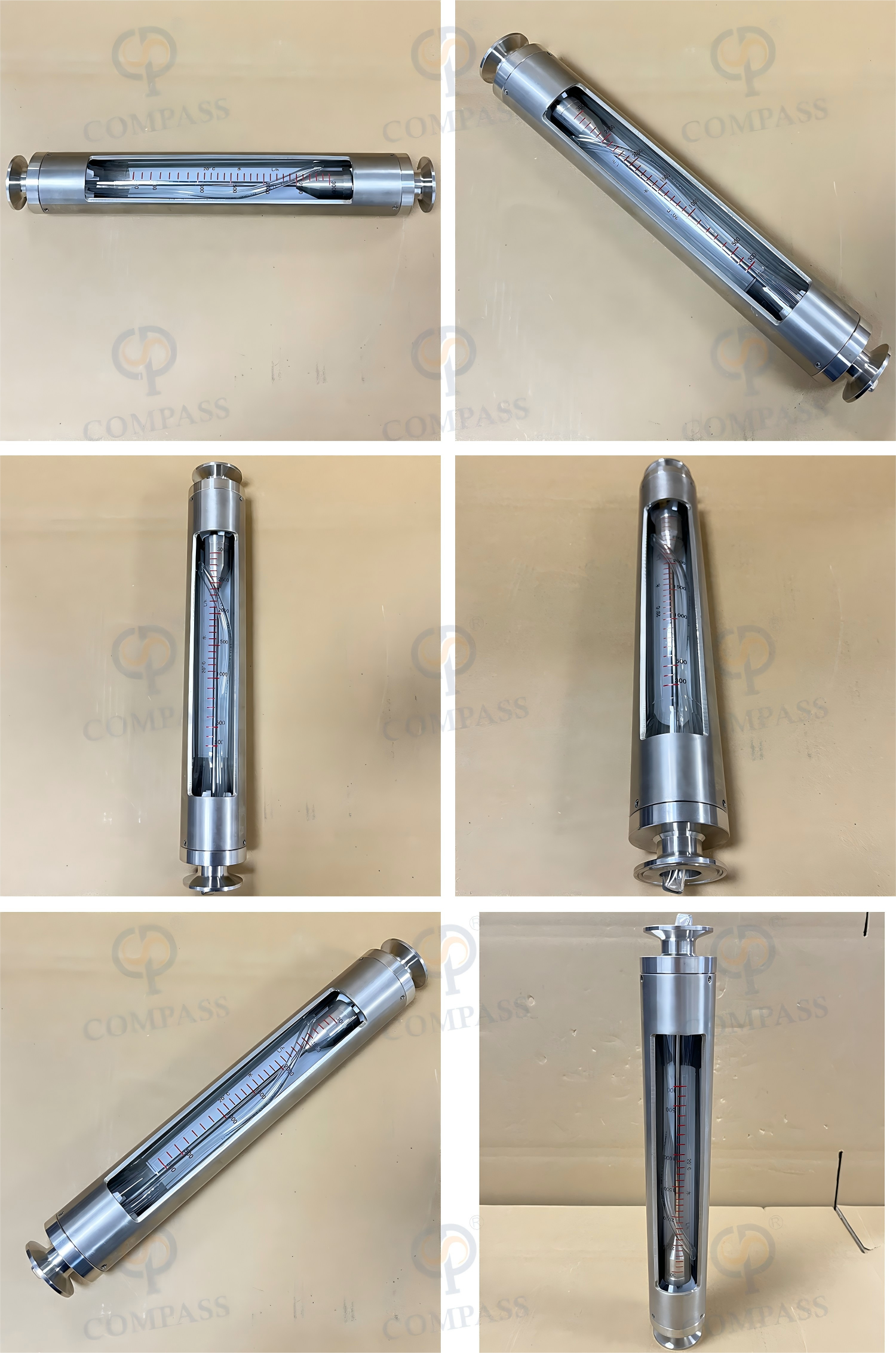

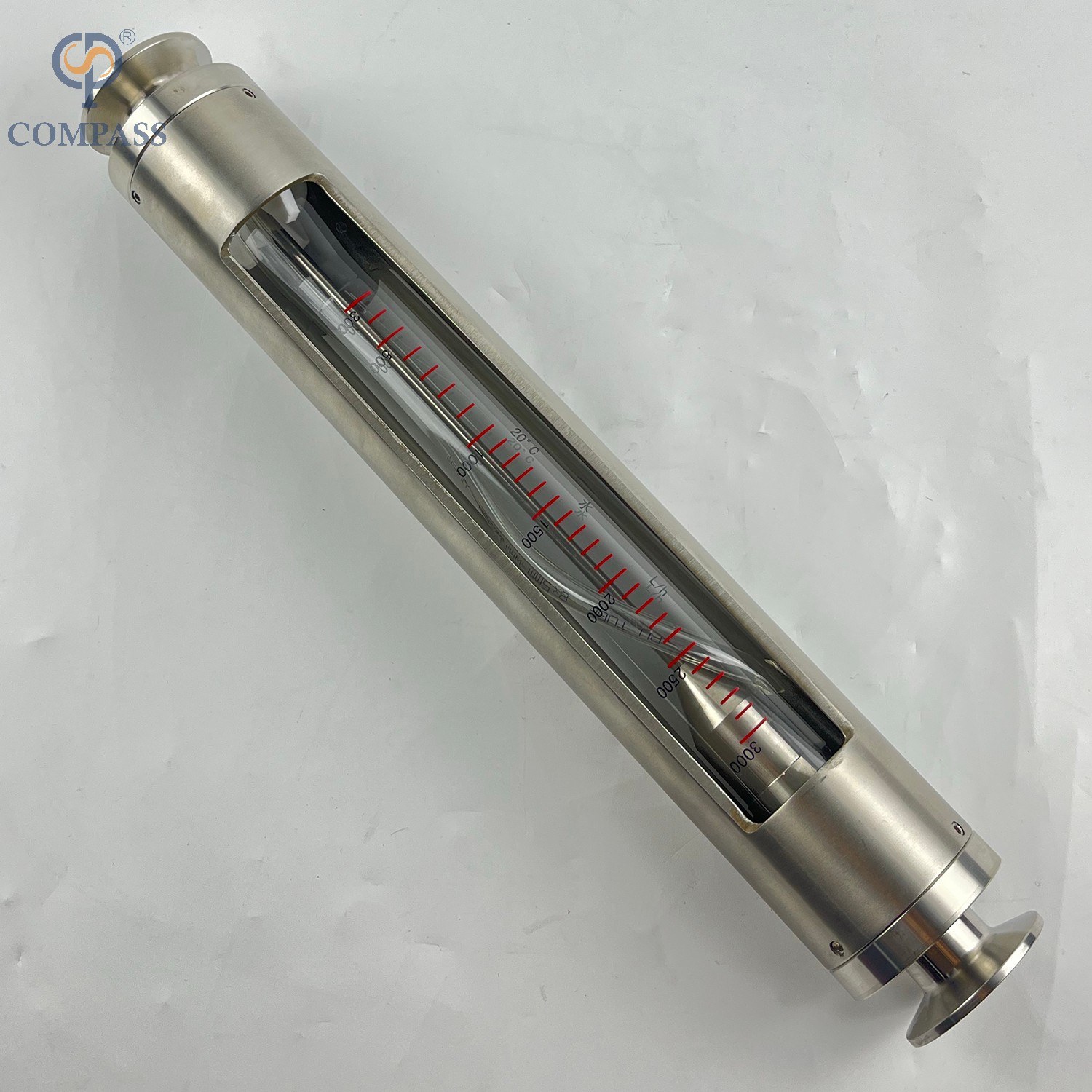

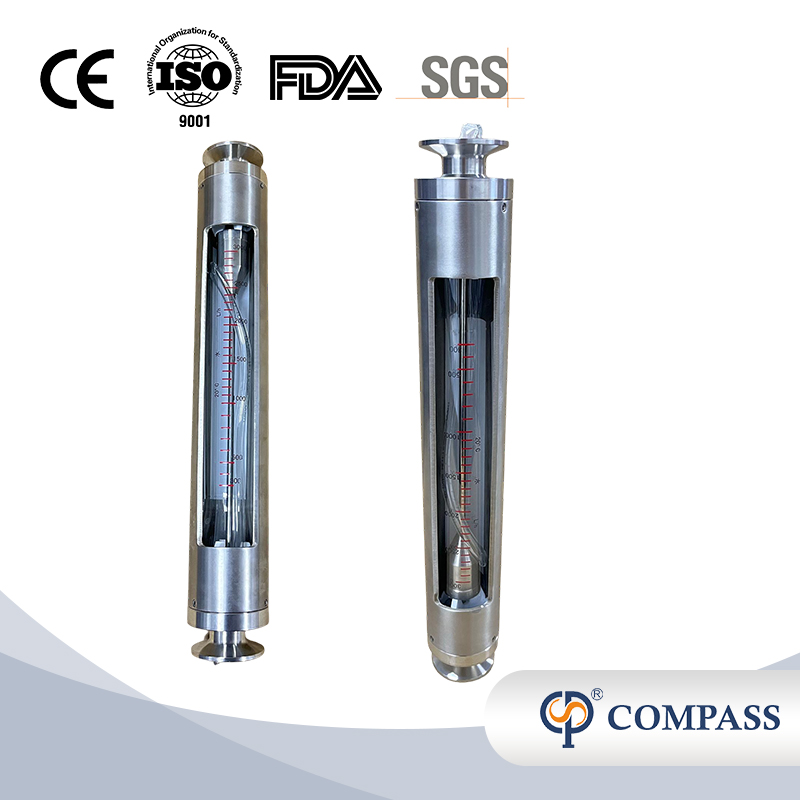

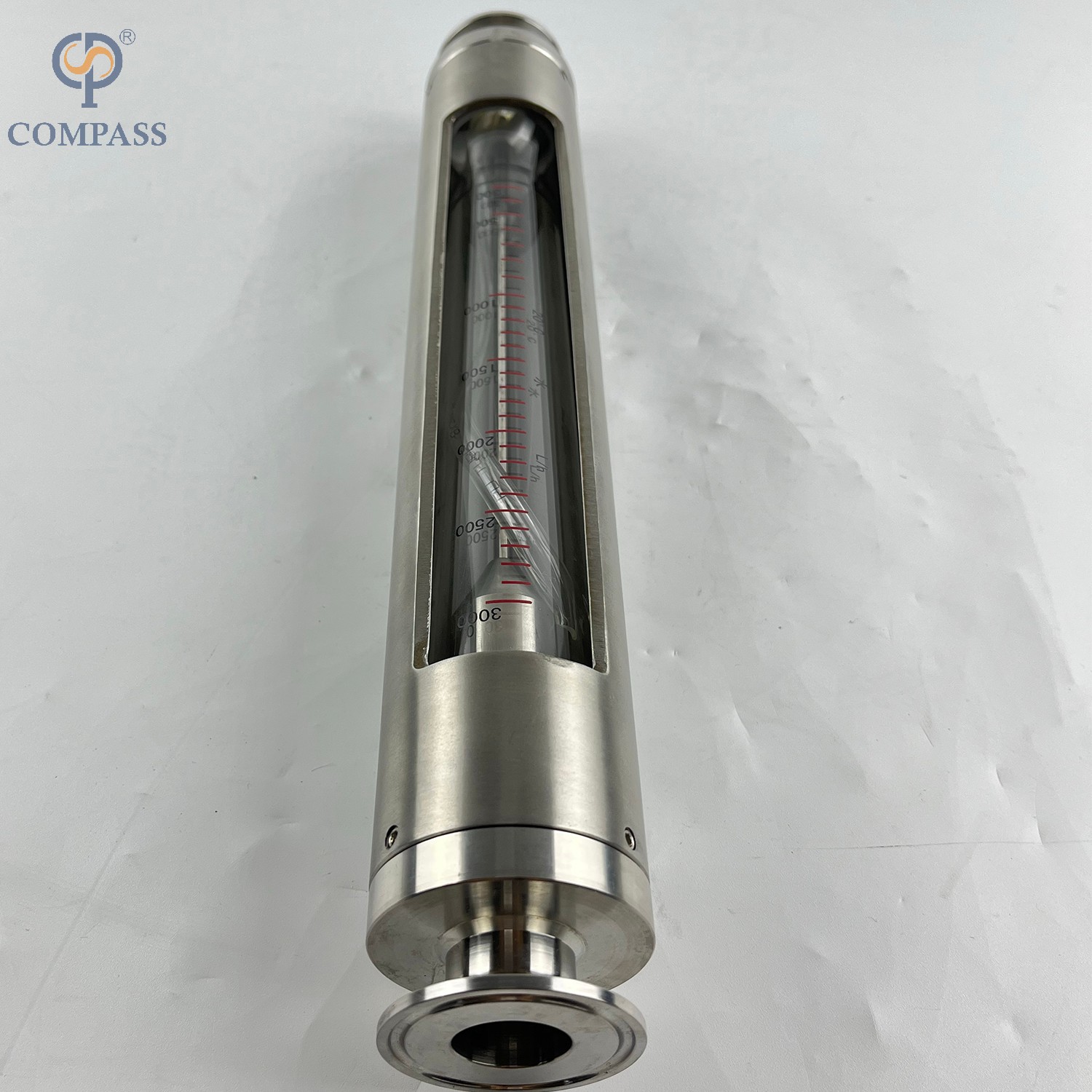

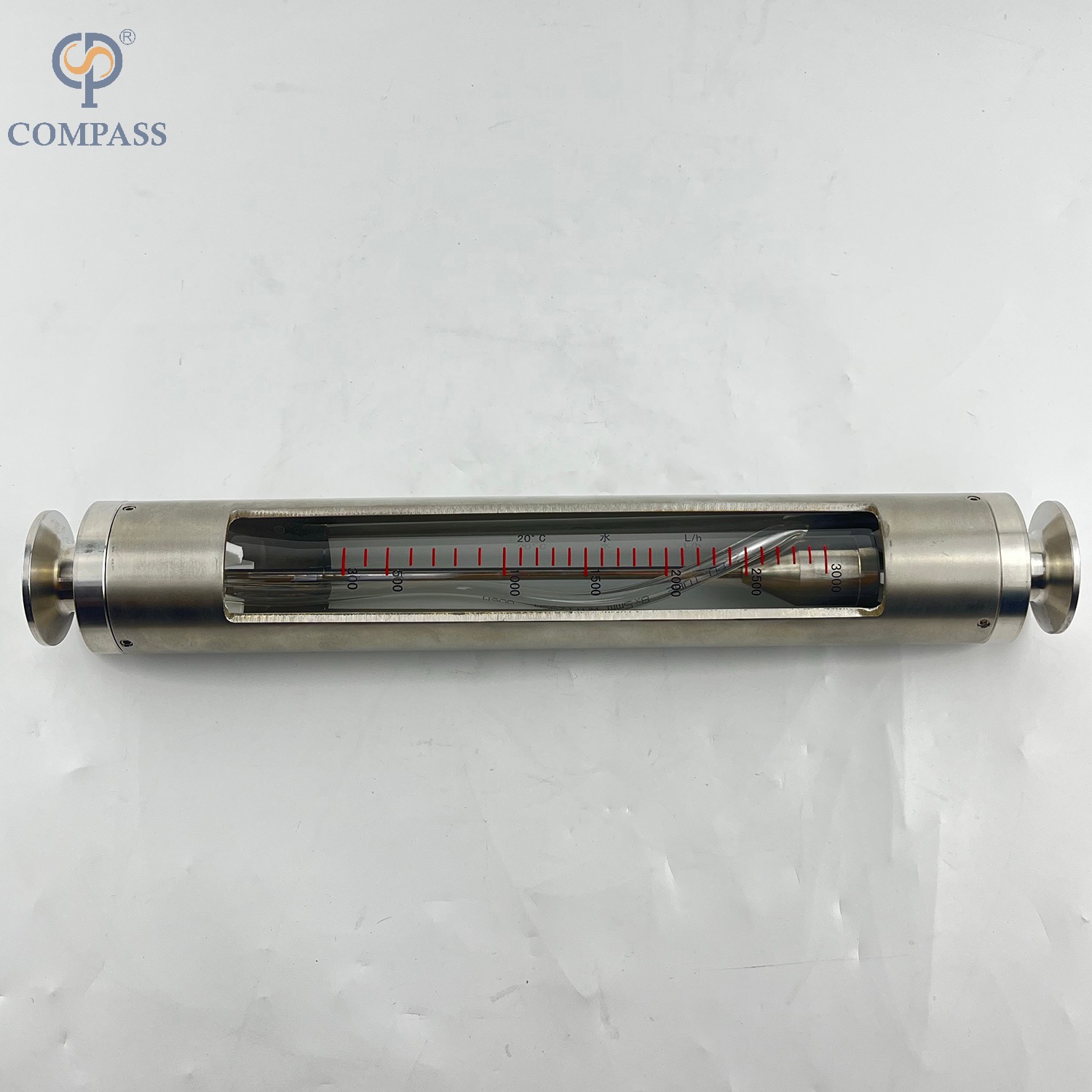

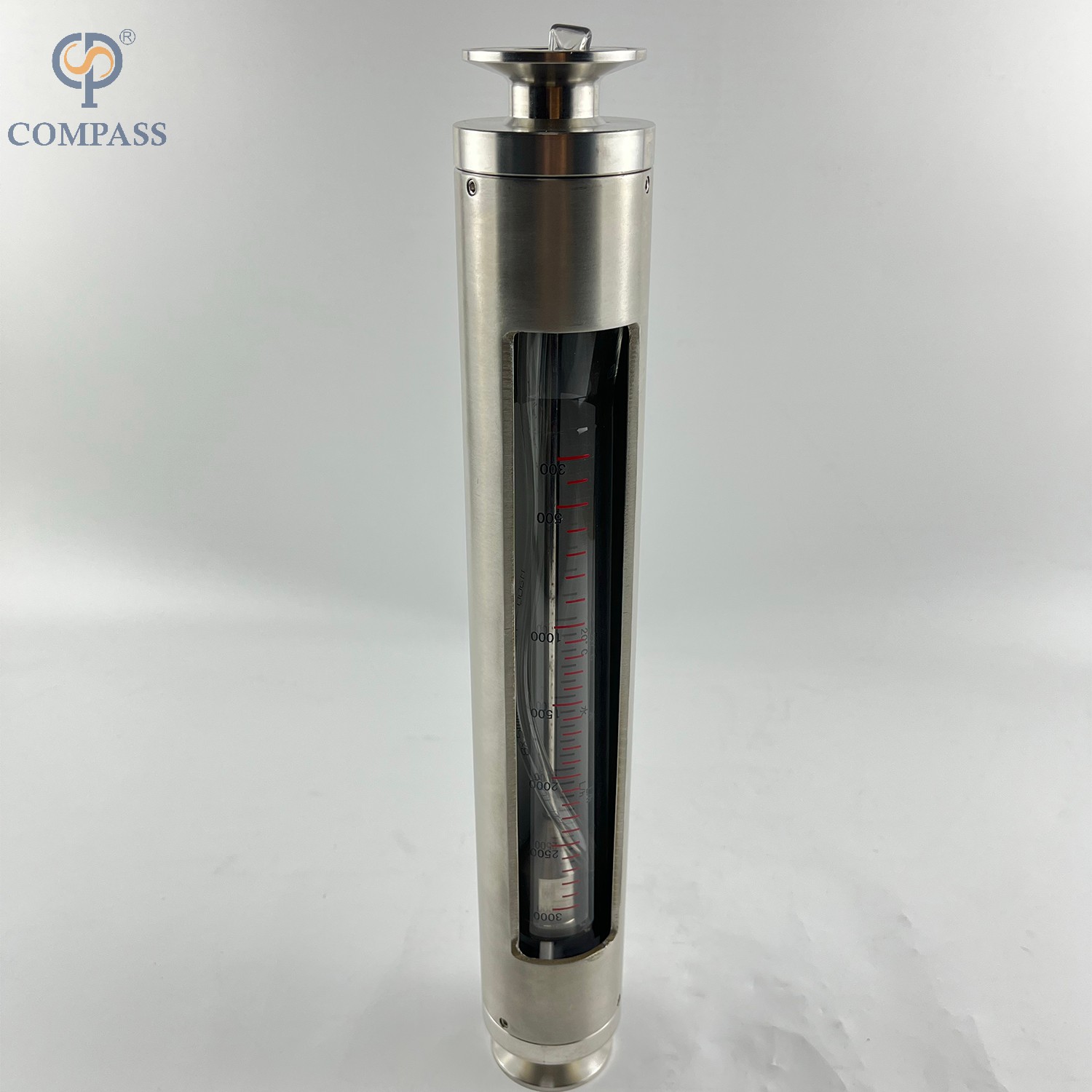

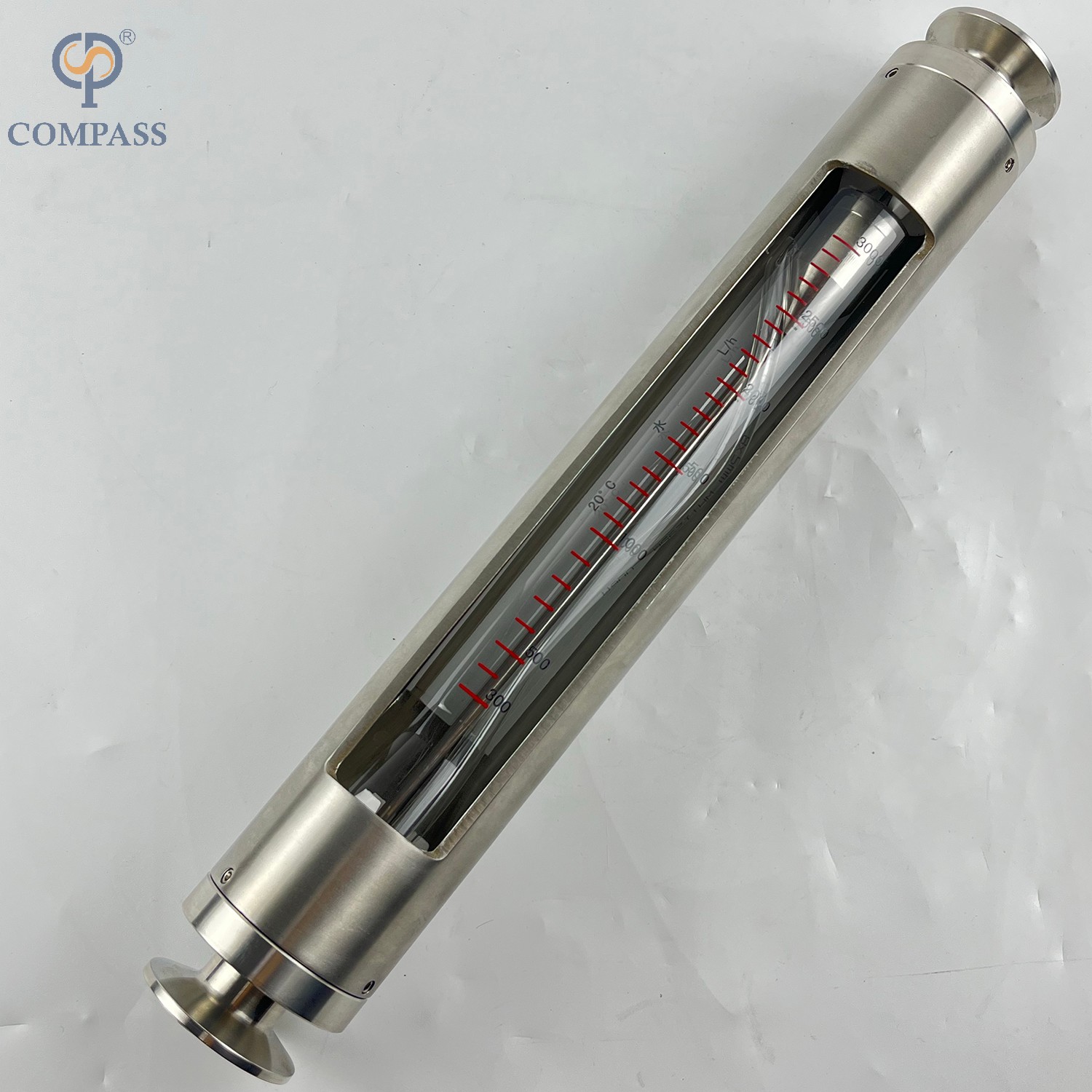

The flowmeter is mainly composed of a conical glass tube that expands from bottom to top and a float that moves up and down with the flow rate of the fluid (Figure 3). When the fluid flows through the conical tube from bottom to top, the lift S generated by the kinetic energy of the fluid on the float and the buoyancy A of the fluid cause the float to rise. When the sum of the lift S and buoyancy A is equal to the weight G of the float itself, the float is in equilibrium and stable at a certain height position. The scale on the conical tube indicates the flow rate value of the fluid

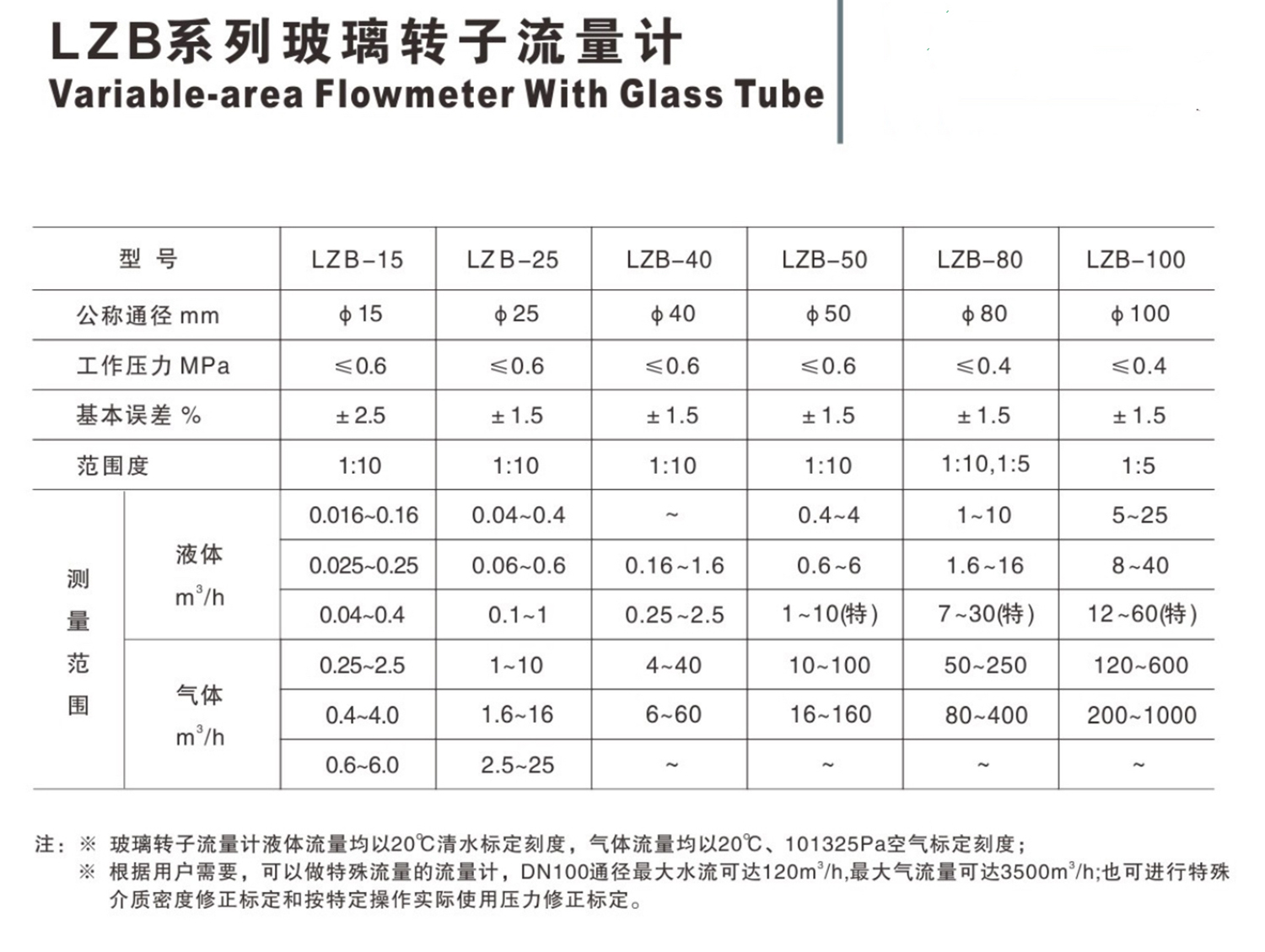

Purpose
Glass rotor flow meters are mainly used in various departments such as chemical, petroleum, light industry, medicine, fertilizer, synthetic fiber, food, dye, environmental protection, and scientific research to measure the flow rate of single-phase non pulsating (liquid or gas) fluids. The corrosion-resistant glass rotor flowmeter is mainly used for detecting the flow rate of corrosive liquids and gas media, such as strong acids ,strong bases, oxidants, strong oxidizing acids, organic solvents, and other corrosive gas or liquid media.
Main Features
Low pressure loss
Reliable performance
Simple structure, easy to install and use
cheap
How to Order ?
1.What's model ？
2.What's material, such as SS304 or SS316L ?
3.Which size, the size is from 1.5"to 4"and from DN40 to DN100 ?
4.What's body combination, such as T11, T12, T21 or T22 ?
