Main Parameter
Stanadrd | SMS, DIN |
Body Material | SS304, SS316L |
Available Size | DN50-DN300 |
Glass Material | Heavy Wall Borosilicate (Pyrex)Tubing, Polycarbonate(bing,
Acrylic Tubing, Tempered Glass |
Gasket Material | Silicone, EPDM, NBR, FKM |
Protection Lens Cove | Polycarbonate Tubing,Acrylic Tubing,Slotted Stainless Steel |
Temperature Range | Minus 20degree Celsius~135degree Celsius |
Pressure Range | 0bar~10bar |
Working Pressure | 6bar |
Inside and Outside(Mirror Finish) | RA ≤ 0.8um |
Inside and Outside Electrolytic Polishing | RA ≤ 0.8um |
Spare Parts | With Wiper or Without Wiper |
Warrenty | One Year |
Support | OEM, ODM Are Welcome |
Application | Food-Processing, Beverage, Beer, Pharmaceutical |
Machine Processing | The most advanced CNC machine from Japan for processing |
Function and Applicable Scenarios
Mainly used in industries such as petroleum, chemical, food, and medicine, it determines process parameters by observing fluid color and flow state,
..
Main Features
Intuitive monitoring of traffic flow
Check the fluid condition
sampling point
Combined with automatic control
Main application areas
Anti clogging and anti settling:
When the fluid flow rate is low or stops, the solid particles inside will naturally settle due to gravity.
If it is a concentric design, the particles will settle evenly at the bottom of the pipeline, making it easy to completely block the observation window at the bottom.

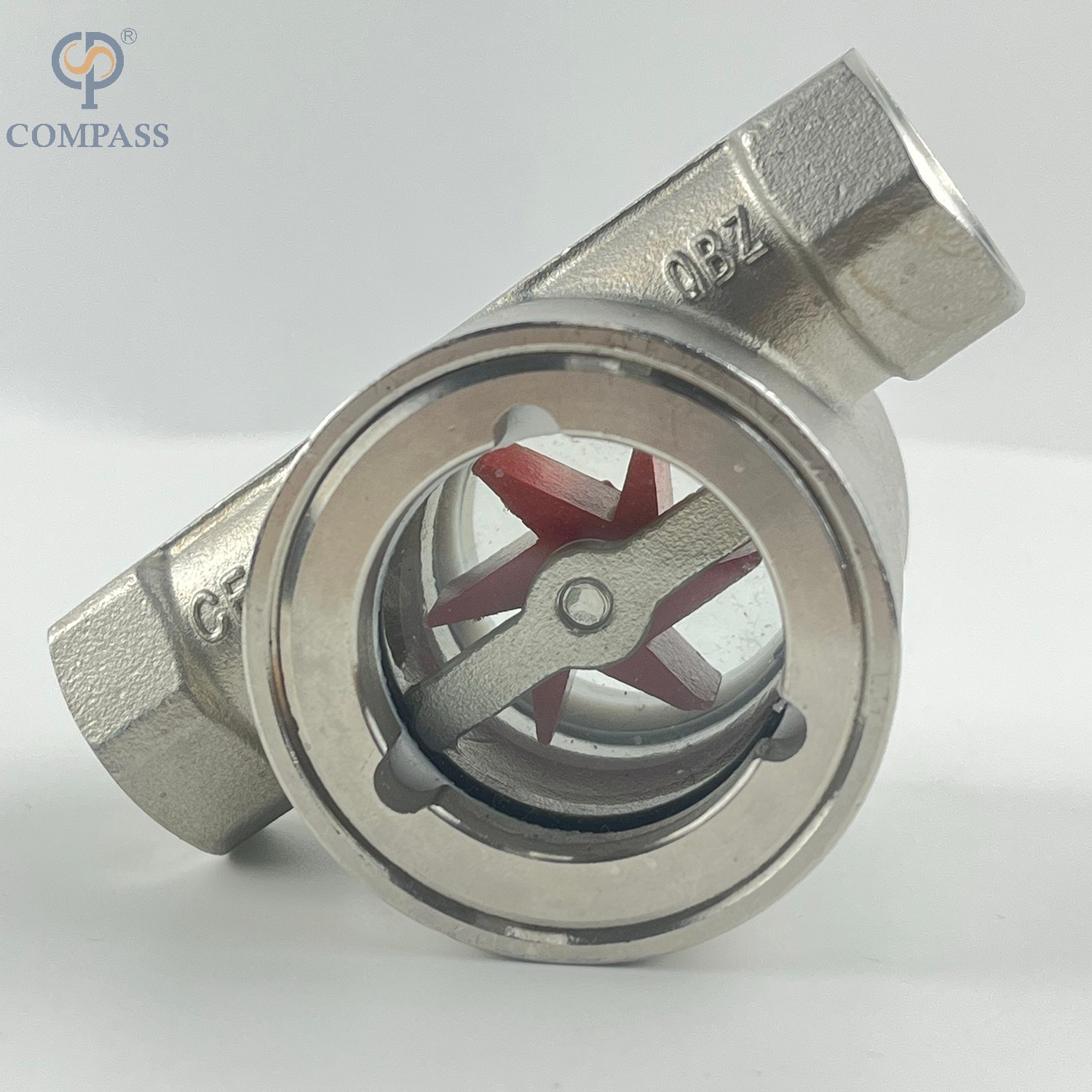

The eccentric design allows the observation window to be located on one side of the pipeline (usually above), and settled solid particles will accumulate at a low position off center at the bottom of the pipeline, thus maximizing the smoothness of the observation window area and avoiding the risk of complete blockage.
Wear resistance
The solid particles in the slurry cause severe wear and tear on pipelines and equipment (known as "abrasion").
The eccentric design ensures that the heavy metal body of the pipeline, rather than the relatively fragile observation mirror, is mainly impacted and worn by high-speed fluids and particles, thereby protecting the mirror and extending its service life.
How to Order Sight Glass?
1.What's material, such as SS304 or SS316L ?
2.Which size, the size is from DN50 to DN200 ?
3. What's pressure rating you need ?
4. Do you need wiper or not ?
5. How many quantity ?
