Main Parameter
Stanadrd | SMS, DIN |
Body Material | SS304, SS316L |
Available Size | DN50-DN300 |
Glass Material | Heavy Wall Borosilicate (Pyrex)Tubing, Polycarbonate(bing,
Acrylic Tubing, Tempered Glass |
Gasket Material | Silicone, EPDM, NBR, FKM |
Protection Lens Cove | Polycarbonate Tubing,Acrylic Tubing,Slotted Stainless Steel |
Temperature Range | Minus 20degree Celsius~135degree Celsius |
Pressure Range | 0bar~10bar |
Working Pressure | 6bar |
Inside and Outside(Mirror Finish) | RA ≤ 0.8um |
Inside and Outside Electrolytic Polishing | RA ≤ 0.8um |
Spare Parts | With Wiper or Without Wiper |
Warrenty | One Year |
Support | OEM, ODM Are Welcome |
Application | Food-Processing, Beverage, Beer, Pharmaceutical |
Machine Processing | The most advanced CNC machine from Japan for processing |
Product Overview

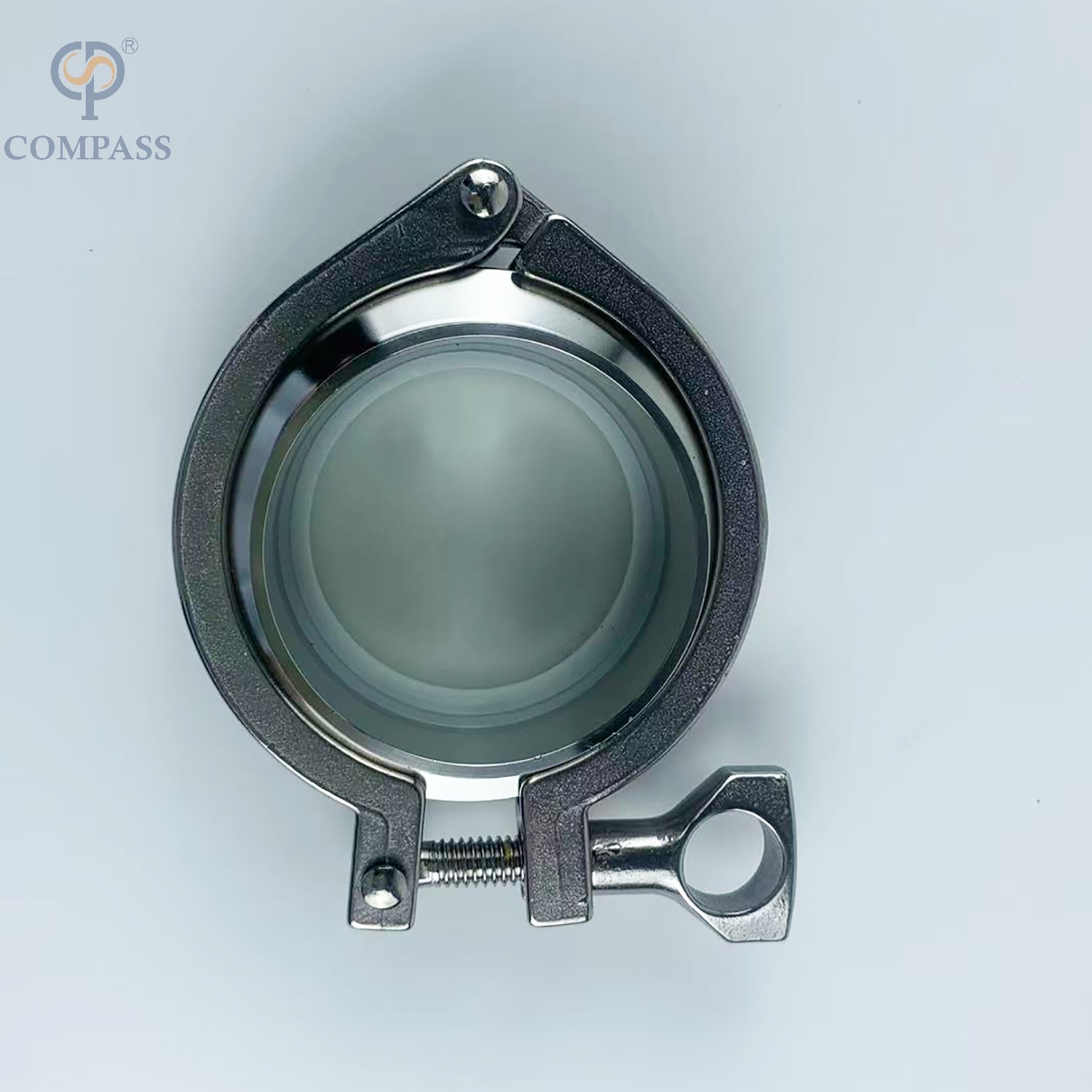

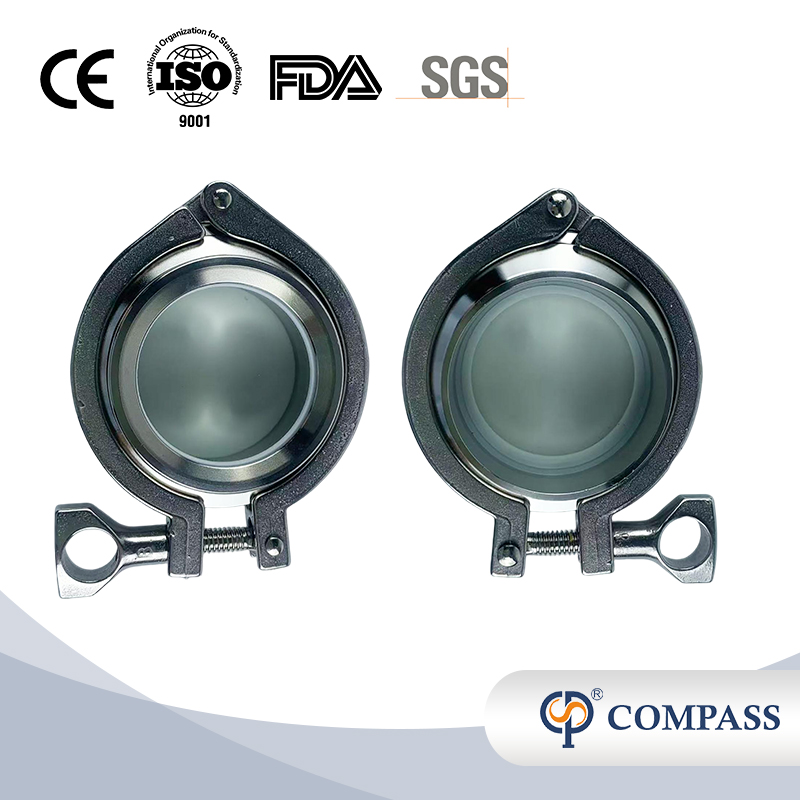

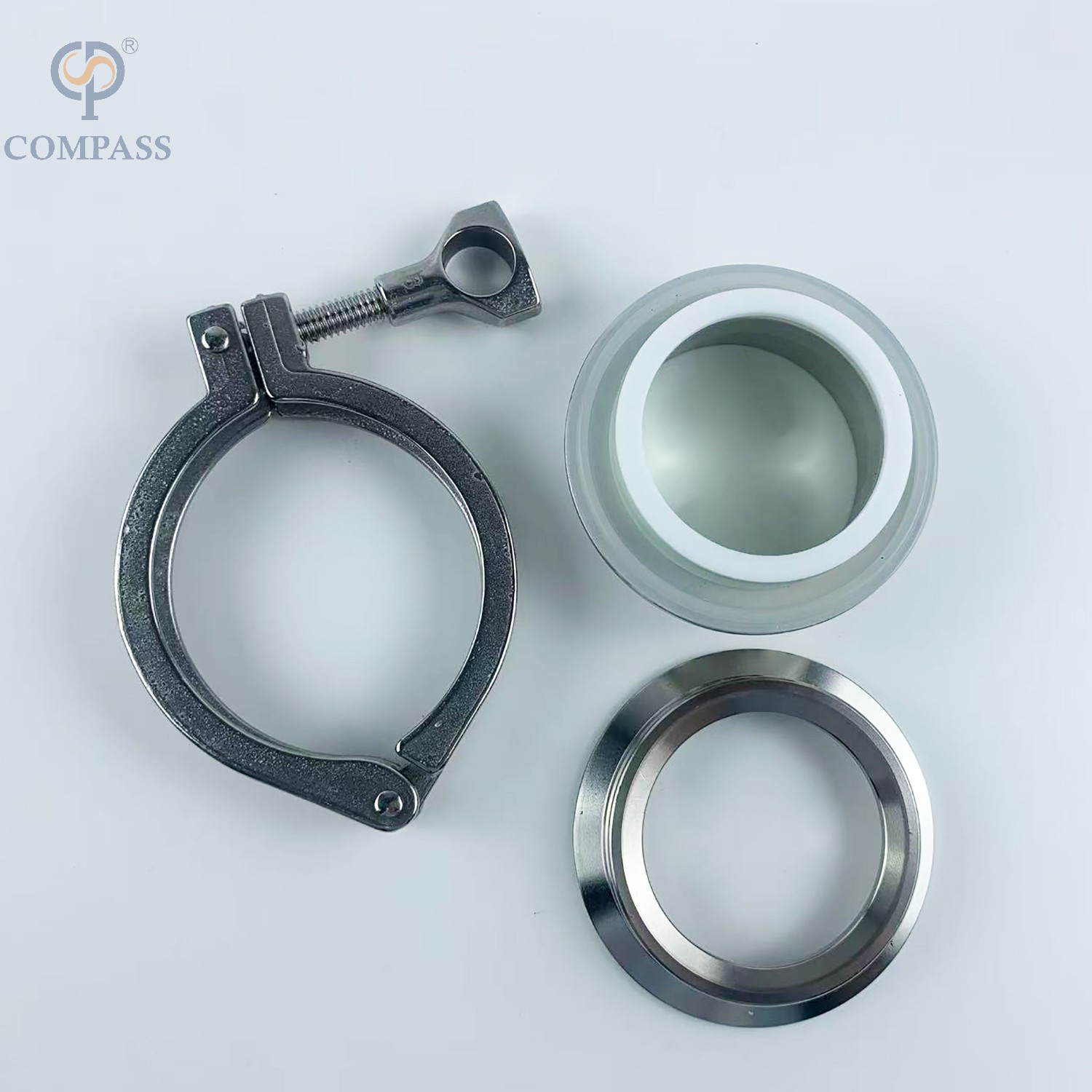

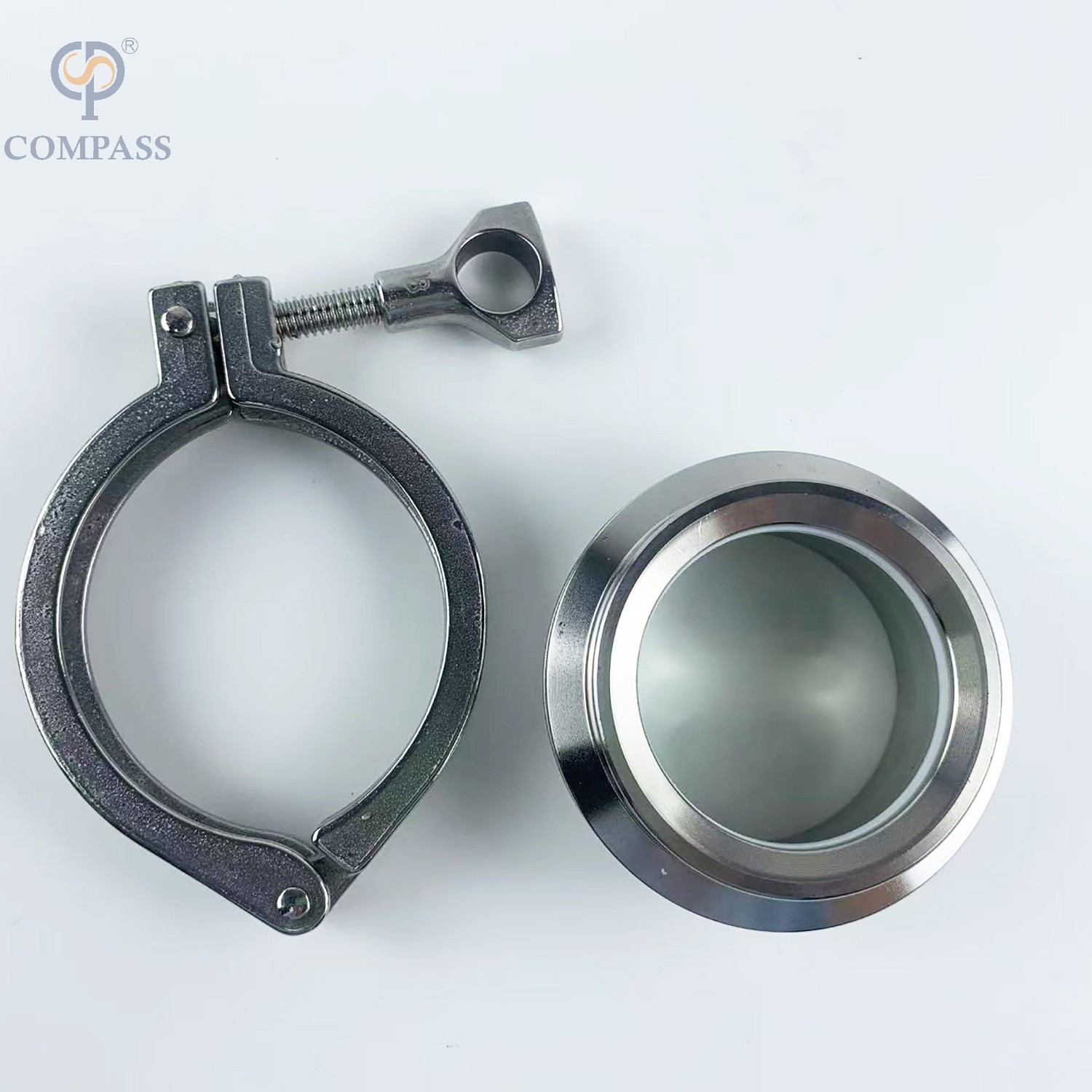

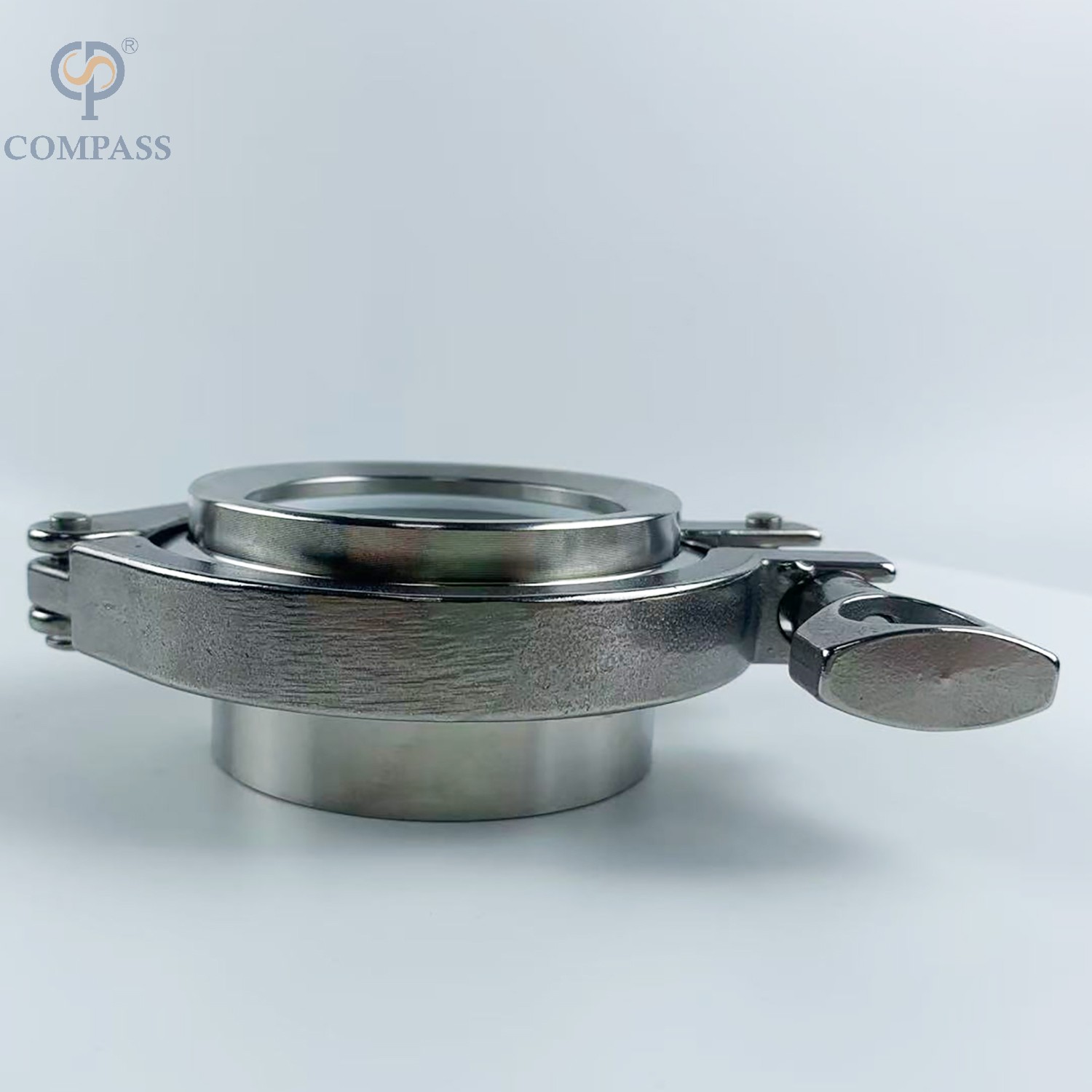

The stainless steel integrated tank top movable contact mirror is installed on pressure vessels, vacuum vessels, tanks, reactors, filters, boiling beds, and other tanks and sealed containers. It can observe the internal situation of the container under the same pressure and temperature conditions as the container.
Application
Chemical industry: paint, coating, lubricating oil, detergent, etc. Household chemicals: toothpaste, shampoo, cosmetics, soap, etc. Food industry: ice cream, dairy, condiment, beverage, chili patse, etc. Pharmaceutical industry: syrup, nutrient solution, cod-liver oil, ointment, etc.

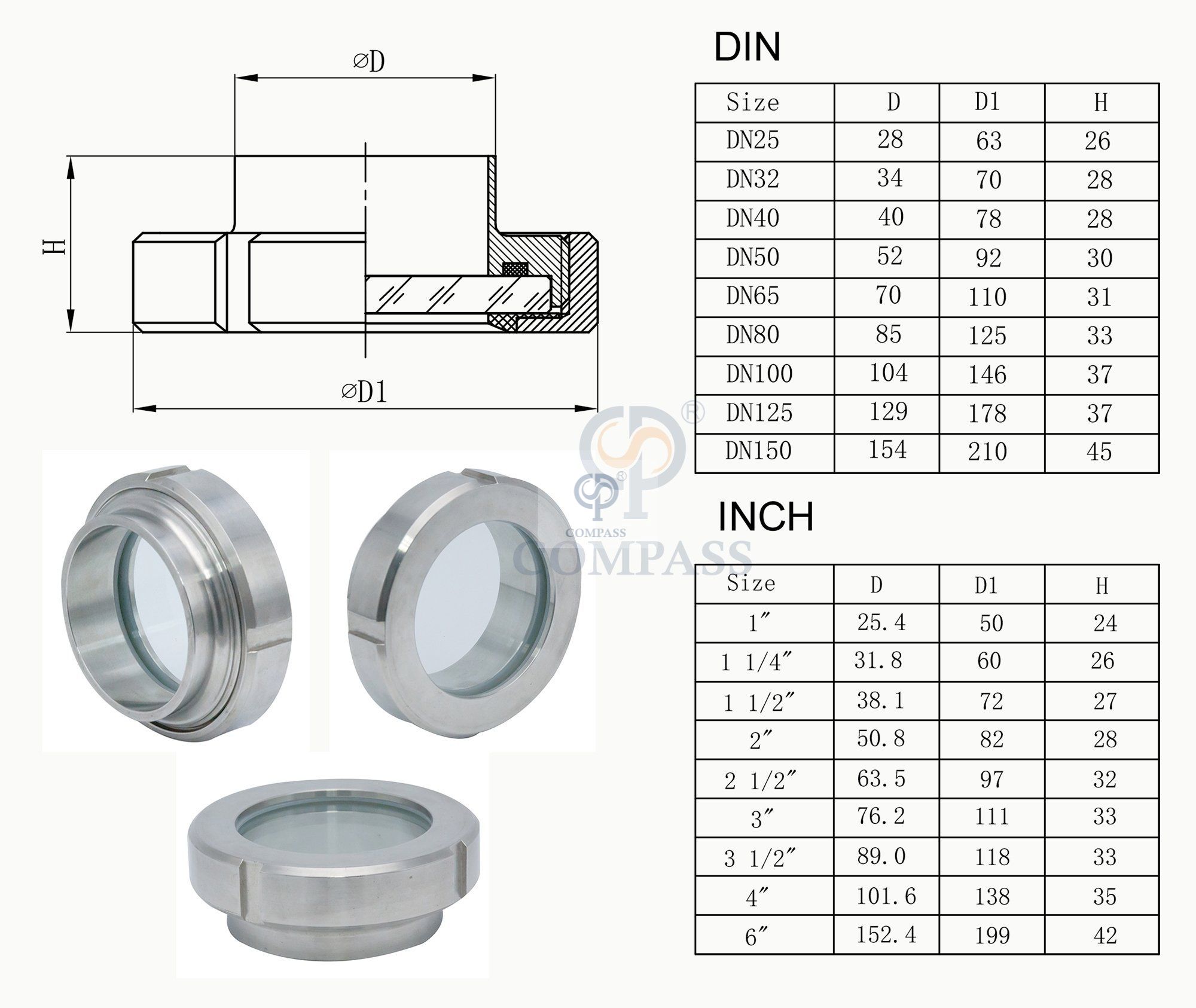

Complete specifications
You can call to customize yourfavorite products and producevarious products according toyour needs.
How to Order Sight Glass?
1.What's material, such as SS304 or SS316L ?
2.Which size, the size is from DN50 to DN200 ?
3. What's pressure rating you need ?
4. Do you need wiper or not ?
5. How many quantity ?
