3A Manual Sanitary Butterfly Valve for pharmacy

Description of commodity: Stainless Steel Sanitary Welding Manual Butterfly Valves

Specification:

• Available Sizes: 1/2"-12", DN15-DN300

• Material: Valve body and disc material can be SS304 or SS316L , SS304L , SS316L , SS321 material are availble upon request.

• End Connections: Clamp to clamp, weld to weld, male to male, male to clamp, male to weld, clamp to weld, flange to flange, flange to union end, and so on

• Standard: SMS, DIN, 3A, ISO, RJT .

• Handle: Stainless steel pull handle, plastic gripper handle, stainless steel gripper handle.

• Seal Type: Silicone, EPDM, Viton(FKM), Buna

• Actuator: Pneumatic actuator stainless steel sanitary butterfly valves, pneumatic aluminum actuator sanitary butterfly valves, electric actuator sanitary butterfly valves

Operating Principles:

• Stainless steel sanitary butterfly valves can be opened automatically through actuator or manually with handle.

• The handle blocks hygienic butterfly valves in the " open " or " closed " postion, certainly there are the other postion available.

• The actuator push piston of axial movement into 90 degree so that it controls sanitation butterfly valves.

Technical Specifications:

• Max. pressure: 10bar(DN25 / DN100), 8bar(DN125 / DN150)

• Min. pressure: 0.2bar

• Temperature range：-5 ~ 266°F(-15 ~ 130℃) with EPDM seat，-31 ~ 392°F(-35~ 200℃) with silicone seat,

  10~ 392°F(-10 ~ 200℃) with silicone seat

Design and Features:

• Compact and robust design

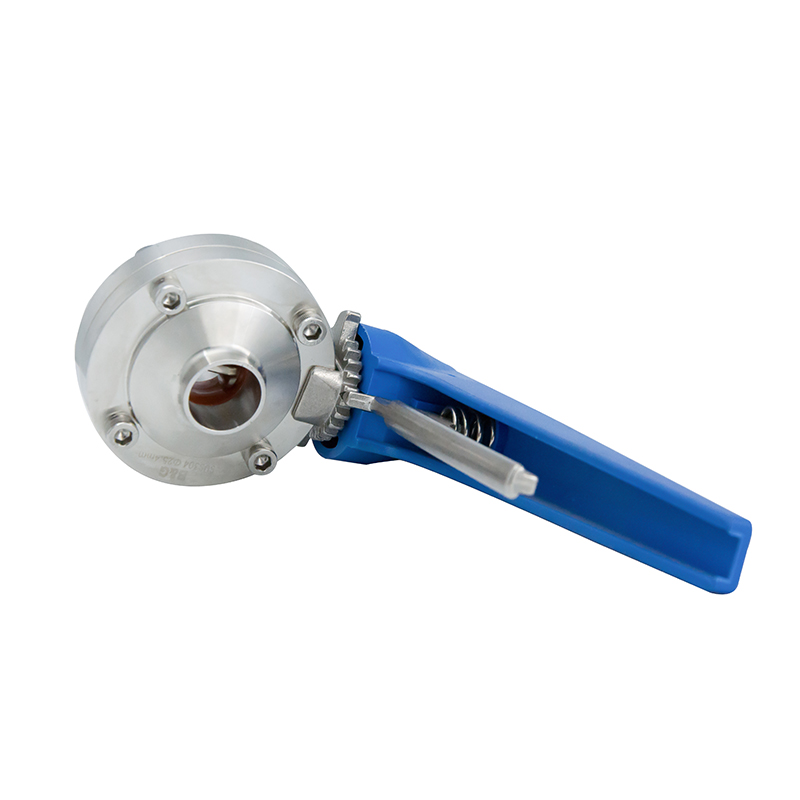

• The size of multi - position handle up to 1/2" / DN15 to 4" / DN100

• The size of full handle up to 1/2" / DN15 to 12" / DN300

• Manual handle, pneumatic actuator, electric actuator can be exchangeable with each other.

• Low pressure losses

• The valves body can be changeable with any kind of connection.

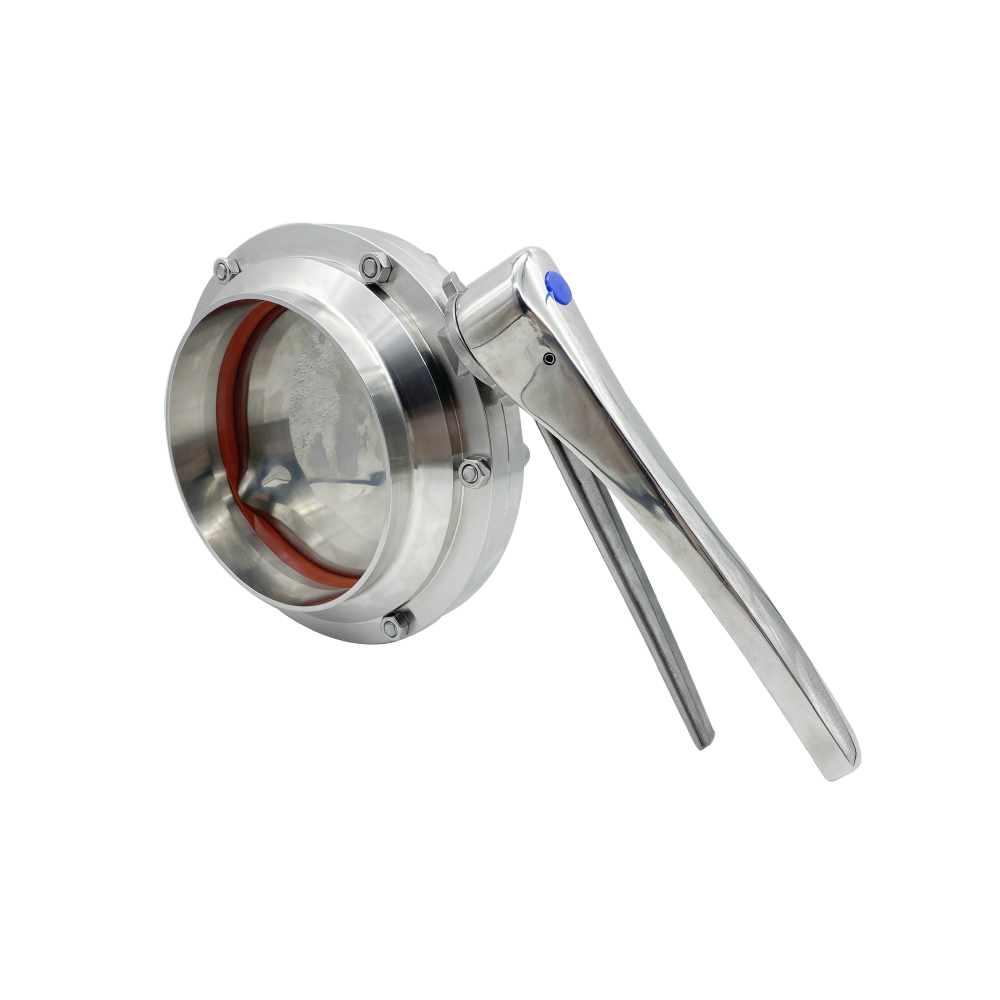

For example of stainless steel manual weld end sanitary butterfly valves
