SS304 vs SS316L Sanitary Check Valves: Which Material Should You Choose?

Specifying the wrong alloy in high-purity fluid handling systems introduces hidden operational costs that can cripple a facility. You constantly balance upfront capital expenditure against the severe risks of localized corrosion, product contamination, and unplanned downtime. Incompatible valve materials directly cause these catastrophic failures. When aggressive cleaning chemicals attack substandard steel, the resulting pitting creates microscopic harbors for bacterial growth. This compromises entire production batches and forces emergency shutdowns.

You must objectively evaluate SS304 and SS316L based on chemical composition, lifecycle costs, and specific process conditions. Understanding the metallurgical differences allows you to match the alloy to your fluid dynamics and cleaning protocols. This evaluation prevents premature equipment failure and ensures regulatory compliance across your piping network. We will break down the exact parameters you need to select the optimal stainless steel sanitary check valve for your facility.

• SS304 provides a cost-effective baseline for standard, low-chloride sanitary applications, such as basic dairy, brewing, or beverage processing. Its wide availability makes it highly attractive for large-scale facility builds.

• SS316L contains 2-3% molybdenum, offering superior resistance to pitting and crevice corrosion in harsh, high-chloride, or acidic environments.

• The "L" designation indicates low carbon content (<0.03%), which prevents carbide precipitation during welding and ensures long-term structural integrity in sanitary lines.

• Lifecycle costs often favor SS316L in aggressive Clean-in-Place (CIP) and Steam-in-Place (SIP) environments, offsetting its higher initial material cost through extended service life and reduced maintenance.

Key Requirements for Stainless Steel Sanitary Check Valves

Sanitary Standards and Surface Finish Requirements

Sanitary processing demands strict adherence to industry standards. Components must meet ASME BPE (Bioprocessing Equipment), 3-A Sanitary Standards, and FDA compliance guidelines. These frameworks dictate how equipment interacts with consumable or pharmaceutical products. Surface finish plays a dominant role in this compliance. The Roughness Average (Ra) measures the microscopic peaks and valleys on the metal surface. Standard sanitary applications require an Ra of 32 micro-inches (0.8 micrometers) or better. High-purity pharmaceutical lines often demand an Ra of 15 micro-inches (0.38 micrometers), followed by electropolishing.

A smooth surface prevents bacterial harborage. Microorganisms easily attach to rough metallic surfaces, forming biofilms that resist standard cleaning procedures. When you specify a check valve, you must verify the internal surface finish matches your pipeline requirements. Even a minor scratch or improper polish on the valve disc can ruin a sterile environment. Manufacturers achieve these finishes through mechanical polishing and subsequent chemical treatments. You must demand documentation proving the valve meets the specified Ra value before installation.

Field inspectors use specific procedures to verify these finishes before signing off on a new piping installation. You should implement the following verification steps during receiving inspection:

1. Review the manufacturer's surface finish certification document against the purchase order requirements.

2. Perform a visual inspection of the valve internals using a bright flashlight to check for obvious machining marks, burrs, or dull spots.

3. Utilize a calibrated handheld profilometer to take three separate Ra readings across the internal valve body and the seating surface.

4. Verify that the electropolished surfaces exhibit a uniform, highly reflective finish without frosting or pitting.

5. Document the profilometer readings in the facility's quality management system before releasing the component to the installation crew.

How Sanitary Check Valves Prevent Backflow and Contamination

The primary function of any check valve is directional flow control. In sanitary systems, preventing backflow is non-negotiable. Reverse flow causes cross-contamination between different product batches or between raw and processed fluids. A reliable check valve provides instantaneous closure the moment forward fluid pressure drops. This rapid response protects high-purity process streams from downstream contaminants.

Spring-loaded sanitary check valves utilize a calibrated spring to hold the disc against the seat. The cracking pressure—the minimum upstream pressure required to open the valve—must align with your system dynamics. Standard cracking pressures range from 0.5 to 1.5 PSI. If the spring is too weak, the valve may flutter, causing mechanical wear and inconsistent flow. If the spring is too strong, it restricts flow and causes unacceptable pressure drops across the line. Proper sizing and material selection ensure the internal mechanisms respond accurately to fluid changes. This mechanical reliability directly safeguards your product integrity.

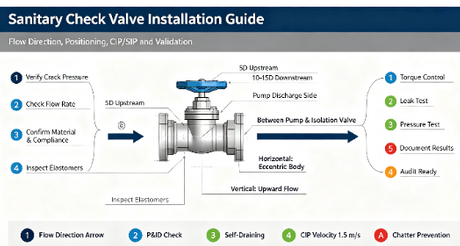

Cleanability and Drainability

Sanitary systems rely on automated Clean-in-Place (CIP) and Steam-in-Place (SIP) protocols. Equipment must clean thoroughly without manual disassembly. Check valves introduce inherent challenges to cleanability because they contain moving parts and internal cavities. Designing for zero dead legs is mandatory. A dead leg is a stagnant area where fluid collects and escapes the turbulent flow of cleaning chemicals. Industry standards generally restrict dead legs to a length-to-diameter (L/D) ratio of less than 2:1.

Drainability ensures no residual fluids remain after cleaning cycles. Horizontal valve installations require eccentric designs or specific mounting angles to allow complete fluid evacuation. Vertical installations naturally drain better but require careful spring calibration to account for the weight of the fluid column and the valve disc. The internal geometry of the valve body must promote turbulent flow during CIP cycles. You need a minimum fluid velocity of 1.5 meters per second (5 feet per second) to scrub the internal surfaces, remove product residue, and sanitize the flow path completely.

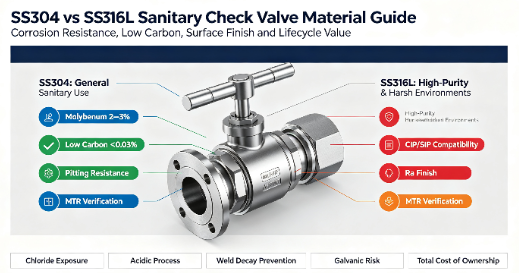

SS304 vs SS316L Stainless Steel: Key Differences

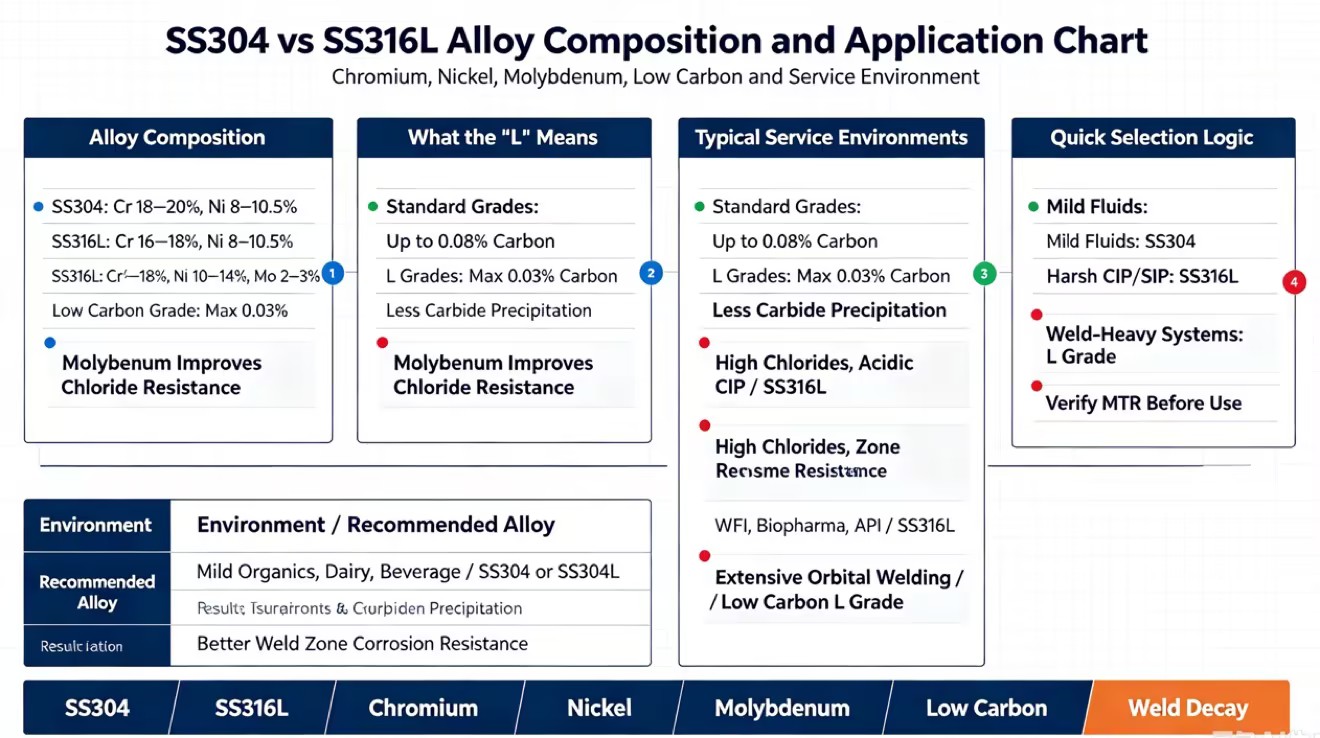

304 vs 304L vs 316 vs 316L: What Is the Difference?

The main difference between these stainless steel grades is carbon content and corrosion resistance. The “L” means low carbon, which improves welding performance by reducing the risk of corrosion around welded areas. SS304 and SS316 are suitable for general applications, while SS304L and SS316L are preferred for sanitary systems that require extensive welding.

SS304 Stainless Steel: Features and Applications

SS304 is one of the most widely used stainless steels in food and beverage processing. It provides good corrosion resistance, durability, and cost efficiency for standard applications. It is suitable for mild environments such as dairy, brewing, and purified water systems. However, SS304 has lower resistance to chlorides and aggressive cleaning chemicals, making it unsuitable for highly corrosive conditions.

SS316L Stainless Steel: Advantages and Applications

SS316L offers higher corrosion resistance than SS304 due to the addition of molybdenum. It performs better in environments exposed to chlorides, strong cleaning agents, and high-purity processes. The low carbon content also improves weld durability, making SS316L ideal for pharmaceutical, biotech, API production, and other demanding sanitary applications. It provides longer service life and better protection against contamination risks in critical systems.

How to Choose the Right Stainless Steel Grade

Chemical Compatibility and Corrosion Resistance

Material selection should consider both process fluids and cleaning chemicals. SS304 works well in mild environments but is more sensitive to chloride exposure and harsh CIP chemicals, which can cause corrosion over time. SS316L contains molybdenum, providing better resistance to chloride corrosion and making it more suitable for pharmaceutical, high-purity, and demanding sanitary applications.

Temperature Resistance and Pressure Performance

Sanitary check valves must withstand repeated heating and sterilization cycles, especially during SIP processes. Both SS304 and SS316L can handle high temperatures, but the seals and internal components also affect overall performance. Selecting suitable FDA-approved elastomers, such as EPDM, PTFE, or FKM, ensures reliable sealing under repeated temperature changes and cleaning cycles.

Weldability and Installation Realities

Installation methods heavily influence material selection. Modern sanitary systems rely on autogenous orbital welding to join pipes and valves. This automated process creates smooth, crevice-free connections using a tungsten electrode and argon purge gas. As discussed, the low-carbon "L" grade prevents weld decay. Intergranular corrosion at the heat-affected zone (HAZ) will destroy a piping system from the inside out. Specifying SS316L or SS304L eliminates this risk entirely.

Post-weld surface treatment remains mandatory regardless of the alloy chosen. Welding alters the surface chemistry and destroys the passive oxide layer. You must perform chemical passivation using nitric or citric acid (following ASTM A380 guidelines) to restore this protective barrier. For high-purity applications, electropolishing removes microscopic surface imperfections and creates a chromium-rich surface layer. SS316L responds exceptionally well to electropolishing, achieving the ultra-smooth finishes required for pharmaceutical manufacturing.

SS304 vs SS316L: Cost and Long-Term Value

Initial Cost vs Long-Term Maintenance Cost

SS316L components usually have a higher initial cost than SS304, but the best choice depends on the operating environment. For mild applications with low chloride exposure, SS304 can provide reliable performance and reduce upfront investment. However, in corrosive environments, SS304 may require more replacements and maintenance, making SS316L a more cost-effective option over the equipment lifetime.

Maintenance and Inspection Frequencies

Material selection directly affects maintenance requirements and equipment lifespan. SS304 used in demanding environments may require more frequent inspections and corrosion prevention treatments, while SS316L provides better corrosion resistance and longer service life. Combining a durable SS316L valve body with reliable seals helps reduce downtime and extend maintenance intervals.

Conclusion

SS304 remains structurally and chemically sufficient for baseline sanitary needs and large-scale general builds handling mild fluids. Conversely, SS316L stands as a mandatory specification for aggressive, high-purity, or high-chloride environments where localized corrosion threatens system integrity. Base your material decision on the most aggressive chemical exposure the valve will face. This is almost always the automated CIP and SIP cleaning cycles, rather than the process fluid itself. Protecting your production line requires matching the metallurgy to the harshest reality of your daily operations.

1. Audit your current CIP chemical concentrations, paying specific attention to chloride levels and operating temperatures.

2. Consult process fluid compatibility charts to verify how your specific product interacts with both 304 and 316L stainless steel.

3. Review your facility's welding requirements to confirm whether the low-carbon "L" grade is necessary for your installation methods.

4. Request MTR-backed quotes from certified sanitary valve manufacturers to ensure you receive verified, traceable alloys.

FAQ

Q: Can I use an SS304 check valve in a high-temperature CIP system?

A: Yes, provided the CIP chemicals do not contain high concentrations of chlorides or aggressive acids. SS304 handles high temperatures well, but hot chloride solutions will rapidly cause pitting and stress corrosion cracking. Always verify chemical compatibility first.

Q: Why is SS316L sanitary valving strictly required for pharmaceutical manufacturing?

A: Pharmaceutical systems use highly purified water (WFI) and aggressive sterilization chemicals. SS316L contains molybdenum, which prevents pitting and rouging in these harsh environments. The low carbon content also ensures clean, corrosion-resistant orbital welds necessary for sterile pipelines.

Q: What are the pros and cons of using 304L versus standard 304 for sanitary valves?

A: The primary pro of 304L is its low carbon content, which prevents weld decay (sensitization) during installation. The con is a slightly lower tensile strength compared to standard 304. Use 304L when extensive welding is required in mild environments.

Q: Does the low carbon content in 316L affect the pressure rating of the valve?

A: Yes, slightly. The low carbon content reduces the yield and tensile strength of 316L compared to standard 316. However, sanitary piping systems generally operate at low pressures (under 150 PSI), making this minor strength reduction irrelevant for most applications.

Q: How do I verify the material grade of my stainless steel sanitary check valve?

A: You should request a Material Test Report (MTR) from the manufacturer before purchase. Upon delivery, you can perform Positive Material Identification (PMI) testing using an XRF analyzer to confirm the exact chemical composition of the metal.

Q: Will SS304 rust if exposed to saltwater or high-chloride environments?

A: Yes. SS304 lacks molybdenum, making its passive oxide layer vulnerable to chloride attacks. Exposure to saltwater, brine, or high-chloride cleaning agents will cause rapid pitting and rust. You must use SS316L for these specific environments.
